Description
Features

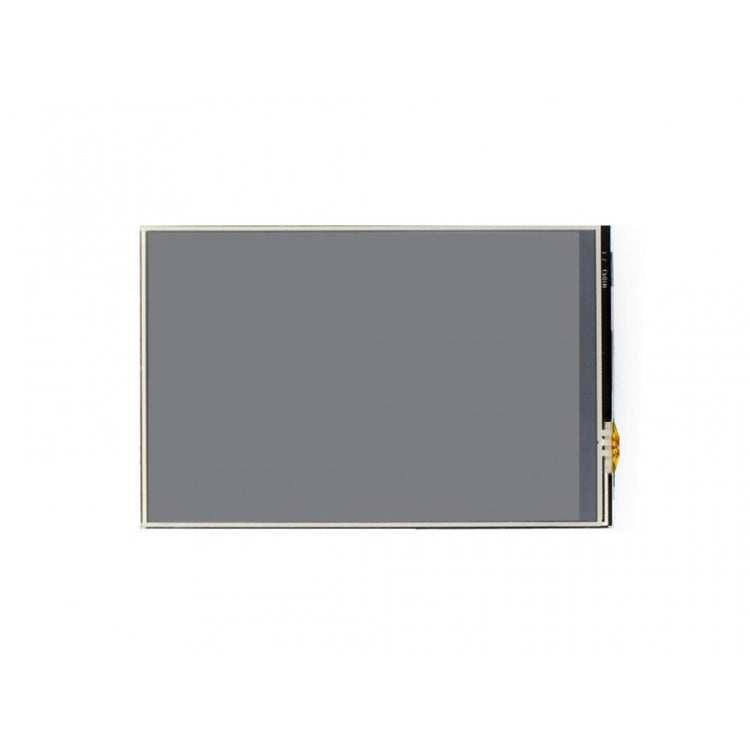

1. Resistive touch screen TFT LCD, 4inch, 480x320 resolution
2. Standard Arduino interface, compatible with development boards like : Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
3. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
4. PWM backlight control, allows to adjust the backlight to a comfortable level
5. Micro SD slot, provides an easy way to store photos for displaying
6. Controlled via SPI, only a few Arduino pins are used
7. Comes with STM32 and Arduino examples, convenient for porting
Key Parameters
1. LCD Type: TFT
2. LCD Interface: SPI
3. LCD Controller: ILI9486
4. Touch Screen Type: Resistive
5. Touch Screen Controller: XPT2046
6. Colors: RGB, 65K colors
7. Resolution: 480x320 (Pixel)
8. Aspect Ratio: 8:5
9. I/O Voltage: 3.3V/5V
Wiki : www.waveshare.com/wiki/4inch_TFT_Touch_Shield
Specification:
| Package Weight |
| One Package Weight |
0.11kgs / 0.24lb |
| One Package Size |
10cm * 7cm * 2cm / 3.94inch * 2.76inch * 0.79inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
60cm * 35cm * 40cm / 23.62inch * 13.78inch * 15.75inch |
| Loading Container |
20GP: 317 cartons * 600 pcs = 190200 pcs
40HQ: 736 cartons * 600 pcs = 441600 pcs
|
|
