Description
1. Material: ABS
2. DC voltage: 0.8V-1000V
3. AC voltage: 0.8V-750V
4. AC/DC current: 0mA-10A
5. Resistance: 0Ω-60MΩ
6. Capacitance: 0.0mF-100.0mF
7. Count: 6000
8. Automatic shutdown: the meter will automatically shut down after 15 minutes of inactivity to save power.

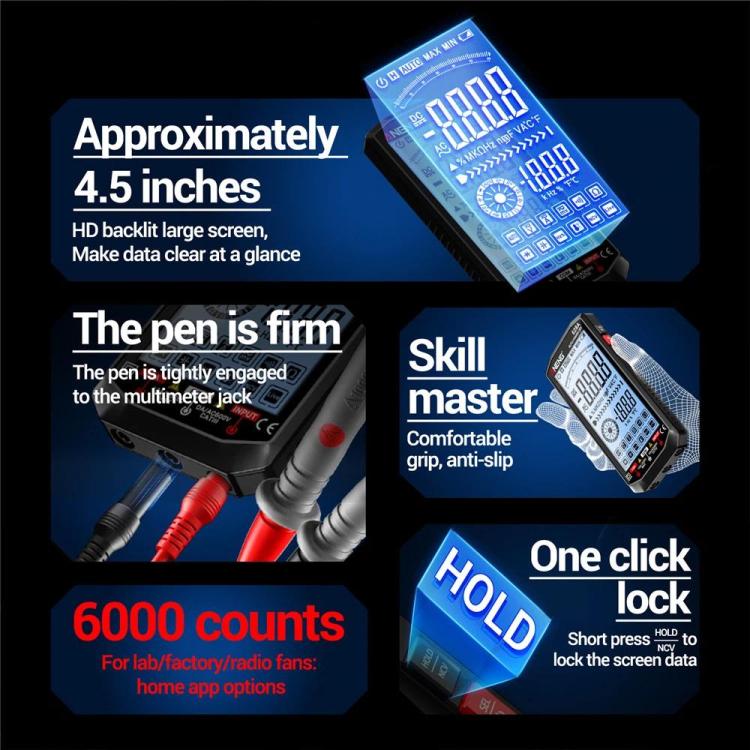

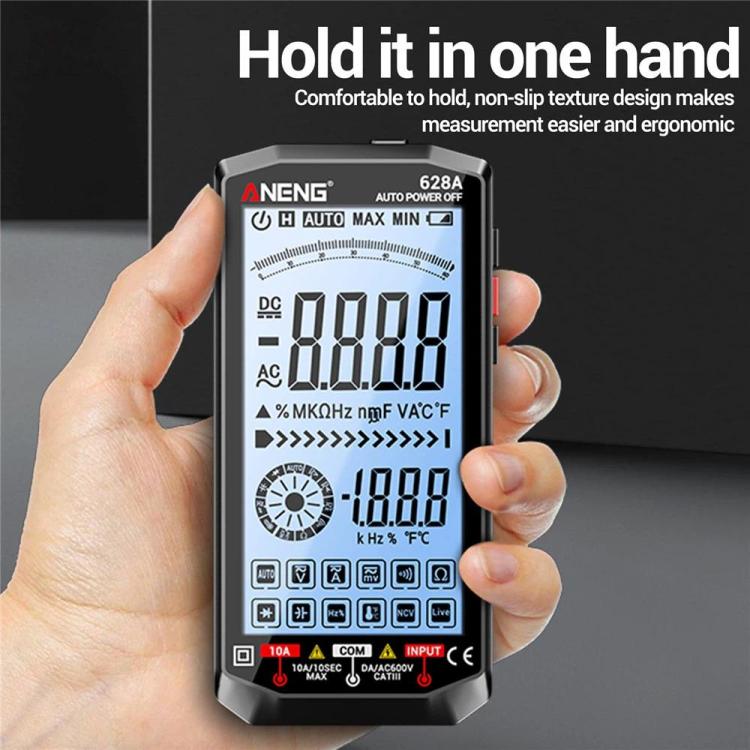

9. Comfortable grip with anti-slip textured design for easier measurement; ergonomic design.

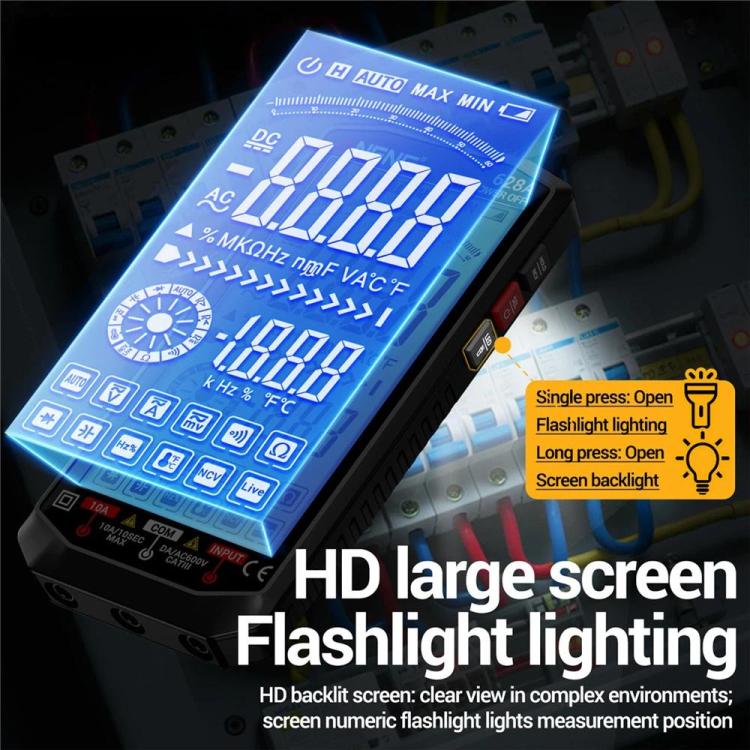

10. High-definition backlit screen ensures clear visibility in complex environments; flashlight illumination eliminates the fear of not being able to see the measurement location.

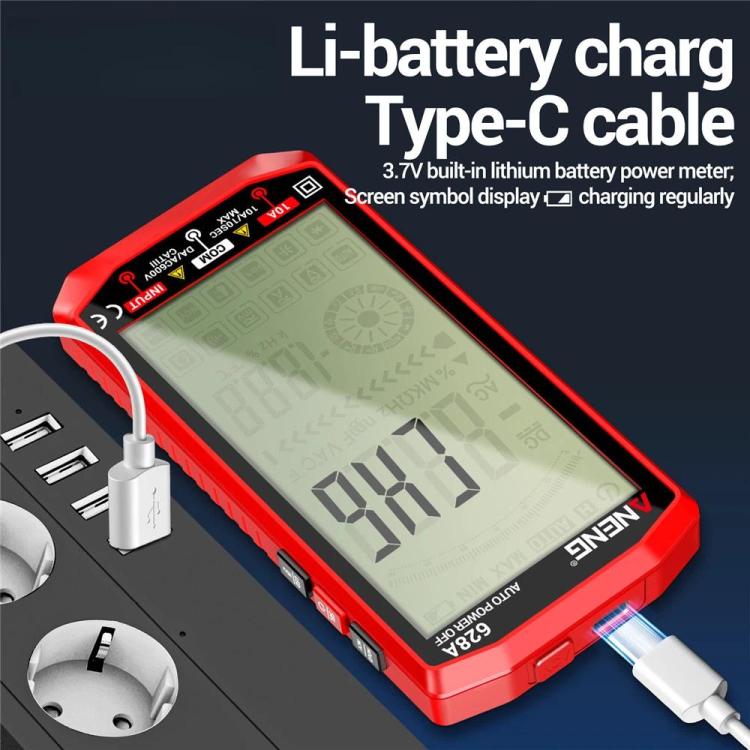

11. The meter is powered by a built-in 3.7V lithium battery and comes with a TYPE-C charging cable.

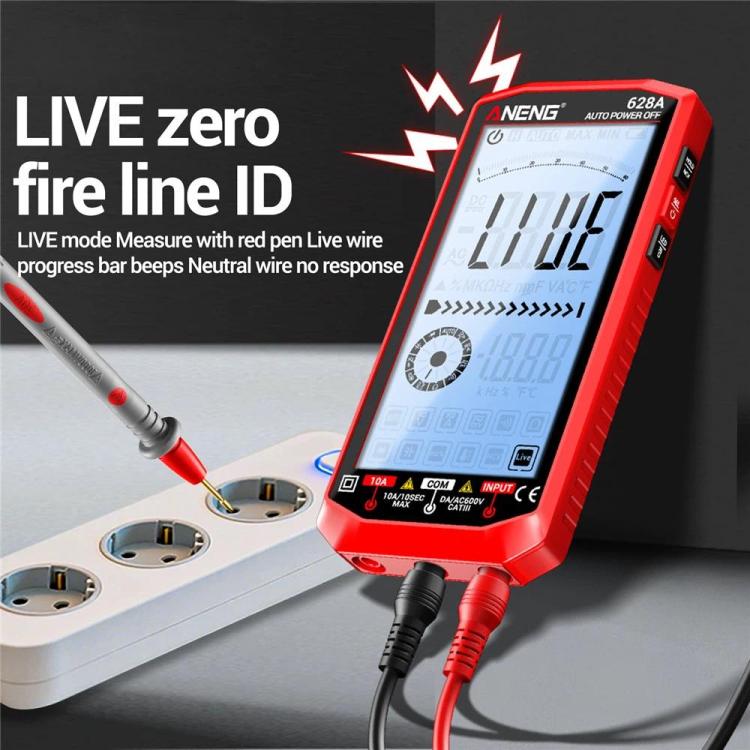

12. Switch to LIVE mode and use the red probe to measure. When it touches the live wire, a progress bar will appear on the screen, accompanied by a beep; the neutral wire will not react.
13. Connect the positive and negative terminals of the temperature wire to the instrument, and touch the other end to the object being measured. The real-time temperature will be displayed, providing clear data and easy operation.
14. Switch to the NCV setting. When AC voltage is detected, a beeping alarm will sound; the closer the object, the more rapid the alarm.

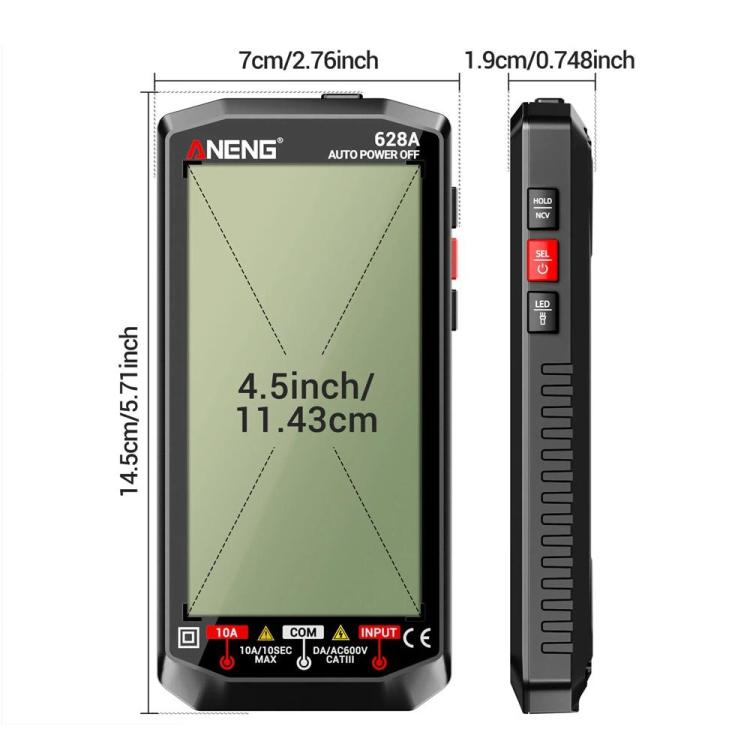

15. Dimensions: 14.5 x 7 x 1.9 cm
16. Weight: 162g
Specification:
| Package Weight |
| One Package Weight |
0.41kgs / 0.90lb |
| One Package Size |
15cm * 8cm * 5cm / 5.91inch * 3.15inch * 1.97inch |
| Carton Weight |
30.30kgs / 66.80lb |
| Carton Size |
47cm * 34cm * 32cm / 18.5inch * 13.39inch * 12.6inch |
| Loading Container |
20GP: 521 cartons * 72 pcs = 37512 pcs
40HQ: 1210 cartons * 72 pcs = 87120 pcs
|
|
