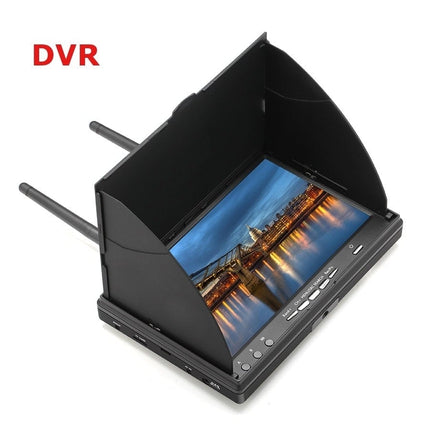

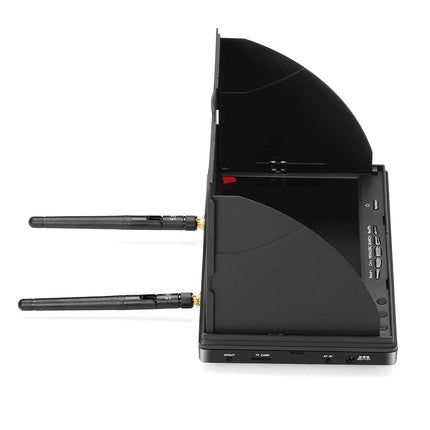

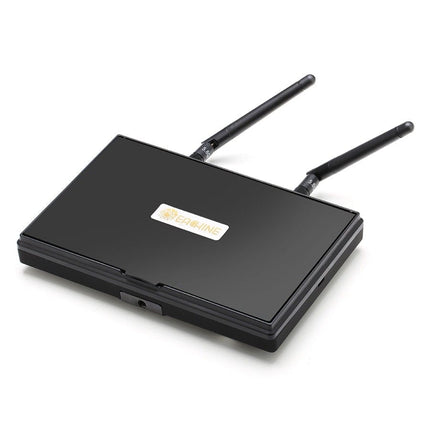

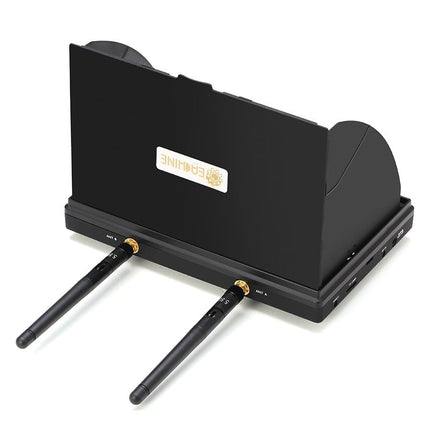

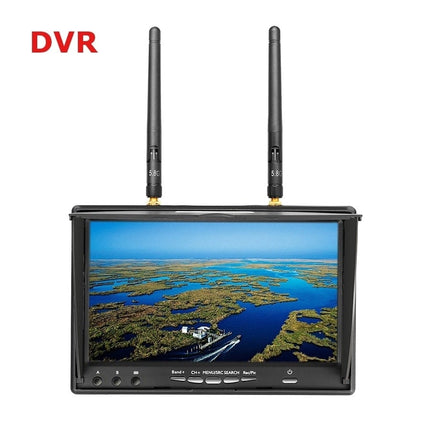

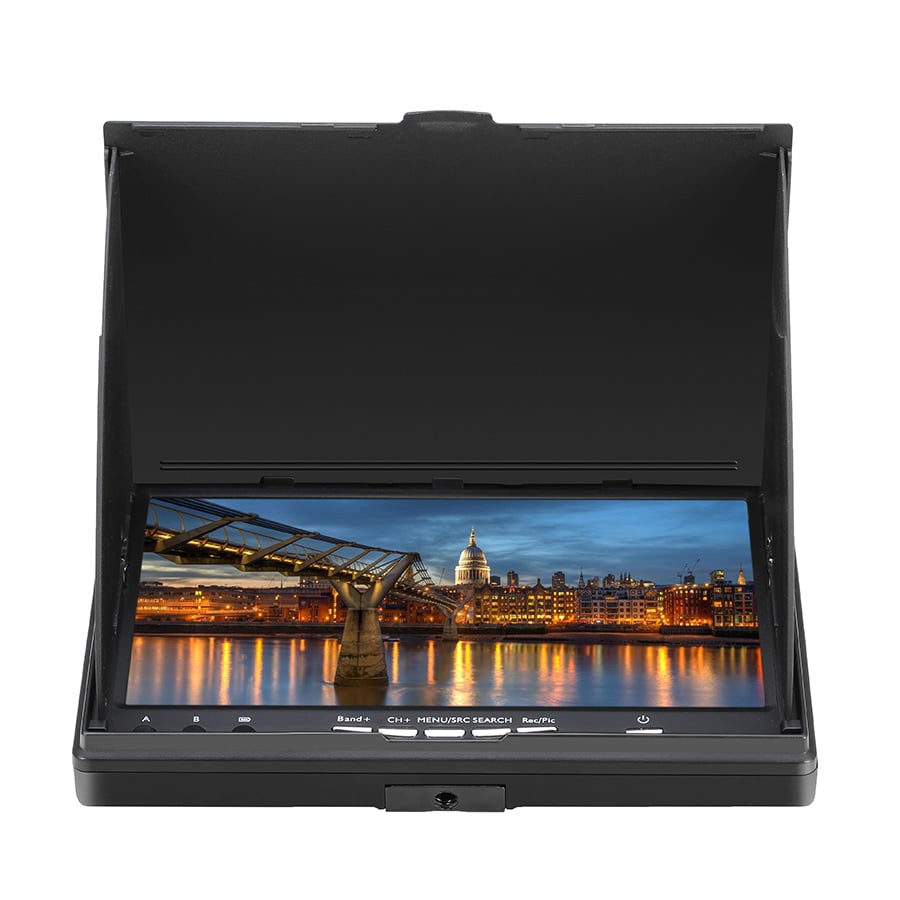

This is the LCD 5502D FPV monitor from Eachine. This is a great 7-inch monitor with a built-in 5.8GHz dual diversity receiver so that you receive the best reception. This monitor also has a built-in DVR function and a built-in, rechargeable battery making this monitor one of the most practical in the field. It has a 800*480 resolution with a brightness of 600cd/m2 so it can be easily viewed outside on the sun (if you're lucky enough to catch some sun in Britain...). A great monitor to view your FPV feats on!
Key Features:
-
Built-in dual diverstiy receiver
-
Built-in rechargeable battery
-
7-inch, 800*480 resolution monitor
-
Built-in DVR function
-
OSD display
Specifications:
-
Format: JPEG, AVI
-
Screen size:7"
-
Screen type:TFT LCD Screen/long life, LED backlight
-
Resolution: 800*480
-
Brightness: 600cd/m
-
View Angle:140/120degree (Horizontal/Vertical)
-
Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
-
Working Voltage: DC 7~16V
-
Power Consumption: max 650 mA @12V
-
Battery charging current : 850mA @12V ( max )
-
Working temperature: -10℃~+ 65 ℃
-
Connectors: RP-SMA female(outer needle)
-
Antennas Connectors:RP-SMA male (inner hole)
-
Supports up to 32G , C10 SD Card

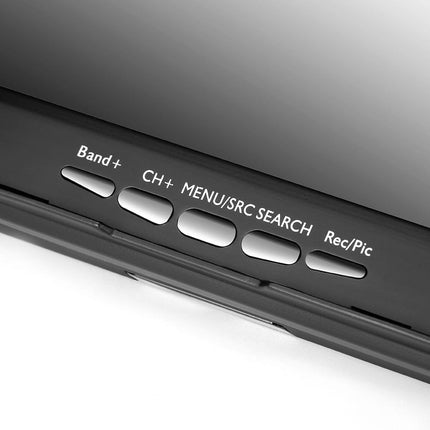

Band and Channel selection
|
CH
|
CH 1
|
CH 2
|
CH 3
|
CH 4
|
CH 5
|
CH 6
|
CH 7
|
CH 8
|
|
GROUP
|
|
A
|
5865 MHZ
|
5845 MHZ
|
5825 MHZ
|
5805 MHZ
|
5785 MHZ
|
5765 MHZ
|
5745 MHZ
|
5725 MHZ
|
|
B
|
5733 MHZ
|
5752 MHZ
|
5771 MHZ
|
5790 MHZ
|
5809 MHZ
|
5828 MHZ
|
5847 MHZ
|
5866 MHZ
|
|
C
|
5705 MHZ
|
5685 MHZ
|
5665 MHZ
|
5645 MHZ
|
5885 MHZ
|
5905 MHZ
|
5925 MHZ
|
5945 MHZ
|
|
D
|
5740 MHZ
|
5760 MHZ
|
5780 MHZ
|
5800 MHZ
|
5820 MHZ
|
5840 MHZ
|
5860 MHZ
|
5880 MHZ
|
|
R
|
5658 MHZ
|
5695 MHZ
|
5732 MHZ
|
5769 MHZ
|
5806 MHZ
|
5843 MHZ
|
5880 MHZ
|
5917 MHZ
|

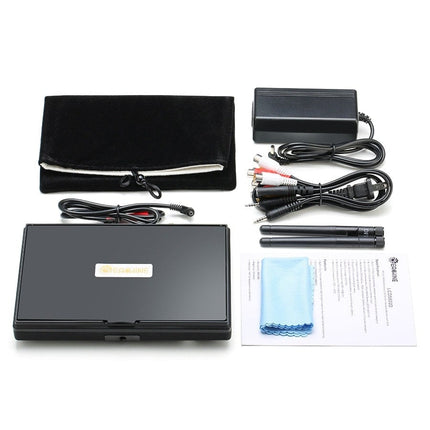

Package Includes:
-
1 x 7" LCD Screen Receiver Monitor with built in Rechargable Battery
-
2 x 5.8G Antenna
-
2 x AV Cable
-
1 x Charger
