Specification
-
Coaxial cable length: 65mm (2.4G)/90mm (868MHz/915MHz)
-
Connector: SMA Male
-
Gain: 2.3dBi (2.4G)/2.3dBi (868MHz/915MHz)
-
VSWR: <1.5 (2.4G)/<2.0 (868MHz/915MHz)
-
Polarization type: Linear polarization
-
Suggested for: Any 2.4G/915MHz TX module or radios
-
Suggested for:
BETAFPV Nano TX Module
/
BETAFPV Micro TX Module
, Any 2.4G/868MHz/915MHz TX module or radios

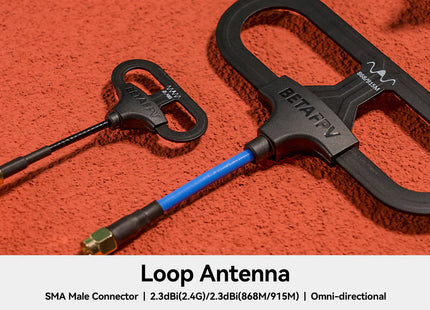

Loop Antenna or Moxon Antenna

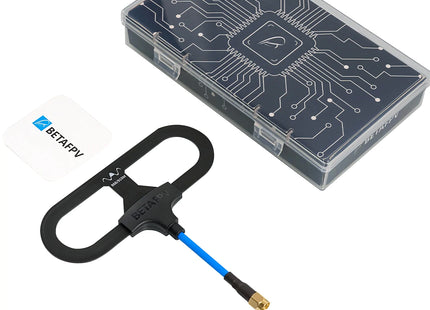

All antennas have a specific use case and choosing a suitable antenna is important to fly a quadcopter. BETAFPV Loop antenna is an omnidirectional antenna that radiates and receives the RF energy equally, providing a 360-degree radiation pattern that allows connectivity in all horizontal directions.
BETAFPV Moxon antenna
is a directional antenna that focuses RF energy on a required direction. For example, if pilots fly a quadcopter around within a certain range, the Loop antenna is an excellent choice. When flying a quadcopter for long distances in one direction, the Moxon antenna works better.
Included
