The Ultimate GPS Upgrade You've Been Waiting For

If you're tired of getting lost in your own backyard, the GOKU GM10 Mini V3 GPS w/ Compass is here to save the day. Same compact size as the original GM10, but now with a handy compass for those who like to know which way is up. Weighing a feather-light 4.1 grams, it won't weigh down your drone or your spirits.

Key Features

• Integrated Compass : Perfect for navigation enthusiasts who need precise direction.
• Lightning-Fast Satellite Search : Connects to up to 32 satellites in no time.
• Multisystem Compatibility : Supports GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS.

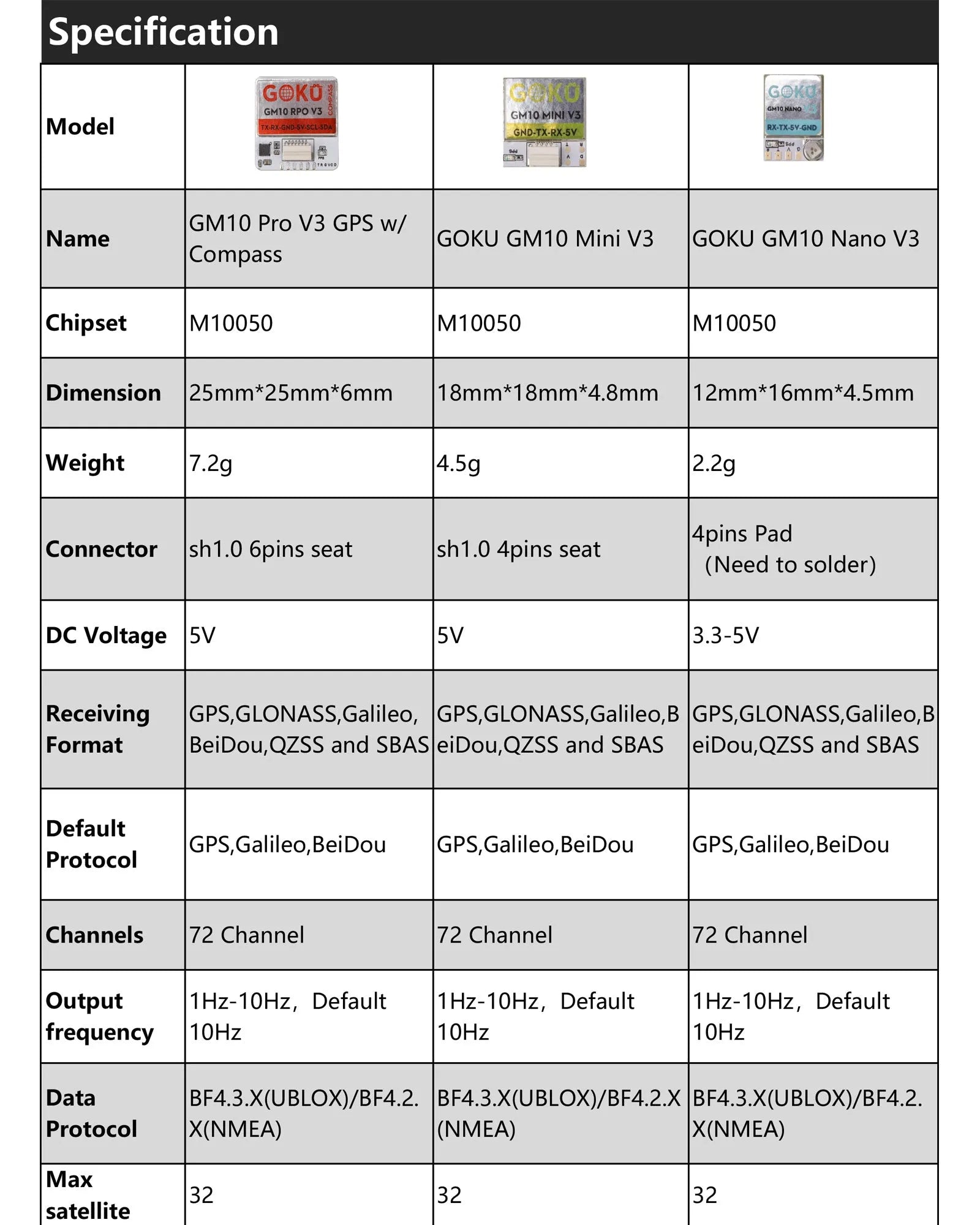

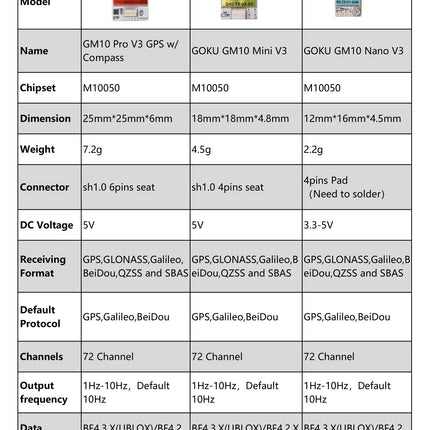

Specifications

• Brand : FLYWOO
• Model : GM10 Mini V3 GPS w/ Compass
• Dimensions : 18mm x 18mm x 4.8mm
• Weight : 4.1g
• Connector : 1.00mm spacing between the 4-pin patch seat

Electrical Characteristics

• Chipset : M10050 (10th Generation Chip)
• Receiving Formats : GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
• Default Protocol : GPS, Galileo, BeiDou
• Frequency : GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
• Channels : 72 Searching Channels

Sensitivity

• Tracking : -162dBm
• Reacquisition : -160dBm

Data and Update Rate

• Support Rate : 4800bps to 921600bps, Default 115200bps
• Data Level : TTL or RS-232, Default TTL level
• Data Protocol : BF4.3.X (UBLOX)/BF4.2.X (NMEA)
• Output Frequency : 1Hz-10Hz, Default 10Hz

Operational Limits

• Altitude : 50,000m Max
• Velocity : 500m/s Max
• Acceleration : Less than 4g

Power Consumption

• VCC : DC Voltage 5V
• Operating Temp : -40°C to +85°C
• Storage Temp : -40°C to +105°C

Indicator

• PPS LED : Yellow. Remains unlit when GPS signal is not fixed; flashes when fixed.

In the Box

• 1x GM10 Mini V3 GPS w/ Compass
• 1x 150mm Cable
• 1x Copper Foil

Disclaimer: Accessories may vary based on supply.
