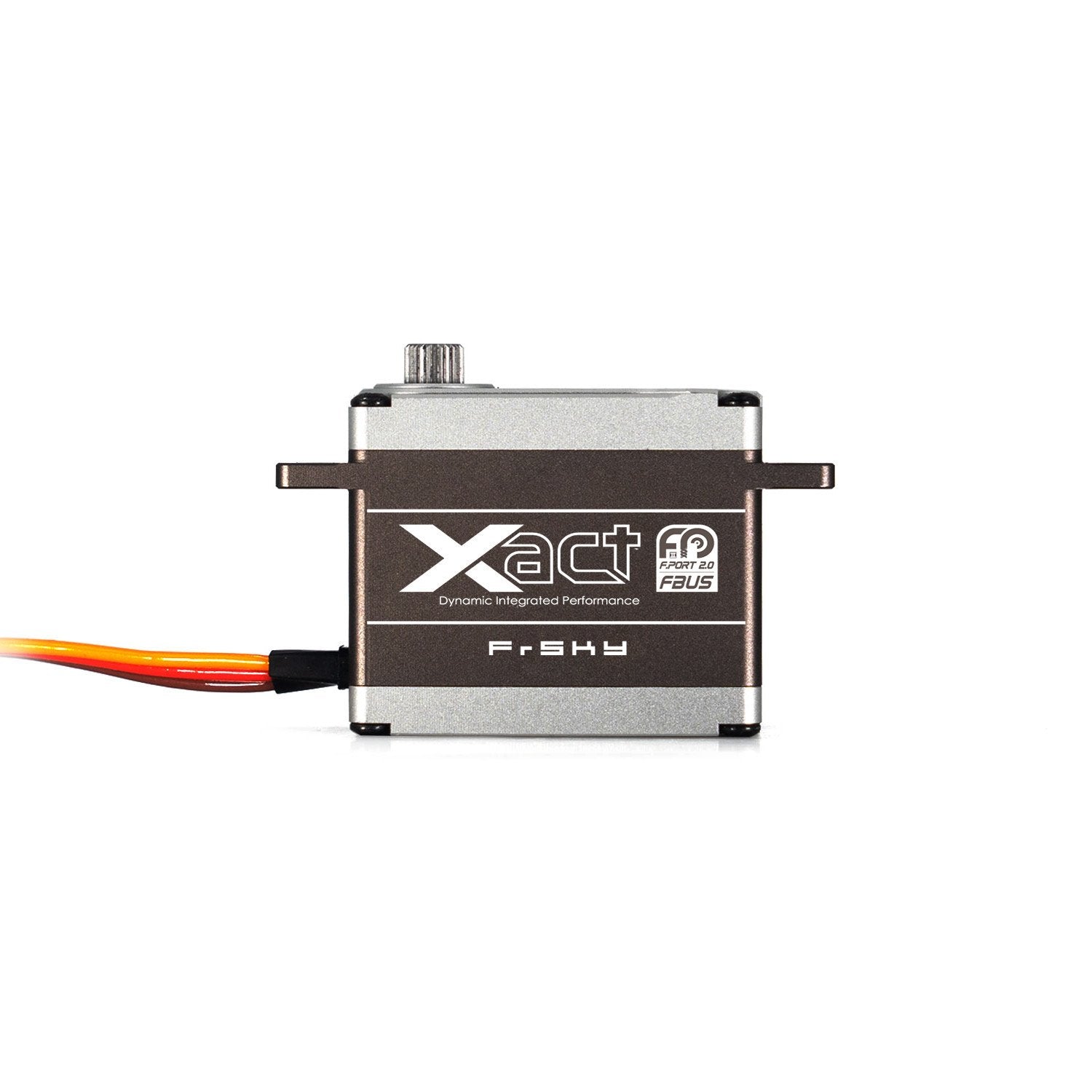

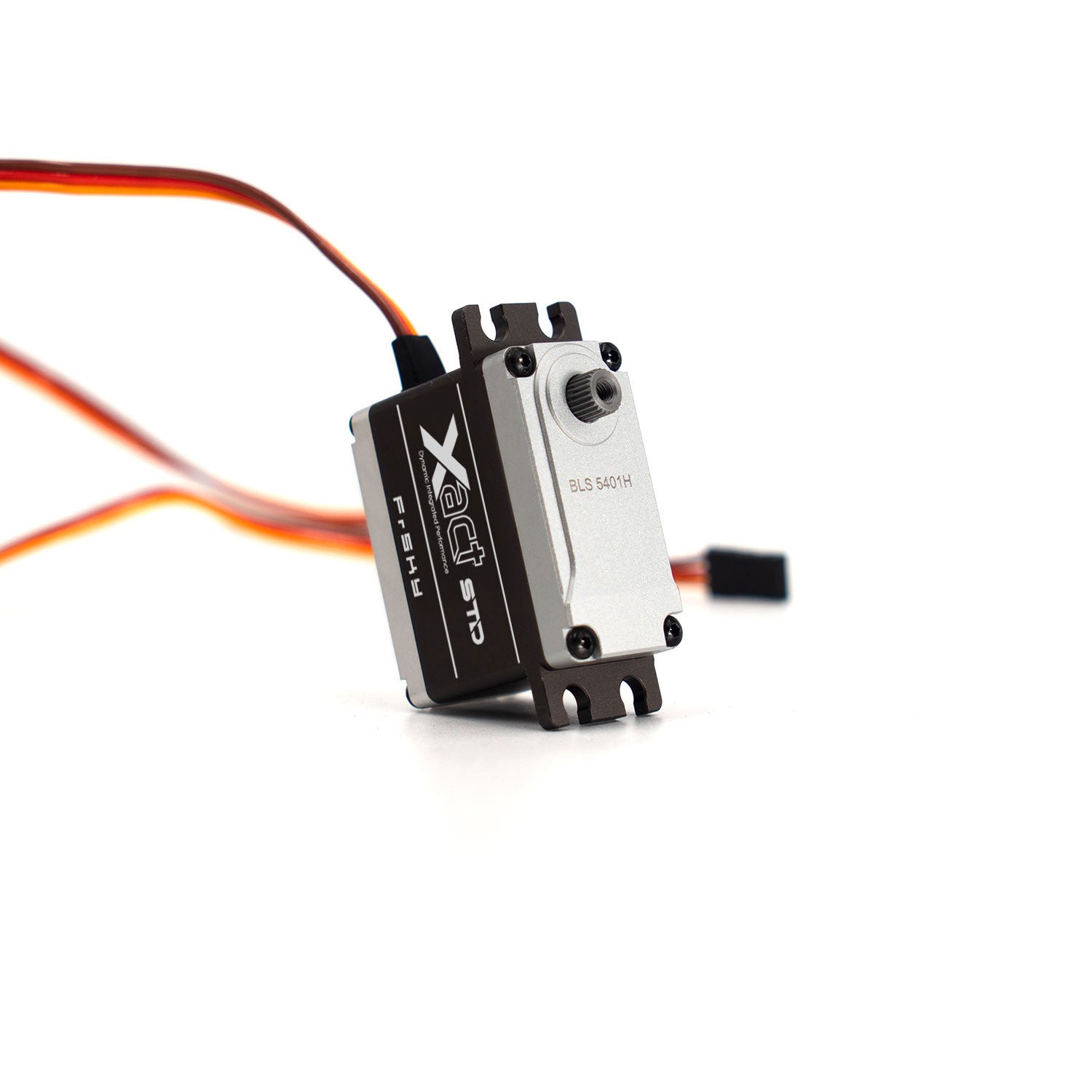

Compared to Xact coreless servo lines, the Xact brushless servos feature faster speed with higher torque performance, but a smaller form factor. The Xact series utilizes all CNC machined aluminum protective cases and metal gears and offers multiple configurations to fit for different model types and precision usage.
Working with the FBUS (F.Port 2.0) protocol, the telemetry data (like real-time current and voltage) of Xact servos can be achieved and transmitted back to the radio by connecting either FBUS capable receiver or flight controller. All the preset servo travel degrees can be changed directly on an ACCESS-capable radio (via ETHOS or LUA script) through the host device of the FBUS line.

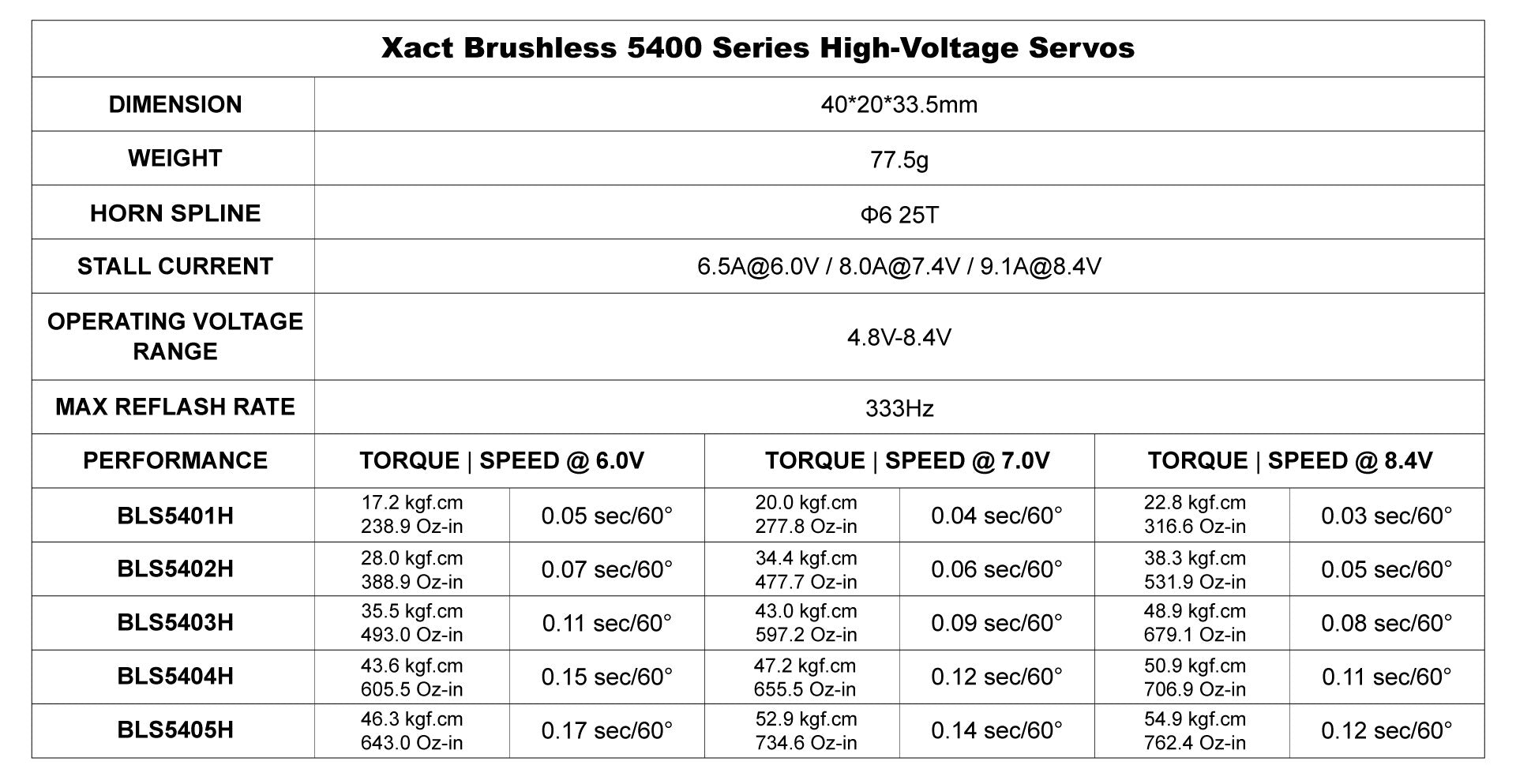

| Xact Brushless 5400 Series High-Voltage Servos | ||||||
| DIMENSION | 40x20x33.5mm | |||||
| WEIGHT | 77.5g | |||||
| HORN SPLINE | Φ6 25T | |||||
| STALL CURRENT | 6.5A@6.0V / 8.0A@7.4V / 9.1A@8.4V | |||||
| OPERATING VOLTAGE RANGE | 4.8V-8.4V | |||||
| MAX REFLASH RATE | 333Hz | |||||
| PERFORMANCE | TORQUE|SPEED @6.0V | TORQUE|SPEED @7.4V | TORQUE|SPEED @8.4V | |||
| BLS5401H |
14.6 kgf.cm
202.8 Oz-in |
0.05 sec/60° |
18.0 kgf.cm
250.0 Oz-in |
0.04 sec/60° |
20.5 kgf.cm
284.7 Oz-in |
0.03 sec/60° |
| BLS5402H |
22.2 kgf.cm
308.3 Oz-in |
0.07 sec/60° |
27.9 kgf.cm
387.5 Oz-in |
0.06 sec/60° |
30.4 kgf.cm
422.2 Oz-in |
0.05 sec/60° |
| BLS5403H |
32.0 kgf.cm
444.4 Oz-in |
0.11 sec/60° |
37.1 kgf.cm
515.2 Oz-in |
0.09 sec/60° |
42.2 kgf.cm
586.1 Oz-in |
0.08 sec/60° |
| BLS5404H |
36.0 kgf.cm
499.9 Oz-in |
0.15 sec/60° |
42.5 kgf.cm
590.2 Oz-in |
0.12 sec/60° |
45.8 kgf.cm
636.0 Oz-in |
0.11 sec/60° |
| BLS5405H |
41.7 kgf.cm
579.1 Oz-in |
0.17 sec/60° |
47.6 kgf.cm
661.0 Oz-in |
0.14 sec/60° |
49.4 kgf.cm
686.0 Oz-in |
0.12 sec/60° |
