The new ELRS V3 version comes with CrazyF411 ELRS AIO flight controller built-in UART ExpressLRS v3 receiver.

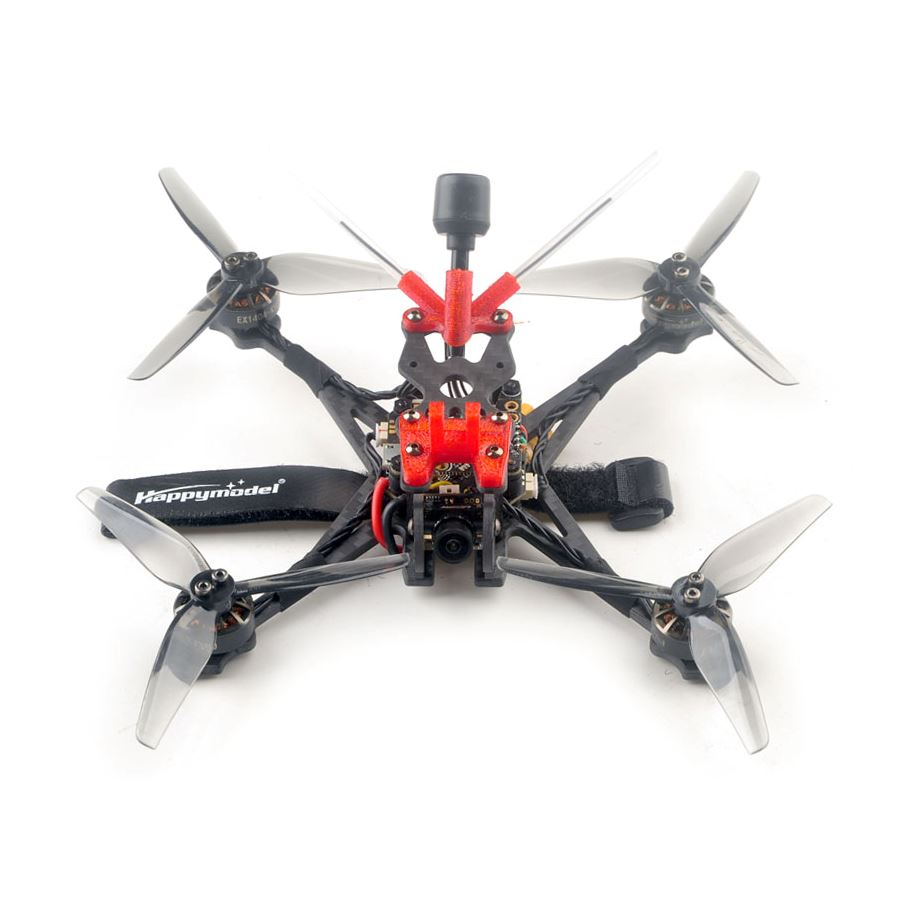

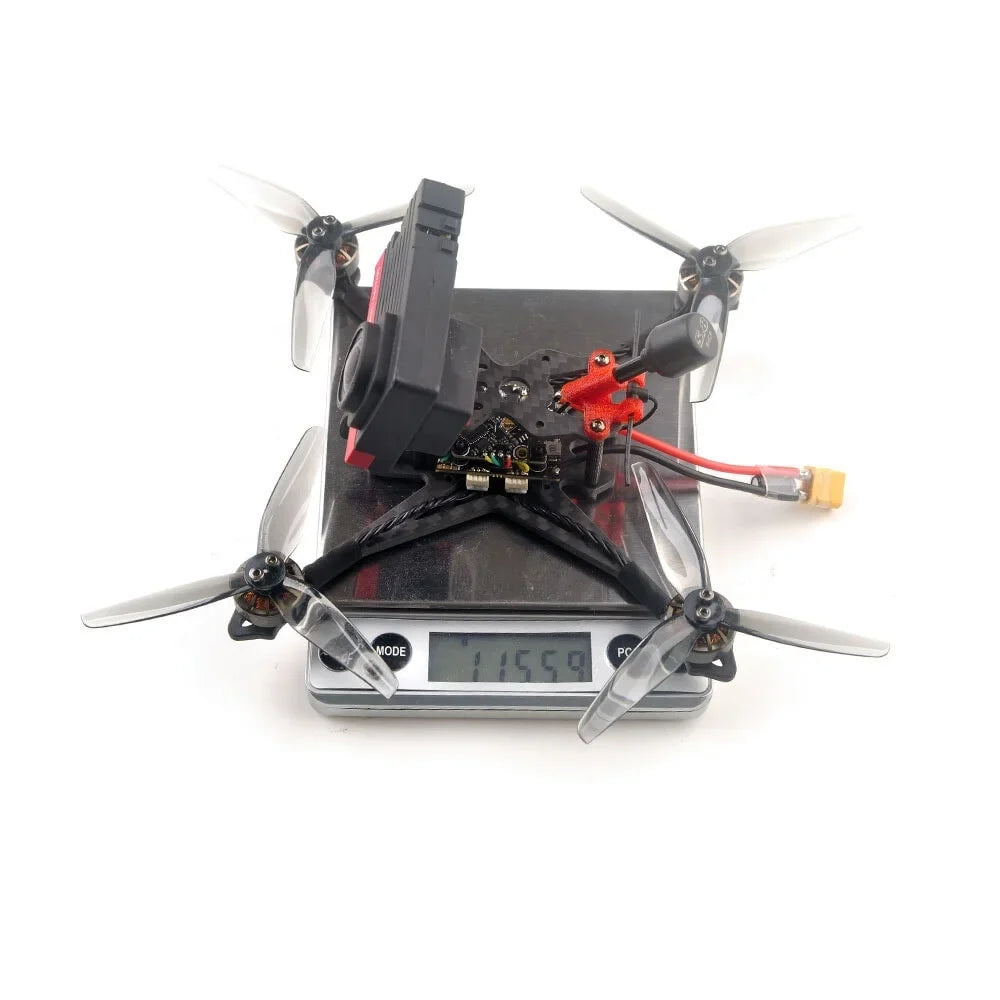

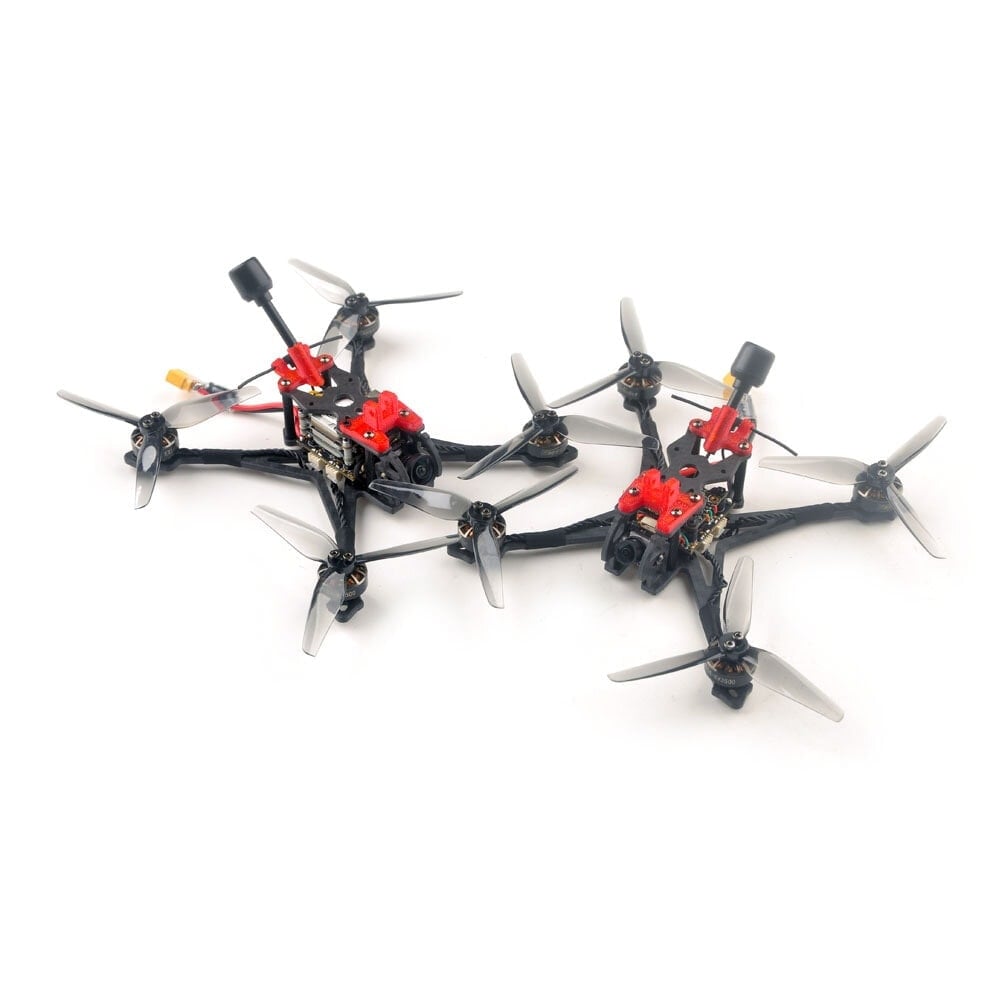

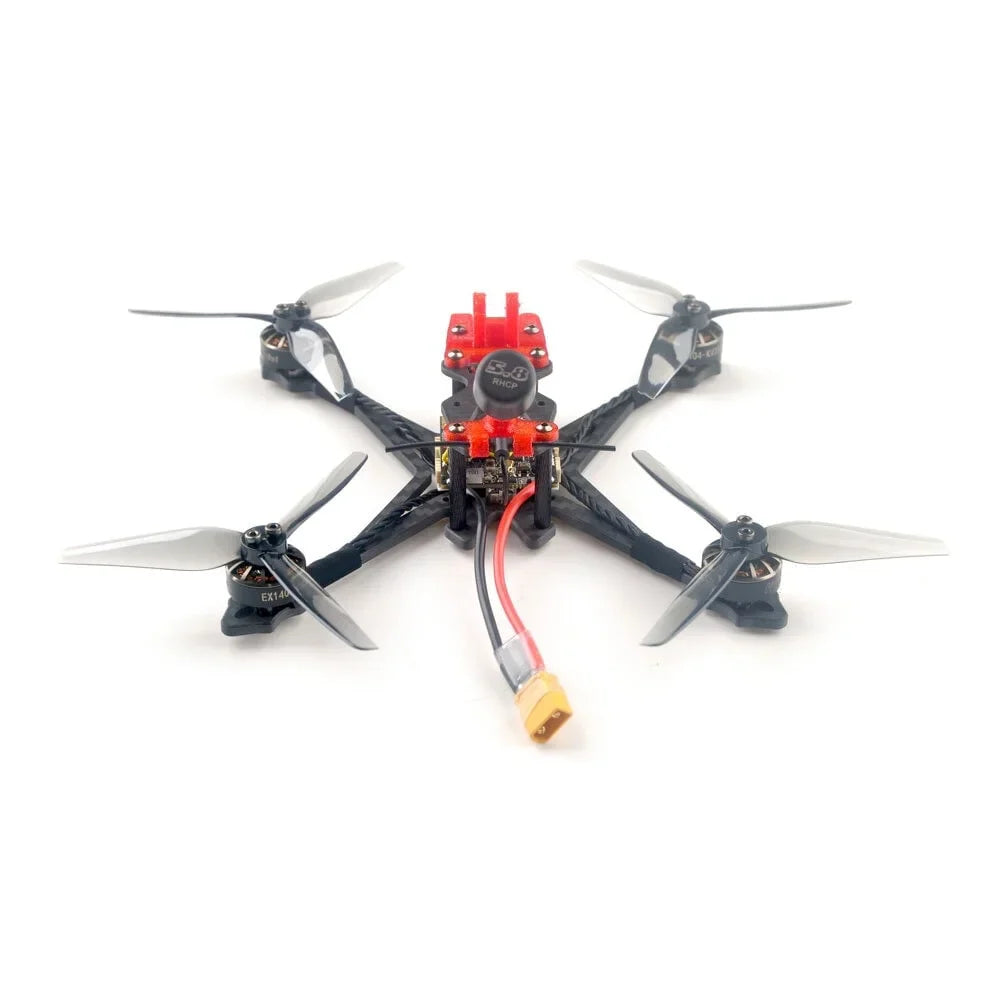

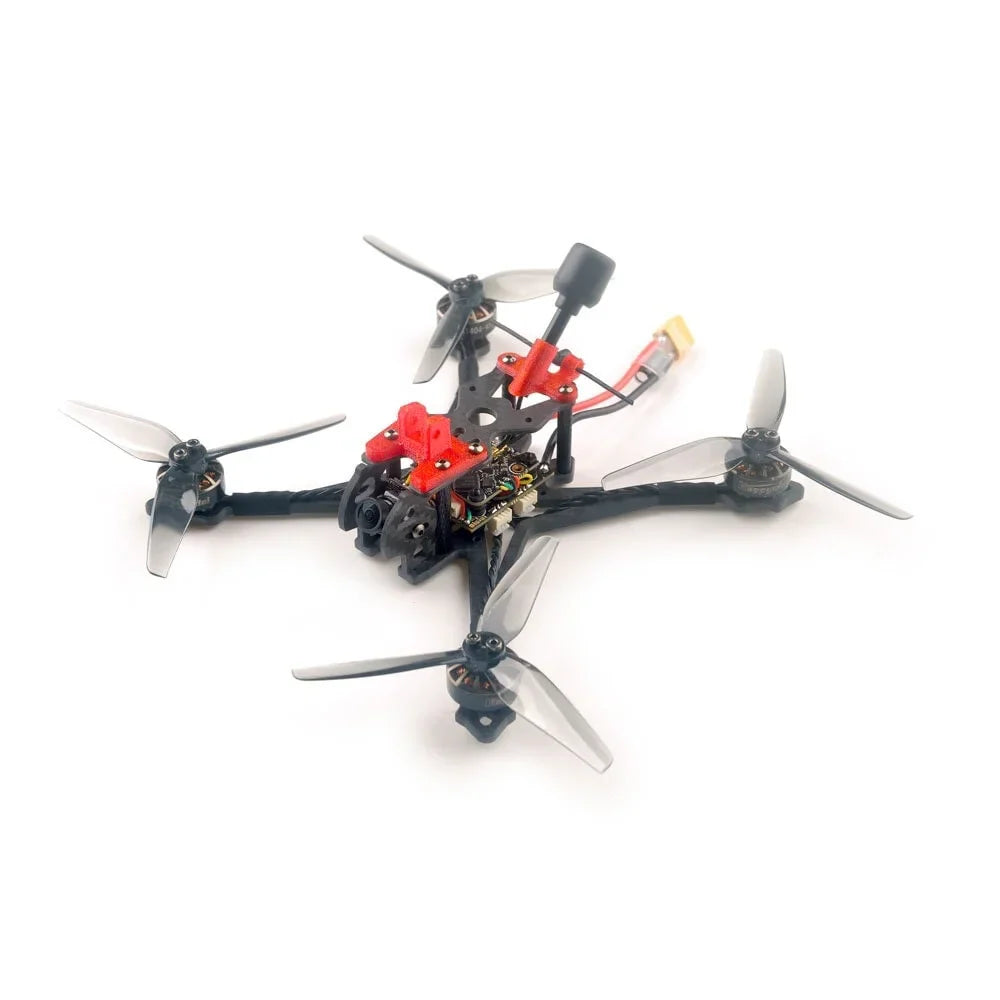

CRUX35 is an ultra-lightweight 3.5Inch FPV Freestyle Drone, the weight of the whole drone is only 87g for the analog version and 108g for the digital HD version. The Crux35 series drone uses Happymodel EX1404 high-efficiency motors and HQPROP 3.5-inch three-blade propeller to ensure the largest thrust-to-weight ratio under the most efficient premise, which can bring you a smooth Freestyle flying experience.
&feature=emb_title
The analog version is equipped with CADDXFPV Ant camera. The receiver version can be SPI Express LRS or SPI Frsky (S-FHSS compatible) for choose. The version in this product listing is the ELRS receiver.
| Motor |
Mode: EX1404
KV options: KV3500 Configu-ration:9N12P Stator Diamter:14mm Stator Length:4mm Shaft Diameter: Φ1.5mm Motor Dimension(Dia.*Len):Φ15mm*15mm Weight:9g |
| Propellers |
Propeller Diameter: 3.5 inch
Pitch : 2 Blades : 3 Material : Poly Carbonate Weight : 1.5g Hub Diameter : 10mm Hub Thickness:4.7mm Shaft :1.9/1.5/1.9mm Adaptor Rings : NO |
|
Flight controller
(ELRS Version) |
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection) Mount pattern: 20x20 M2Size:32*28*9mmPower supply: 2-4S Lipo batteryBuilt-in 12A Blheli_s ESC eachBuilt-in Betaflight OSD(SPI Control) Built-in SPI ExpressLRS 2.4GHz receiverBuilt-in 5V 1A BECFlight controller firmware target: CRAZYBEEF4SX1280 |
|
Flight controller
(Frsky version) |
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 2-4S battery input (DC 8V-17V) Built-in 20A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Frsky D8/D16 SPI receiverBuilt-in 2.4G Power Amplification Built-in Betaflight OSD(SPI Control) Built-in Current meter Built-in 5V 1.5A BEC Built-in voltage detectionFirmware target: MATEKF411RX |
| Onboard 4in1 ESC |
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_8.HEX Default protocol: DSHOT300 |
|
Onboard SPI ExpressLRS 2.4GHz Receiver
(ELRS Receiver version) |
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHzAntenna : SMD antenna Telemetry output Power: <12dBmReceiver protocol to flight controller: CRSFCould bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module |
| Onboard SPI Frsky 2.4GHz receiver (Frsky Receiver Version) |
SPI BUS receiver
Frsky D8/D16/EU-LBT/, Futaba S-FHSS switchable on Betaflight Channels: 8ch/16chDual antenna Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 400m |
|

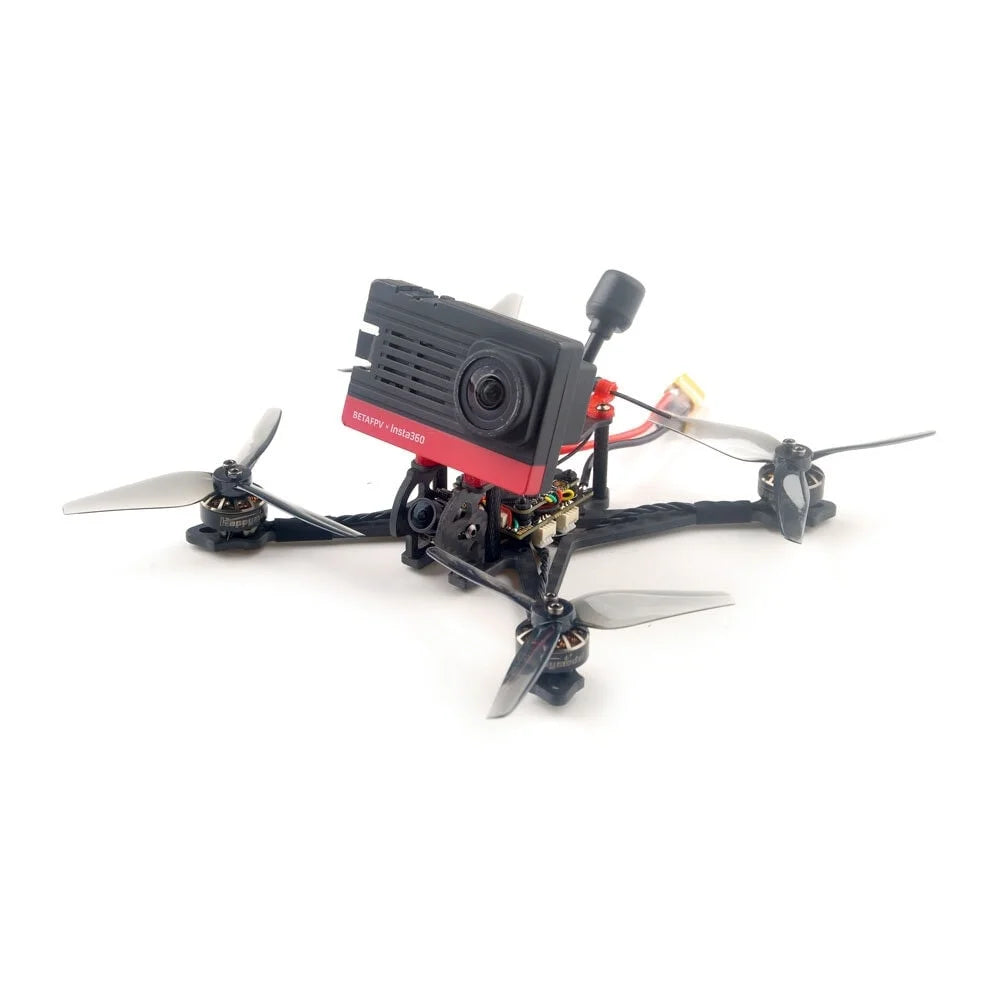

Caddx FPV Digital HD Camera Nebula Nano Kit
(Digital HD version) |
Weight(camera included]: 24g
Antenna: 2.3g Dimensions: Vista Kit 30×29×13mm Camera 14×14×21mm Operating Frequency: 5.725-5.850GHz Transmitter Power[EIRP]: FCC/SRRC/MIC:<30dBm CE:<14dBm Min.latencylend-to-end) 720p 60fps:32ms Max.Transmission Distance FcC/SRRC: 4km CE:0.7km lnput Power: 7.4-26.4V Power Output: 25mW/200mW/500mW/700mw Goggles : Work with DJl goggles Camera Sensor: 1/3"CMOS Lens: 2.1mm,f/2.1 Shutter: Rolling shutterFOV: 142°(D);122°(H);75°(V) LHCP antenna |
|
Caddx ANT 1200tvl camera
(Analog version) |
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14*14mm(with bracket to 19*19mm) Wide Power Input: DC 3.7-18V Work Temperature: -20℃~+60℃ Weight: 2g (N.W.) |
|
OVX303 5.8Ghz VTX
(Analog version) |
Model: OVX303
Frequency: 5.8G 40CH Transmitting Power: 0/RCE/25mw/100mw/300mw Power supply: DC 5V Current (5v): <650ma (300mw) Weight: 1.5gram without antenna |
