Please note, ELRS is a new open source project so please only order this if you are comfortable with regular firmware updates as the firmware is still in beta. We will only be able to offer limited support due to the early nature of the firmware, but we think this project has great potential.

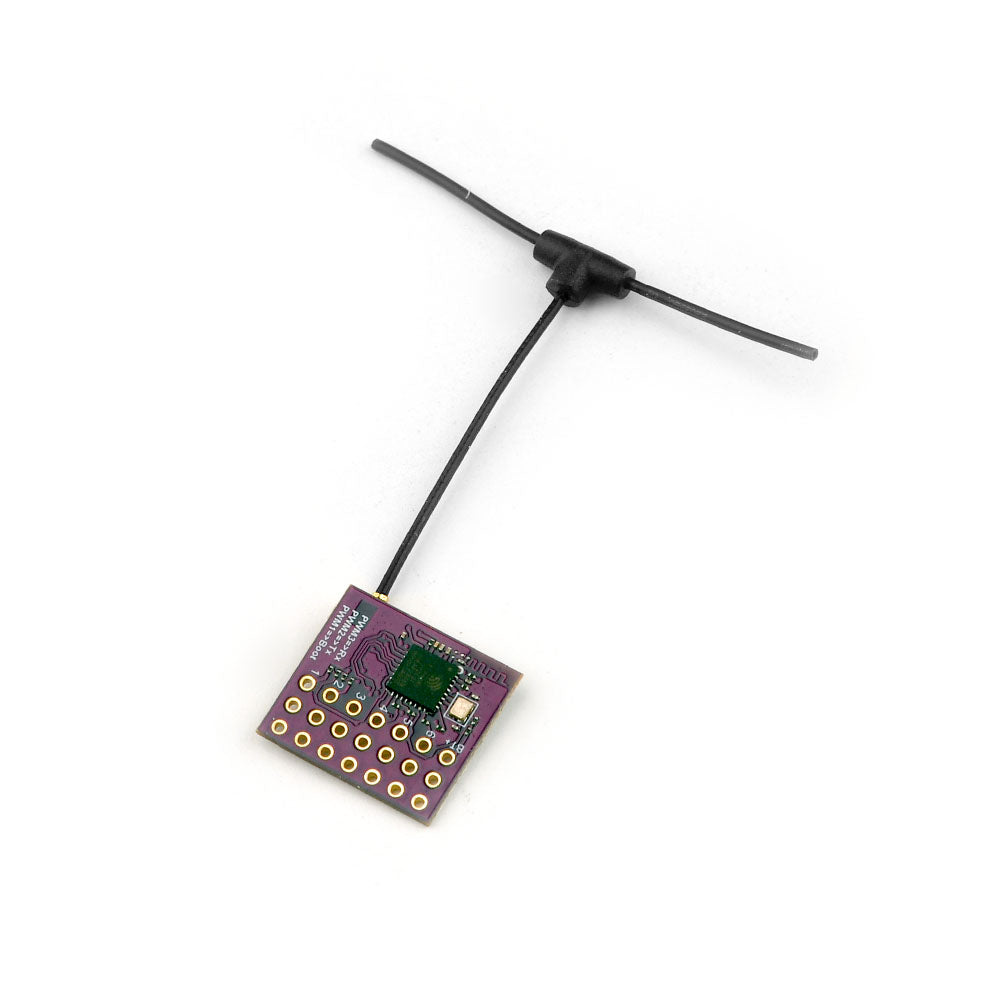

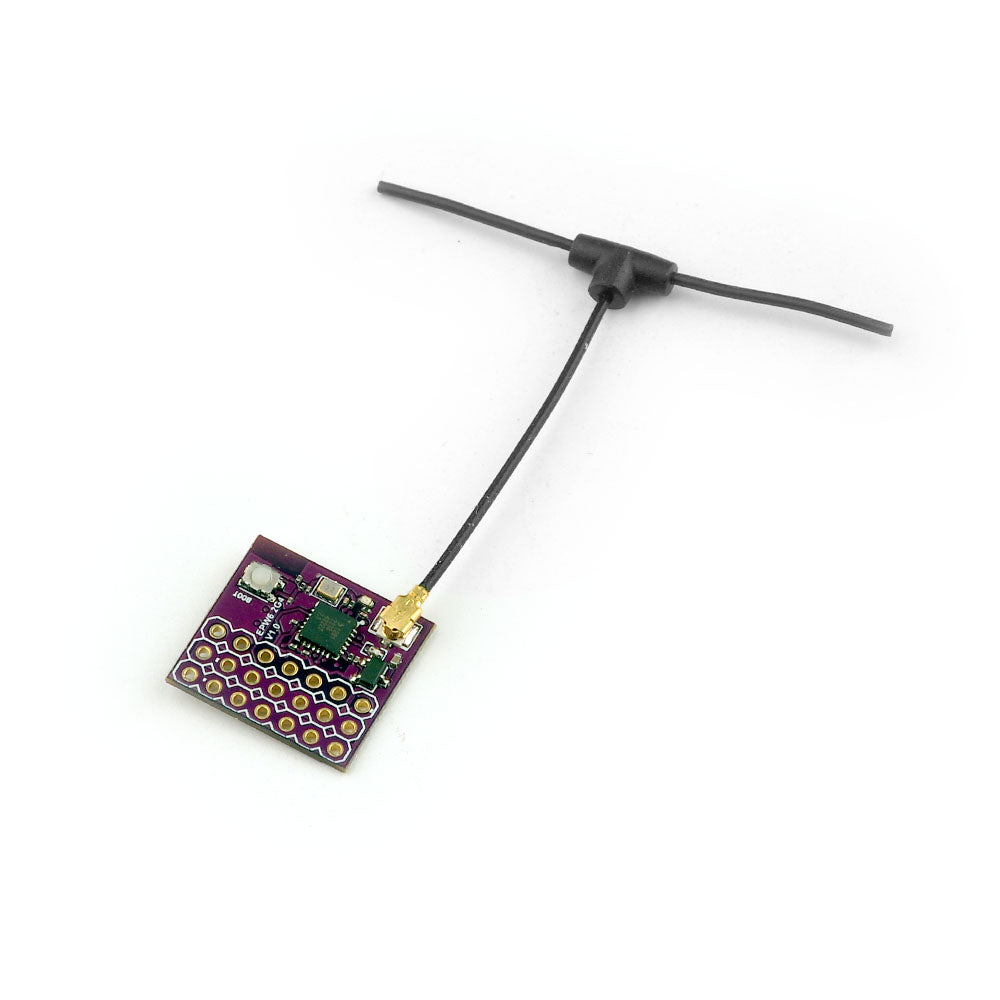

Introducing the Happymodel EPW6 TCXO 2.4GHz PWM Receiver - the tiny but mighty receiver for all your RC adventures!

Key Product Highlights:

1. ESP8285 and SX1280/1281 for high-quality signal reception
2. TCXO uses a temperature conpensated crystal oscillator which means accurate MCU clock frequency for improved performance and reliability of your RC link
3. Multiple protocol options - PWM or CRSF
4. Input voltage range from +5v to 8.4v for versatile compatibility

Small in size, but big on performance, the Happymodel EPW6 TCXO 2.4GHz PWM Receiver is designed to bring joy to your RC experiences. With its compact PCB size of 19mm x 17.5mm and weight of just 1.49g, you won't even notice it's there. But don't be fooled by its size! With its ESP8285 and SX1280/1281 components, this receiver delivers a strong and stable signal for ultimate control.

Choose from two target options to suit your needs - the PWM receiver with 1-6 PWM outputs, or the CRSF serial receiver via TX and RX. And, if you ever need to update your firmware, you can do it easily via WIFI!

So whether you're flying high in the skies or cruising on the ground, the Happymodel EPW6 TCXO 2.4GHz PWM Receiver has got you covered. Get your hands on one today and experience the ultimate RC thrill ride!

Specifications

Item: Happymodel EPW6 TCXO 2.4GHz pwm receiver
ESP8285, SX1280/1281
Antenna connector: IPEX MHF 1/U.FL

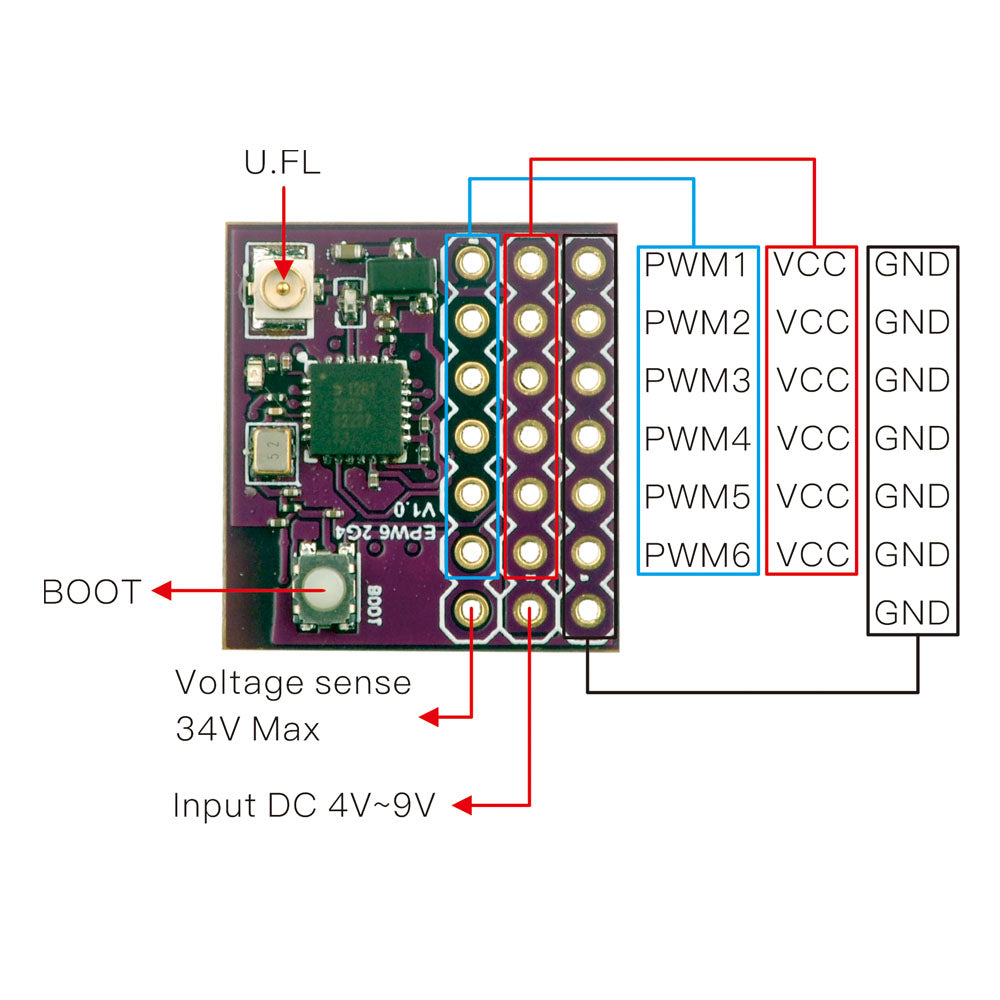

6x PWM outputs
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: 12dbm
Receiver protocol: PWM or CRSF
Input voltage: +5v~8.4v
PCB size: 19mm x 17.5mm

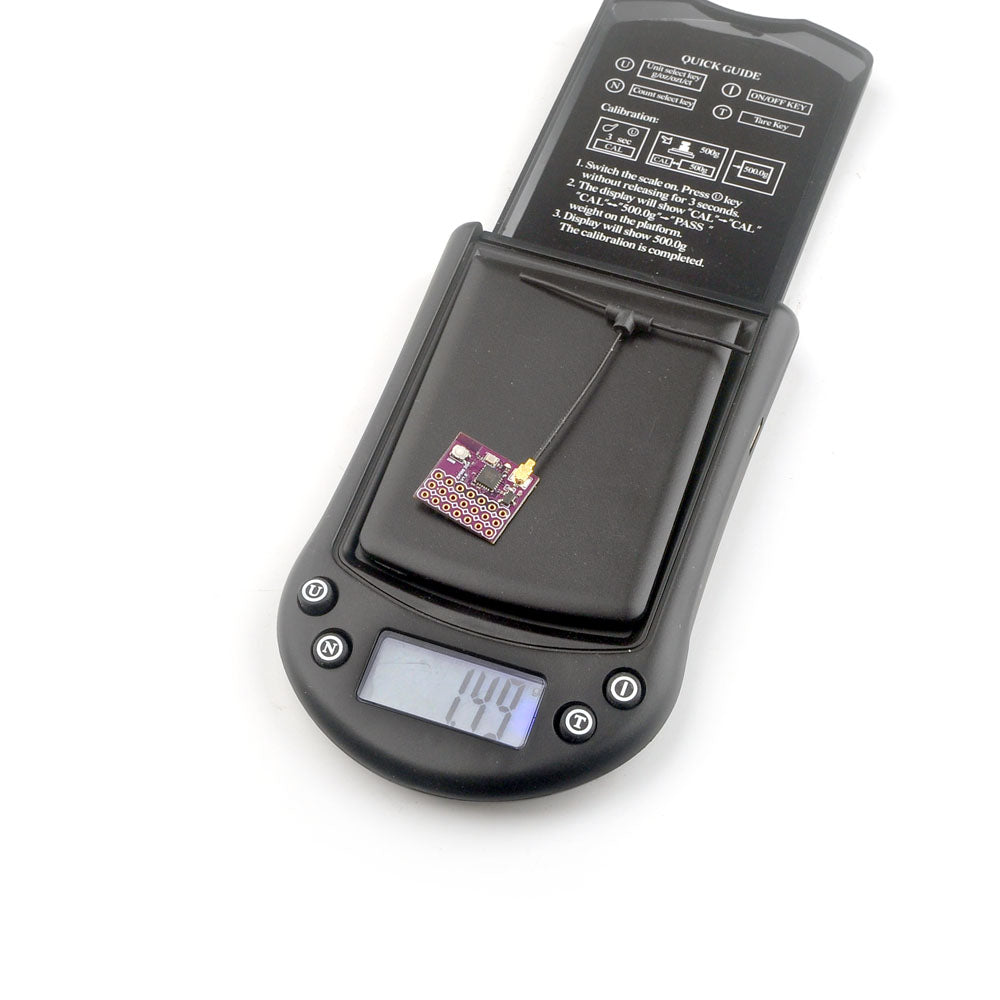

Weight: 1.49g / antenna

Firmware

Target option1: Generic ESP8285 6xPWM 2.4Ghz RX
PWM receiver via 1~6 PWM outputs
Target option2:HappyModel_EP_2400_RX
CRSF Serial receiver via TX and RX
Firmware update via WIFI

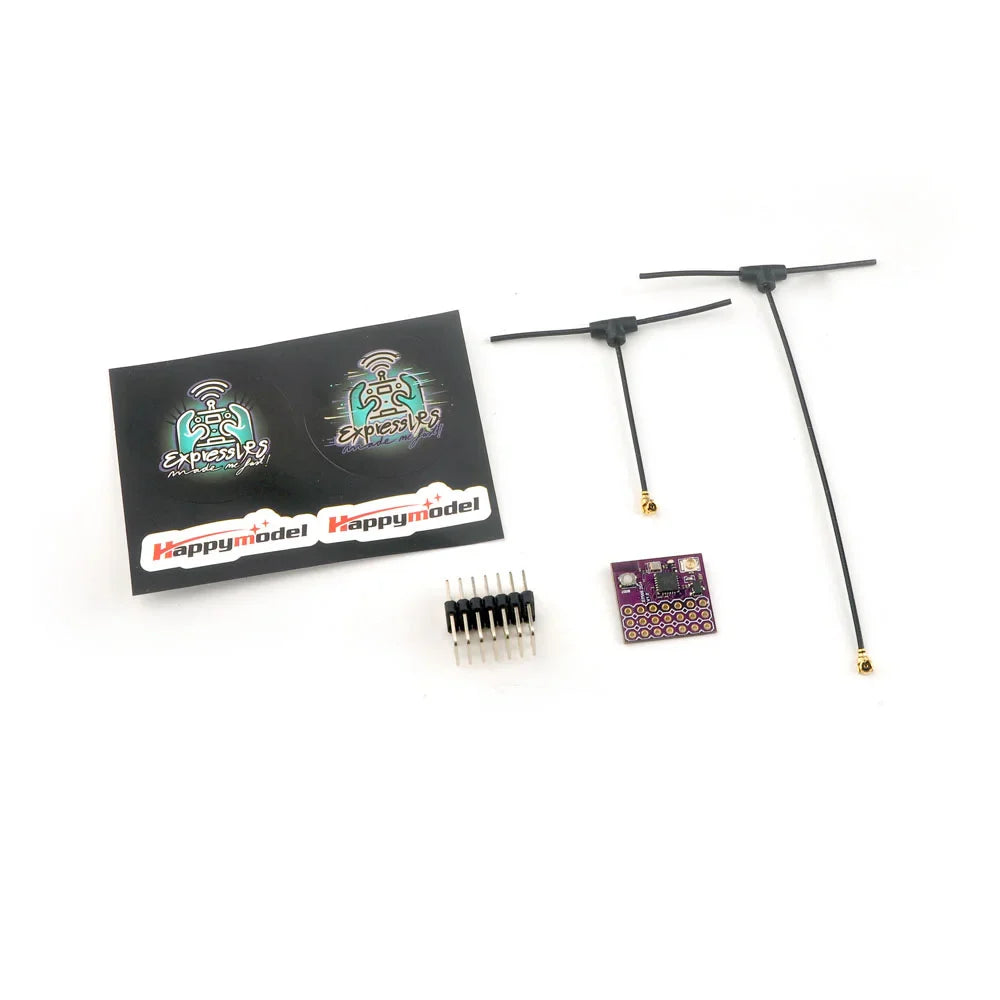

Included

• 1 x Happymodel EPW6 TCXO 2.4GHz PWM Receiver
• 1 x 2.4GHz antenna
• 3 x 7pin 2.54mm headers
