High-Torque 20KG 270-Degree Servo for RC Enthusiasts
Dive into the heart of your next RC project with the robust and reliable 20KG 270-Degree Servo, tailored for those who demand precision and durability in their radio-controlled hobbies. Whether you're piloting an RC airplane, maneuvering a helicopter, or racing an RC car, this servo delivers the performance you need.
Key Features:
-

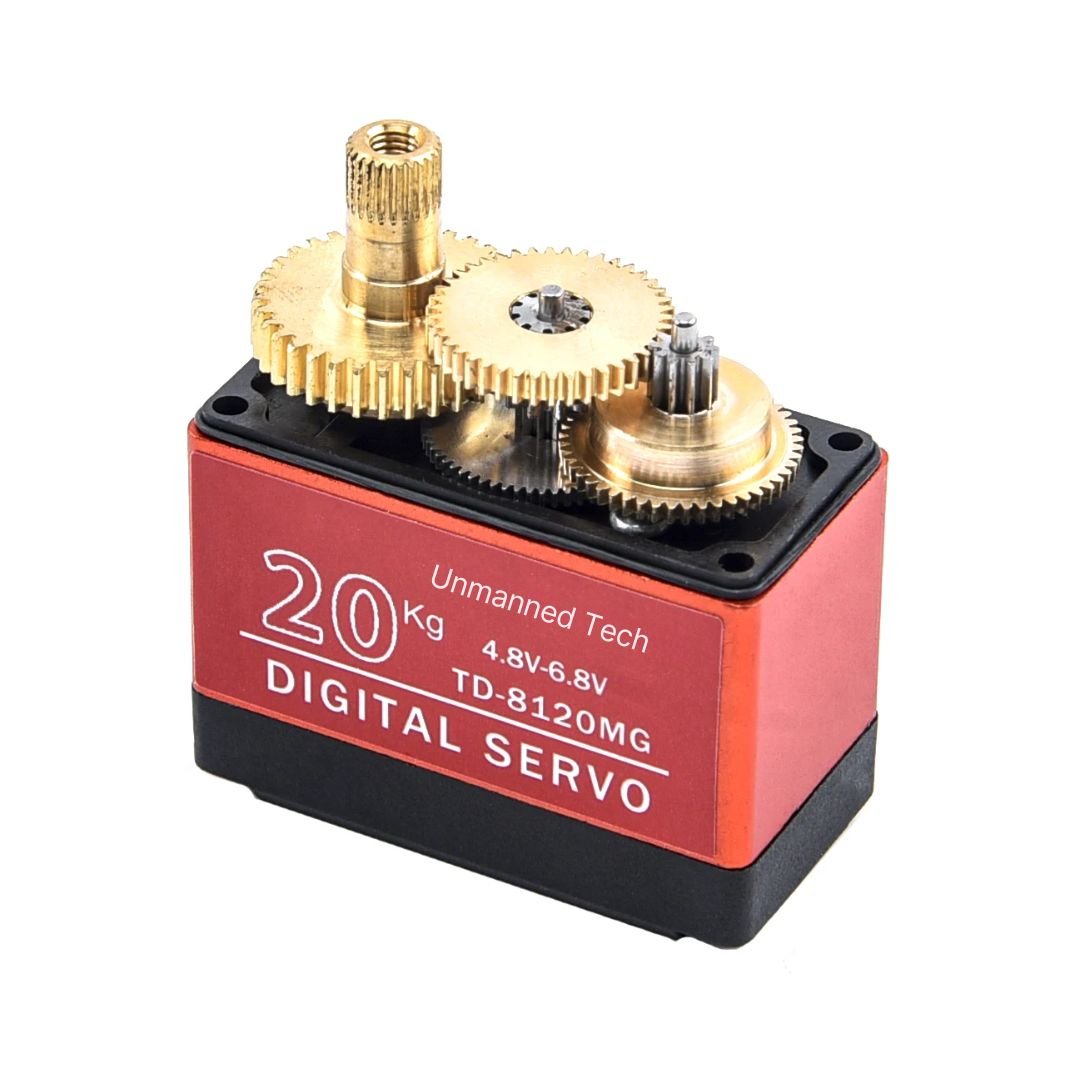

Enhanced Precision
: Equipped with high-precision metal gears featuring hard anodizing, this servo ensures your controls are smooth and precise.
-
Robust Construction
: The CNC aluminum middle shell enhances structural integrity, making it a reliable choice for challenging conditions.
-
Optimal Performance Range
: With a working voltage of 4.8V to 6V and an operating temperature range from -20°C to +60°C, this servo is built to perform under a wide range of conditions.
-
Powerful Torque
: At 4.8V, it pushes 17.2 kg.cm, ramping up to 20.3 kg.cm at 6V, giving you the muscle you need to take on any maneuver.
-
Speed and Responsiveness
: Achieve a swift response with speeds of 0.15 sec/60 deg at 4.8V and 0.13 sec/60 deg at 6V.
-
Wide Steering Range
: The 0-270 degree steering angle is perfect for custom setups requiring a wide range of motion.
-
Efficiency in Operation
: It operates efficiently with low idle and load currents, ensuring longer operational times and stability.
-
Built to Last
: Designed for longevity, the servo promises over 15,000 operational cycles without load, featuring a robust MOS drive and a cored motor.
-
Compact and Lightweight
: At just 62 grams (excluding accessories) and dimensions of 40.5 x 20.2 x 40.3 mm, it is both portable and easy to install in tight spaces.
-
Reliable Connectivity
: Comes with a 260 mm long 26AWG wire with a JR plug, ensuring secure and straightforward connections.

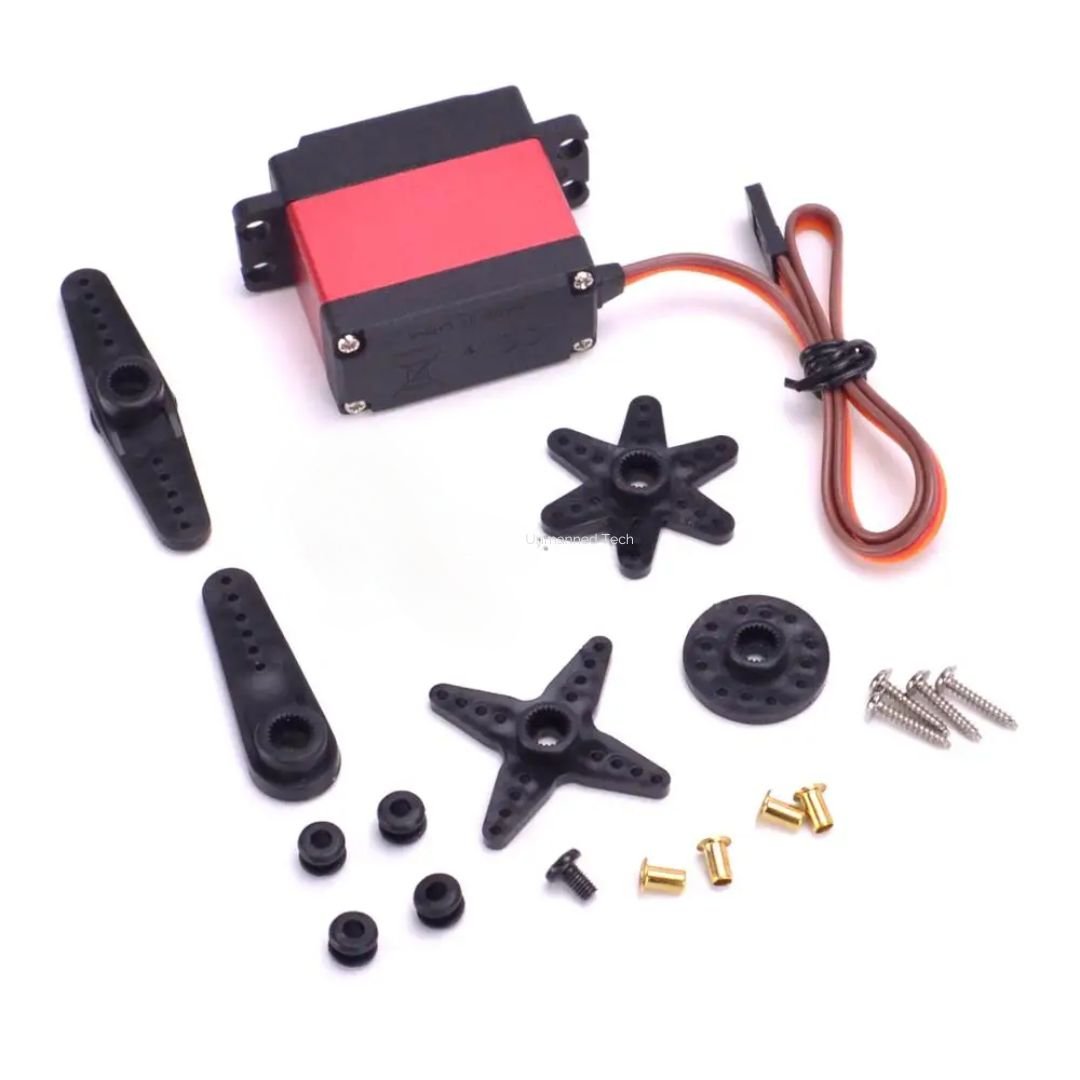

In the Box:
-
20KG 270-Degree Servo
-
Servo Horn set
Specifications
Control system :PWM control （1500 u-sec is the central point）
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed :4.8V/0.15sec / 60 deg
6.0V/0.13sec / 60 deg
Steering angle: 0-270 degree
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG，JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Ideal Applications:
Perfect for hobbyists who build and operate RC cars, airplanes, and helicopters, demanding reliable and precise control.
Upgrade your radio-controlled gear with this versatile, durable, and high-performing servo, engineered to keep you in control of the action at all times. Whether it's aerial stunts or ground racing, experience control like never before!
