Note: PM02D uses I2C digital signal data output and not compatible with Pixhawk4, Pixhawk4 Mini, pix32 v5, or Durandal flight controllers

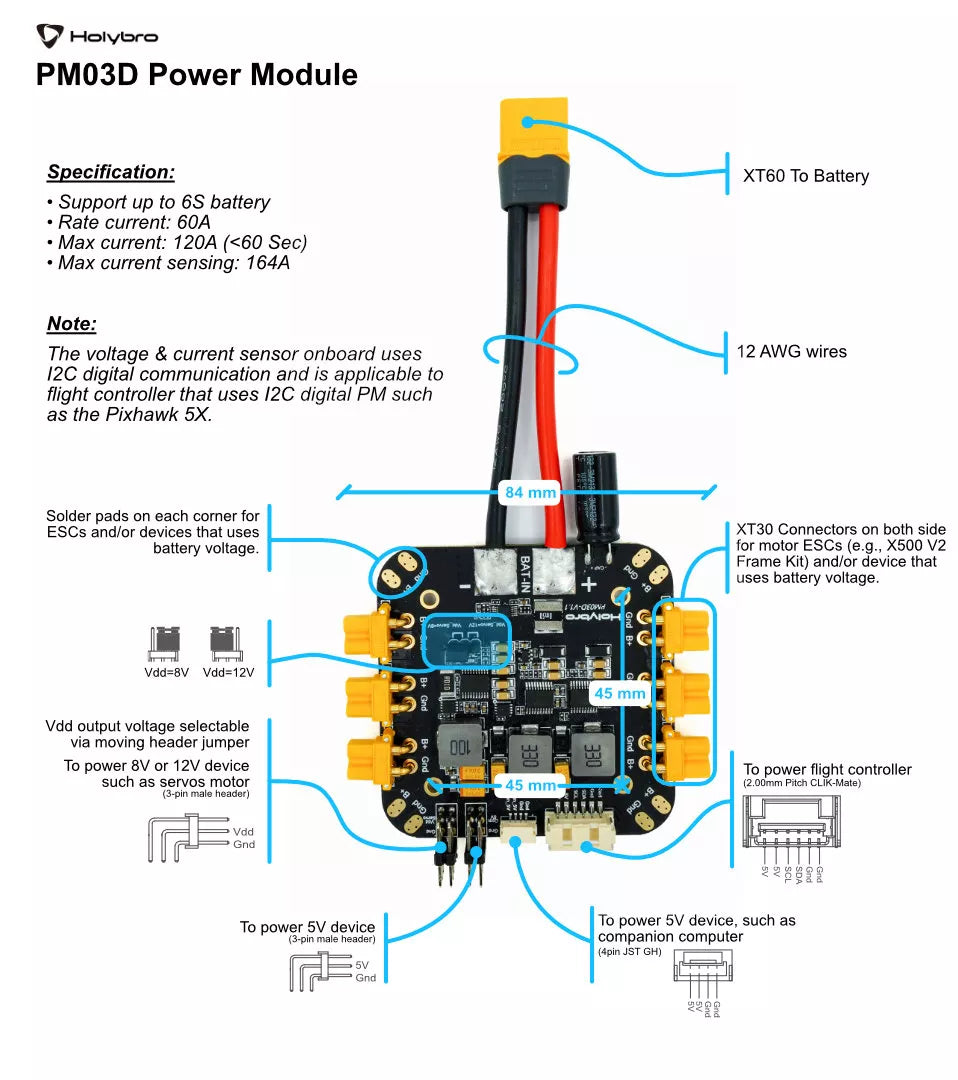

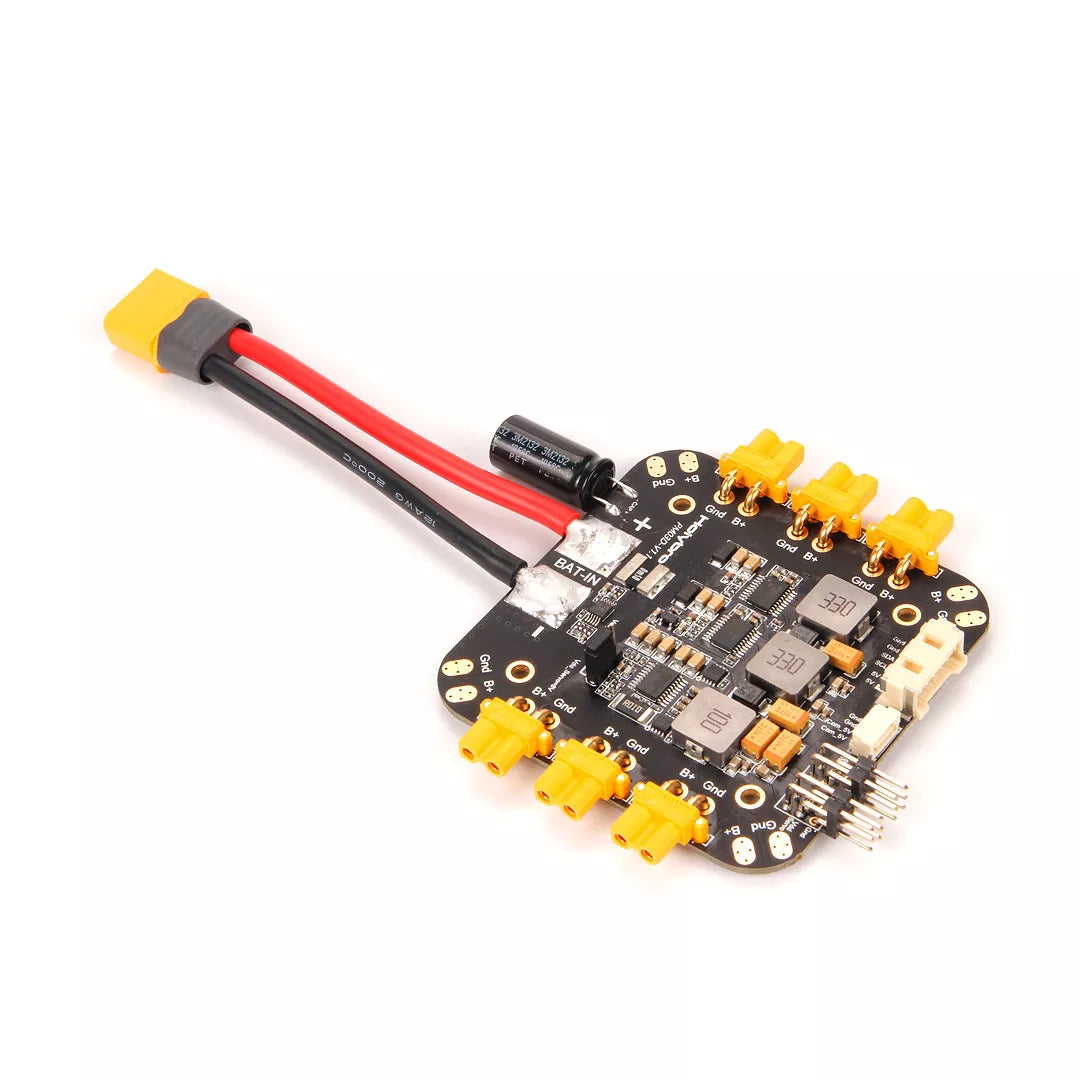

Features

• Plug & play, no additional setup required for QGroundcontrol & Mission Planner
• XT-30 connectors and solder pads for easy motor ESC connection
• Onboard voltage regulators: two 5.2V & one selectable 8V/12V
• 5V/A ports for powering companion computer or peripheral device
• Selectable 8V or 12V triple row pin header for powering peripheral device

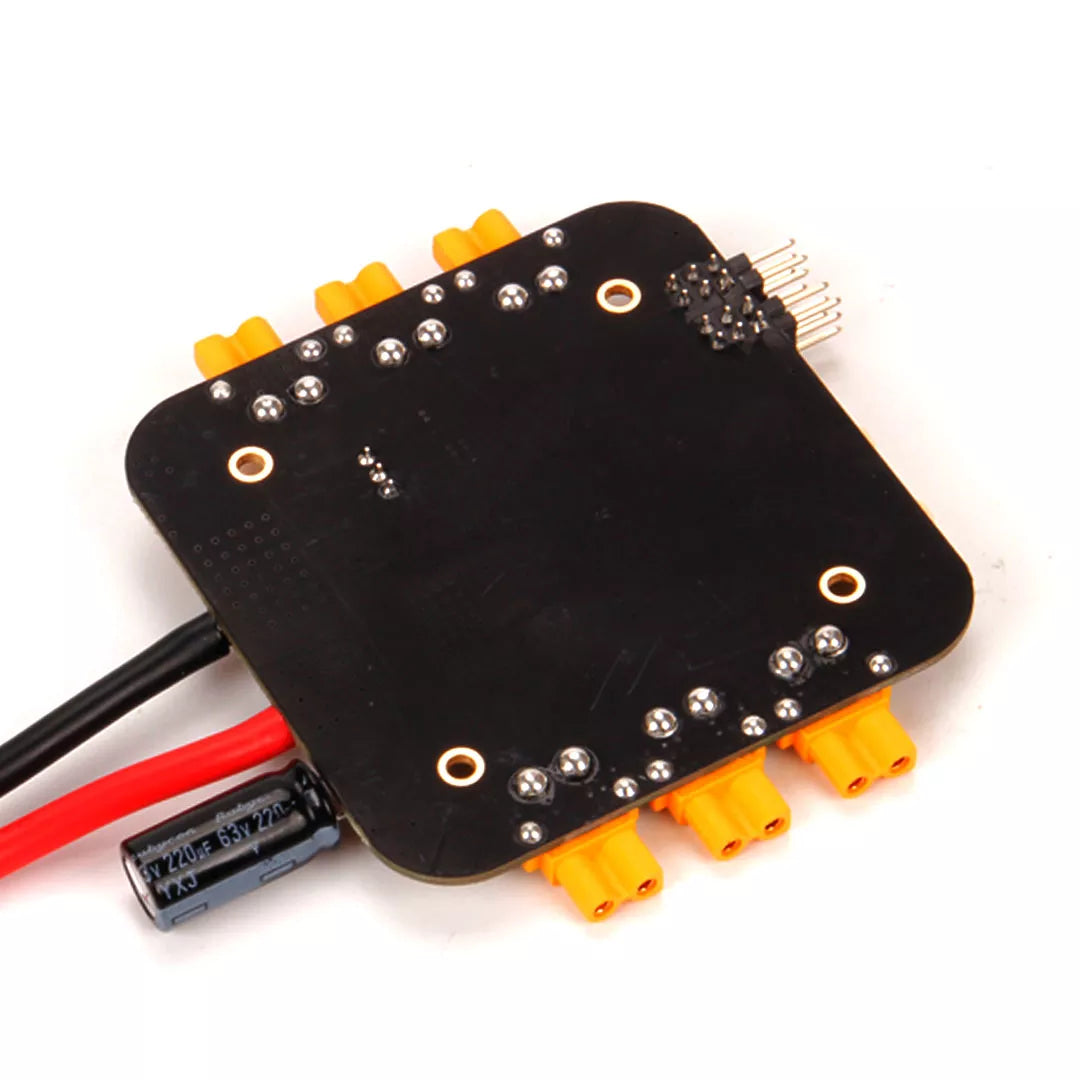

Specifications

• Maximum input voltage: 6S battery
• Rated current: 60A
• Max current: 120A (<60 Sec)
• Max current sensing: 164A

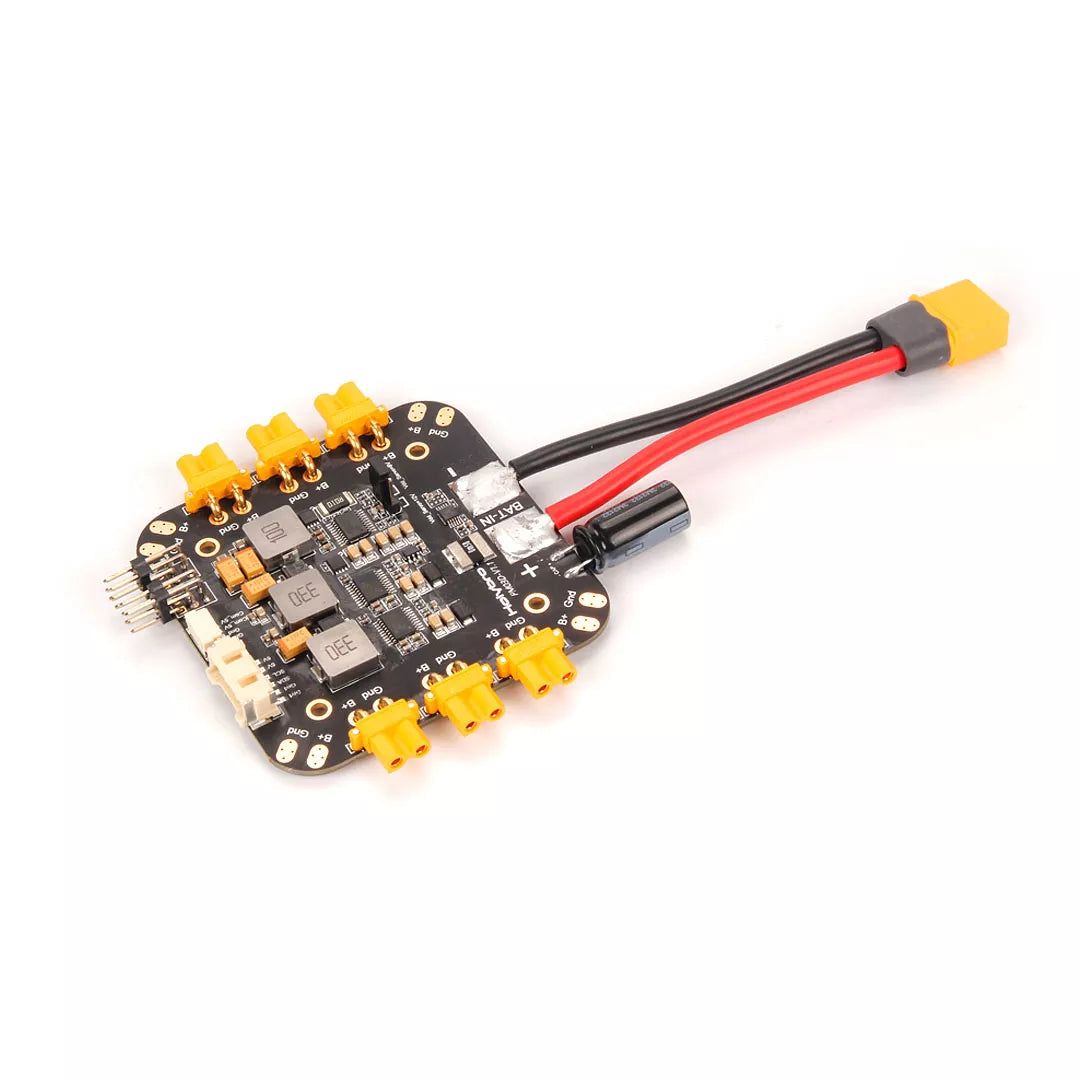

• Connections
  • XT-60 for battery
  • XT-30 for motor & peripheral device (battery voltage)
  • Solder pads in each corner (battery voltage)
  • CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC)
  • JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)
  • 2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)
  • 2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)
• Dimension: 84*78*12mm (excluding wires)
• Mounting: 45*45mm
• Weight: 59g

The XT60 plug and 12AWG wire that PM03D comes with is rated for 30A continuous current and 60A instantaneous current (<1 minute). If a higher current is being used, the plug type and wire size should be changed accordingly.

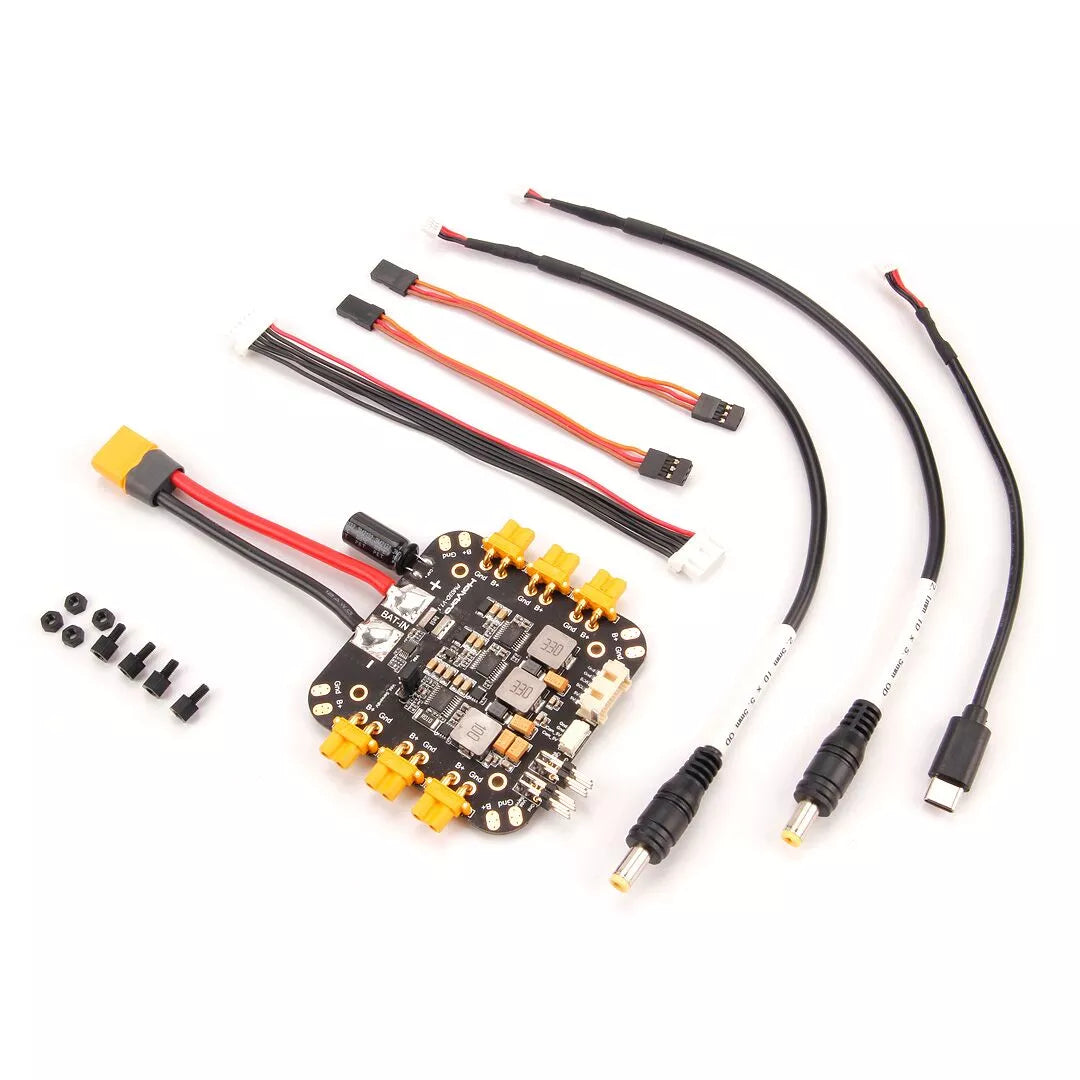

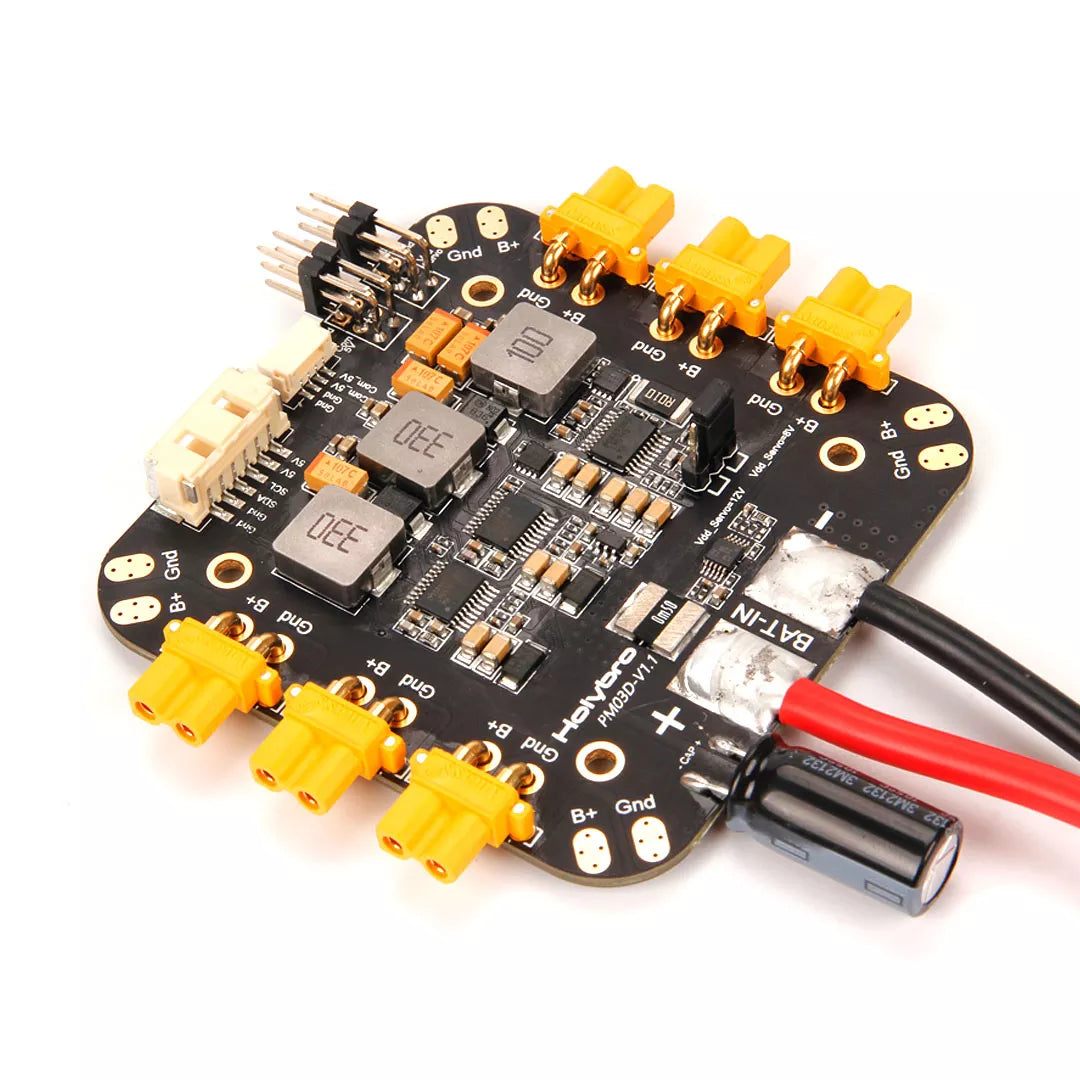

Included

• 1x PM06 board
• 1x 80mm XT60 connector wire (pre-soldered)
• 1x Electrolytic capacitor: 220uF 63V (pre-soldered)
• 1x 2.0mm pitch CLIK-Mate 6pin cable (To power flight controller)
• 4pin JST GH to USB Type C
• 4pin JST GH to barrel plug (2.1*5.5mm)
• 4pin JST GH to barrel plug (2.5*5.5mm)
• 4pin Pin Dupont Cable (2pc)
• Nylon standoffs & nuts
