Installation

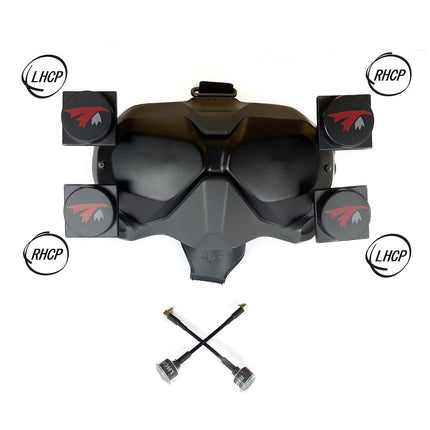

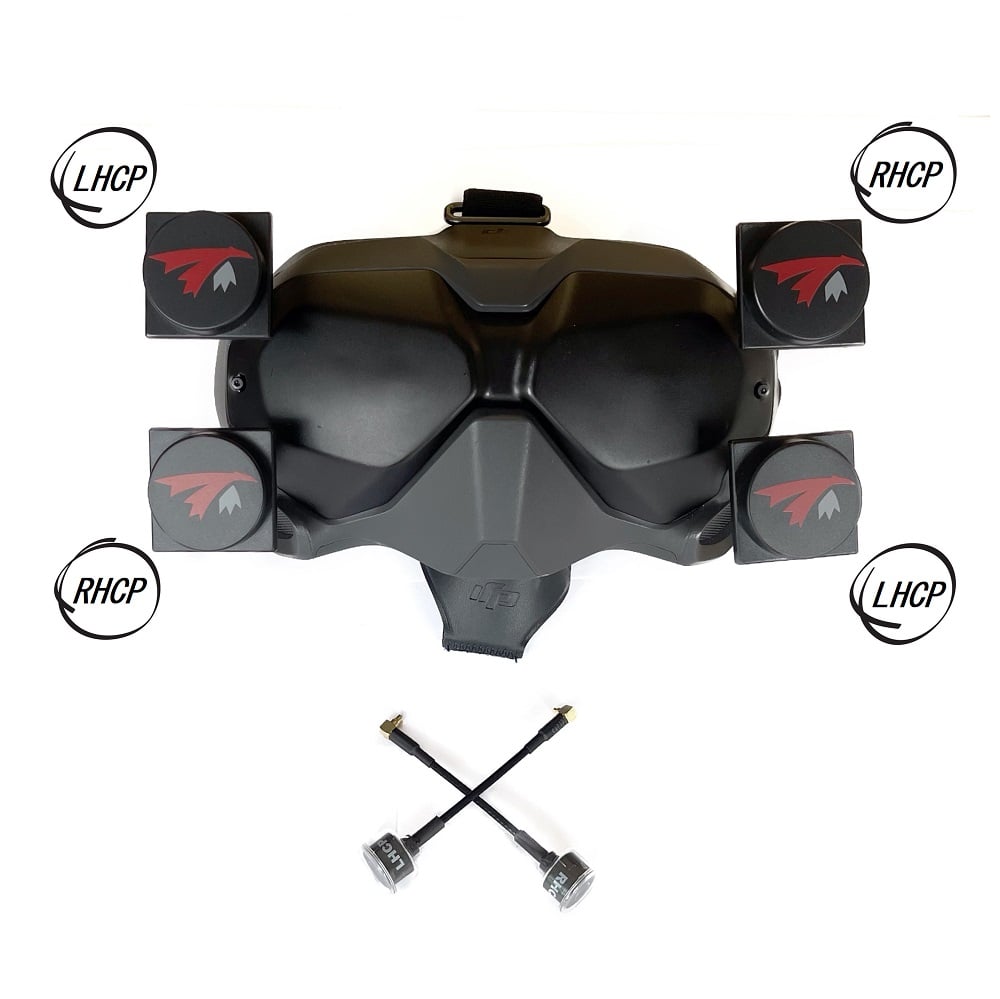

Place the X-AIRs on the goggles following a X pattern:
-
Bottom left: LHCP
-
Top left: RHCP
-
Top right: LHCP
-
Bottom right: RHCP
Specifications
-
Gain (X-AIR):
9.5-10.5 dBic
-
Gain (OCP):
1.6 dBic
-
Polarization:
RHCP and LHCP
-
Beam-width* (X-AIR):
120deg
-
Beam-width @-3dB** (X-AIR):
68deg.
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

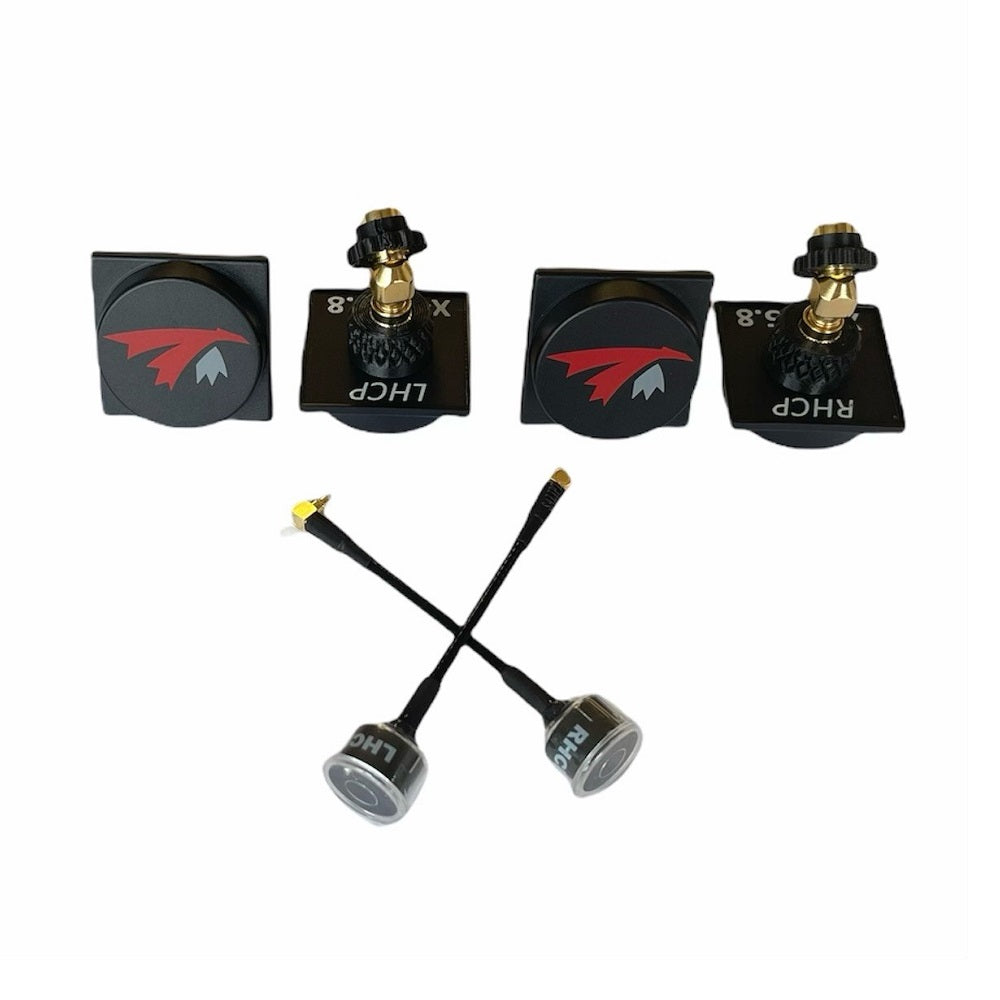

Includes
-
2x RHCP X-air 5.8 MK.II
-
2X LHCP X-air 5.8 MK.II
-
4X 45deg low-loss RP-SMA adapters
-
1x RHCP OCP with MMCX90 connector
-
1x LHCP OCP with MMCX90 connector
Useful print!
If you dont have a printer, we can print one for you using our
3D print service
FAQ
Can I use something other than the OCP with MMCX90 connector on the airunit?
-"Yes, if you have pigtails you can use antennas with SMA. Leave a comment while ordering and we can swap for the connector type you need."
Can I use this with the vista unit?
-"Yes, however the performances wouldn't be as good as they could be with an airunit."
