SPECIFICATIONS

• Material: high-quality ABS plastic

• Working voltage: DC 12V

• Working current: 500mA

• Fingerprint capacity: 300

• Card capacity: 1000

• Password capacity: 1000

• Panel: touch screen panel

• Working frequency: 13.56MHz

• User capacity: 300 fingerprints, 1000 cards, 1000 Code



• Waterproof function: IP65 Waterproof



• Wiegand interface: WG26 / 34

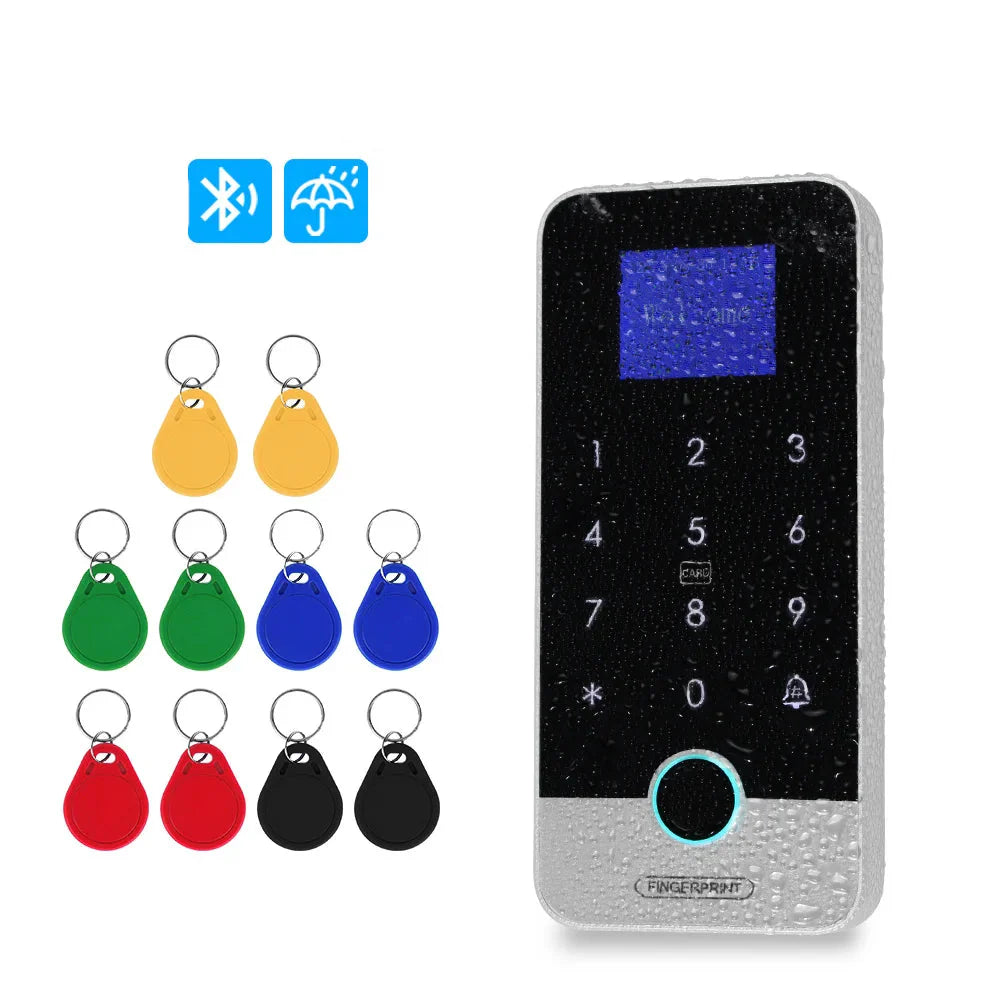

• Card reading type: support MF 1K compatible card

• Card reading distance: 0- 5 cm

• Identification method: Fingerprint, RFID Card, Password, Tuya APP.

• Record capacity: The Mobile phone APP remotely views the latest door opening information.

• Backlight: has a white backlight

• Waterproof function: IP65

• Doorbell button: support wired doorbell

• Display Language (S300X): Supports Chinese, English, French, German, Spanish, Latin, Romanian, and Italian.

• Working temperature: -20。C ~ 50。C

• Working Humidity: 20% ~ 90%

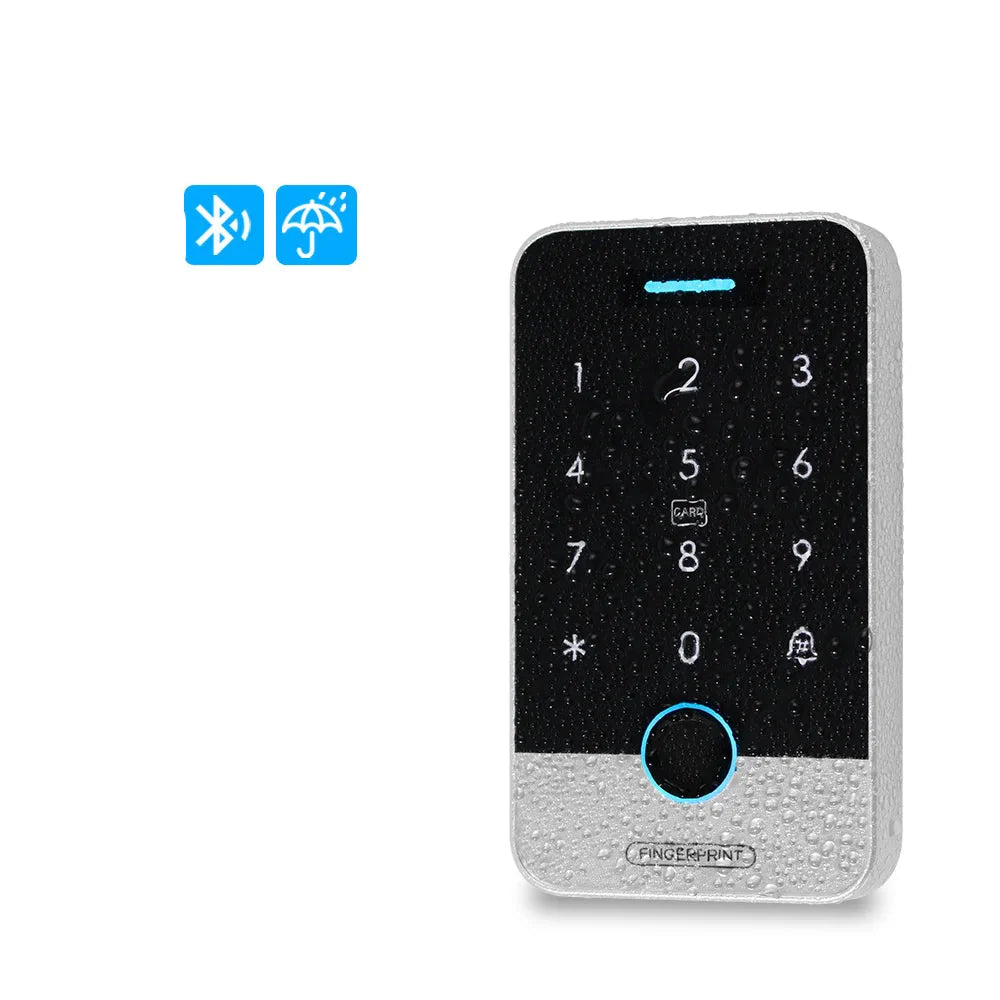

• Product size of S300A: 132*75*18mm

• Product size of S300X: 163*75*18mm

Description:

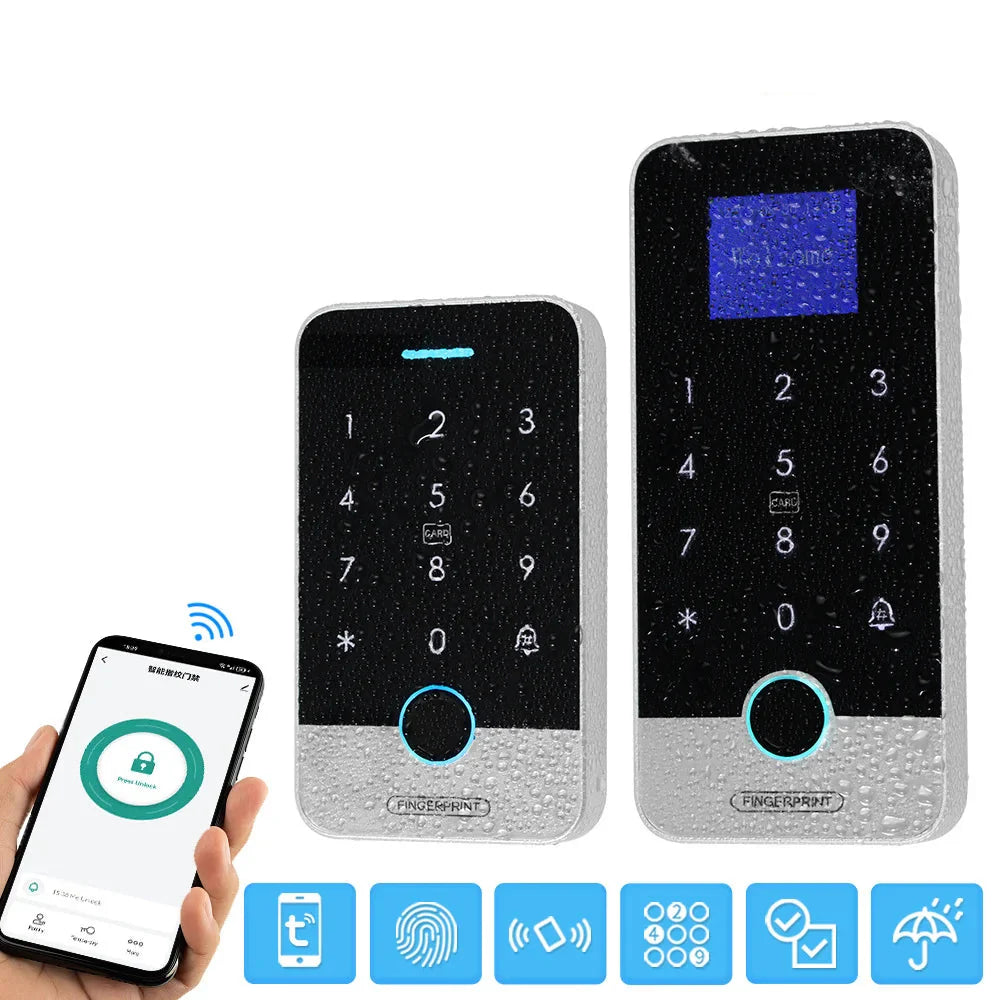

The Waterproof Bluetooth Tuya APP Fingerprint Access Controller is a standalone RFID keyboard touch keypad system designed for secure and convenient access control. Featuring a 13.56MHz RFID reader, it supports fingerprint recognition, Bluetooth connectivity, and Tuya Smart APP integration for remote management. The IP65 waterproof rating ensures durability in outdoor environments. Users can gain entry via RFID cards, PIN codes, fingerprint scanning, or smartphone control. Ideal for homes, offices, and commercial spaces, this door opener system provides multi-user support, real-time logs, and tamper-proof security.

Features:

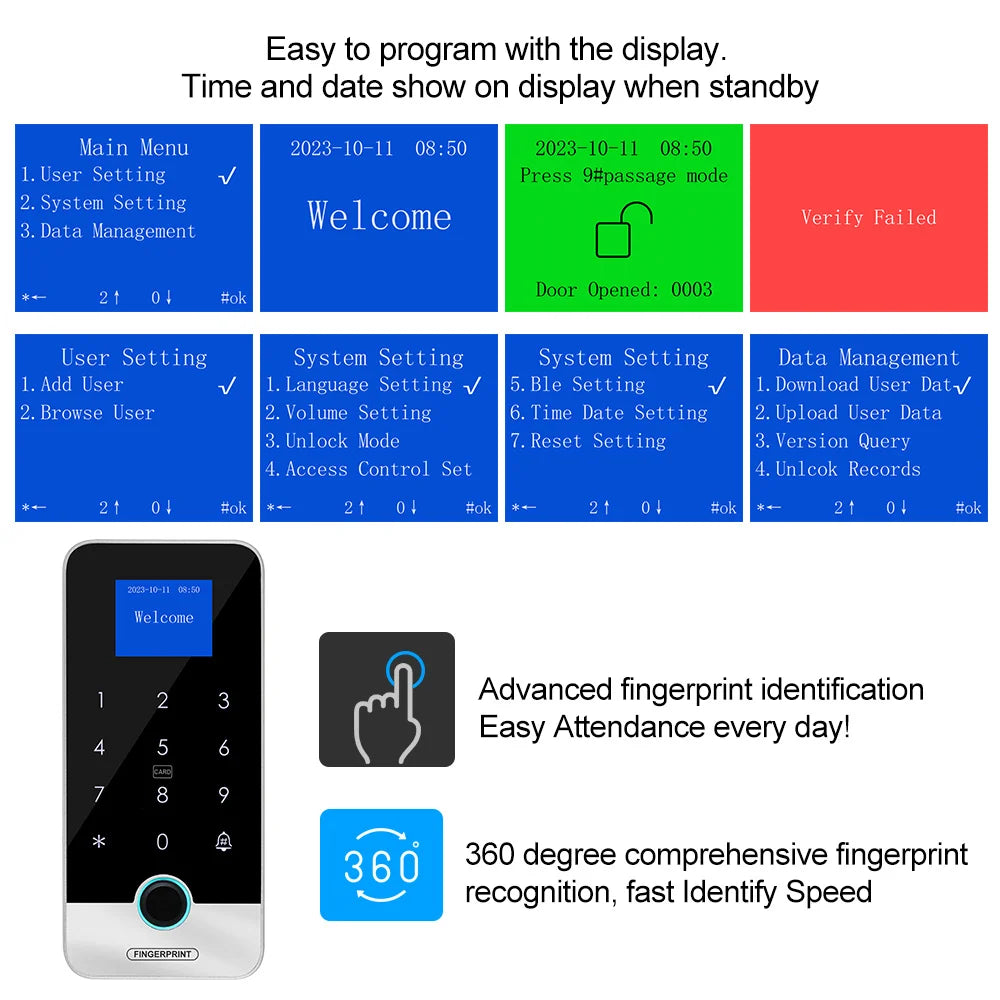

1.8-inch Color TFT Screen, Easy to program with the display.

Display supports Chinese, English, French, German, Spanish, Latin, Romanian, and Italian languages

The time and date are shown on display when the standby(S300X model)

360-degree comprehensive fingerprint recognition, fast identification speed

For different angles of fingerprints, it can be quickly and accurately identified

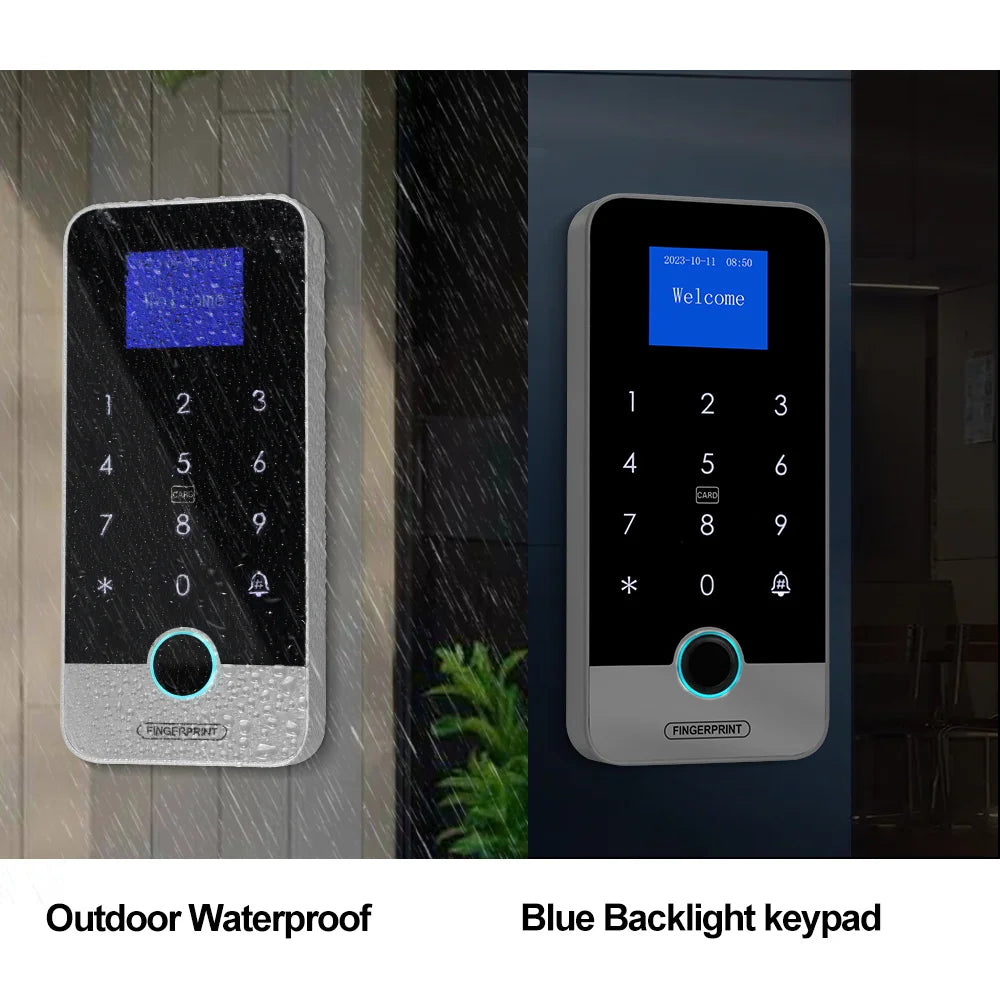

IP65 Waterproof. It can be installed outdoors.

Has a doorbell button, and can install a wired doorbell.

White backlight keypad. The digit number can be seen even in the dark.

Can set the door keep Normally Open model

Frequent entry and exit can be set to a normally open model

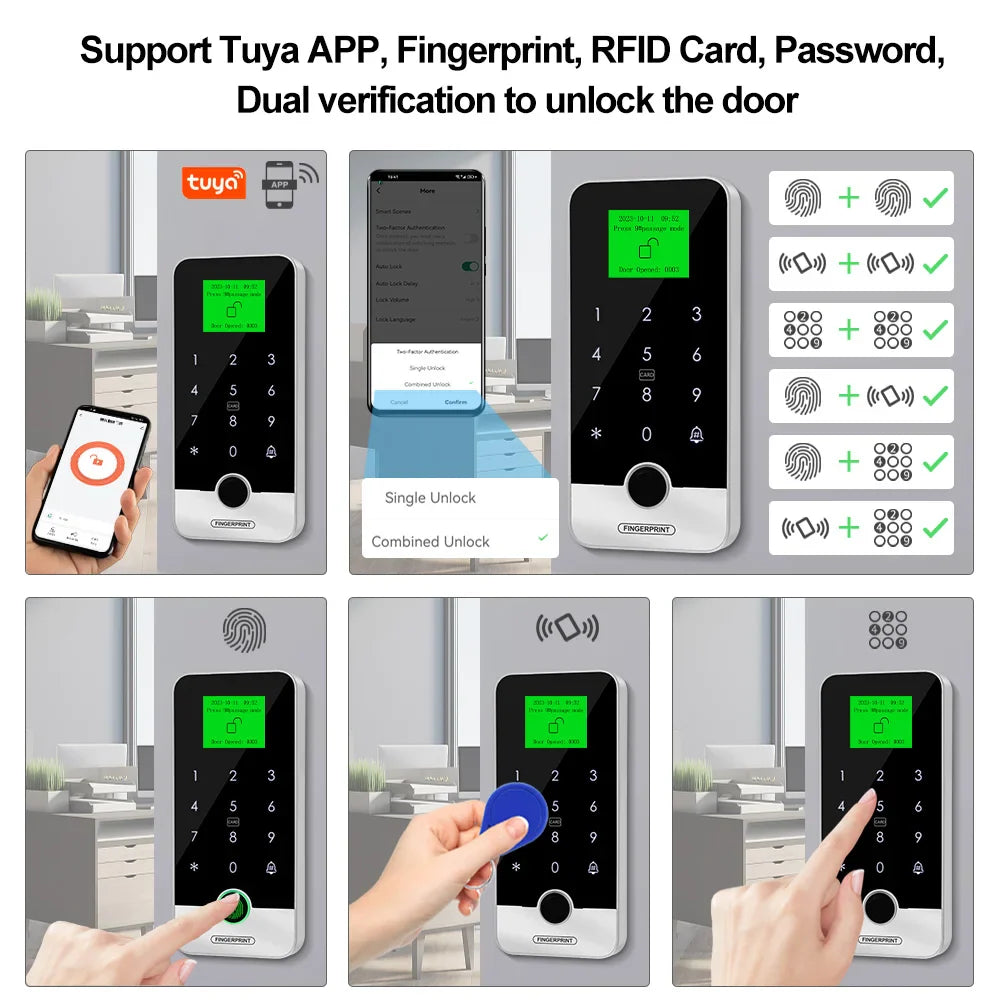

Support Fingerprint, RFID Card, Password, Tuya APP, and dual verification to unlock the door
Support 300 Fingerprints, 1000 RFID cards, 1000 password user capacity,
Mobile phone APP remotely view the latest opening information, more secure!

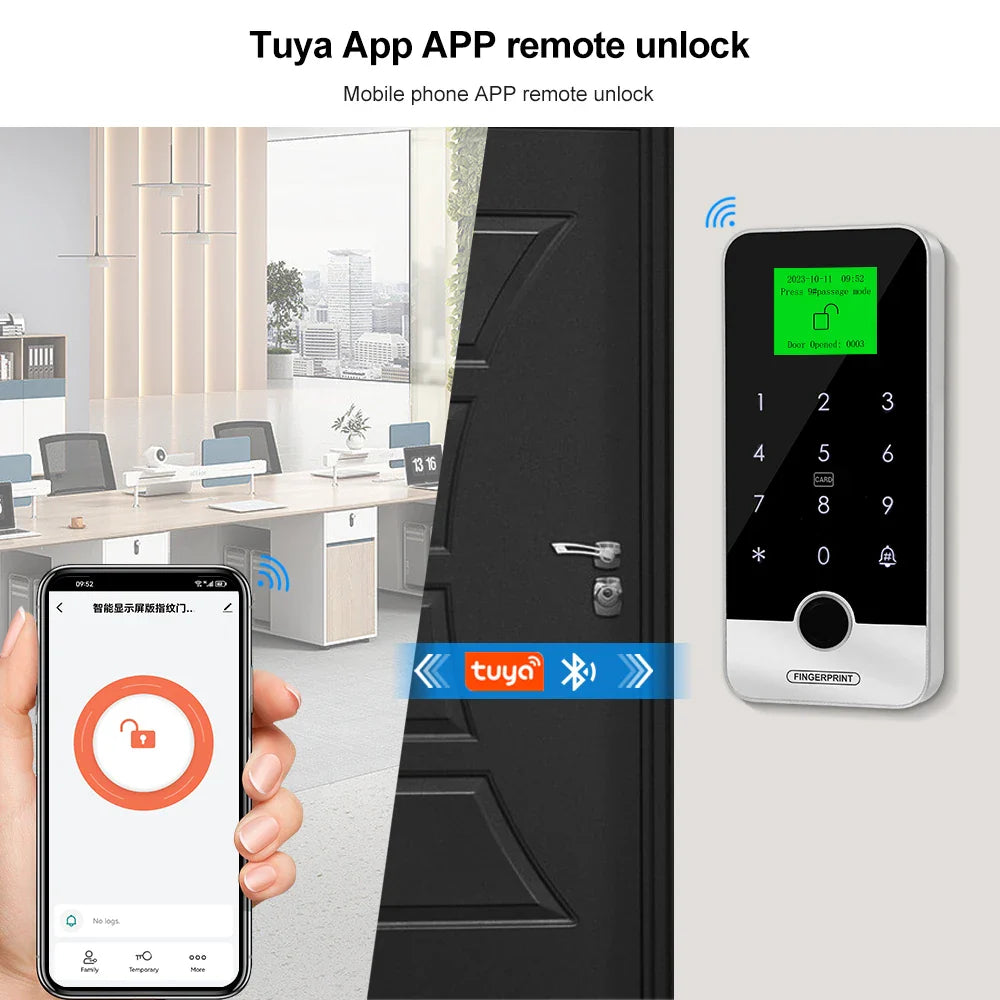

Support Tuya APP remote unlocking

Support only one mobile phone to use the Tuya APP. Need to delete the device if other people want to use the Tuya APP

About the Tuya APP
1) Supports language: Chinese, English.
2) Can add fingerprints, password, and RFID cards on the APP, it is very convenient.
3) Can unlock the door with the Tuya APP unlocking button or the Tuya password.
4) Can view unlock records. Click the reminder information to view logs.
5) Support only one mobile phone to use the Tuya APP. Need to delete the device if other people want to use the Tuya APP.

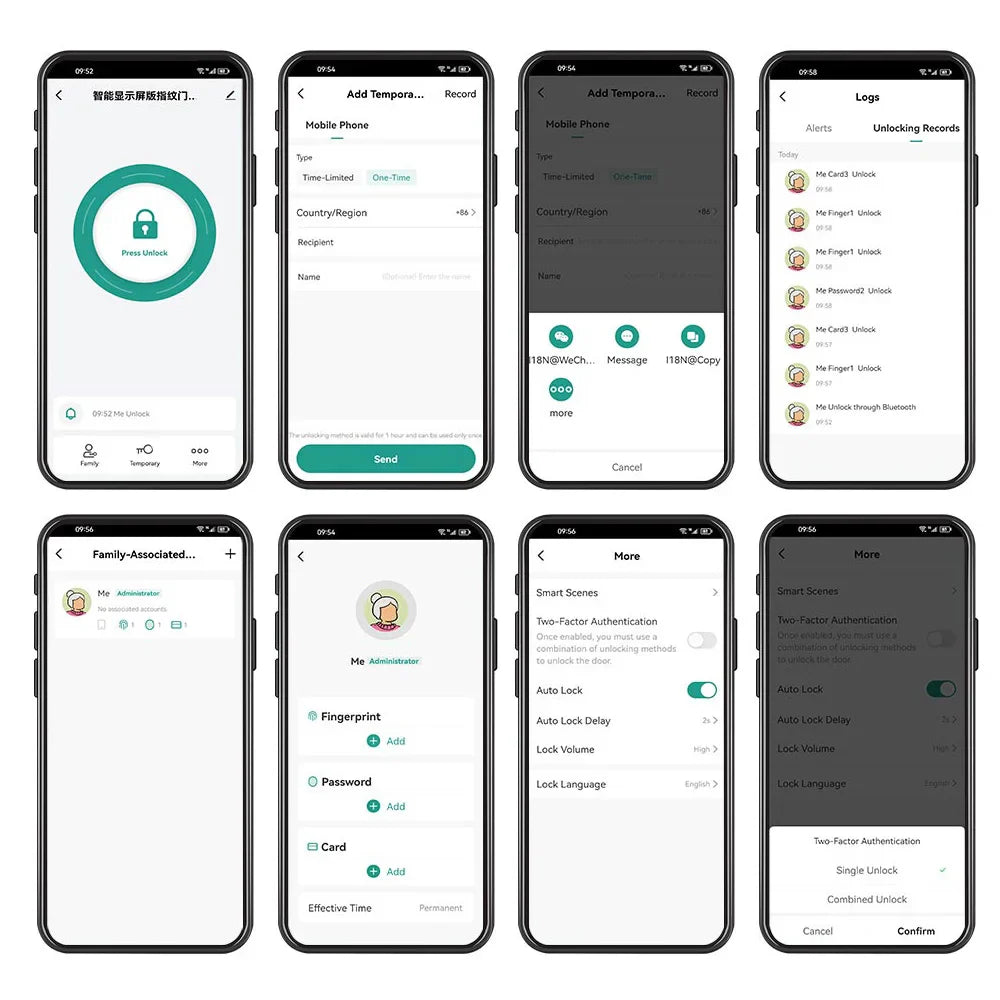

Tuya APP Setting Instruction

1) Scan the QR code, or search "Tuya" on the App store to download it.
2) Turn on the Tuya APP to add new equipment.
3) Turn on Bluetooth, Select "Auto scan", click "Searching".
4) Connect with available devices, click "Next".
5) Connecting, added successfully, click "Done".
6) Click settings, turn on "remote unlock setting".
7) Select user, click "+" to add user, fill in name, click next step.

8) Add user fingerprints, Code, and Cards.

9) Add an ordinary user by clicking ordinary member “+.
10) Add code user by Time-Limited: input phone number, set effective time and ineffective time, click "Send".

11) Add temporary code: click "One-Time", input phone number, click "Send". (Notice: The code is valid for 1 hour and can only be used once.)

Easy installation and operation

Based on advanced technology, fast recognition speed, and high sensitivity.

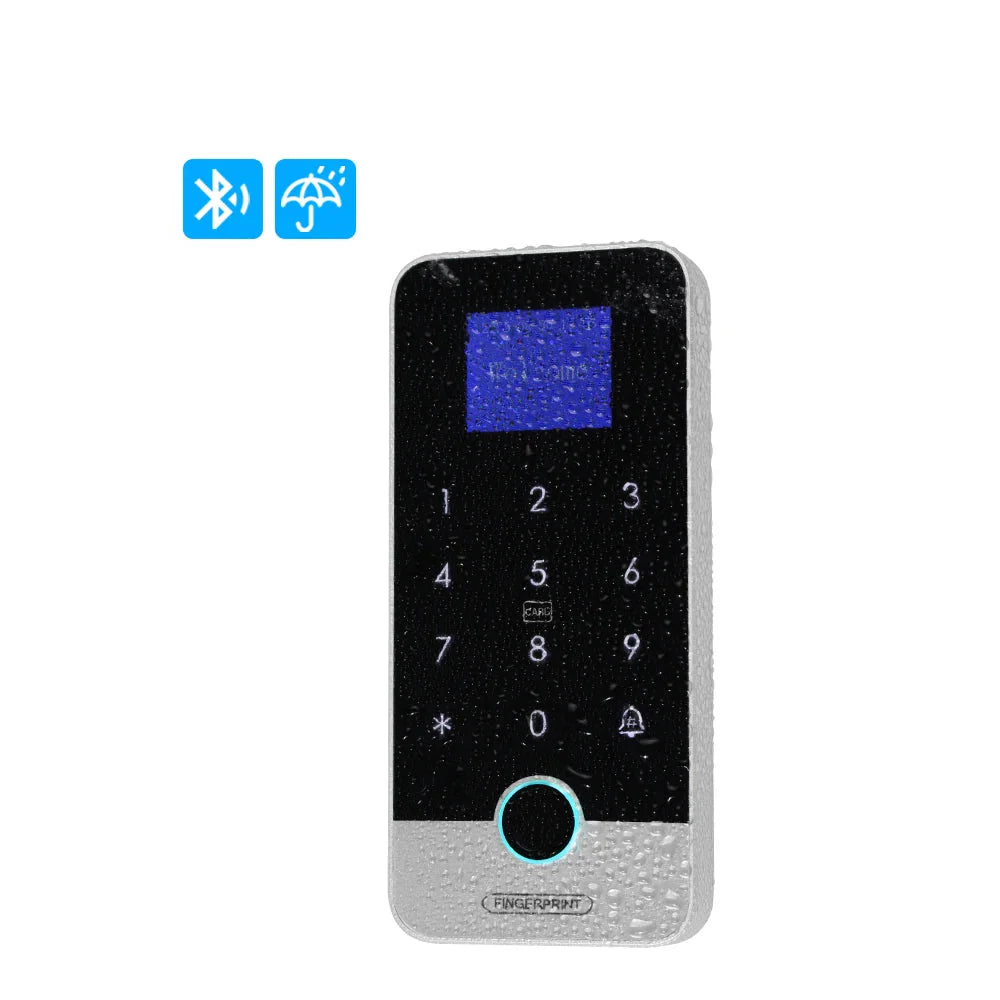

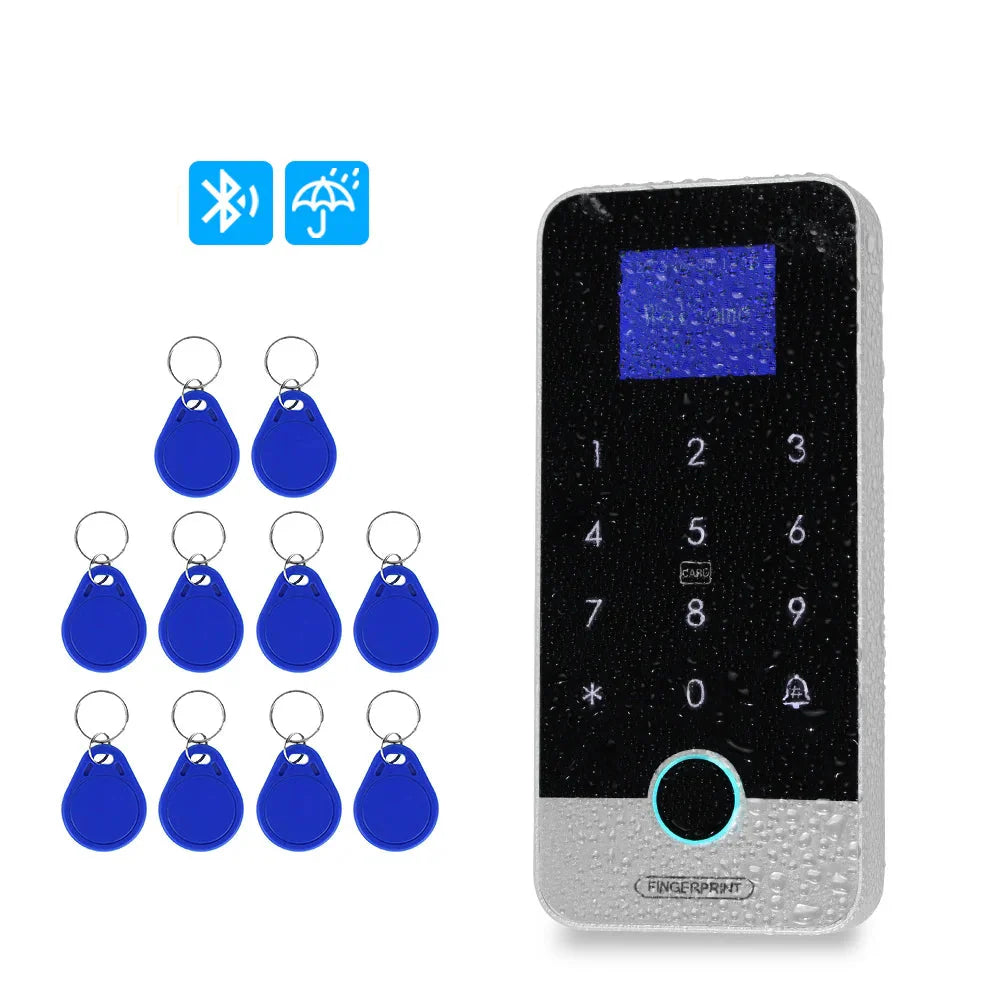

S300X Model, with the 1.8-inch display screen.
