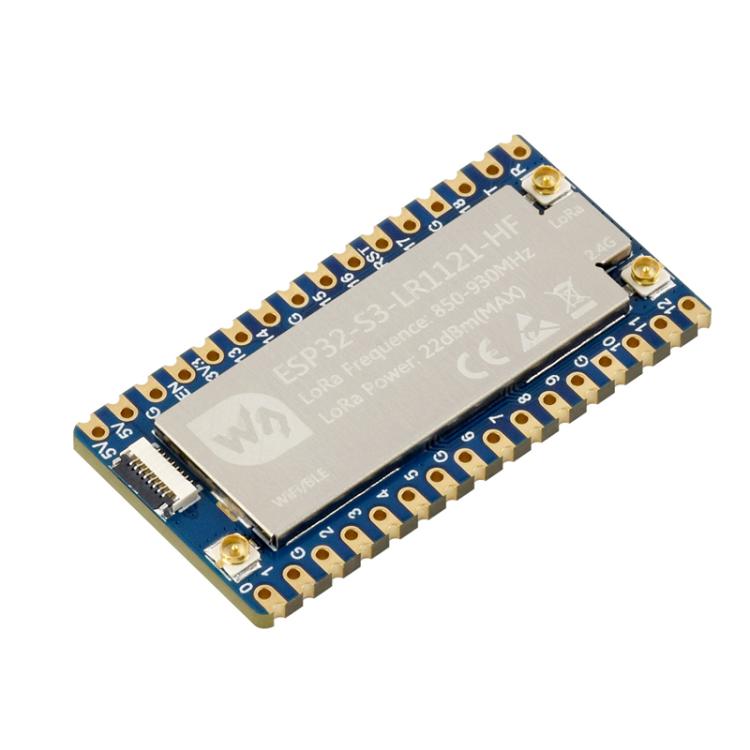

Beschreibung
1. Equipped with the Xtensa 32-bit LX7 dual-core processor, with a main frequency up to 240MHz, delivering robust performance; supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), meeting diverse wireless connectivity needs
2. Built-in 512KB SRAM, 384KB ROM, stacked 4MB Flash, and 2MB PSRAM, offering abundant resources

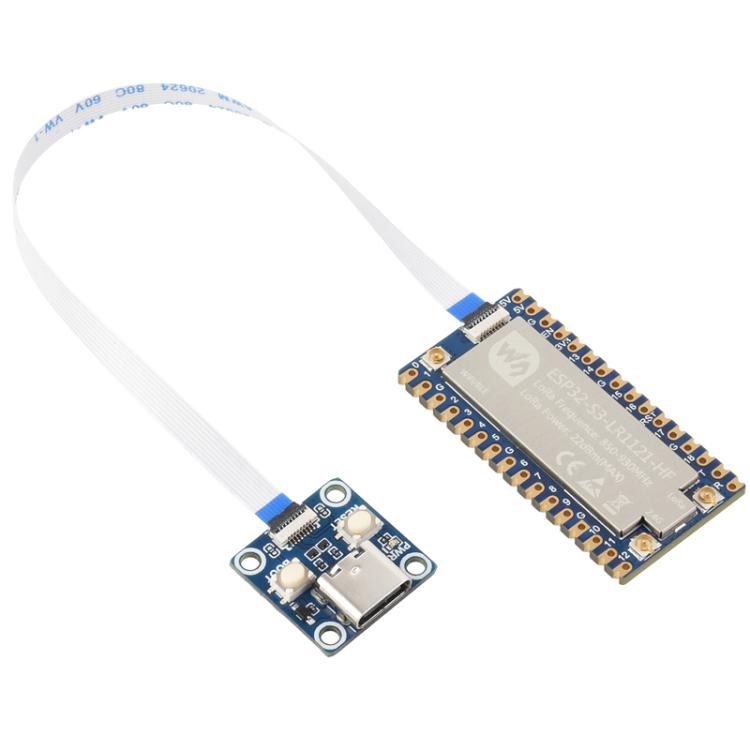

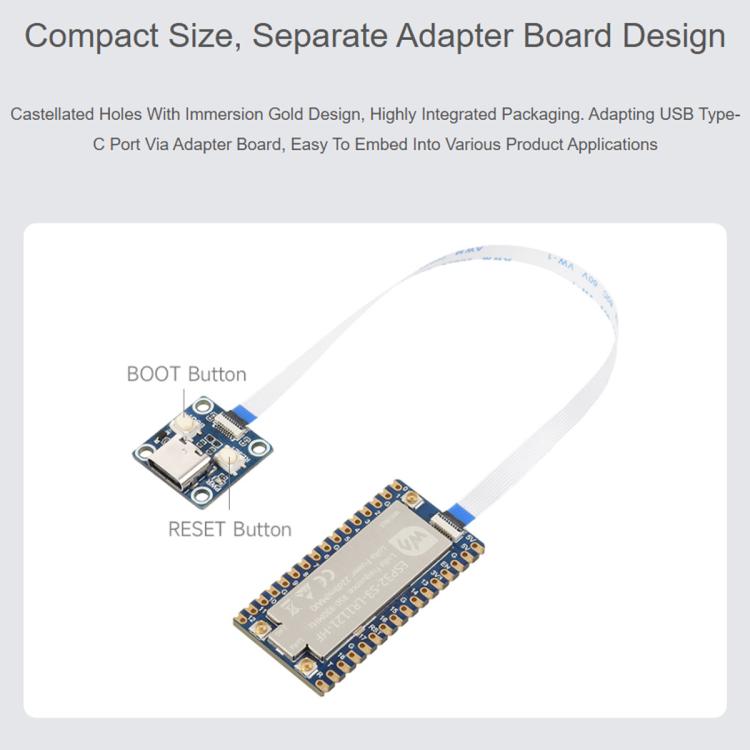

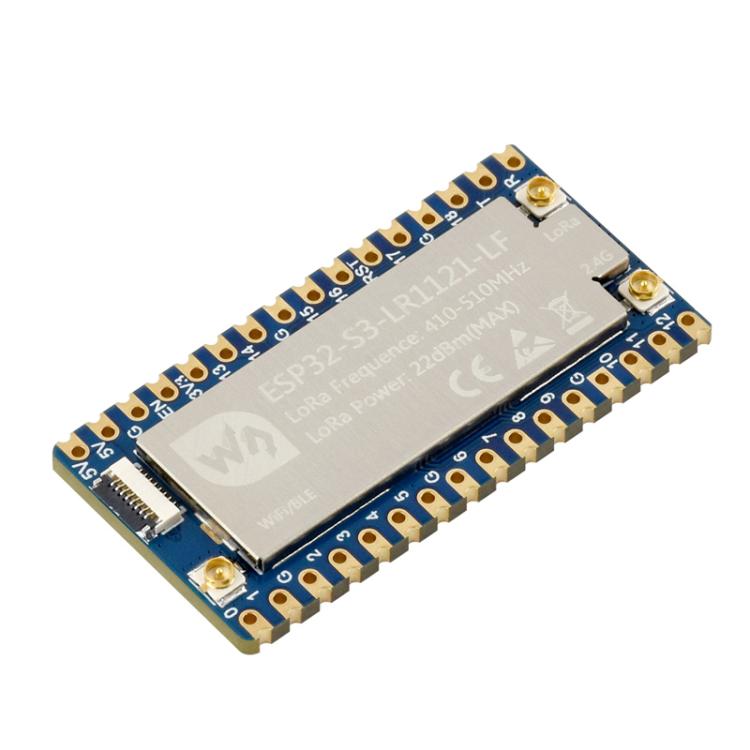

3. Adopts stamp hole design for enhanced integration, facilitating independent baseboard design
4. Rich peripheral interfaces including 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, and 2 × ADC

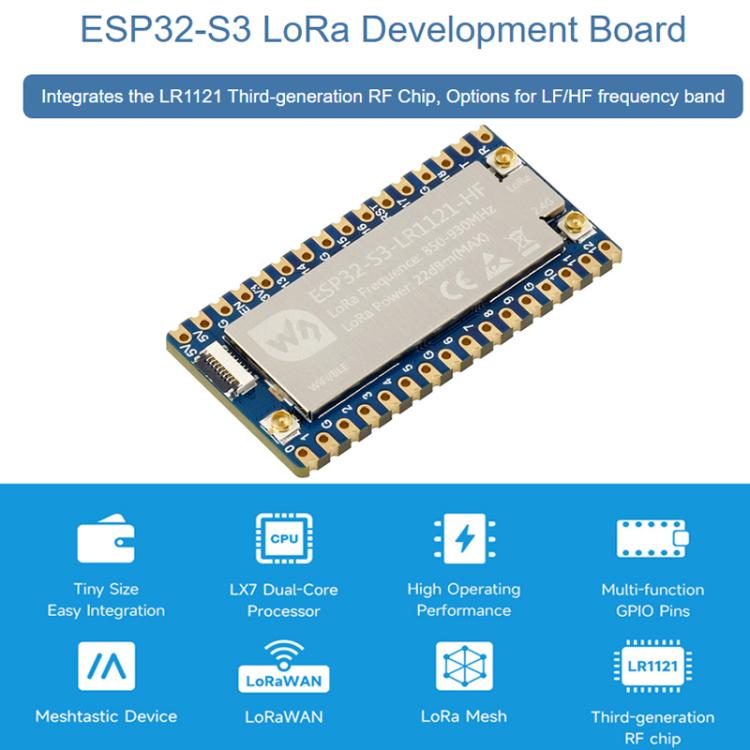

5. Utilizes LR1121, the third-generation low-power LoRa transceiver from Semtechs LR11xx series
6. Supports Sub-GHz (150MHz to 960MHz), S-band (2.0GHz to 2.1GHz), and 2.4GHz ISM frequency bands

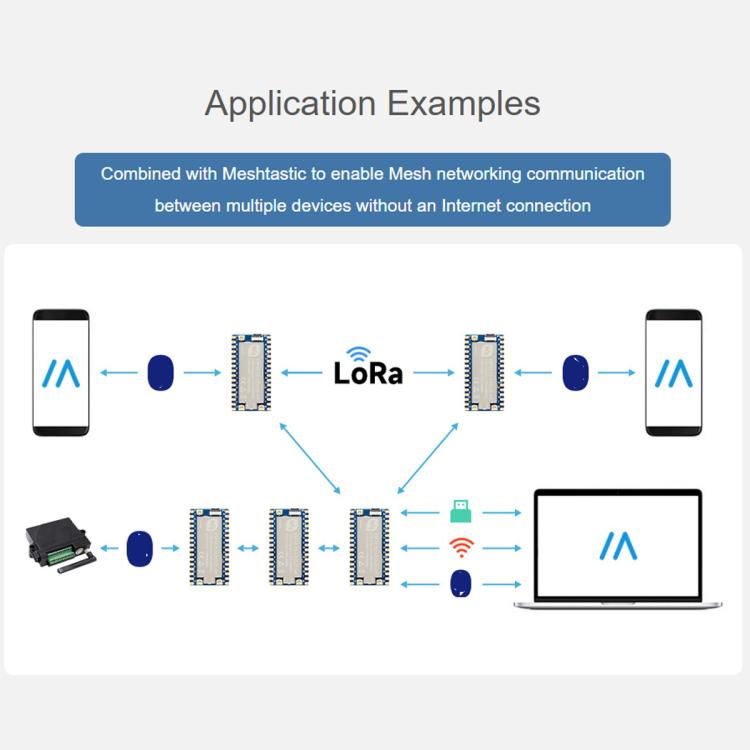

7. Connects to cloud platforms via LoRa or LoRaWAN protocols through gateways to build low-power wide-area networks
8. Supports LoRa, (G)FSK, and LR-FHSS modulation, compatible with SX126X/SX127X frequency bands for seamless product upgrades
9. Integrated AES-128 encryption engine for enhanced data security; onboard TCXO crystal ensures frequency stability under high/low-temperature conditions

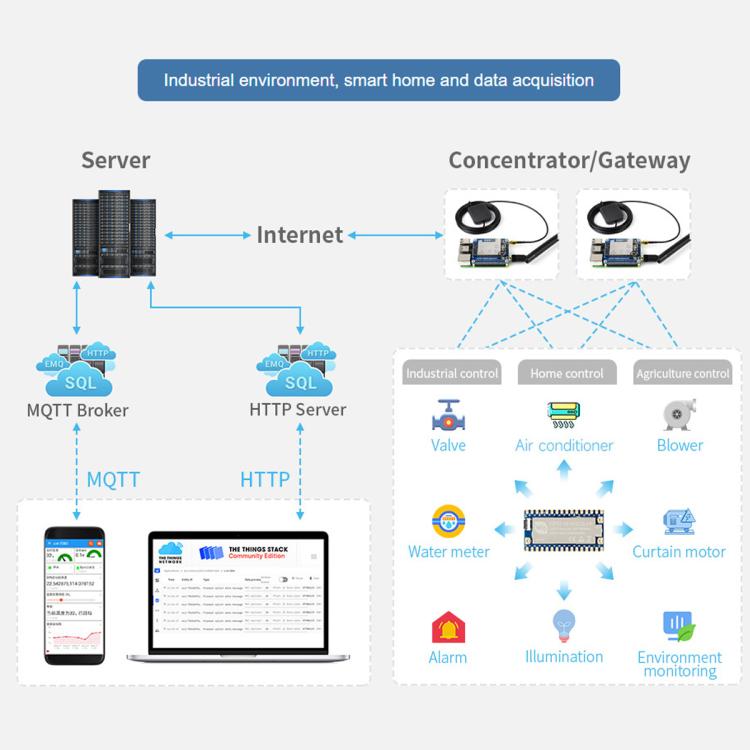

10. Suitable for IoT applications including industrial telemetry, smart homes, environmental monitoring, and remote data acquisition
11. Includes C language sample programs and user manuals for streamlined development and rapid deployment

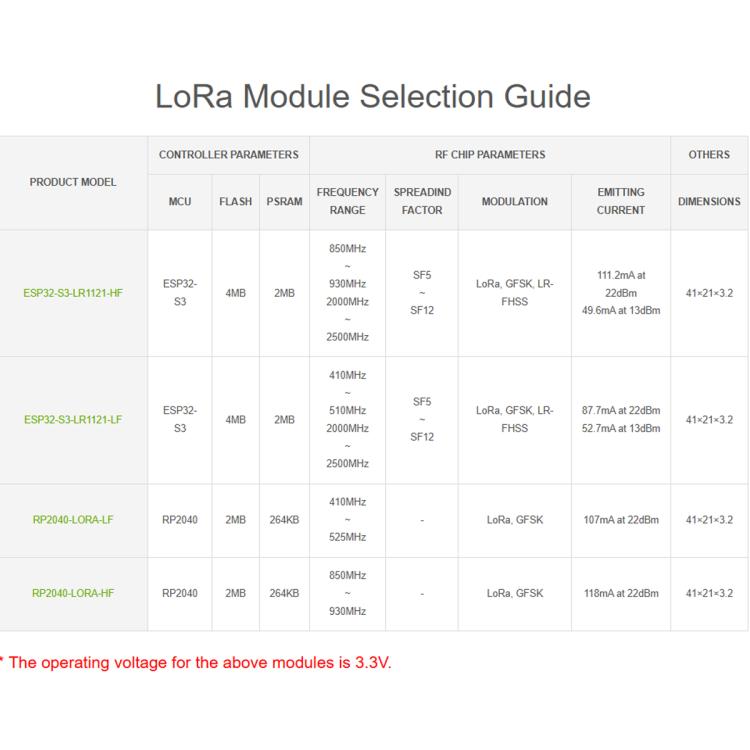

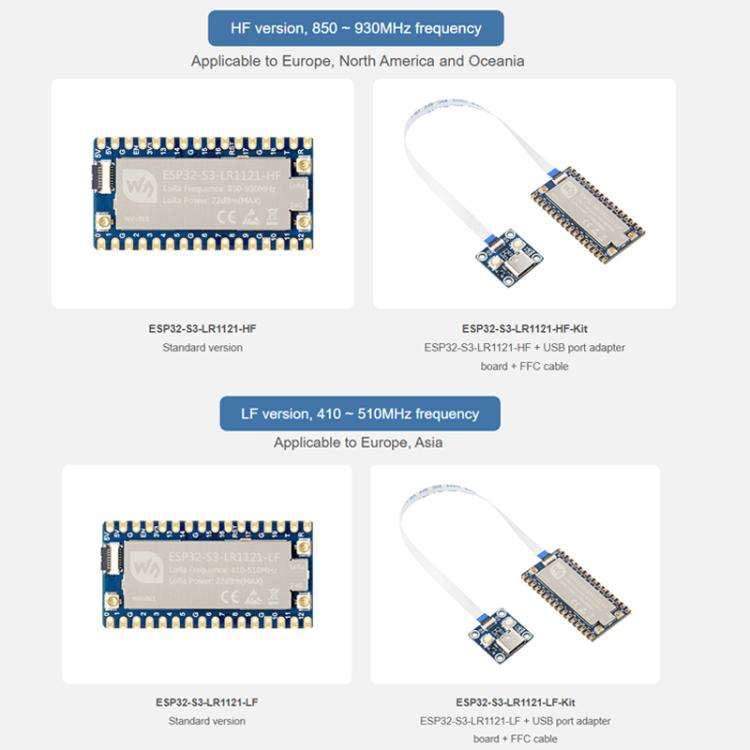

12. Operating frequency bands: LF: 410MHz to 510MHz; HF: 850MHz to 930MHz
Specification:
| Package Weight |
| One Package Weight |
0.10kgs / 0.23lb |
| One Package Size |
12cm * 8cm * 5cm / 4.72inch * 3.15inch * 1.97inch |
| Carton Weight |
10.70kgs / 23.59lb |
| Carton Size |
50cm * 34cm * 32cm / 19.69inch * 13.39inch * 12.6inch |
| Loading Container |
20GP: 490 cartons * 96 pcs = 47040 pcs
40HQ: 1137 cartons * 96 pcs = 109152 pcs
|
|
