Beschreibung
1. Communication distance (without interference or obstruction): 15KM MAX
2. Channels: 13 physical channels; 16 communication channels
3. Data transmission support for flight Controllers: Open-source flight controllers such as PIX, APM, etc.; Boying Paladin v2; Jiyi K3A Pro / K++; Weike Zhifei V7AG
4. Video transmission support for ground stations: QGroundControl; MissionPlanner; Jiyi IFLY / Flight Control Manager; Boying Agriculture; Weike Zhifei V7Pro Ground Station
5. 15KM wireless digital video transmission, dual-channel full HD video real-time display

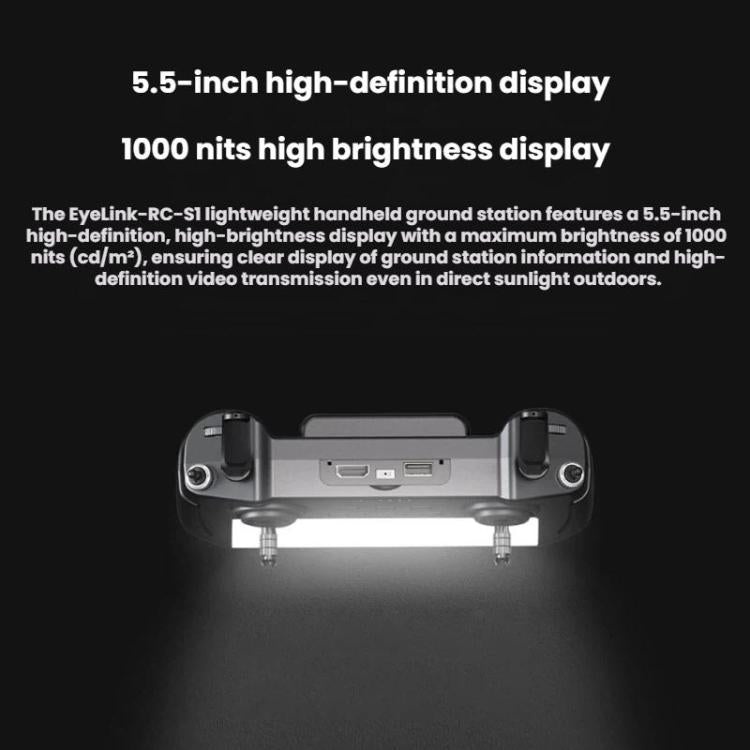

6. Lightweight handheld ground station equipped with a 5.5-inch high-definition high-brightness display, with a brightness of up to 1000 nits, still clearly displaying ground station information and high-definition video transmission images even in direct sunlight outdoors.
7. Equipped with a qualcomm octa-core high-performance CPU, easily hard-decoding H.264/H.265, 1080P 60fps video streams, and capable of running various ground station software at high speed.

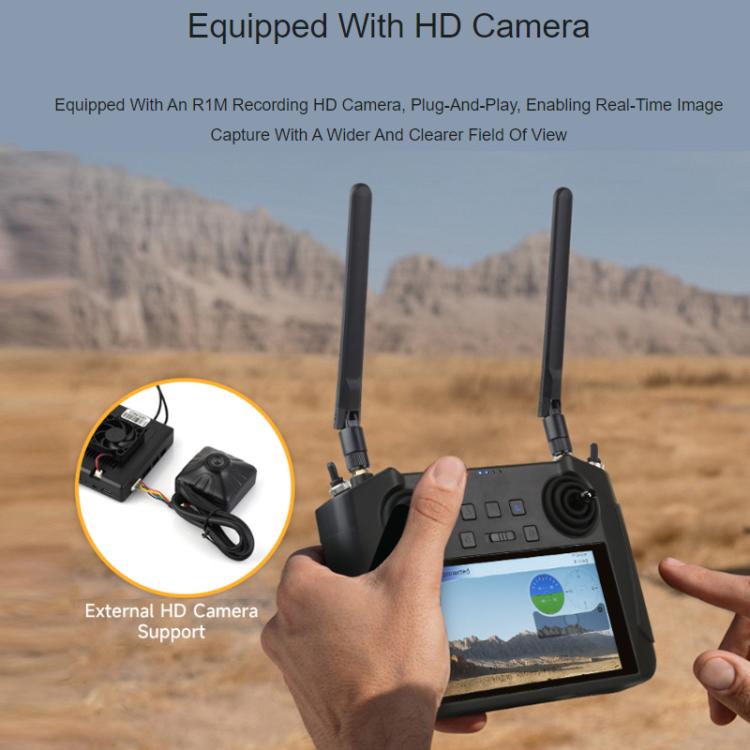

8. Equipped with an R1M card recording high-definition camera interface, plug-and-play, real-time image reading, providing a wider and clearer field of view.

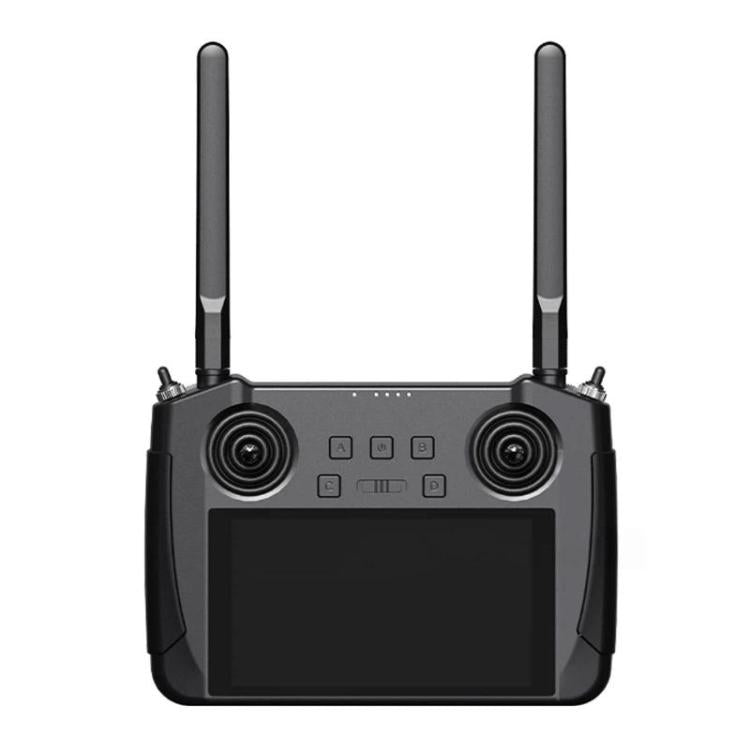

Ground station
1. Display device: 5.5-inch 1080P High-definition High-brightness LCD Touch Display
2. System configuration: Android 9.0, 2G RAM, 16G Storage
3. Dimensions: (Antenna folded) 189.09 x 137.95 x 69.72 (mm)
4. Weight: 850g
5. Battery capacity and type: 10200mAh, 7.4V 2S Lithium-ion battery
6. Fast charging protocol: PD 20W
7. Charging time: 5h (20W fast charging)
8. Operating time: 13h
9. Functional interfaces:
- Charging: Type-C
- Firmware upgrade: DATA (4PIN)
- - Mobile network: SIM card slot
- External storage: TF card slot
- Tripod mount: 1/4 inch threaded hole
- Video output: Standard HDMI
- External RTK: DATA (4PIN)
- External USB drive: USB-A
10. Waterproof rating: IP53
Package contents:
- EyeLink-RC-S1 x 1
- MK15 sky unit and omnidirectional antenna x 1
- Range extender antenna x 1
- USB upgrade data cable x 1
- PWM and PIX flight controller data transmission cable x 1
- R1M card recording HD camera x 1
- PD Fast charging data cable with dual type-C ports x 1
- Sky unit 8PIN connection cable x 1
- 20W PD US standard fast charger x 1
- Packaging box x 1
Specification:
| Package Weight |
| One Package Weight |
0.95kgs / 2.10lb |
| One Package Size |
22cm * 17cm * 10cm / 8.66inch * 6.69inch * 3.94inch |
| Carton Weight |
12.50kgs / 27.56lb |
| Carton Size |
46cm * 36cm * 32cm / 18.11inch * 14.17inch * 12.6inch |
| Loading Container |
20GP: 503 cartons * 12 pcs = 6036 pcs
40HQ: 1168 cartons * 12 pcs = 14016 pcs
|
|
