Description

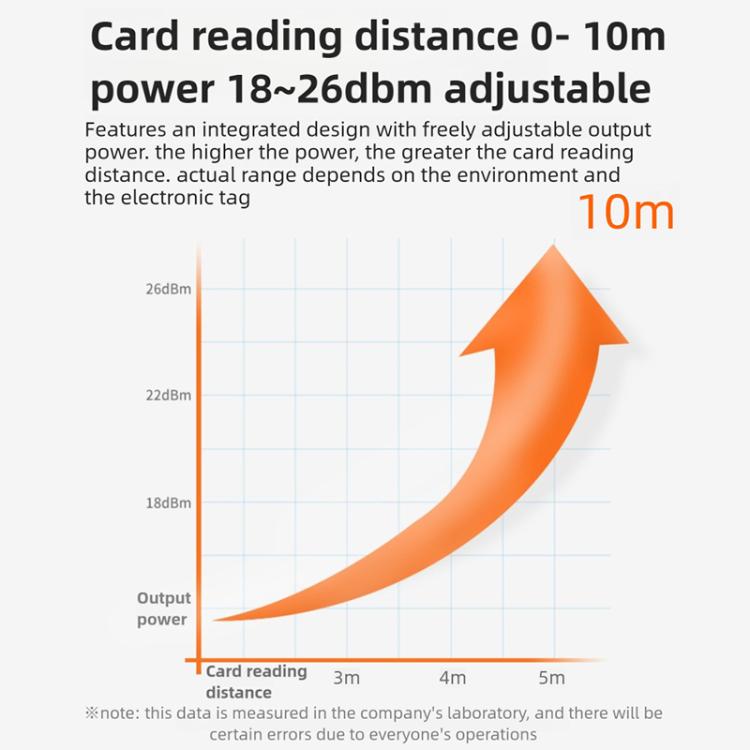

1. Card reading distance 0-10m, adjustable power 18-26dBm

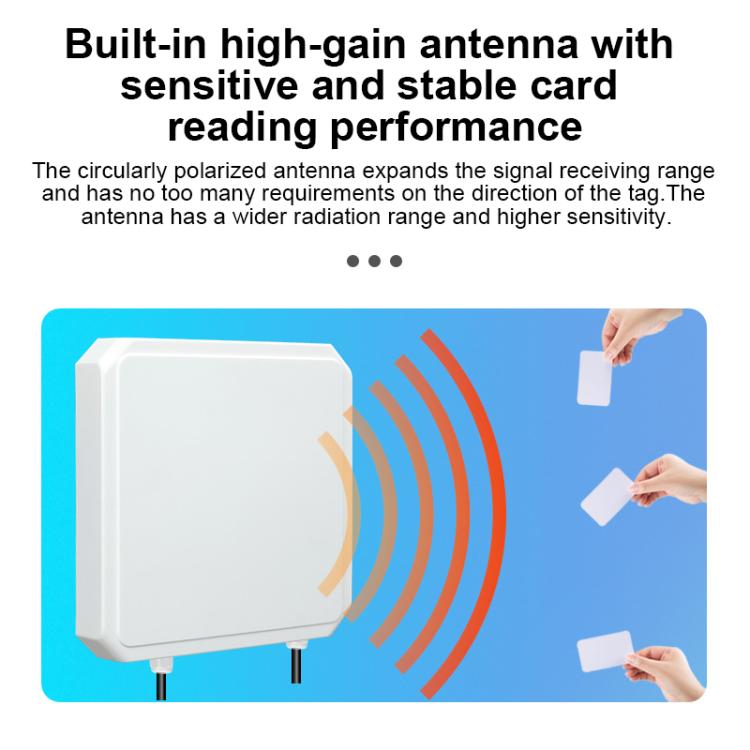

2. Built-in high-gain 9dBi antenna for wide coverage, sensitive card reading, and stable performance

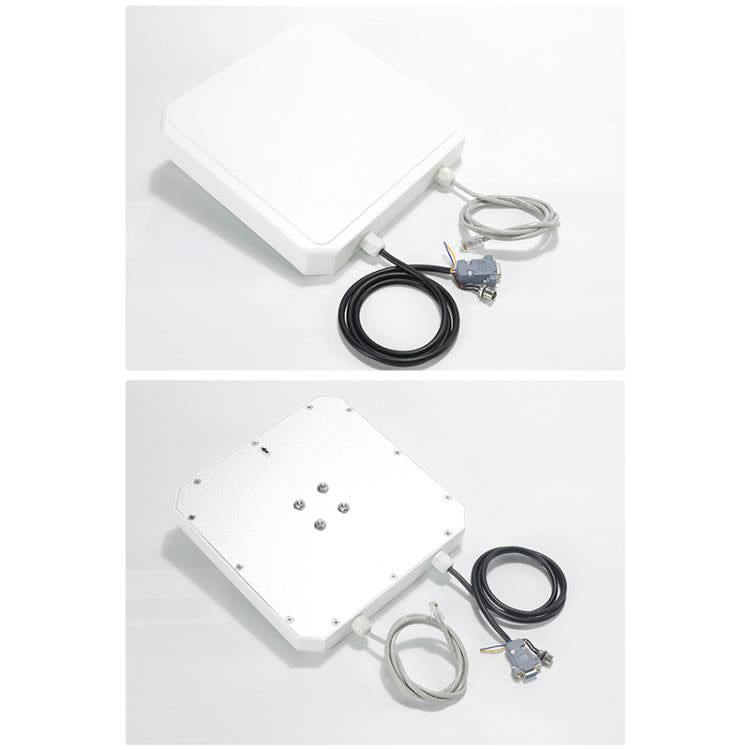

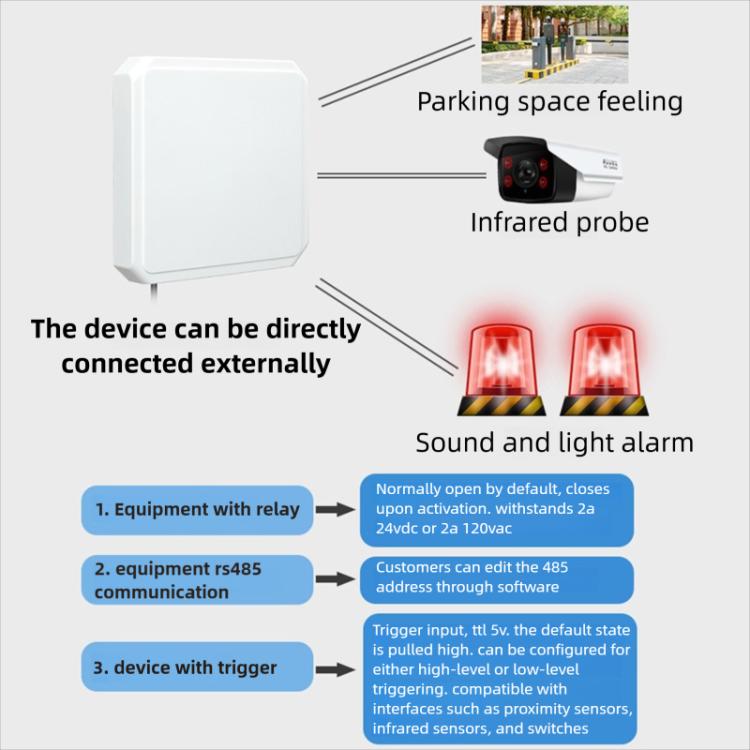

3. Multiple communication interfaces and a separate cable design allow for connection to various devices, such as parking sensors and infrared detectors

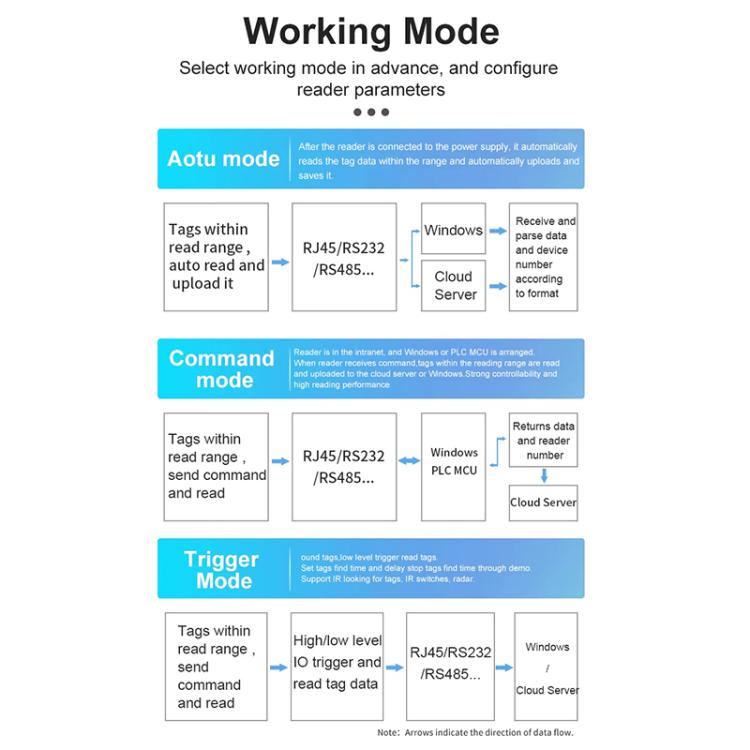

4. Flexible switching between active, passive, and trigger modes
5. Integrated structure with IP65-rated waterproof and dustproof protection for easy operation in various outdoor environments
6. Wide range of applications: Suitable for warehousing and logistics, production line tracking, intelligent asset management, and access control systems
Specifications:
1. Model: FI-806

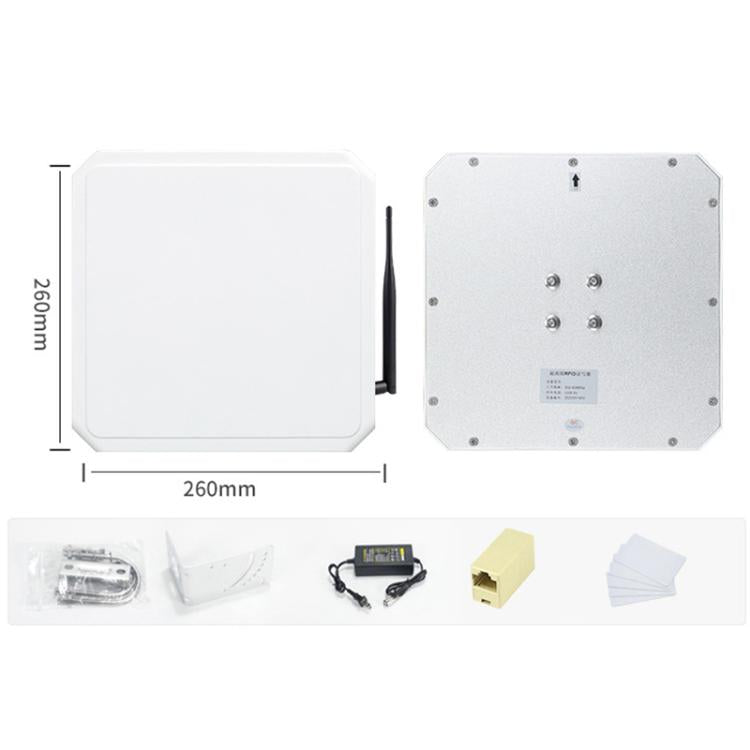

2. Dimensions: 260mm x 260mm x 40mm
3. Weight: Approximately 1000g
4. Operating frequency: Standard ISM 902-928MHz and ISM 865-868MHz, optional
5. Operating protocol: ISO18000-6C (EPCGEN2)
6. Card Reading Distance: 0-10m
7. Card Reading Speed: Software-adjustable, average reading speed per 64 bits per card is less than 6ms
8. Output Power: 18-26dBm, software-adjustable
9. Operating Mode: Wide Frequency Hopping Spectrum (FHSS)
10. Antenna Gain: Built-in circularly polarized antenna, 9dBi gain

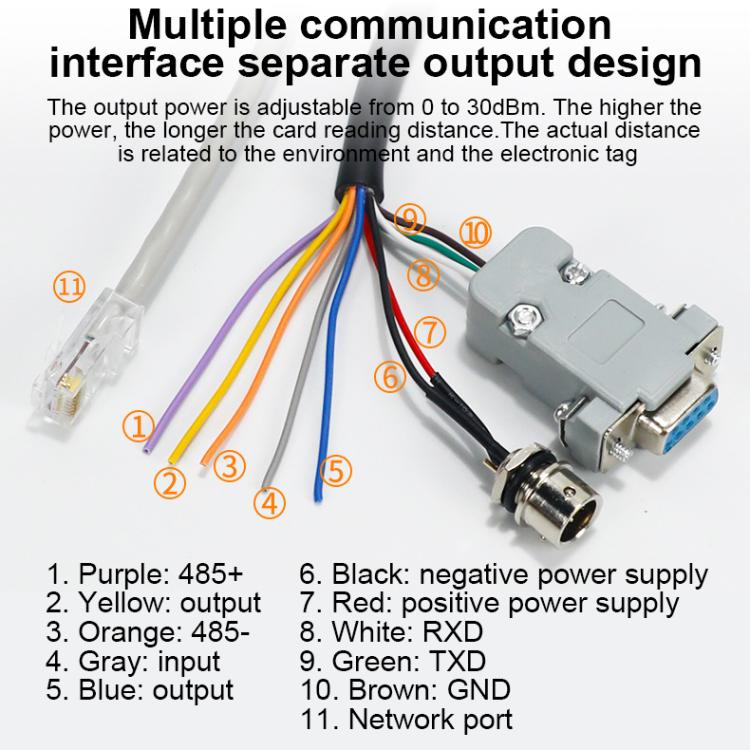

11. Communication Interfaces: RS232, RS485, RJ45, Wiegand 26/34, one trigger output, one relay output
12. Operating Indicator: Buzzer
13. Power Supply: DC+12V (with power adapter), voltage range: 9-16V
14. Operating Temperature: -20 degrees Celsius to +80 degrees Celsius
Specification:
| Package Weight |
| One Package Weight |
2.03kgs / 4.48lb |
| One Package Size |
42cm * 32cm * 12cm / 16.54inch * 12.6inch * 4.72inch |
| Carton Weight |
21.00kgs / 46.30lb |
| Carton Size |
46cm * 38cm * 40cm / 18.11inch * 14.96inch * 15.75inch |
| Loading Container |
20GP: 381 cartons * 10 pcs = 3810 pcs
40HQ: 885 cartons * 10 pcs = 8850 pcs
|
|
