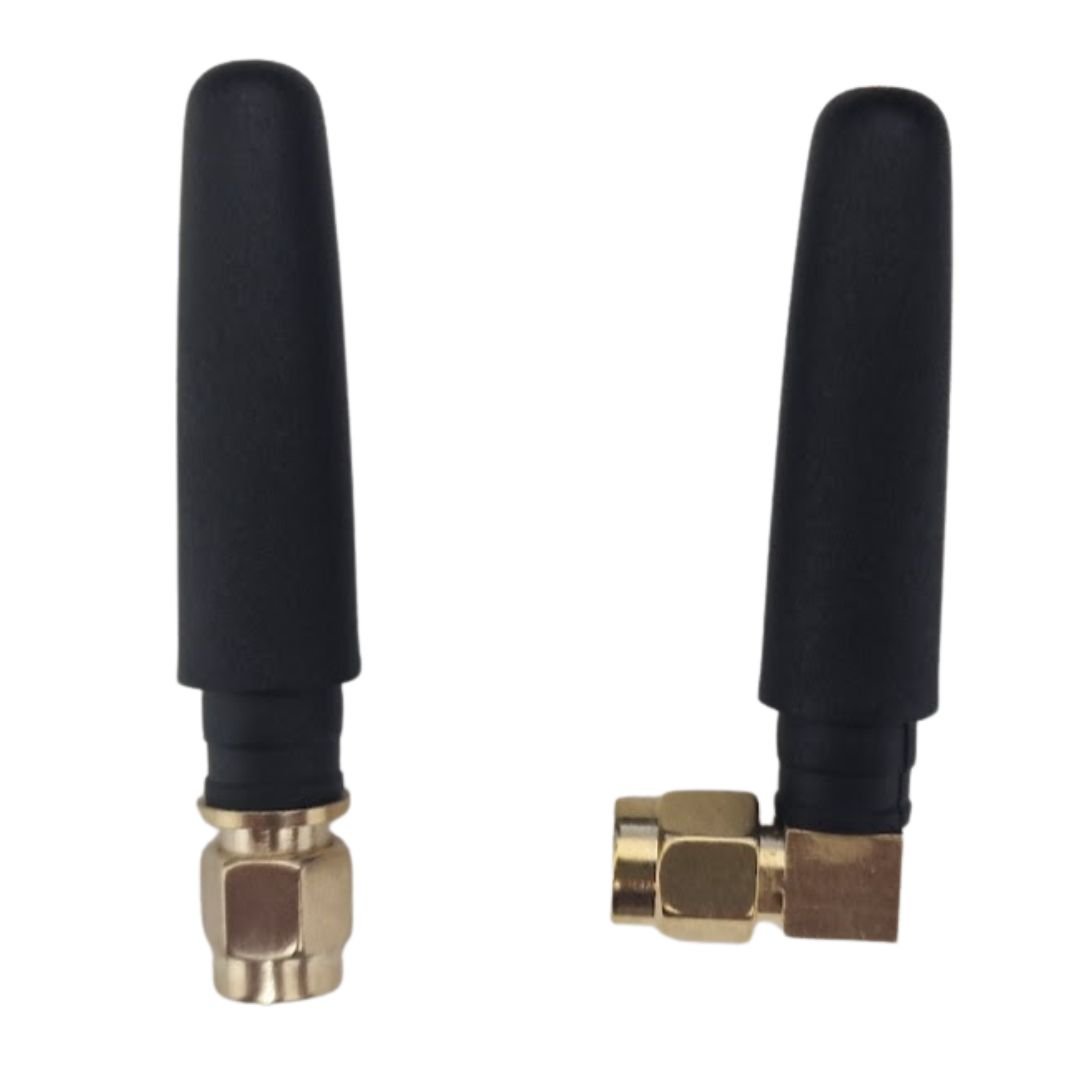

Why have one when you can have two? Introducing the dynamic duo of the JCD401 868Mhz Rubber Duck Antennas, featuring one straight shooter and one right-angled renegade. This pair is all about giving your RFD868Mhz telemetry modules twice the versatility, twice the connectivity, and twice the conversation starters at geeky gatherings.
Twice as Nice: Features to Make Your Signal Dance
-
Diverse Duo:
One antenna stands tall and straight, perfect for those direct paths to the skies. Its partner in crime bends at a nifty 90 degrees, ideal for tight spaces and slick setups.
-
Frequency Flexibility:
Tuned to a sprightly 433MHz frequency range, these antennas are more in sync than a pair of tango dancers, ensuring your data doesn't step on any toes.
-
Bespoke Bandwidth:
With CF±5MHz, these antennas don't just cover the band; they own it, providing a swath of signal real estate.
-
Linear Loveliness:
Linear polarization keeps signals in line, so there's no funny business or signal squiggles.
-
Gainful Gathering:
At 2dBi gain, these antennas reach for the stars, metaphorically speaking, of course.
-
VSWR Virtuosos:
With a V.S.W.R (min) of less than 2.0, these antennas keep your signals tight and your data right.
-
Impedance Impeccability:
Rocking a 50Ω impedance, they're the Goldilocks of antennas—not too high, not too low, just right.
-
Connector Choice:
Whether it's the straight-laced SMA Male or the rakishly angled RP-SMA Male, they're ready to link up and lay down some serious telemetry.
-
Enduring Elements:
These antennas laugh in the face of extreme temperatures and vibrations. From icy chills to desert drills, they keep transmitting.
-
Eco-Warrior Status:
ROHS compliant, because being good to the planet is always in fashion.
|
Item
|
Specifications
|
|
Antenna
|
Frequency Range
|
868MHz
|
|
Band Width
|
CF±5MHz
|
|
Polarization
|
Linear
|
|
Gain
|
2dBi(Zenith)
|
|
V.S.W.R(min)
|
<2.0
|
|
Impedance
|
50Ω
|
|
Connector
|
RP-SMA Male
|
|
Environmental
|
Operating Temperature
|
-40℃~+85℃
|
|
Vibration
|
10 to 55Hz with 1.5mm amplitude 2hours
|
|
Environmentally Friendly
|
ROHS Compliant
|
In the Box:
-
1 x JCD401 868Mhz Rubber Duck Antenna with a Straight Connector - For when you need a direct line to the heavens.
-

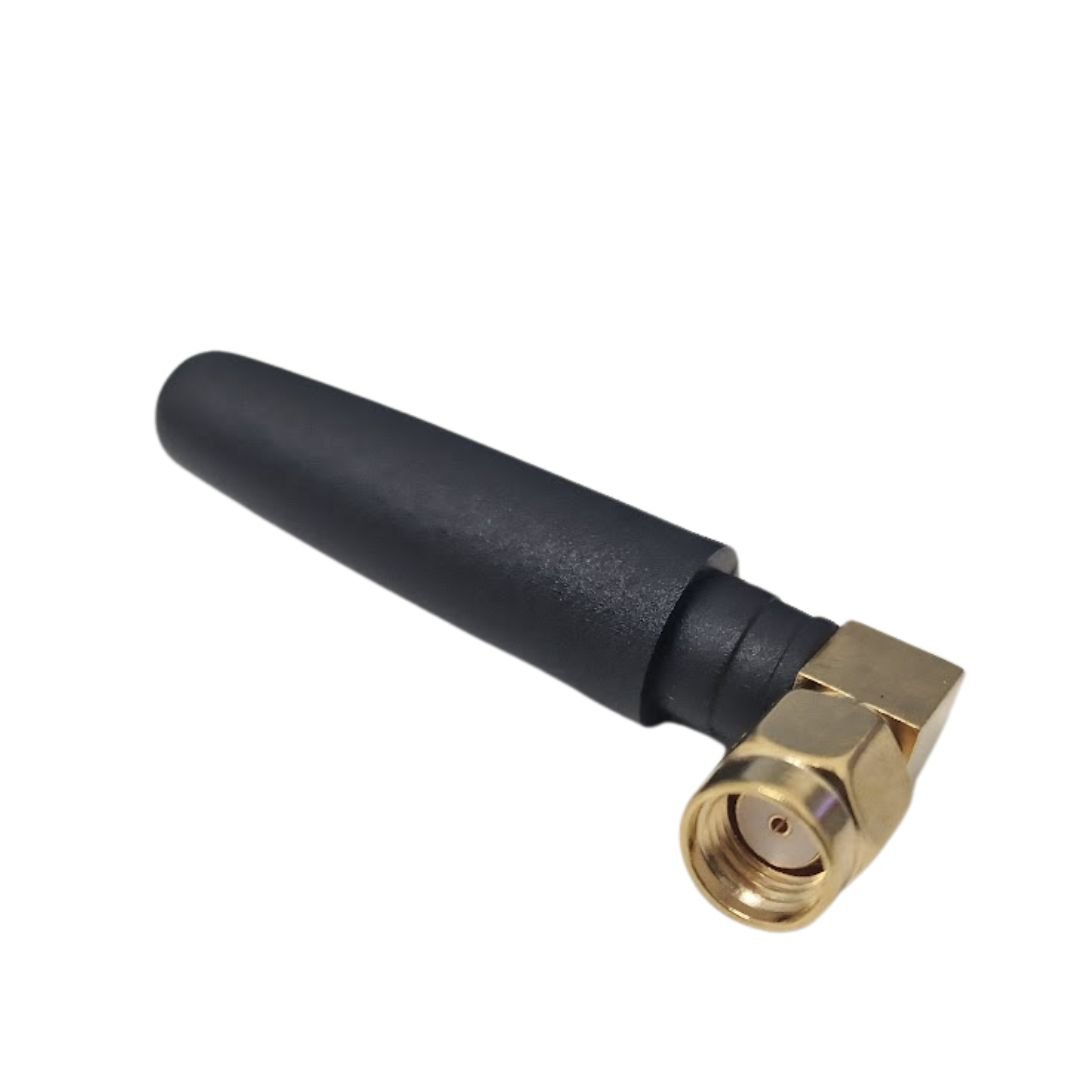

1 x JCD401 868Mhz Rubber Duck Antenna with a 90-Degree Connector - For the corners and curves of your complex projects.
