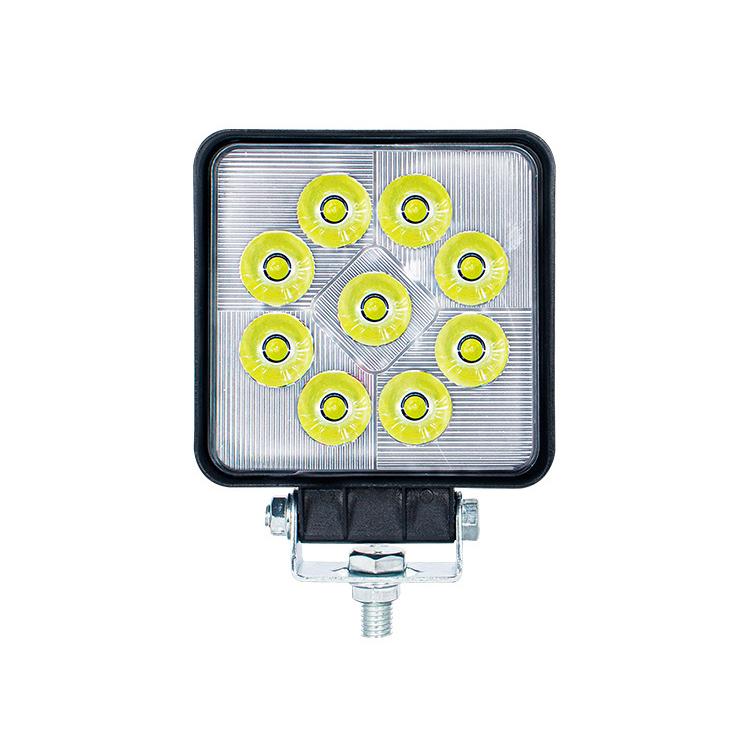

Description
1. Color temperature: 6000~6500K
2. Light source power: 27W/48W
3. Lumen: 1380LM; 2400LM
4. Protection level: IP65
5. M10 bracket for installation
6. Constant-on type DC 12-80V wide voltage
7. Aluminum shell has good waterproof performance
8. Suitable for forklifts/excavators and other convenient installations
9. Acrylic cover, good light transmittance, with large-size optical lens, good light output effect, and clearer viewing
10. One-piece aluminum shell, the base part adopts the reinforcement rib design used in construction engineering, and the thickened and reinforced base is more durable

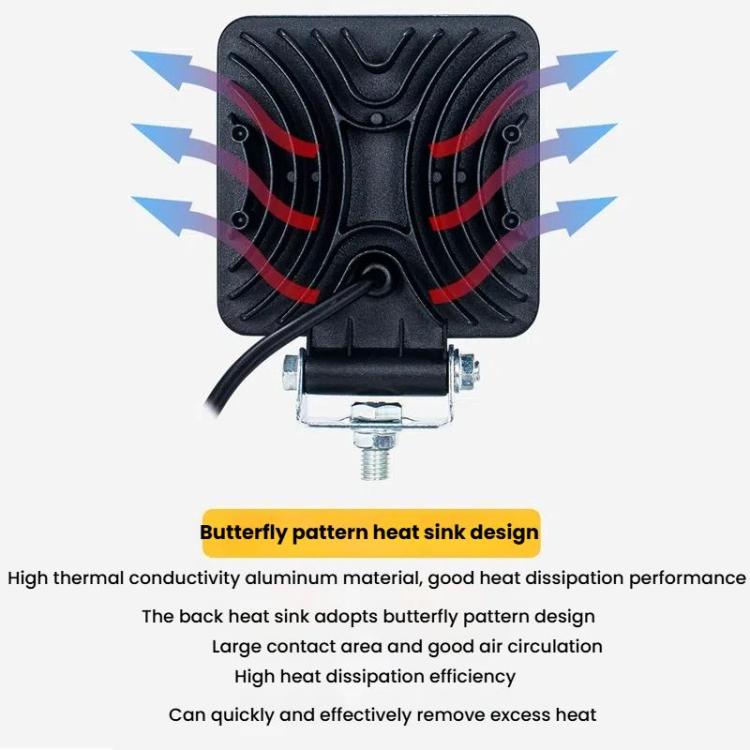

11. High thermal conductivity aluminum material, good heat dissipation performance, the back heat sink adopts butterfly pattern design with large contact area, good air circulation, high heat dissipation efficiency, and can quickly and effectively remove excess heat
One-piece molded shell, the inside of the product and the outlet are coated with industrial-grade waterproof sealant, good waterproof performance

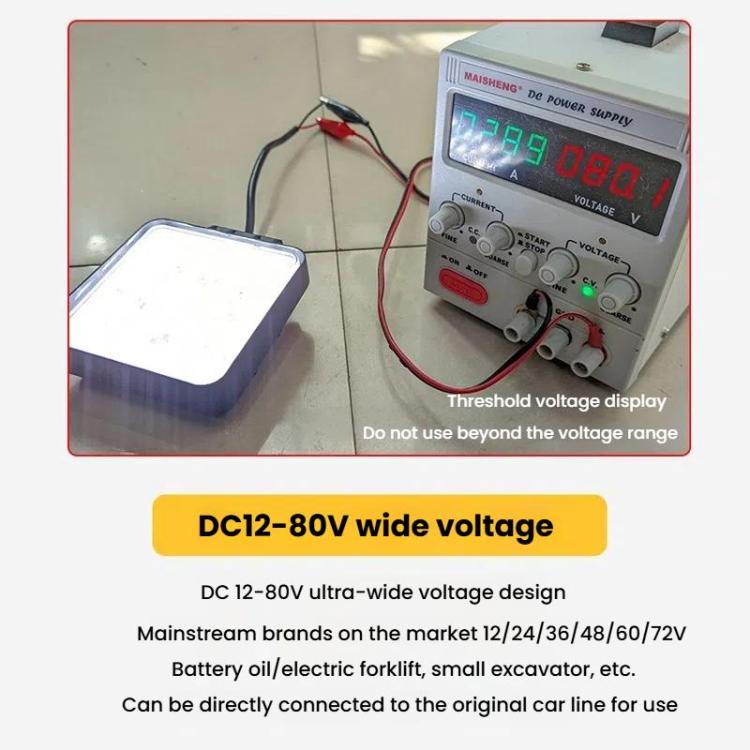

12. DC 12-80V ultra-wide voltage design, mainstream brands of 12/24/36/48/60/72V battery oil/electric forklifts, small excavators, etc. on the market can be directly connected to the original car line for use

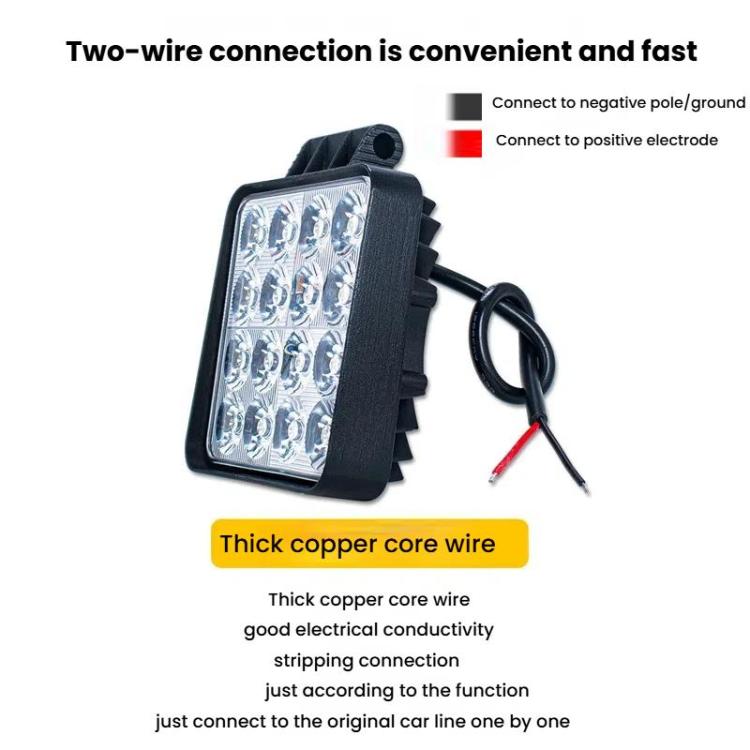

13. The thickened copper core wire has good conductivity, and the stripping connection only needs to be connected to the original car line according to the function
14. Size: 136x108x35mm
15. Note: car lamps cannot be used over-pressure or out of range
Specification:
| Package Weight |
| One Package Weight |
0.36kgs / 0.79lb |
| One Package Size |
14cm * 6cm * 16cm / 5.51inch * 2.36inch * 6.3inch |
| Carton Weight |
18.00kgs / 39.68lb |
| Carton Size |
41cm * 31cm * 35cm / 16.14inch * 12.2inch * 13.78inch |
| Loading Container |
20GP: 599 cartons * 50 pcs = 29950 pcs
40HQ: 1391 cartons * 50 pcs = 69550 pcs
|
|
