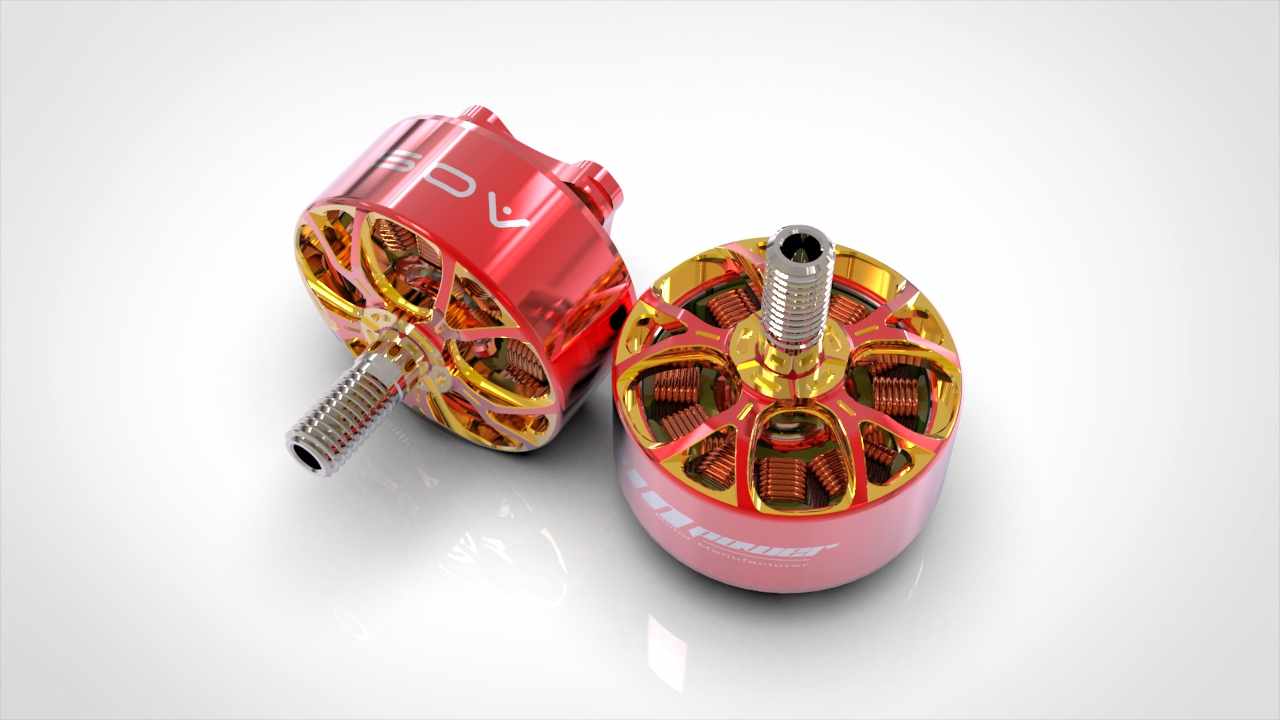

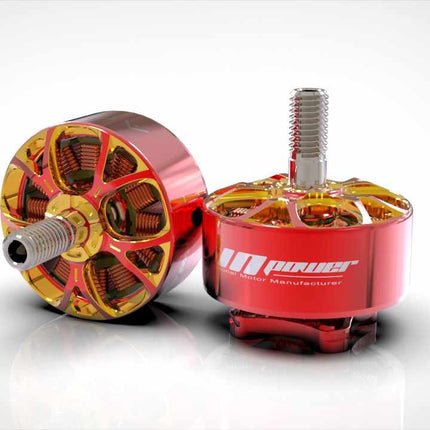

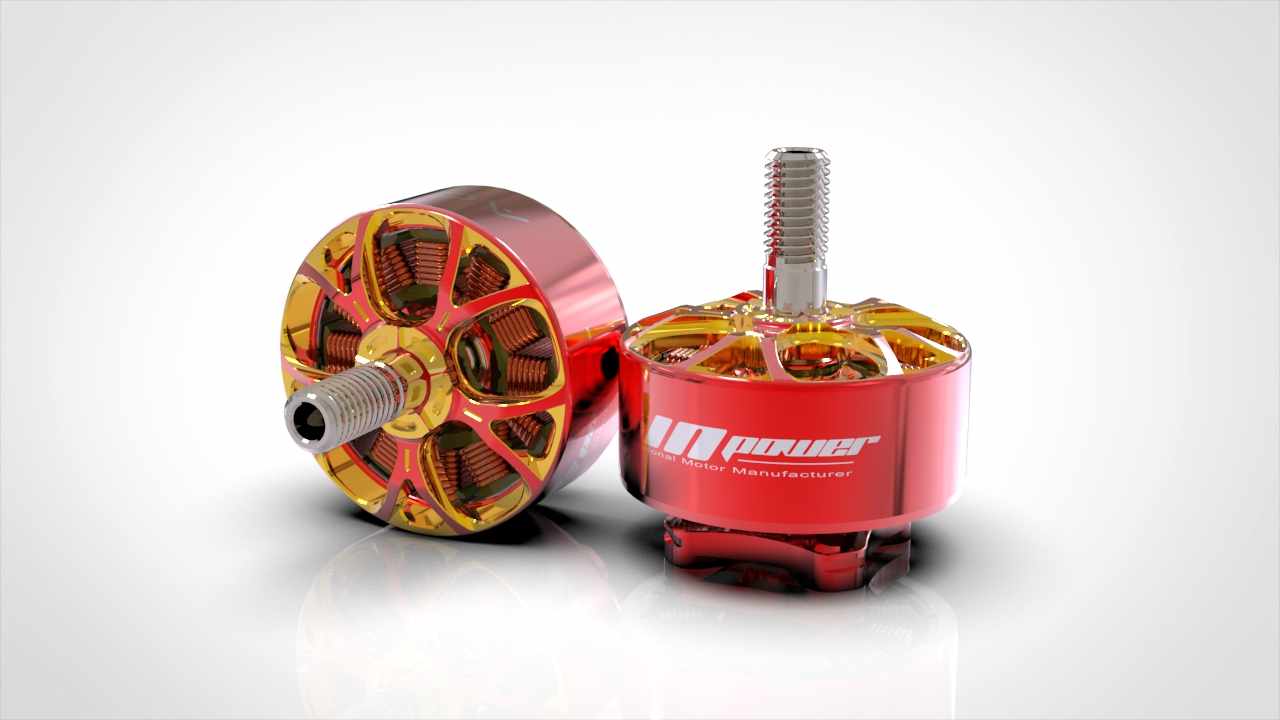

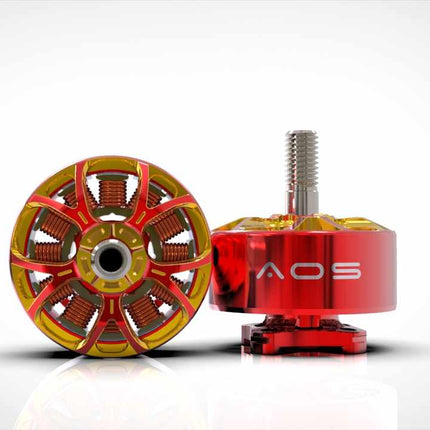

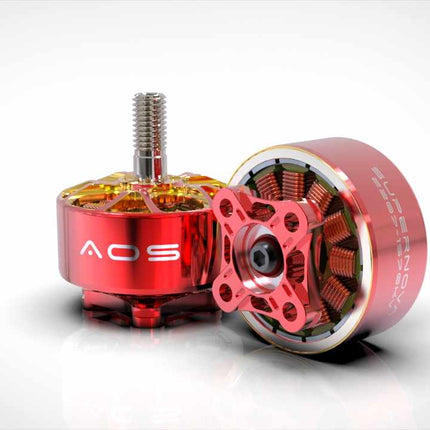

Meet the AOS Supernova 2207, the motor that redefines power and efficiency for your 5" FPV drone. This new 1570KV variant is optimized for 8S battery voltage, offering unparalleled top-end thrust and power while maintaining exceptional efficiency.

Key Features

• KV Rating : 1570KV, perfect for 8S battery voltage.
• Thrust and Torque : Delivers 37.6% more thrust and 52.9% more torque compared to standard 5" motors on 6S.

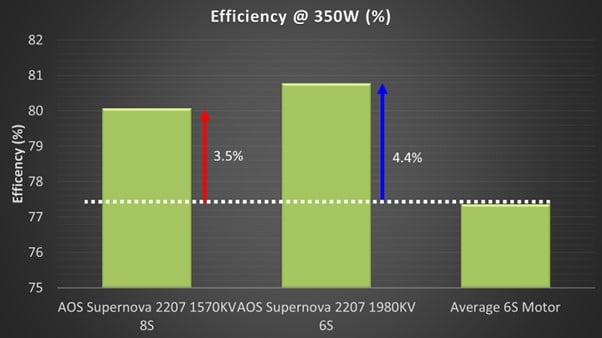

• Efficiency : 3.5% higher efficiency, tested on HQ 5x4.5x3 V1S props.

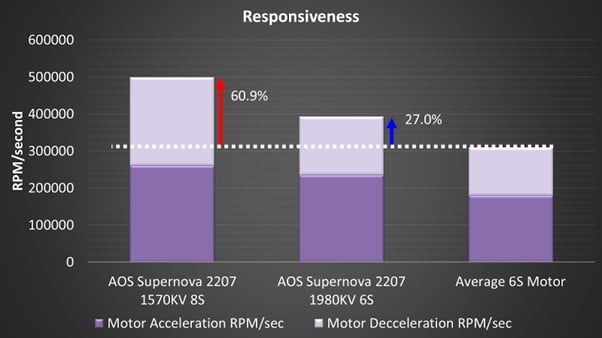

• Response Time : 60.9% faster response, ensuring sharp and precise control.

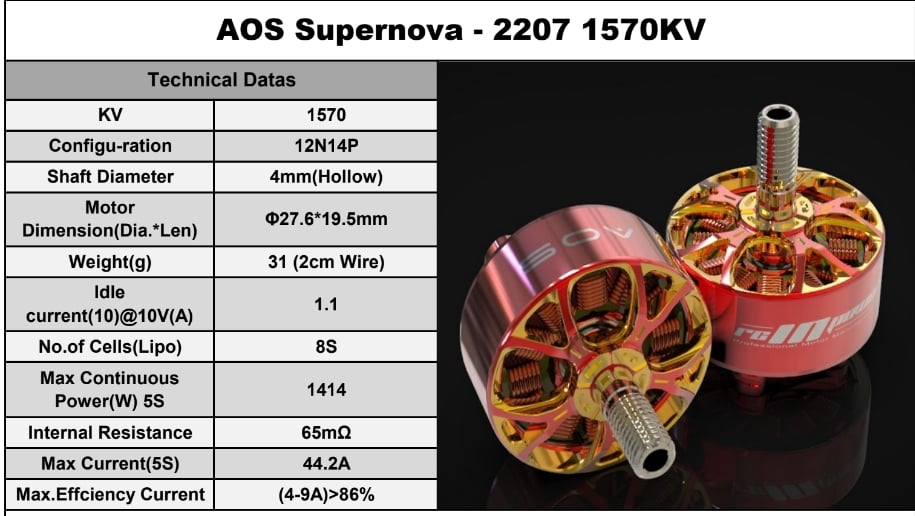

Specifications

• KV Rating : 1570
• Configuration : 12N14P
• Shaft Diameter : 4mm (Hollow)

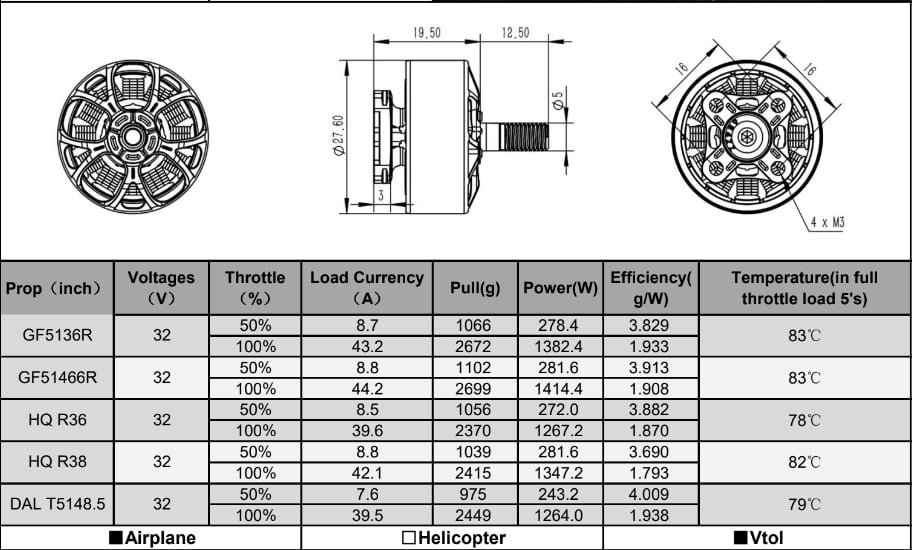

• Motor Dimensions : Φ27.6*19.5mm
• Weight : 31g (2cm Wire)
• Idle Current @ 10V : 1.1A
• Battery Compatibility : 8S LiPo
• Max Continuous Power (5S) : 1414W
• Internal Resistance : 65mΩ
• Max Current (5S) : 44.2A
• Max Efficiency Current : (4-9A) > 86%

Recommended Setup

To fully enjoy the precise low-throttle control and explosive top-end power of the AOS Supernova 2207, Chris Rosser suggests using throttle expo in Betaflight:

• Throttle MID : 0
• Throttle EXPO : 0.20 to start
• Adjust EXPO to increase precision at low throttle or to sharpen throttle response.

In the Box

• 1 x AOS Supernova 2207 1570KV Motor
• Screws and hardware for installation
