DJI O4 Air Unit Pro - The Ultimate FPV Vision System
Experience unparalleled aerial cinematography with the DJI O4 Air Unit Pro, a groundbreaking digital video transmission solution that redefines FPV flight. Featuring a premium 1/1.3-inch CMOS sensor, this compact powerhouse delivers stunning 4K/120fps footage with a sweeping 155° ultra-wide field of view.
Advanced Imaging
Capture breathtaking aerial footage with 12MP resolution and professional 10-bit D-Log M color mode, ensuring exceptional detail in both highlights and shadows. The unit's RockSteady stabilization and Gyroflow compatibility guarantee smooth footage even during high-speed maneuvers.
Superior Transmission
With dual antennas and cutting-edge O4 transmission technology, enjoy crystal-clear 1080p/100fps live feed and ultra-low 15ms latency up to 15 kilometers away. The system automatically selects the most stable frequency for uninterrupted performance in any environment.
Racing Excellence
Take your racing game to the next level with the dedicated Racing Mode, supporting up to eight aircraft simultaneously with industry-leading responsiveness. Perfect for both competitive racing and dynamic freestyle flying.
Specifications Overview
Sensor Size: 1/1.3-inch CMOS
Video Resolution: 4K/120fps, 4K/60fps
FOV: 155° Ultra-Wide
Storage: 4GB + microSD expansion (up to 512GB)
Weight: 32g
Dimensions: 33.5×33.5×13 mm

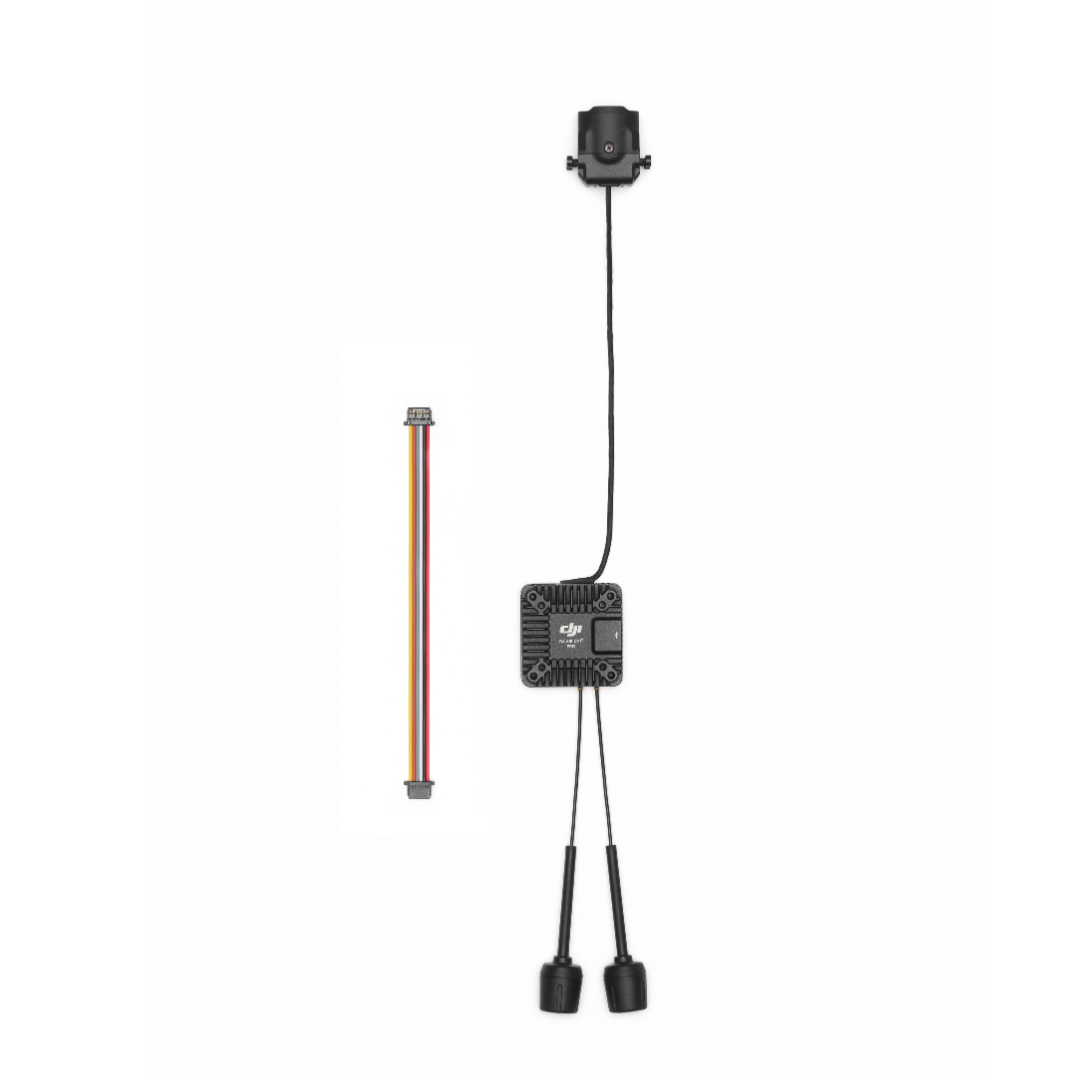

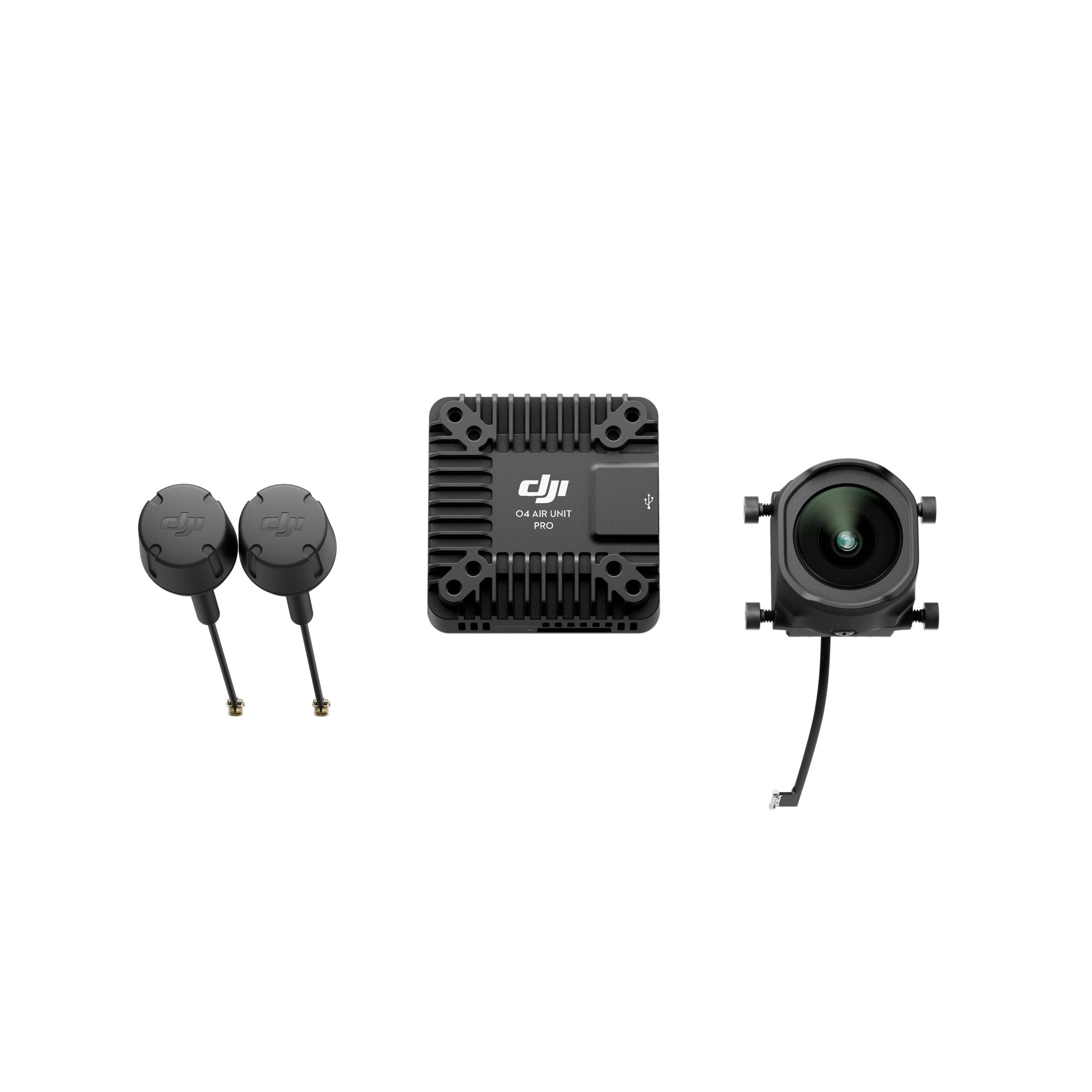

What's in the Box
DJI O4 Air Unit Pro Camera Module
DJI O4 Air Unit Pro Transmission Module
2x DJI O4 Air Unit Pro Antenna
DJI O4 Air Unit Pro 3-in-1 Cable
Note: Accessory contents may vary based on supply and regional availability
Support will soon be added for Goggles 2, and Goggles Integra, along with DJI FPV Remote Controller 2.

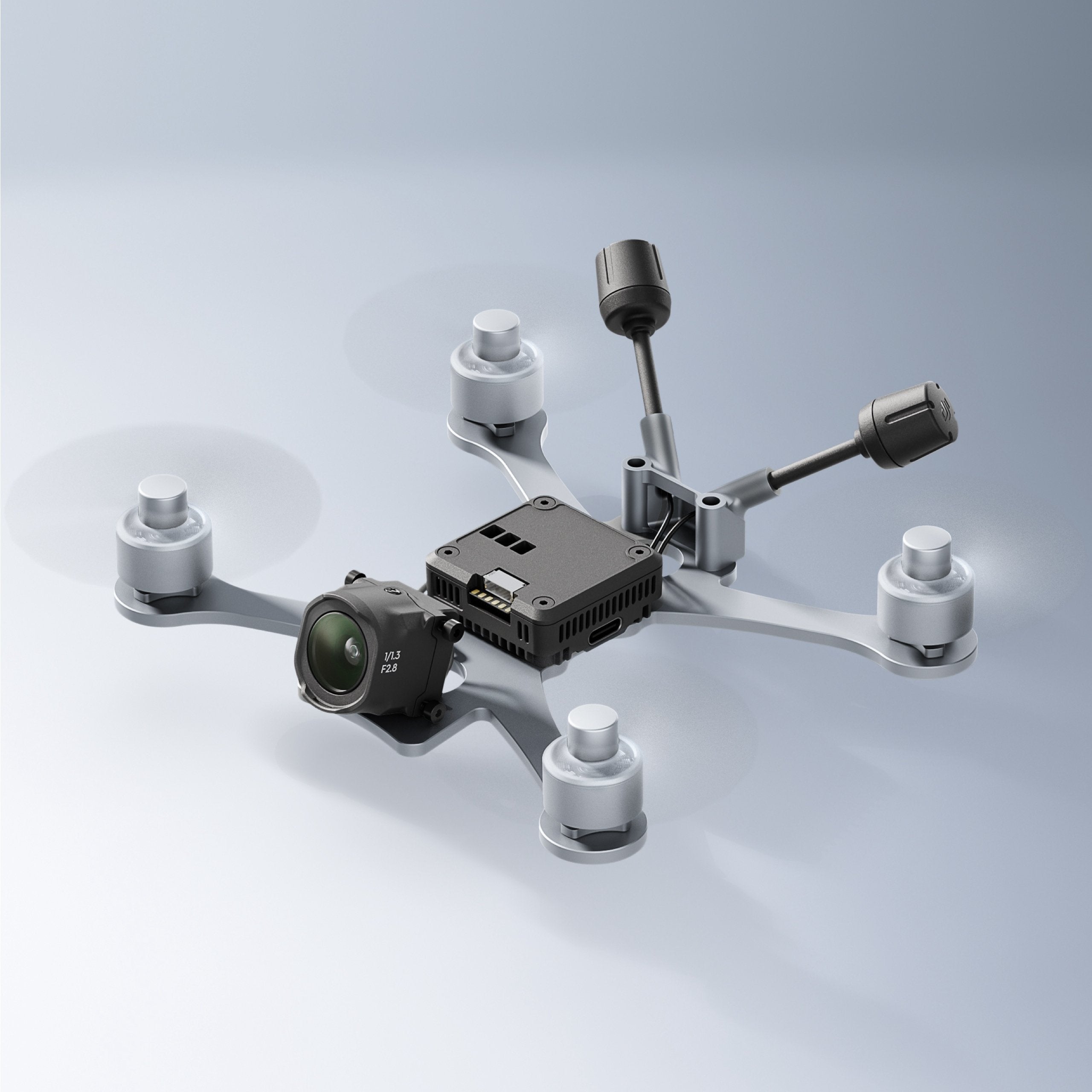

Suitable for drones 3 inches and above.
Full Specifications
DJI O4 AIR UNIT PRO
Weight :
Air Unit (camera module excluded): Approx. 15.6 g
Air Unit (camera module included): Approx. 32 g
Antenna: Approx. 2.1 g/pcs
Dimensions :
Transmission Module: 33.5 × 33.5 × 13 mm (L × W × H)
Camera Module: 25.55 × 20 × 23.30 mm (L × W × H)
Camera Cable Length: 135mm
Coaxial Cable: 140 mm
3-in-1 Cable: 100 mm
Antenna: 110 mm
VTX Mounting Pattern: 20x20/25.5x25.5mm
VIDEO TRANSMISSION
Operating Frequency :
5.170-5.250 GHz
5.725-5.850 GHz Note: Operating frequency varies by region. Follow local regulations.
Transmitter Power (EIRP) :
5.1 GHz: <23 dBm (CE)
5.8 GHz:
<33 dBm (FCC)
<14 dBm (CE)
<30 dBm (SRRC)
Lowest Latency :
DJI Goggles 3 in Racing Mode: 15 ms (1080p/100fps)
DJI Goggles N3 in Racing Mode: 19 ms (1080p/100fps)
DJI Goggles 2 or Goggles Integra: Less than 30 ms (1080p/100fps) Note: Latency data was tested in an outdoor environment without interference.
Max Video Transmission Range :
DJI Goggles 3/DJI Goggles N3:
15 km (FCC)
8 km (CE)
8 km (SRRC) Note: Transmission range varies by flight endurance and environment.
Live View Quality : 1080P@30/48/50/60/100fps
Communication Bandwidth : Max 60 MHz
Antenna : 2 antennas, 2T2R
Channels :
Supports auto and manual mode
DJI Goggles 3/N3:
60 MHz: 1 channel
40 MHz: 1 channel
20 MHz: 3 channels
10 MHz: 3 channels
DJI Goggles 2/Integra:
40 MHz: 1 channel
20 MHz: 3 channels
10 MHz: 3 channels
Channels Info :
FCC/SRRC/CE:
60 MHz/40 MHz:
Channel 1: 5794.5 MHz
20 MHz/10 MHz:
Channel 1: 5768.5 MHz
Channel 2: 5789.5 MHz
Channel 3: 5814.5 MHz
CAMERA
Image Sensor : 1/1.3-inch CMOS Sensor
Lens :
FOV: 155°
Equivalent Focal Length: 12 mm
Aperture: f/2.8
Focus: 0.6 m to ∞
ISO Range :
100-25600 (Auto)
100-25600 (Manual)
Video Resolution :
4K (4:3): 3840 x 2880@30/48/50/60fps
4K (16:9): 3840 x 2160@30/48/50/60/100/120fps
2.7K (4:3): 2888 x 2016@30/48/50/60fps
2.7K (16:9): 2688 x 1512@30/48/50/60/100/120fps
1080P (4:3): 1440 x 1080@30/48/50/60/100/120fps
1080P (16:9): 1920 x 1080@30/48/50/60/100/120fps
Video Format : MP4
Max Video Bitrate : 130 Mbps
Color Mode :
Normal Mode
D-Log M
Camera FOV Modes :
Standard
Wide-Angle
Ultra Wide-Angle
Electronic Image Stabilization (EIS) :
RockSteady 3.0+
Stabilization off (supports Gyroflow) Note: RockSteady only supports standard angles.
HARDWARE
Input Voltage : 7.4-26.4 V
Operating Temperature : -10°C to 40°C
STORAGE
Built-in Storage : 4GB
Supported SD Cards : microSD (up to 512 GB)
Recommended microSD Cards :
Lexar Professional 1066x (64GB, 128GB, 256GB, 512GB)
Kingston Canvas Go! Plus (64GB, 128GB, 256GB, 512GB)
COMPATIBILITY
Supported Flight Controller System : Betaflight 4.3.0 and higher
Supported DJI Goggles and Remote Controllers :
DJI Goggles 3 + DJI FPV Remote Controller 3
DJI Goggles N3 + DJI FPV Remote Controller 3
DJI Goggles 2 / Goggles Integra + DJI FPV Remote Controller 2 Note: The flight control firmware must support the SBUS protocol for using the DJI FPV Remote Controller.
