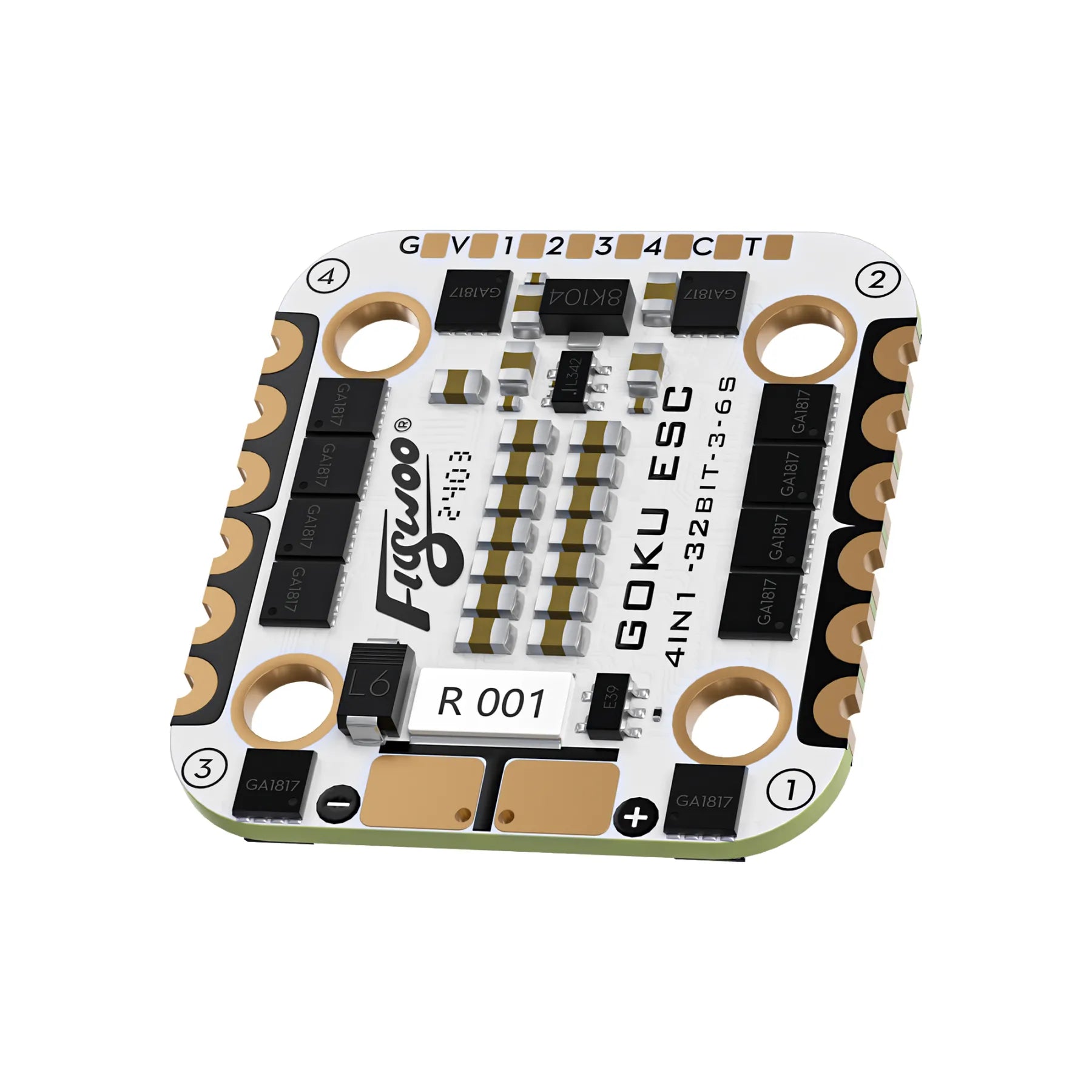

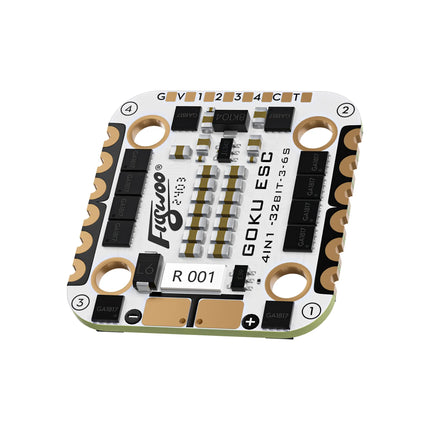

GOKU G45M 32BIT 128K 2-6S 45A ESC (20x20)

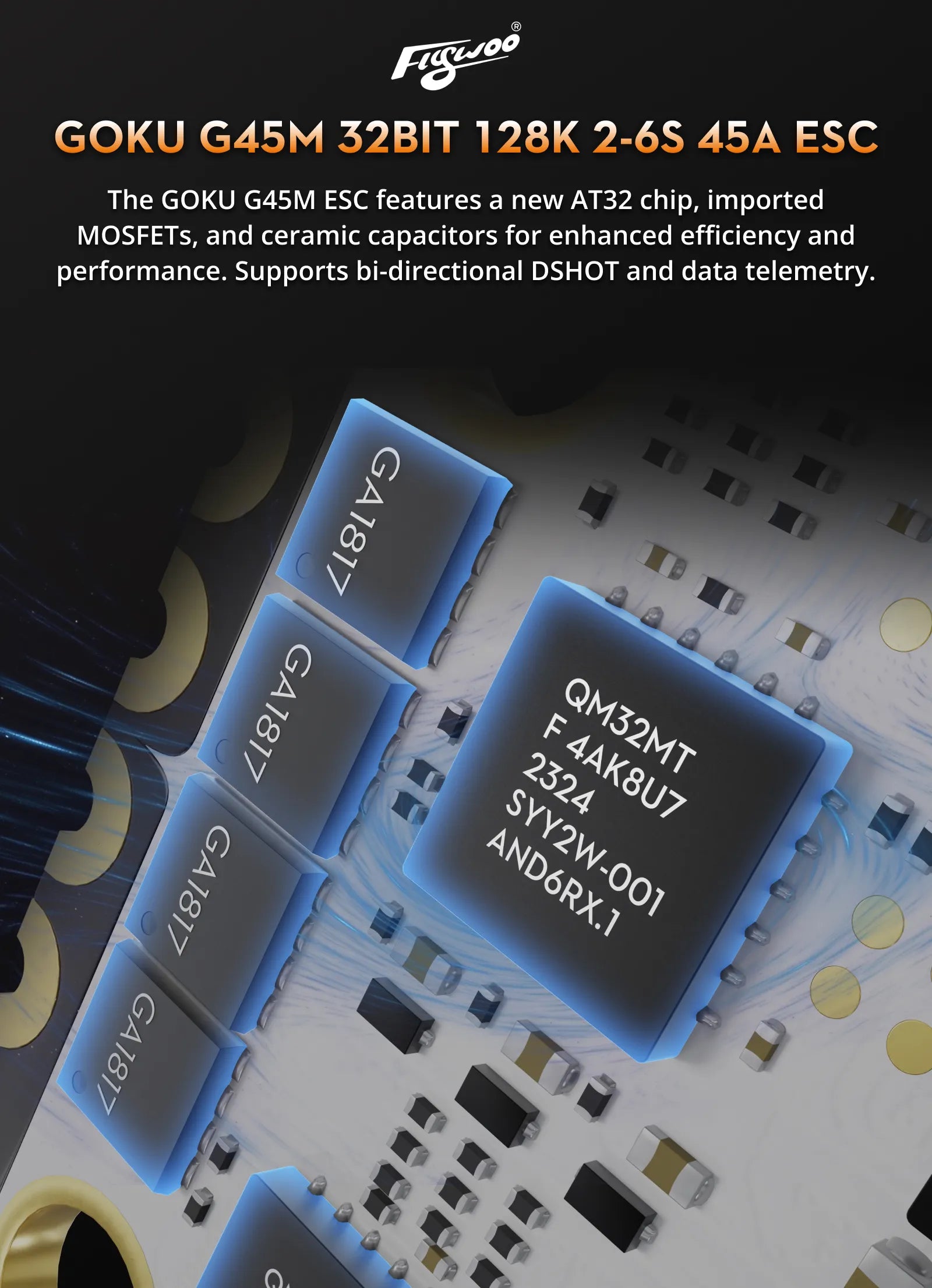

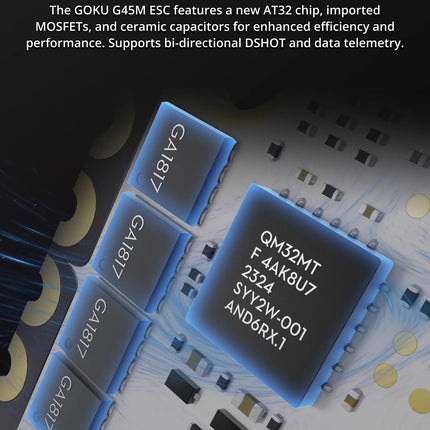

The GOKU G45M 32-Bit 128K 2-6S 45A ESC is engineered for high-performance FPV builds, offering smooth control and power delivery with its 45A continuous current rating . Running on AM32 firmware , this 4-in-1 ESC supports bidirectional DShot, telemetry, and a lightning-fast 128K PWM refresh rate , giving pilots precision and stability in their flights. It features an AT32 dual-in-one chip , imported MOSFETs , and a 6-layer PCB design , ensuring high efficiency and low heat. Whether you're freestyle flying or racing, the G45M's compatibility with DShot1200, PWM, and Oneshot throttle modes makes it an ideal choice for advanced drone pilots.

The GOKU G45M is built to last, featuring high-quality ceramic capacitors and enhanced power management to improve overall performance. This ESC is designed for easy installation, with reserved solder pads for output wires and XT30/60 compatibility, making it a versatile solution for various drone setups.

Key Features:

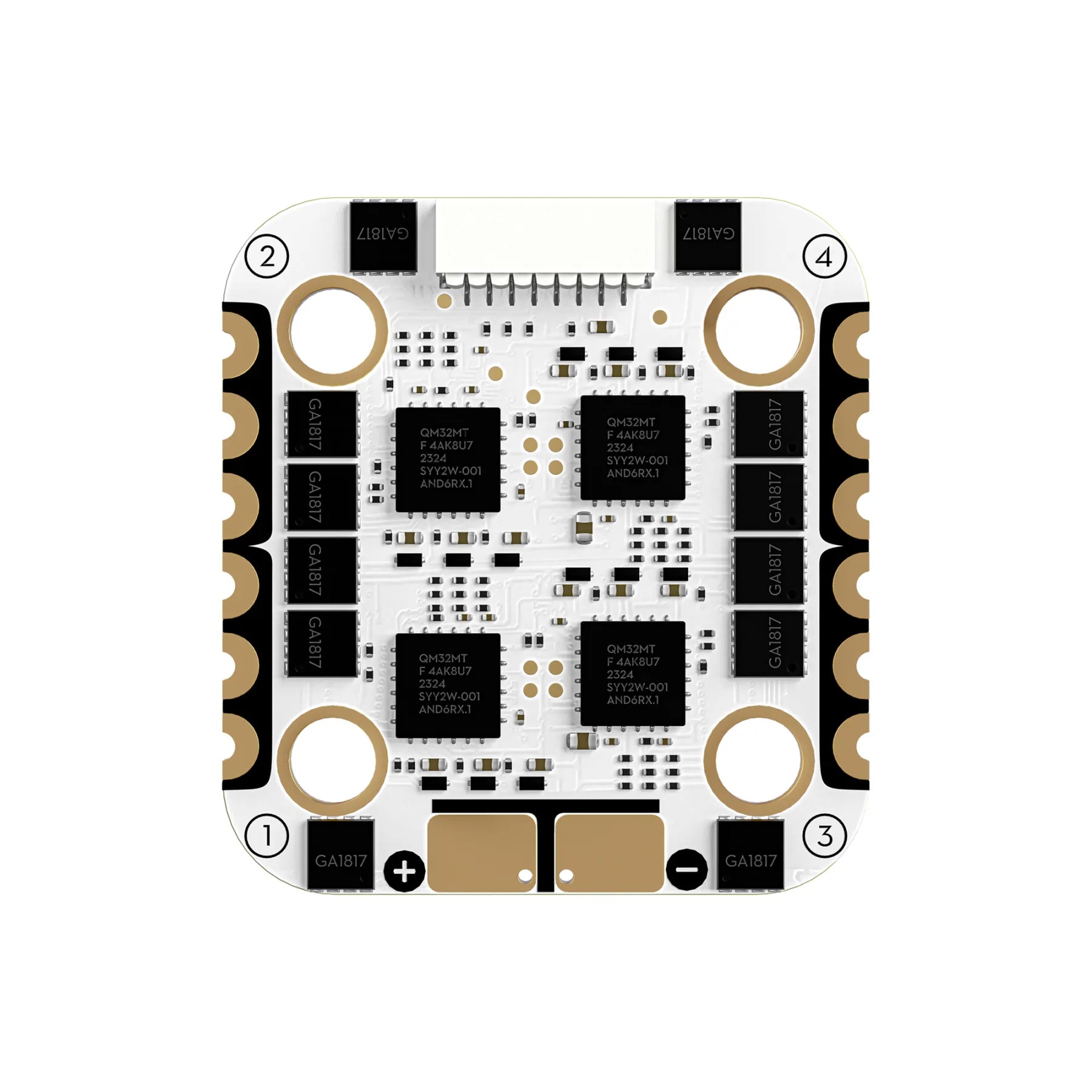

• 32-Bit Processing : Powered by the AT32 dual-in-one chip for ultra-fast, stable performance.
• High-Quality Components : Uses imported MOSFETs and ceramic capacitors for improved efficiency and lower heat.
• Bidirectional DShot & Telemetry : Provides feedback for better flight control and easy monitoring.
• Wide Compatibility : Supports DShot1200 , PWM , Oneshot , and Multishot throttle modes.

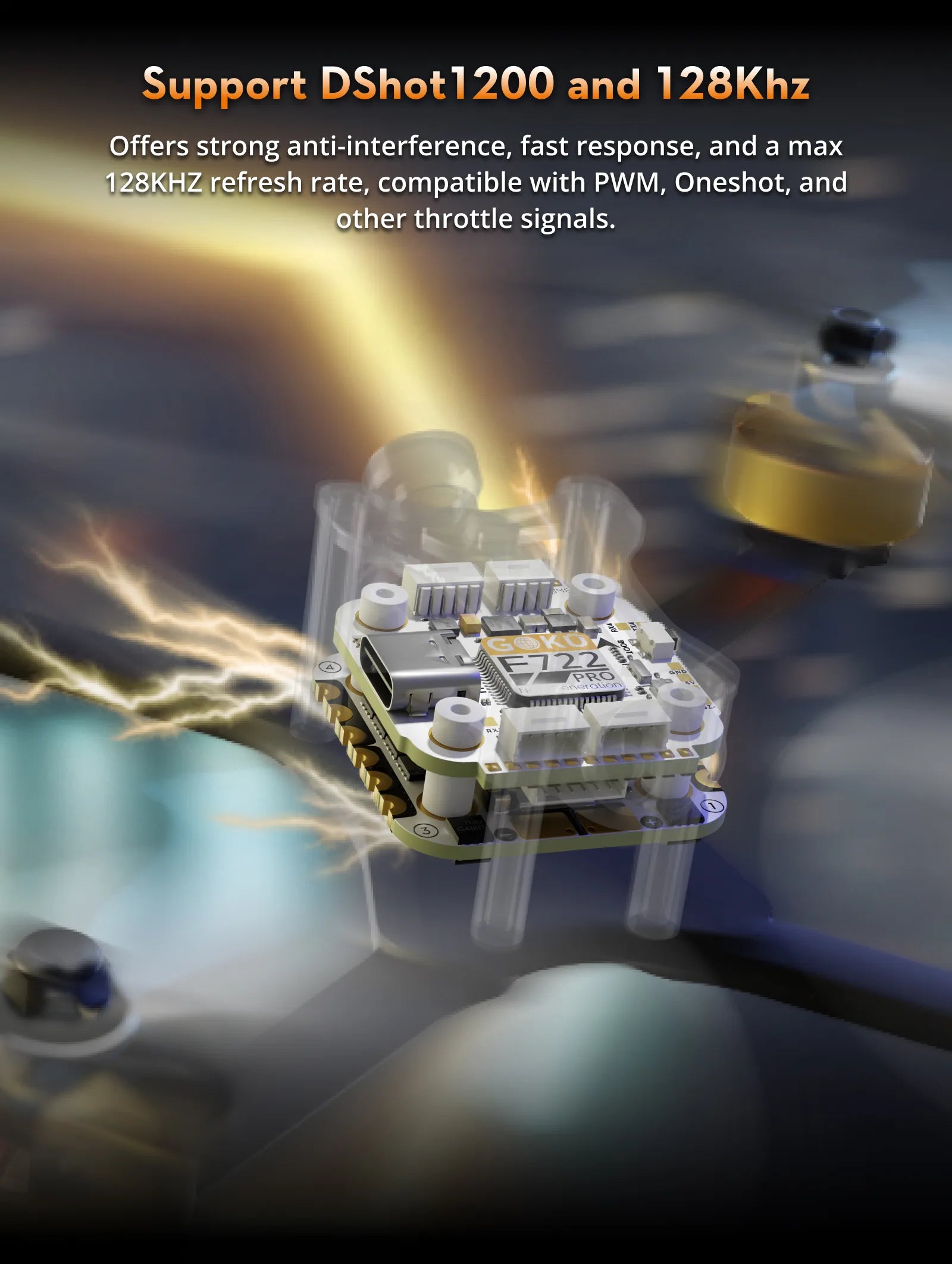

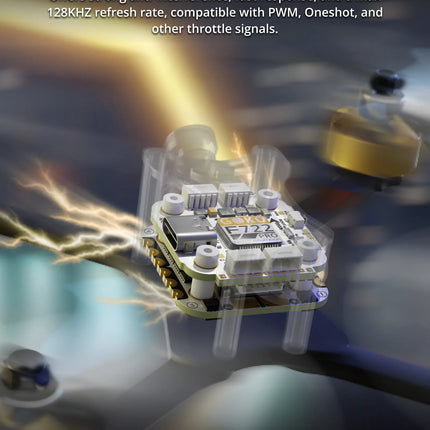

• 128K PWM Refresh Rate : Max refresh rate ensures ultra-smooth motor control.
• 2-6S LiPo Compatibility : Works with a wide range of battery setups for different power needs.

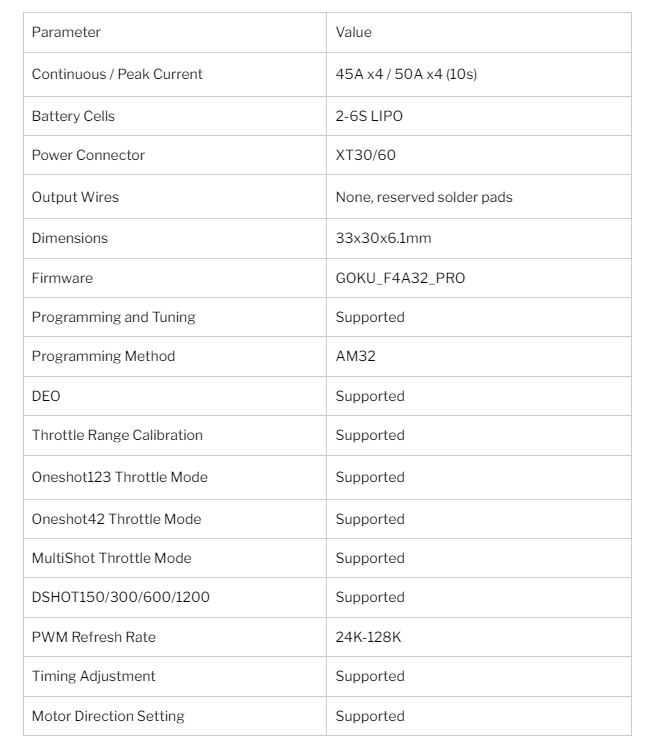

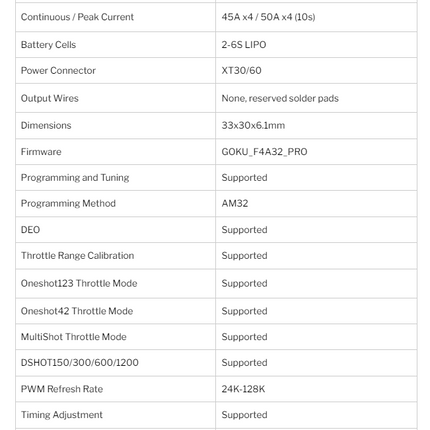

Specifications:

• Continuous Current : 45A x 4 (50A x 4 peak for 10s)
• Input Voltage : 2-6S LiPo
• PWM Frequency : 24kHz-128kHz
• Throttle Modes : Supports DShot150/300/600/1200, Oneshot, Multishot, PWM

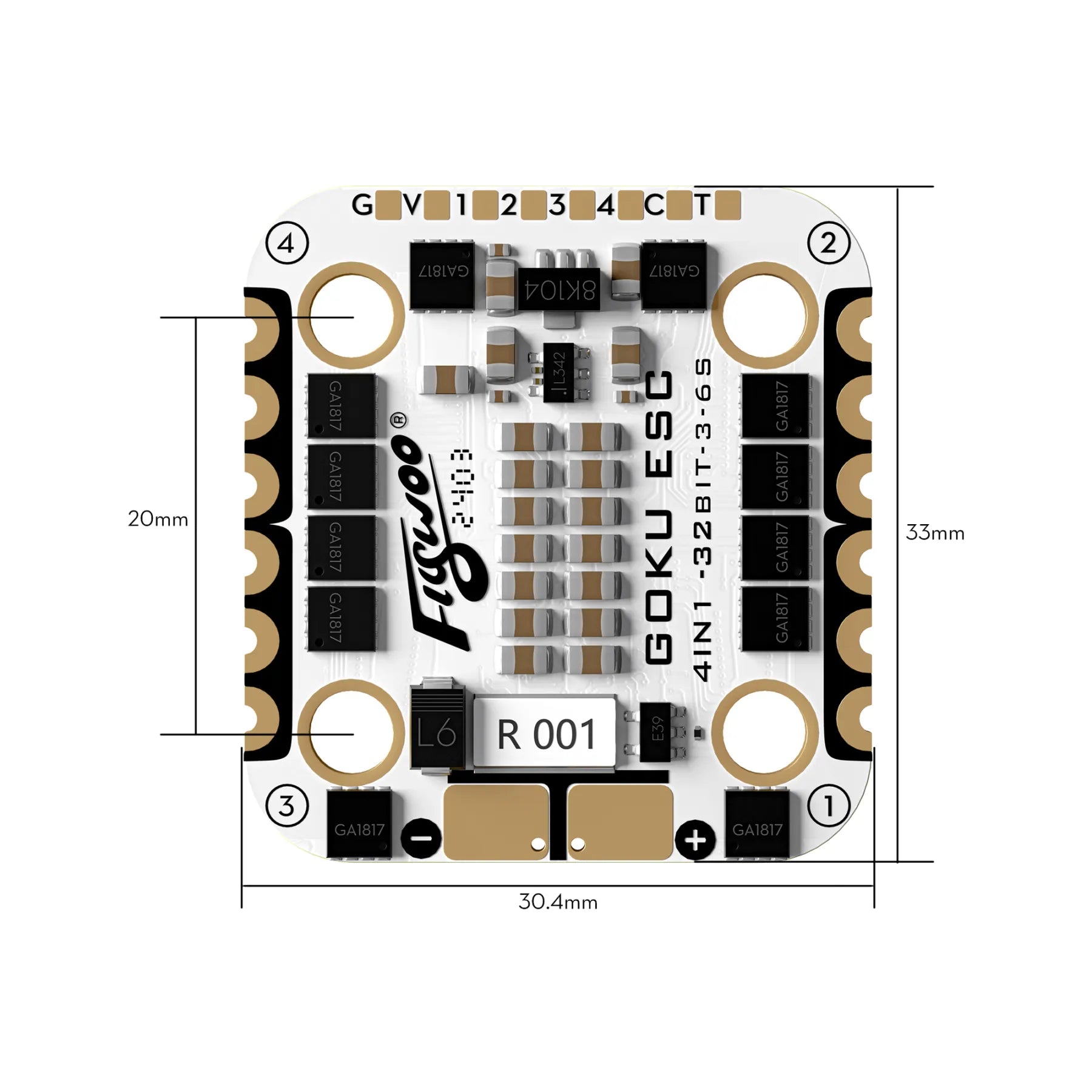

• Dimensions : 20x20x1mm

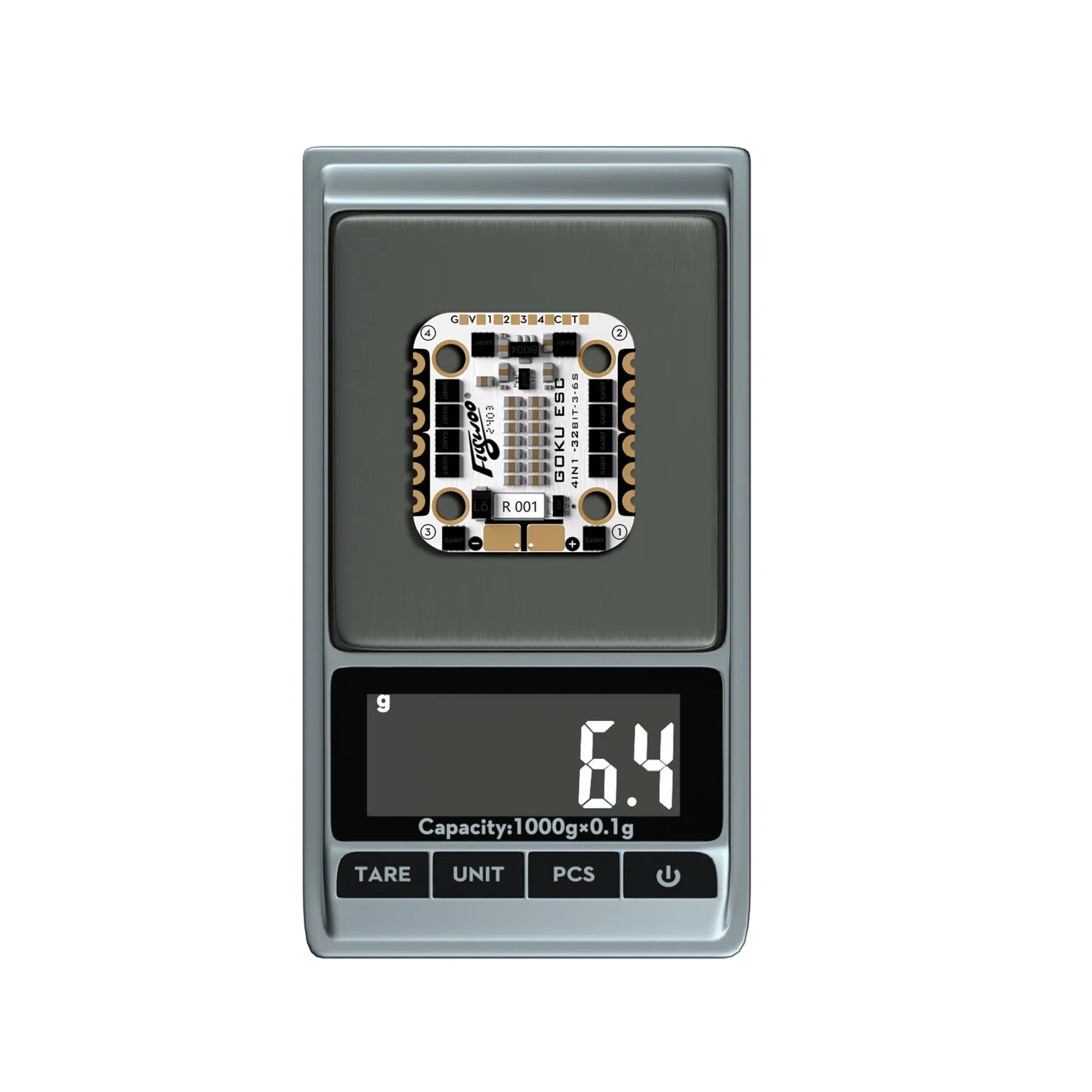

• Weight : 6.4g
• Firmware : GOKU_F4A32_PRO
• Motor Direction Setting : Supported
• Timing Adjustment : Supported

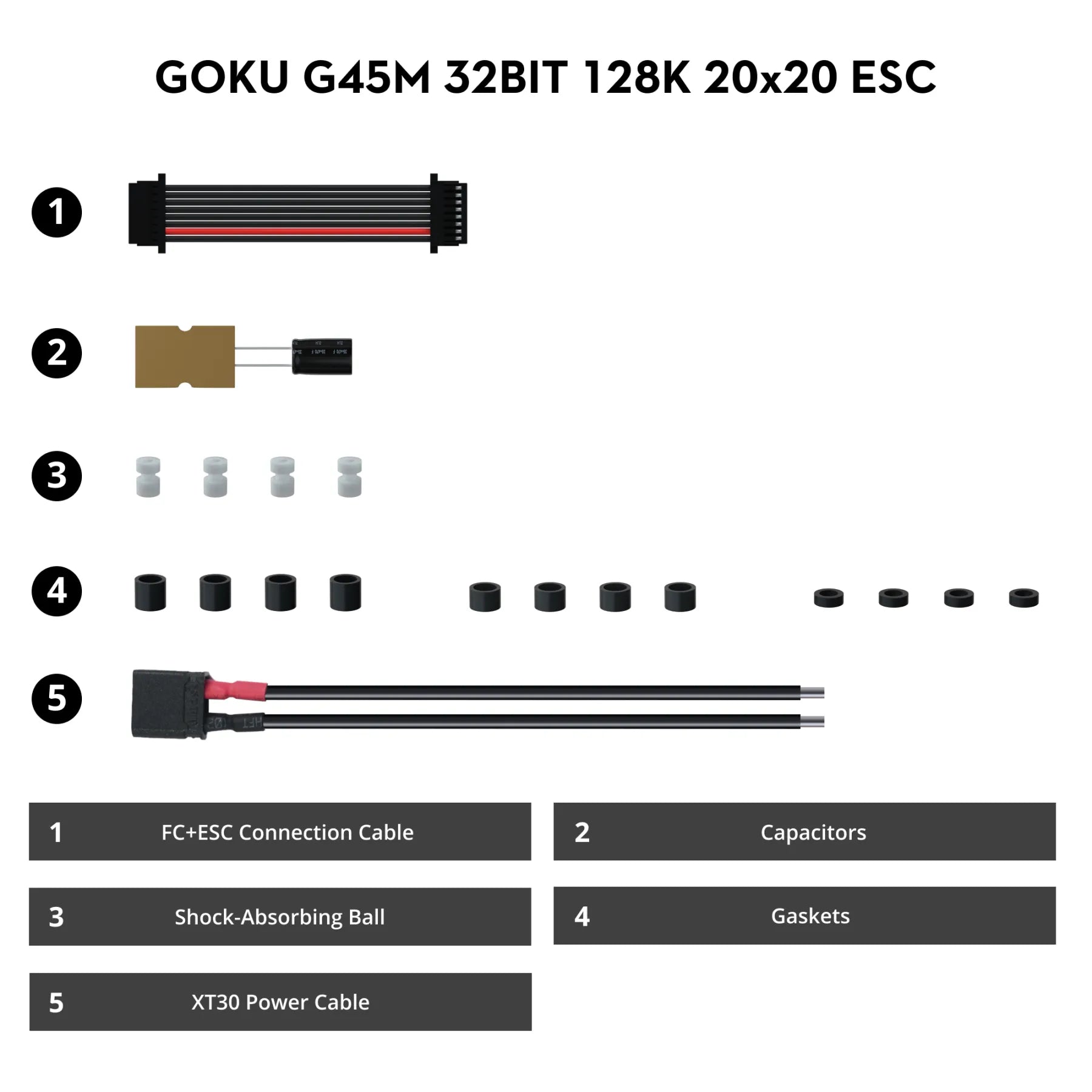

What's in the Box:

• 1x FC to ESC Connection Cable
• 1x Capacitor
• 4x M2 Shock-Absorbing Balls
• 1x XT30 Cable

Note : Accessories may vary based on supply.
