Ever been lost in a maze of wiring, disorganized stacks, and bulky components, wondering if you'll ever soar in the FPV skies like a digital Icarus minus the meltdown? If that sounds like you, then read on, my skyward friend!
Introducing the

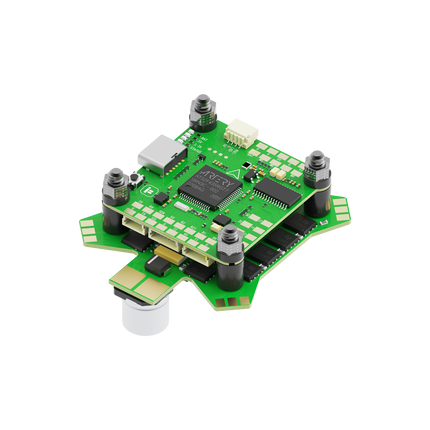

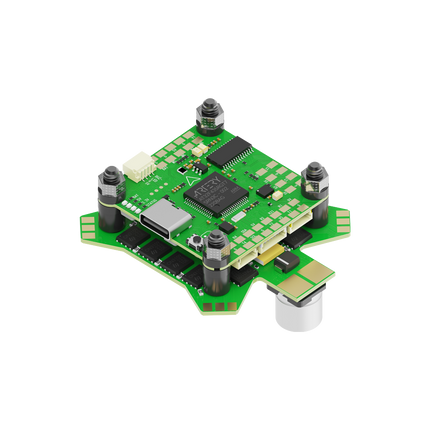

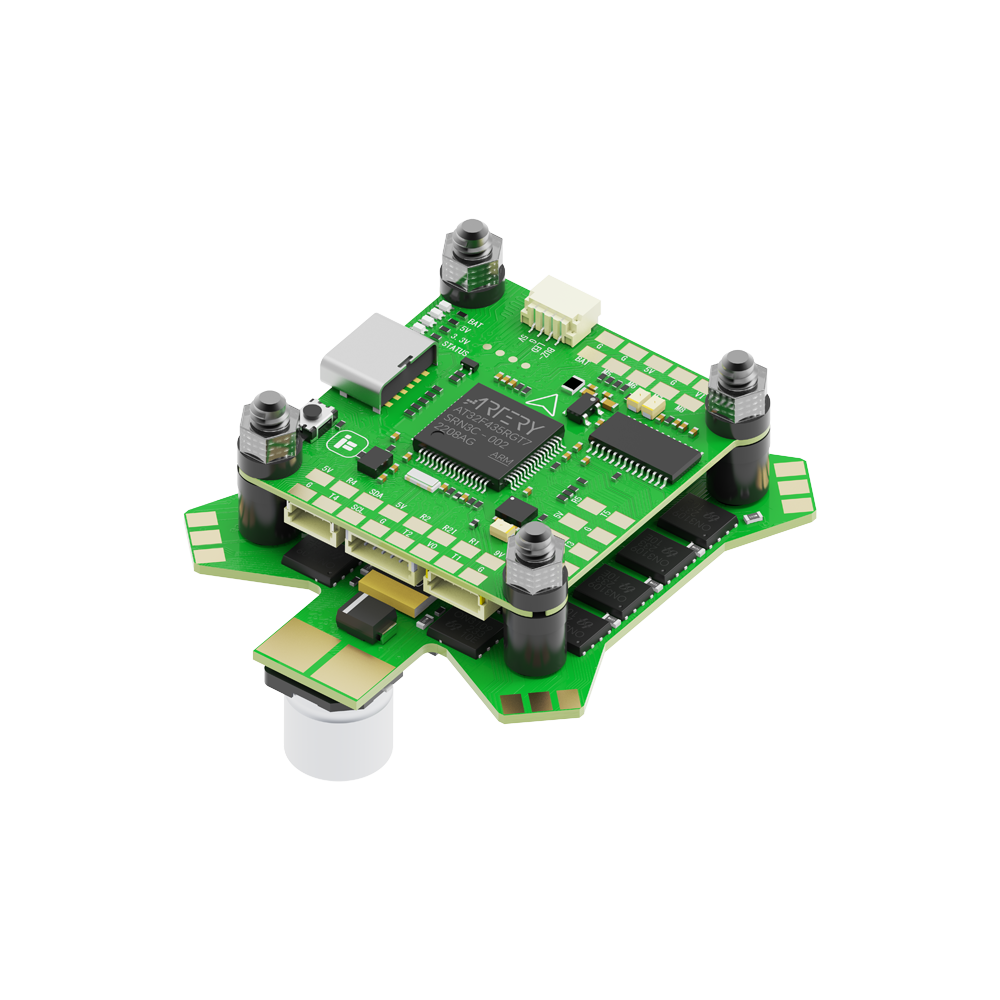

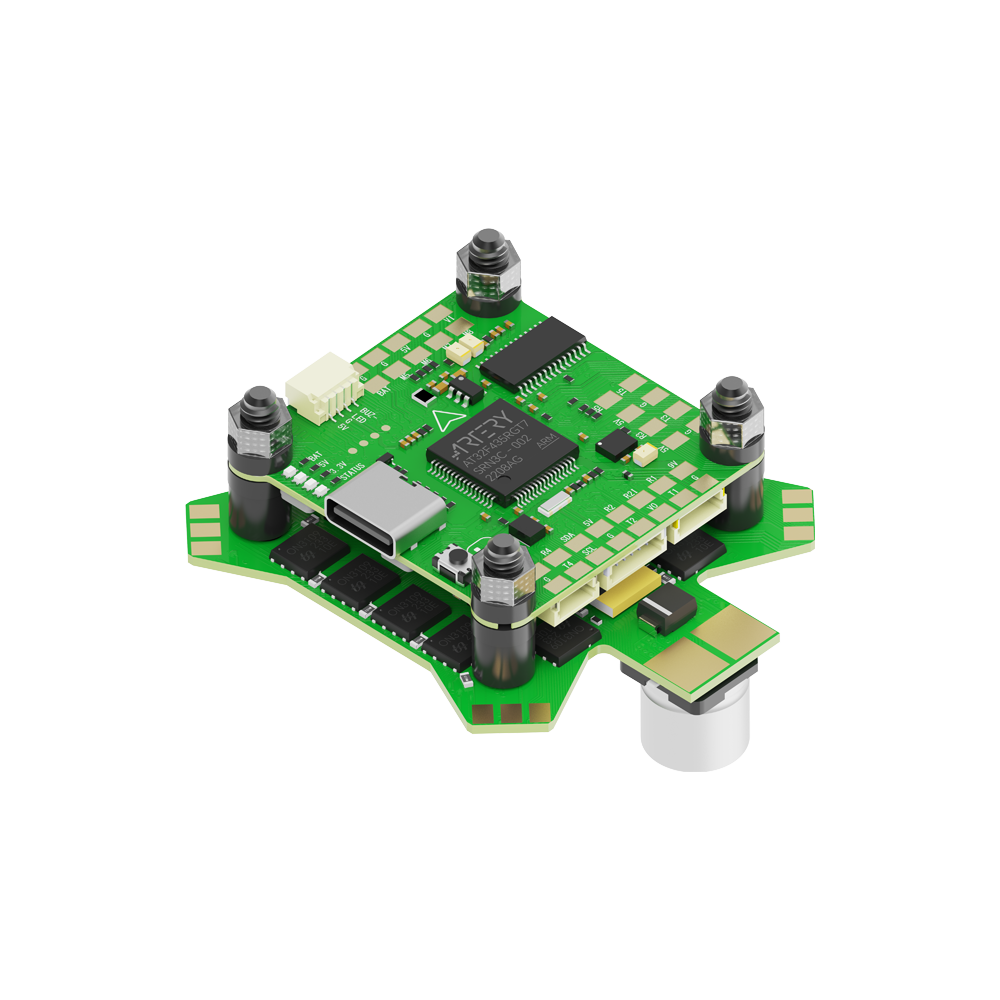

BLITZ ATF435 Stack with E55S 4-IN-1 ESC
—the stuff FPV dreams are made of! This is not your grandma's flight controller and ESC combo. This is a sleek, power-packed stack that you'll want to write home about—if you ever land, that is!
Product Highlights 🌟
-
So Light, It's Like It's Not Even There
: With a total weight of just 22.5g for both the FC and ESC, you'll be soaring higher and faster than ever.
-
Be a Brainiac in the Skies
: Equipped with AT32F435CGU7 MCU and BMI270 Gyro, this stack is like having Einstein and an Olympic gymnast in your quad.
-
Electrifying Performance
: Sporting a monstrous 55 Amps constant and 65 Amps burst, the E55S is ready to feed your motors like a Thanksgiving turkey.
-
So Versatile, It's Practically a Swiss Army Knife
: 6 UARTs, Smartaudio / IRC Tramp VTX protocol, LED controller and more!
-
Future-Proof Firmware
: With the IFLIGHT_BLITZ_ATF435 target, this stack is future-proofed for high-flying awesomeness.
Detailed Specifications 📝
Flight Controller
-
MCU
: AT32F435CGU7
-
Gyro
: BMI270
-
Barometer
: DPS310
-
OSD Chip
: AT7456E
-
Flash
: 32MB (Blackbox flash)
-
UARTS
: 6
-
Motor Outputs
: 4x (SH1.0 connector)
-
Smartaudio/IRC Tramp VTX Protocol Supported
: Yep!
-
LED Controller
: Of course!
-
BEC
: 5V 2.5A / 9V 2A
Electronic Speed Controller (ESC)
-
MCU
: G071
-
Constant
: 55 Amps
-
Burst
: 65 Amps
-
Supports
: 2-6S Lipo input
-
BEC
: No, and you won't miss it!
-
Supports
: DShot DShot150/300/600/MultiShot/ OneShot etc.
What's in the Box? 📦
-
1 x BLITZ ATF435 Flight Controller
-
1 x BLITZ E55S 4-IN-1 2-6S ESC
Time to Get Blitzed!
Quit flying with Frankenstein's monster and start flying with a harmonious stack that's more in sync than a boy band from the '90s. Order your BLITZ ATF435 Stack with E55S 4-IN-1 ESC now and become the FPV pilot you were born to be.
