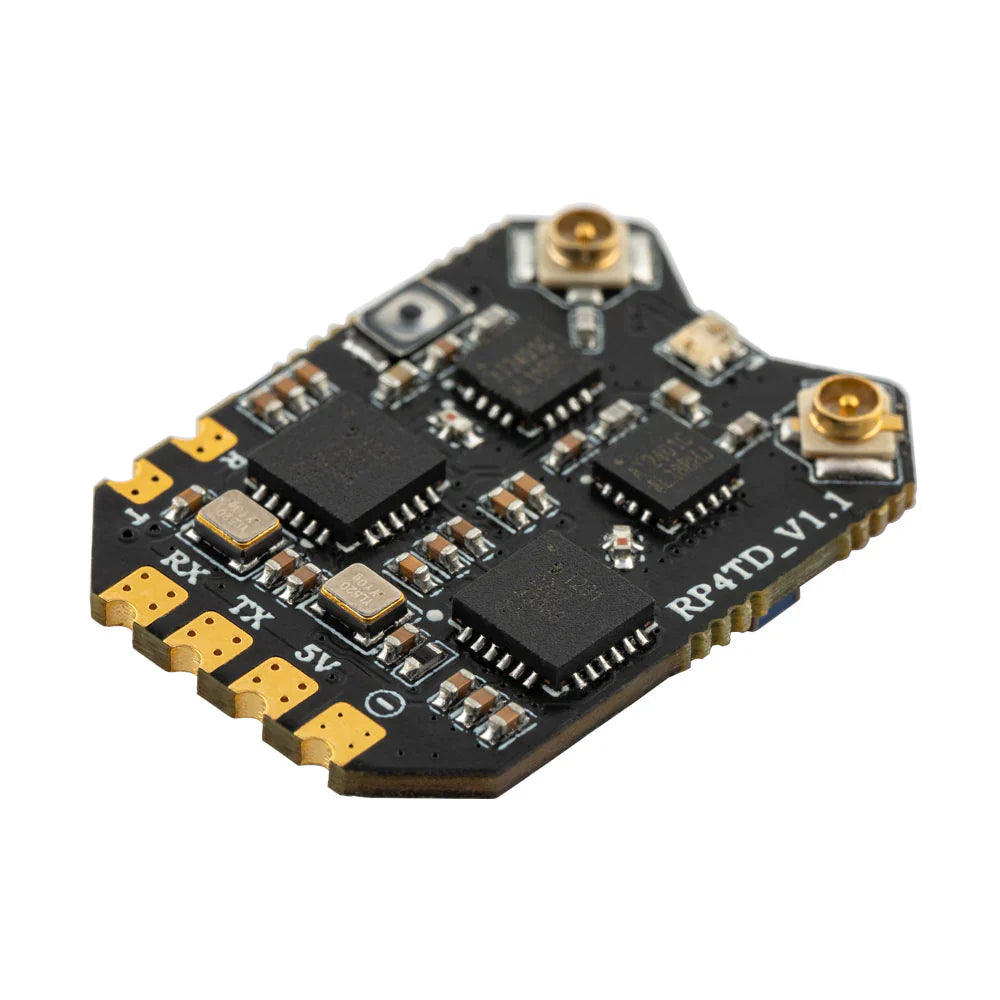

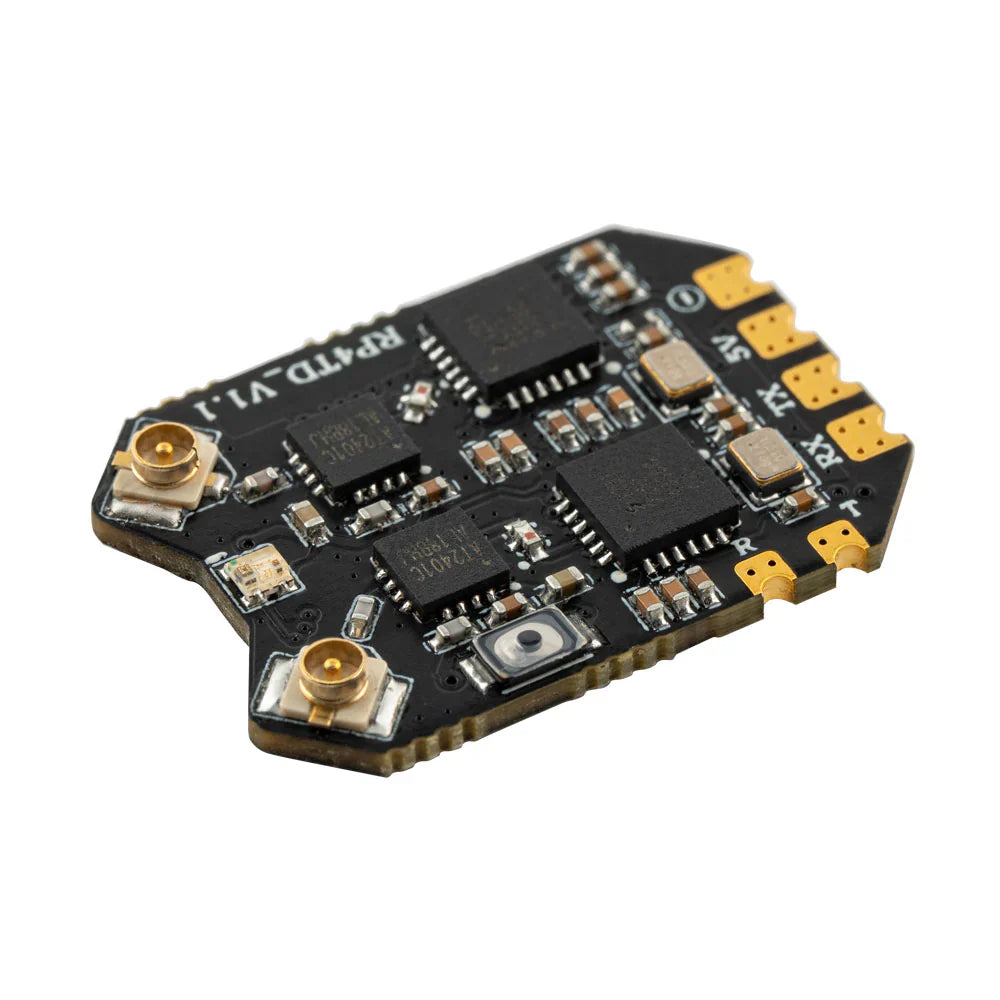

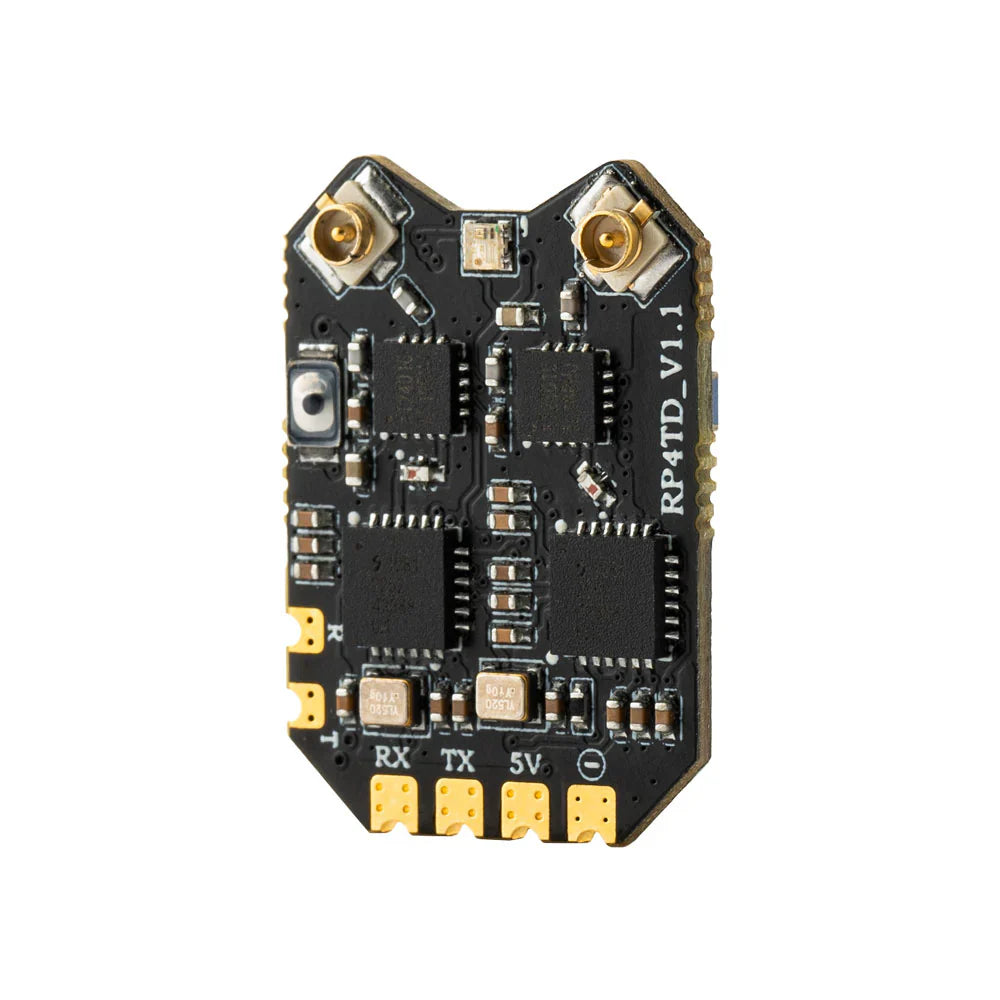

RP4TD ExpressLRS 2.4GHz True Diversity Receiver

Take your RC experience to the next level with the RP4TD ExpressLRS 2.4GHz Diversity Receiver , designed for pilots seeking unmatched signal reliability and performance. Whether you're flying FPV drones or commanding fixed-wing aircraft, this receiver's true diversity and dual-channel 2.4GHz radios deliver unparalleled sensitivity and superior signal-to-noise ratio (SNR). Thanks to its cutting-edge DCDC power supply circuit , you won't have to worry about overheating during those long flights.

With dual TCXO (temperature compensated crystal oscillators) onboard, the RP4TD offers unmatched frequency stability, even in extreme temperatures—meaning no more worrying about signal drift when you're cruising through hot skies or chilly altitudes. This tech powerhouse is equipped with built-in WiFi , so you can wirelessly update firmware and tweak settings on-the-fly using the WebUI from your phone or computer.

It's compatible with all 2.4GHz ExpressLRS modules and transmitters, and installation is a breeze thanks to UART pads that extend its applications. The RP4TD is ready to tackle any aerial adventure you throw its way, with upgraded antennas for greater range, durability, and overall performance.

Key Features:

• Gemini Mode Compatible : Dual-channel diversity for robust signal management

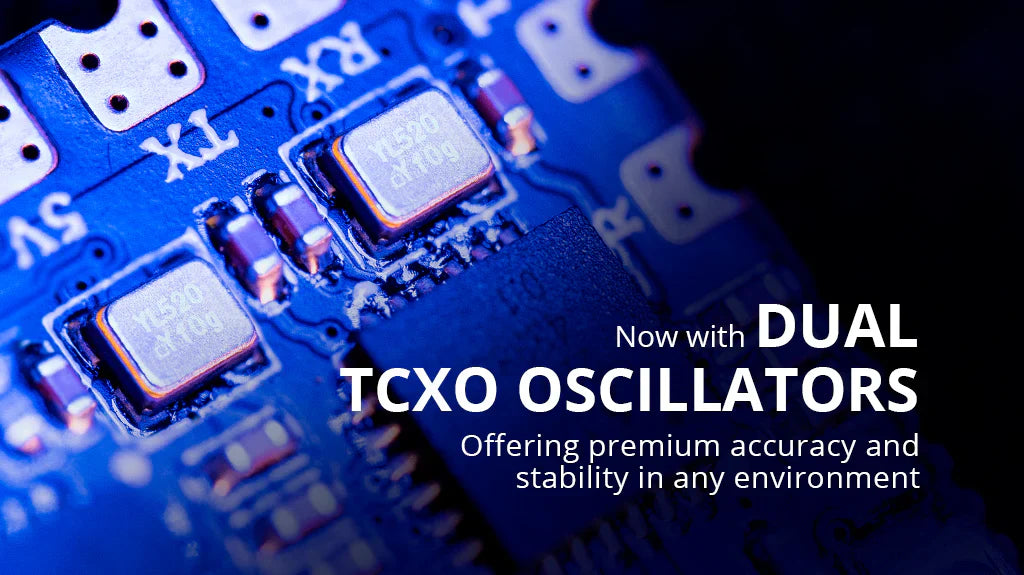

• Dual TCXO : Ensures top-tier frequency stability in extreme temperatures
• DCDC Power Supply : Lowers operating temps, so you can fly longer without worry
• Built-in WiFi : Easy firmware updates via WebUI on PC or mobile

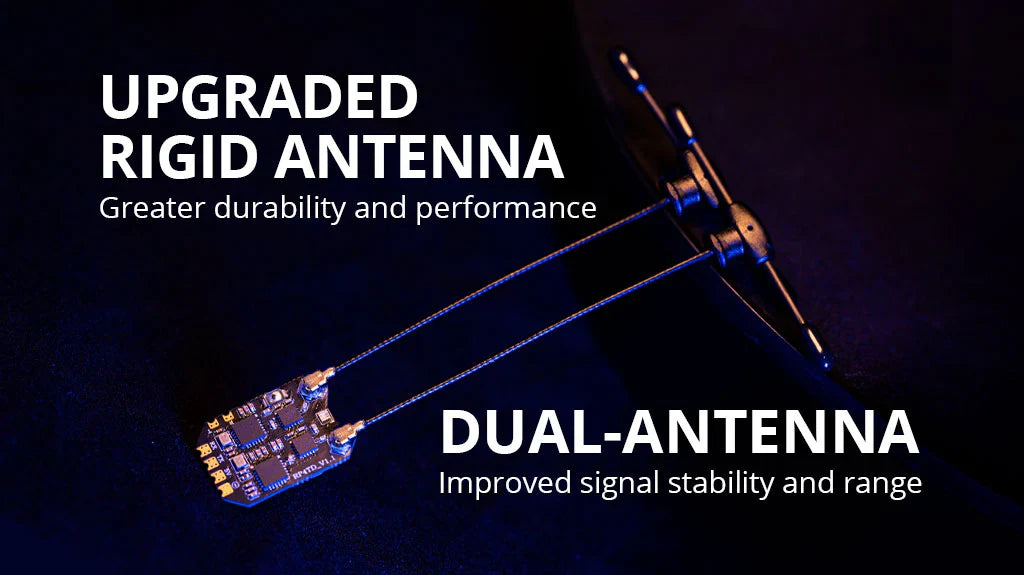

• Upgraded Antennas : Improved durability and range

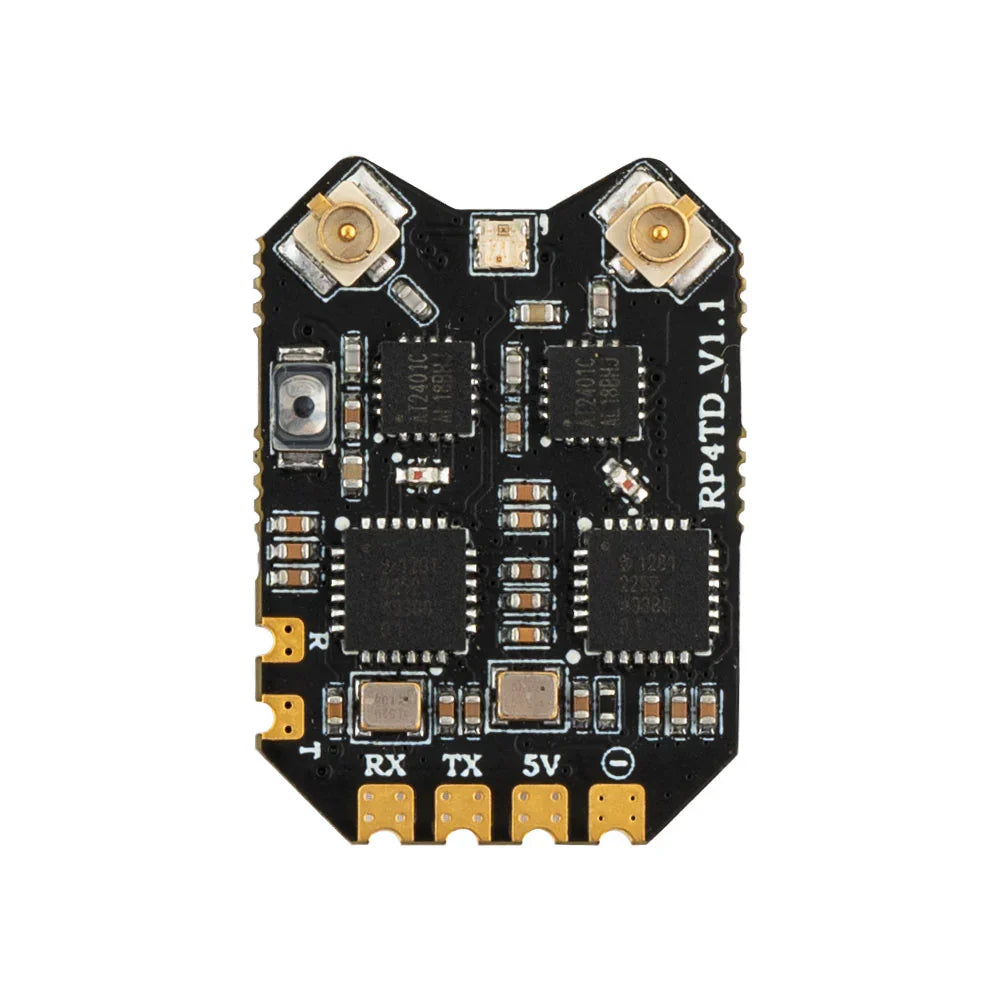

• Optimized PCB Design : Enhanced heat dissipation keeps things cool
• ExpressLRS V3.3.0 Pre-Installed : Plug-and-play with your ExpressLRS setup
• Telemetry RF Power Output : 2x 100mW for maximum signal strength

Specifications:

• Item : RP4TD ExpressLRS 2.4GHz Diversity Receiver
• Frequency Range : 2.4GHz
• Max Refresh Rate : 500Hz / F1000Hz
• Telemetry Power Output : Max 2x 100mW

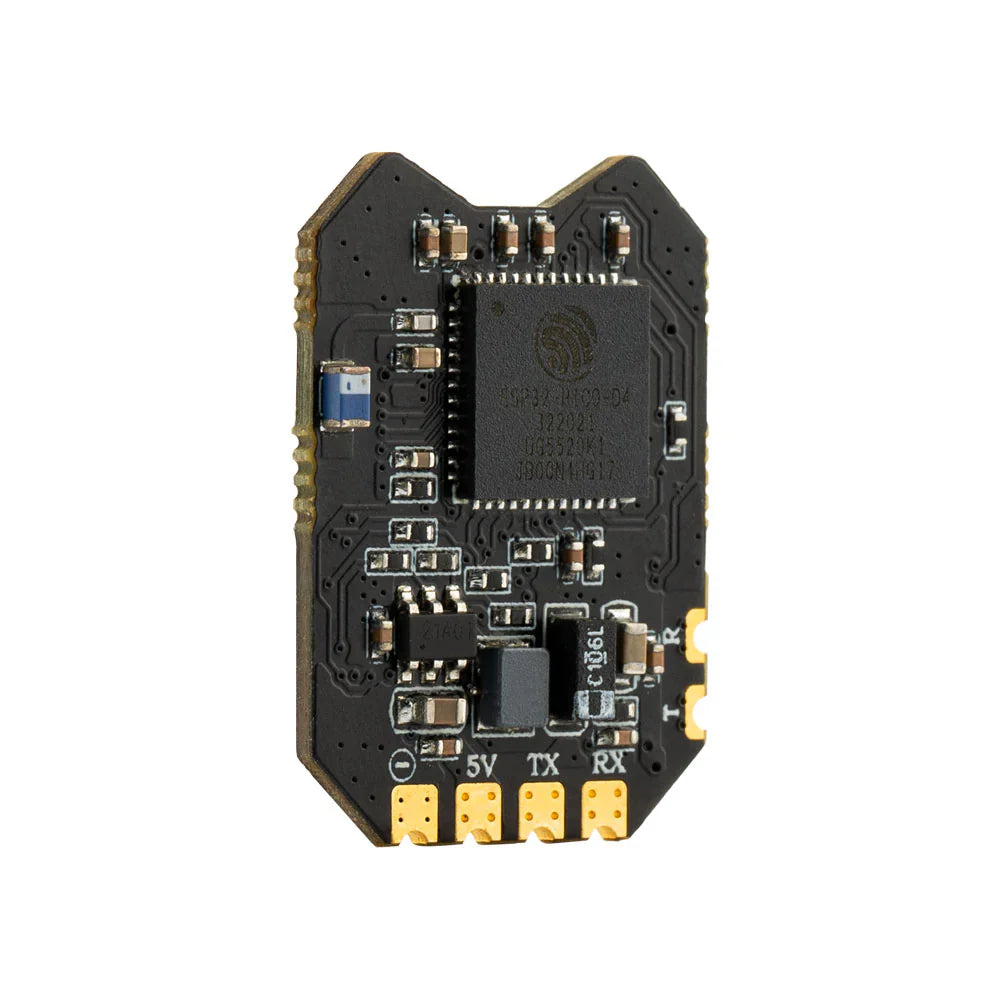

• MCU : ESP32

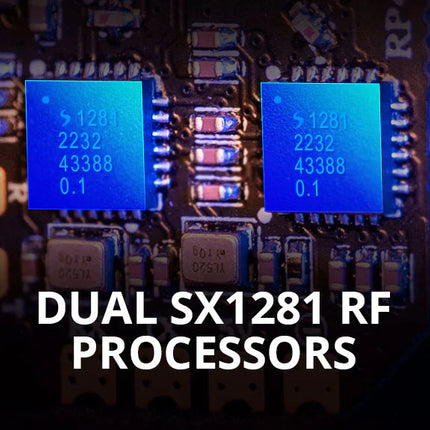

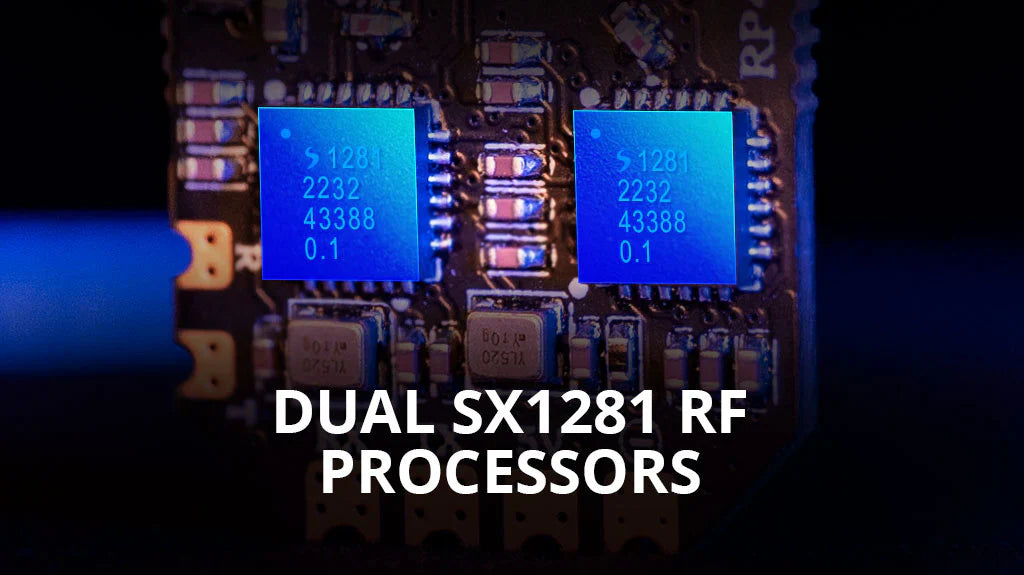

• RF Chip : SX1281 x 2
• Working Voltage : DC 4.5-12.0V

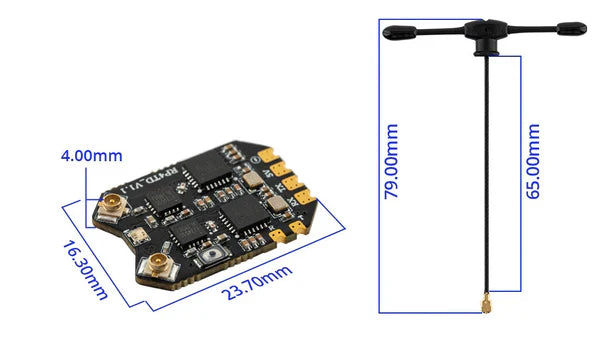

• Dimensions : 23.7mm x 16.3mm x 4.0mm

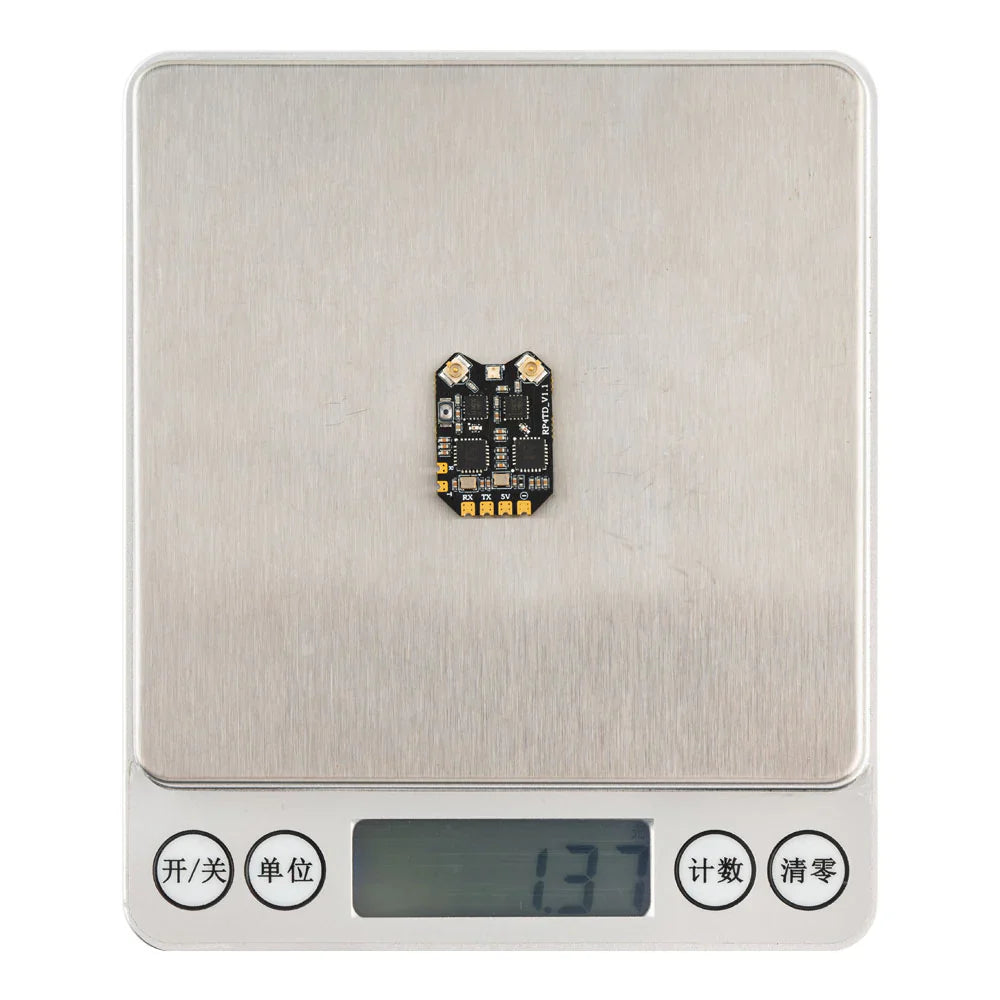

• Weight : 1.4g (without antenna)
• Firmware : ExpressLRS V3.3.0
• Bus Interface : CRSF
• Extend Interface : UART

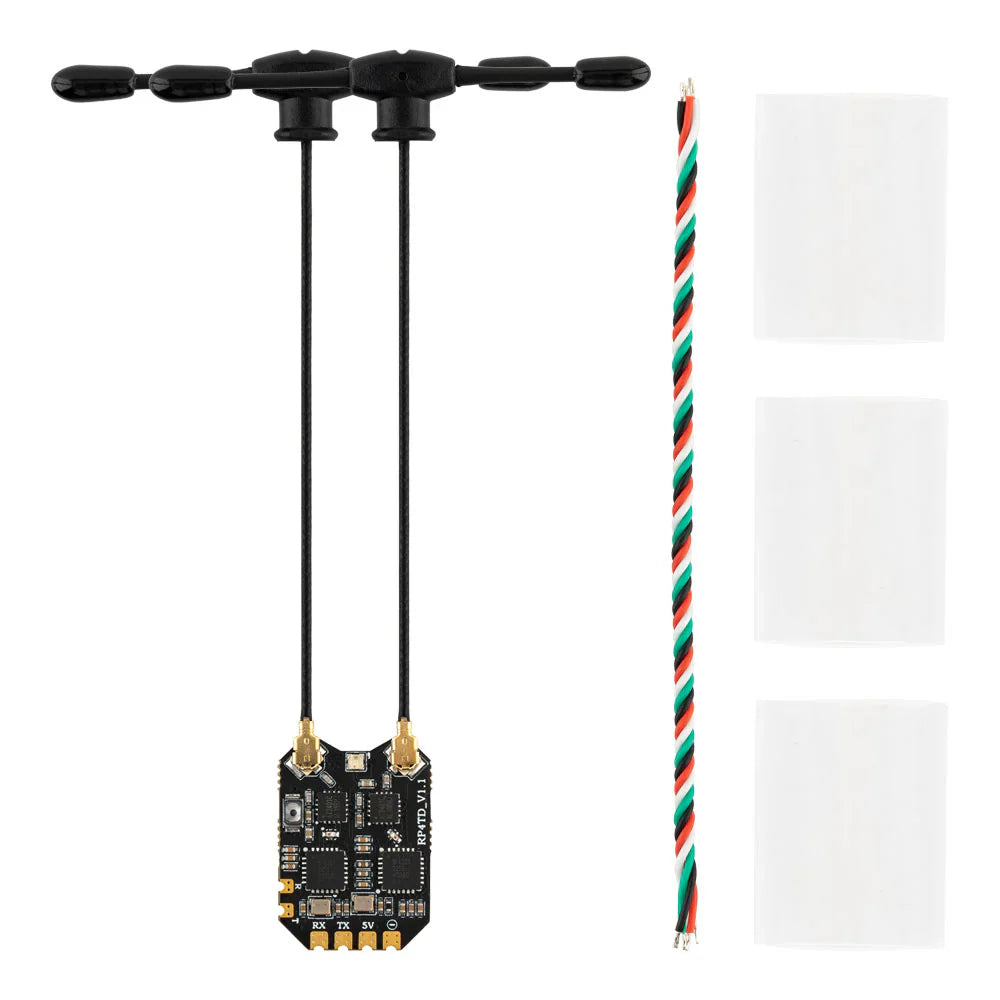

What's in the Box?

• 1 x RP4TD ExpressLRS 2.4GHz Diversity Receiver
• 1 x CRSF Wire
• 3 x Heat-Shrinkable Tubes

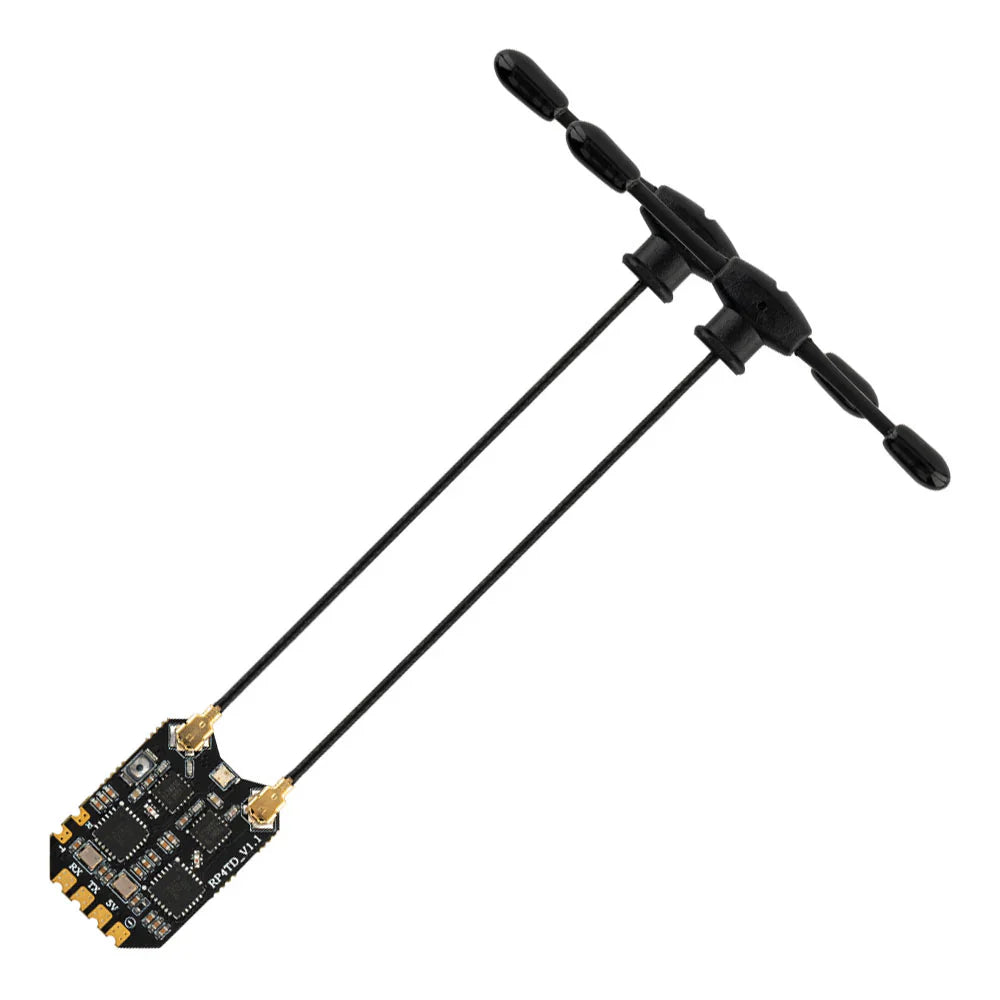

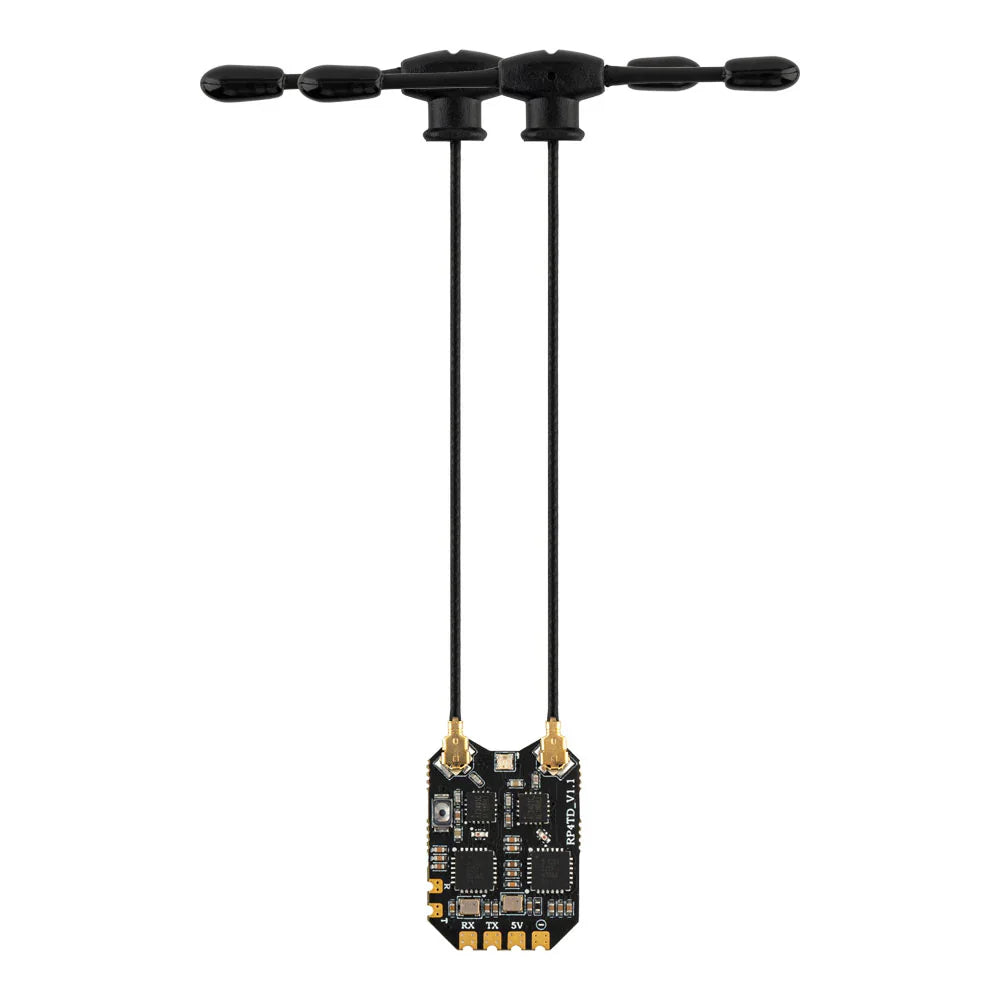

• 2 x 65mm 2.4GHz T Antenna (pre-installed)
• 1 x User Manual

Disclaimer: Accessories may vary based on availability.
