Descrizione
1. Material: ABS+Silicone
2. DC voltage: 10mV~1000V
3. AC voltage (VFC): 10mV~750V
4. DC current (mA): 0.01mA~600mA
5. DC current (10A): 0.001A~10A
6. AC current (mA): 0.03mA~600mA
7. AC current (10A): 0.030A~10A
8. Resistance: 0.1Ω~60ΜΩ
9. Capacitance: 0.01nF~60mF
10. Temperature: -40°C~1000℃
11. Frequency: 10Hz-6MHz
12. Duty cycle: 0.1%~99.9%
13. Battery model: 1000mAh 3.7V lithium battery

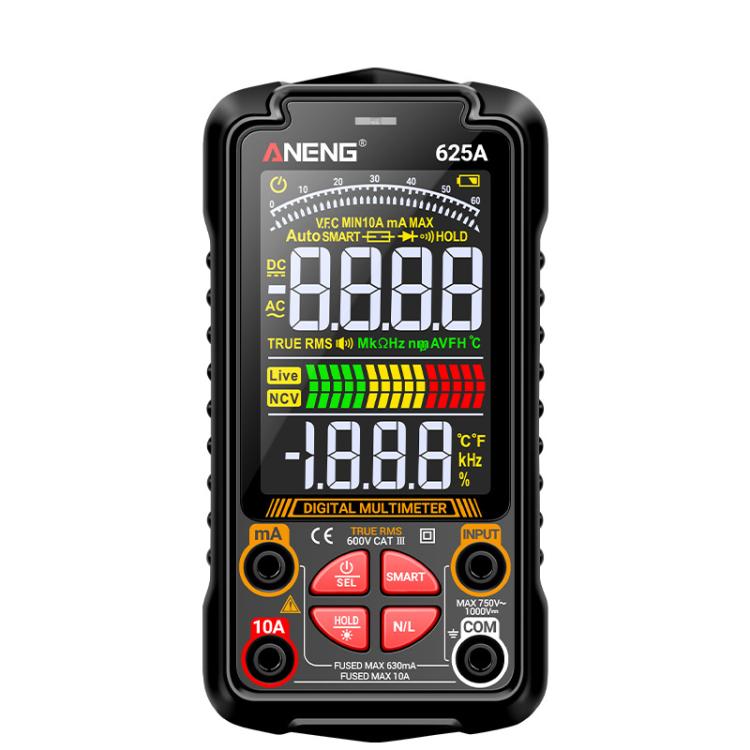

14. VA color reverse display screen, you can see the value clearly in dark environment
15. The back support frame allows you to stand and work, making the measurement faster

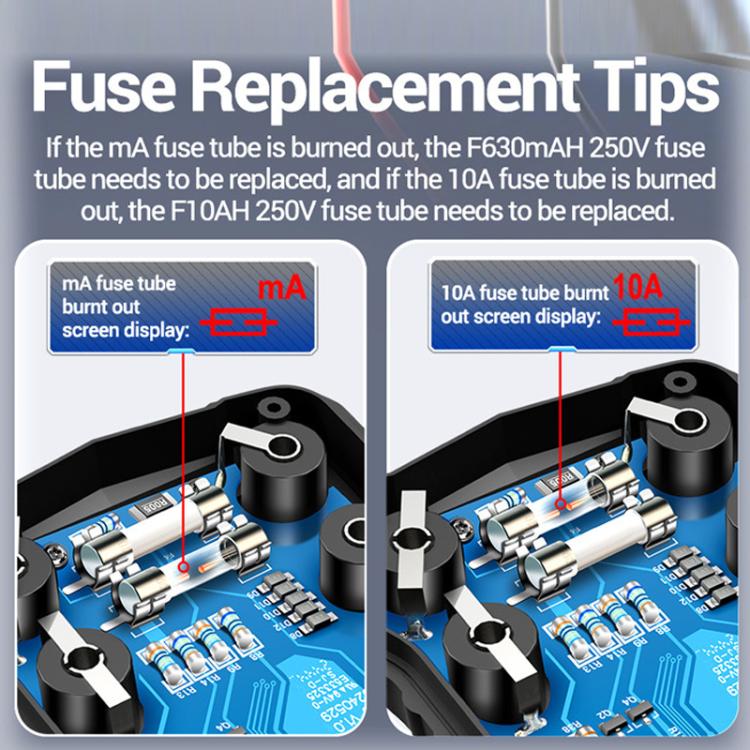

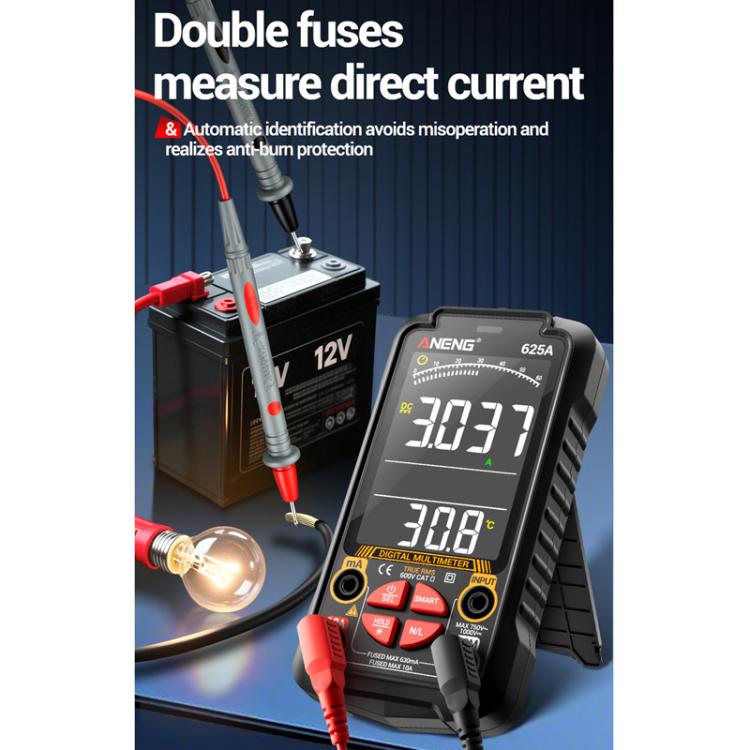

16. Built-in double fuse, multi-directional anti-burn protection, automatic identification to avoid misoperation to achieve anti-burn protection, and safer current measurement

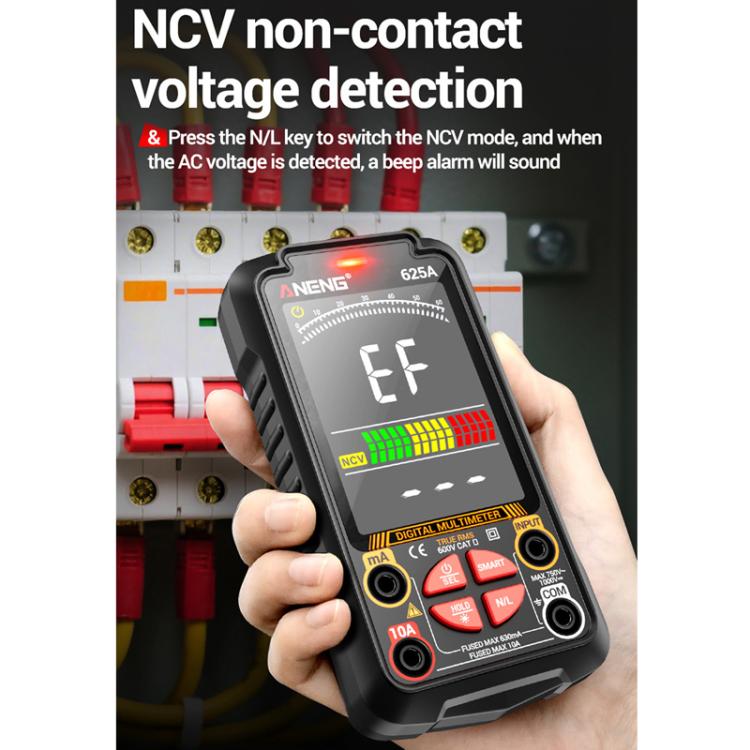

17. Press the N/L key to switch to NCV mode. When AC voltage is detected, a buzzer alarm sounds. The closer the distance, the more urgent the alarm

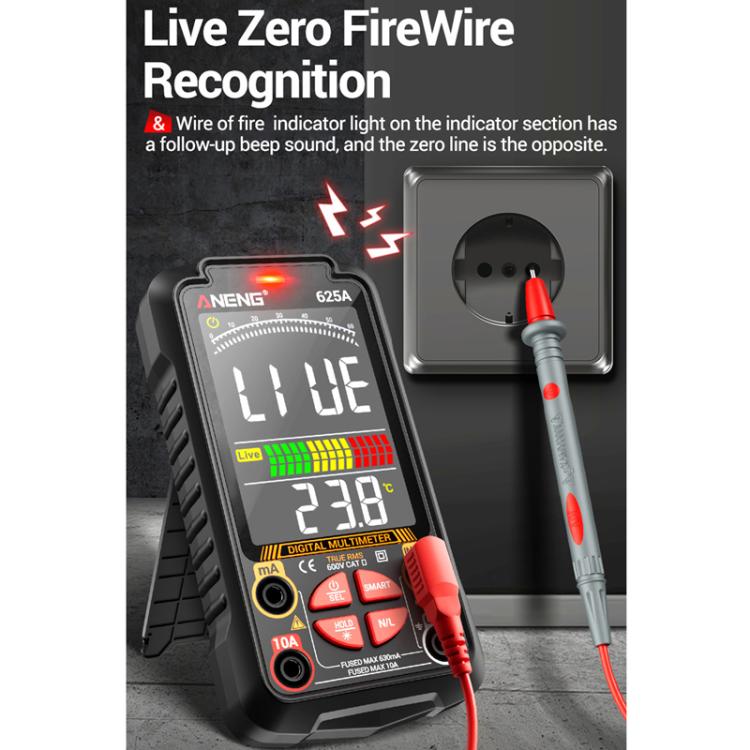

18. In Live mode, the neutral and live wires are judged. The live wire indicator light is on and accompanied by a buzzer, and the neutral wire indicator light is off without a buzzer

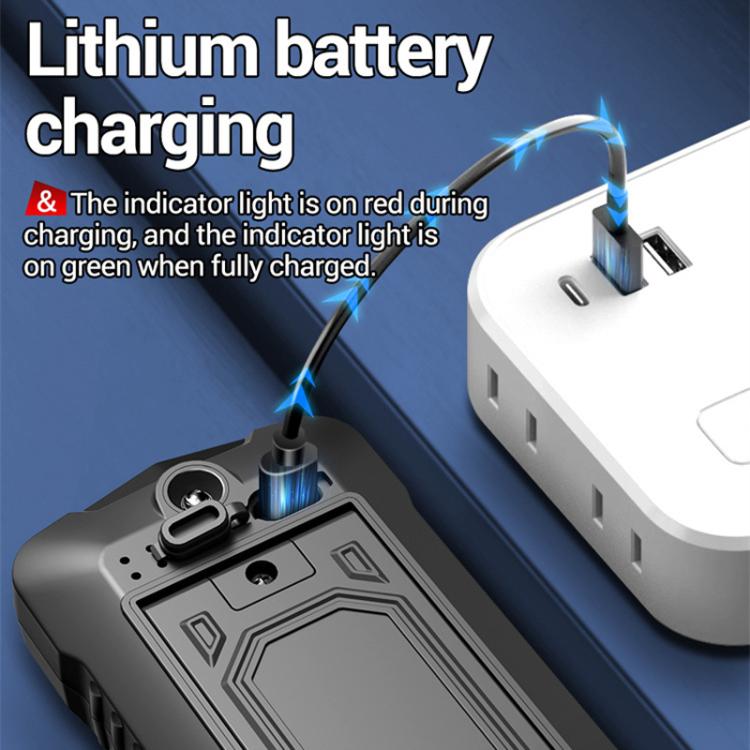

19. The charging indicator light is red, and the full indicator light is green. It is equipped with a Type-c charging cable

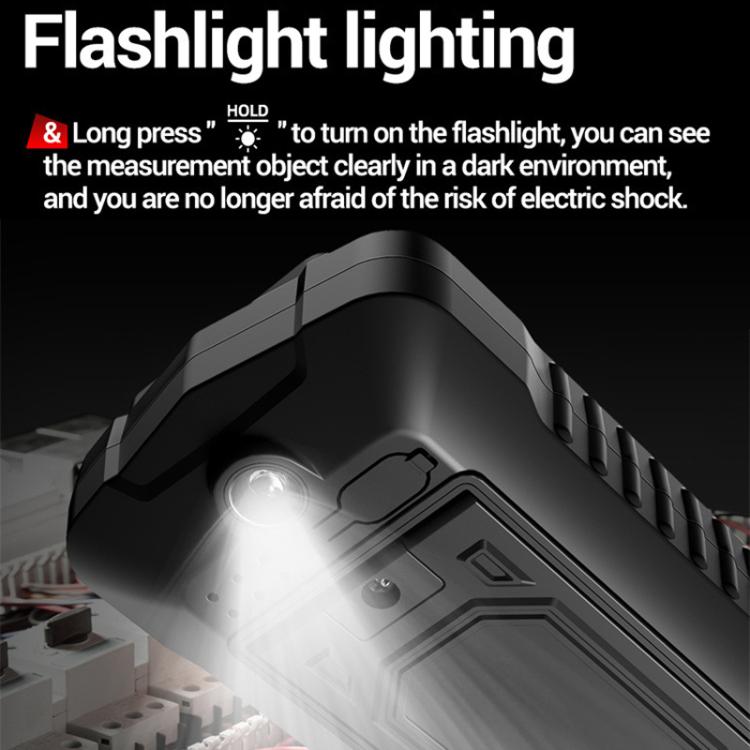

20. Long press to turn on the flashlight, you can see the measured object clearly in a dark environment, and illuminate the front for you without fear of electric shock risks

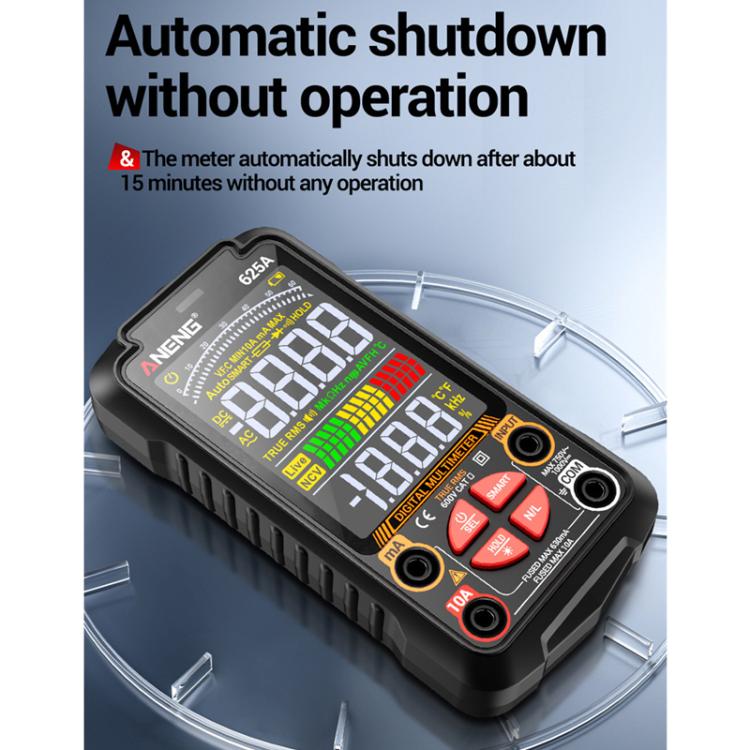

21. The meter automatically shuts down after about 15 minutes without any operation
22. Weight: 188g

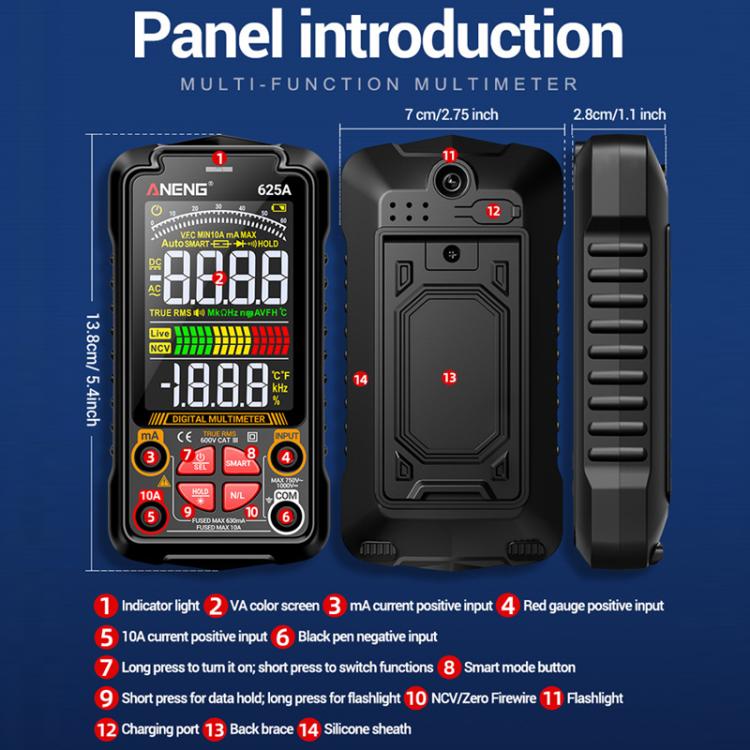

23. Size: 13.8x7x2.8cm

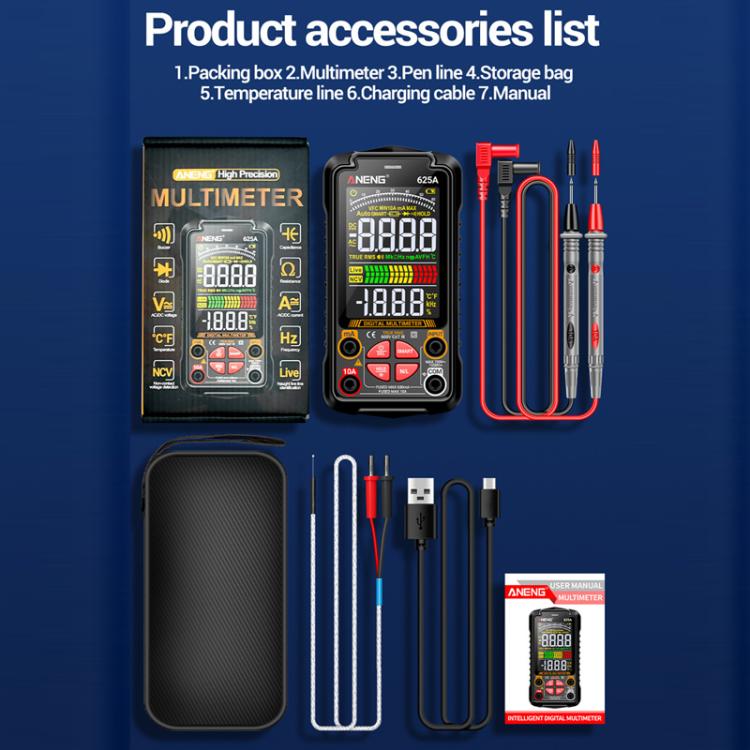

24. Packing list: multimeter; test lead wire; storage bag; temperature wire; charging cable; instruction manual; packaging box
Specification:
| Package Weight |
| One Package Weight |
0.39kgs / 0.86lb |
| One Package Size |
21cm * 13cm * 6cm / 8.27inch * 5.12inch * 2.36inch |
| Carton Weight |
24.00kgs / 52.91lb |
| Carton Size |
49cm * 42cm * 37cm / 19.29inch * 16.54inch * 14.57inch |
| Loading Container |
20GP: 350 cartons * 60 pcs = 21000 pcs
40HQ: 812 cartons * 60 pcs = 48720 pcs
|
|
