Happymodel ES24TX Slim Pro 2.4GHz ExpressLRS (ELRS) Nano TX X-Lite, X9 Lite, Tango2

Forma del prodotto

Happymodel ES24TX Slim Pro 2.4GHz ExpressLRS (ELRS) Nano TX X-Lite, X9 Lite, Tango2

Esaurito, Currently unavailable  Can't find what you're looking for? Contact us for availability.

£38.58 incl. I.V.A.

Unfortunately, this product is out of stock

    • Guaranteed secure & safe checkout.

      shop pay
    • Spedito oggi? Ordina entro: Sep 12, 2026 23:59:00 +0100
    • Free shipping on all orders above £50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Descrizione

    This Nano TX is designed for the Tango2 , X9 Lite , X-lite

    The ES24TX Slim Pro module is a complete solution which is already preloaded ExpressLRS firmware. With this module, you get a low latency and high packet rate RF module for RC Airplane and FPV Racing drone project. If you're unfamiliar with ExpressLRS, you'll love the superior range and unparalleled performance provided by the ESP-32 chipset and ESP8285 WiFi chip.

    Please note, ELRS is a new open source project so please only order this if you are comfortable with regular firmware updates as the firmware is still in beta. We will only be able to offer limited support due to the open source and constantly changing nature of the firmware.

    Features

    • Supports up to 1000mw RF power (T-lite radio and Tango2 radio may need external power supply) - Depending on your local regulations
    • RGB LED ready
    • Cooling Fan ready
    • Open source ExpressLRS
    • Long range, low latency and High re-flashed Rates
    • Telemetry data transmission supported
    • CNC aluminum protective shell
    • You can update firmware by ExpressLRS configurator or update the firmware via connect the Wifi hot spot of the "ExpressLRS TX Module", visit "10.0.0.1" by browser (password:expresslrs)

    Specifications

    • Brand Name: Happymodel
    • Item Name: ES24TX Slim Pro Micro TX Module
    • Model: ES24TX Slim Pro
    • Regulatory Domain: ISM2400
    • MCU: ESP32(main),ESP8285(as ESP backpack)
    • RF chip: SX1280IMLTRT
    • Frsky Lite 8pin socket
    • Frequency Range: 2400 MHz to 2500 MHz
    • Maximum receive refresh rate: 500Hz
    • Minimum receiver refresh rate: 25Hz
    • RF Output Power: ≤30dBm
    • Power supply voltage: 5v~12v
    • Weight: 50g (without antenna)
    • Dimension: 67.5mm*30mm*20.5mm (without antenna)
    • Antenna gain: 1.87dBi

    Included

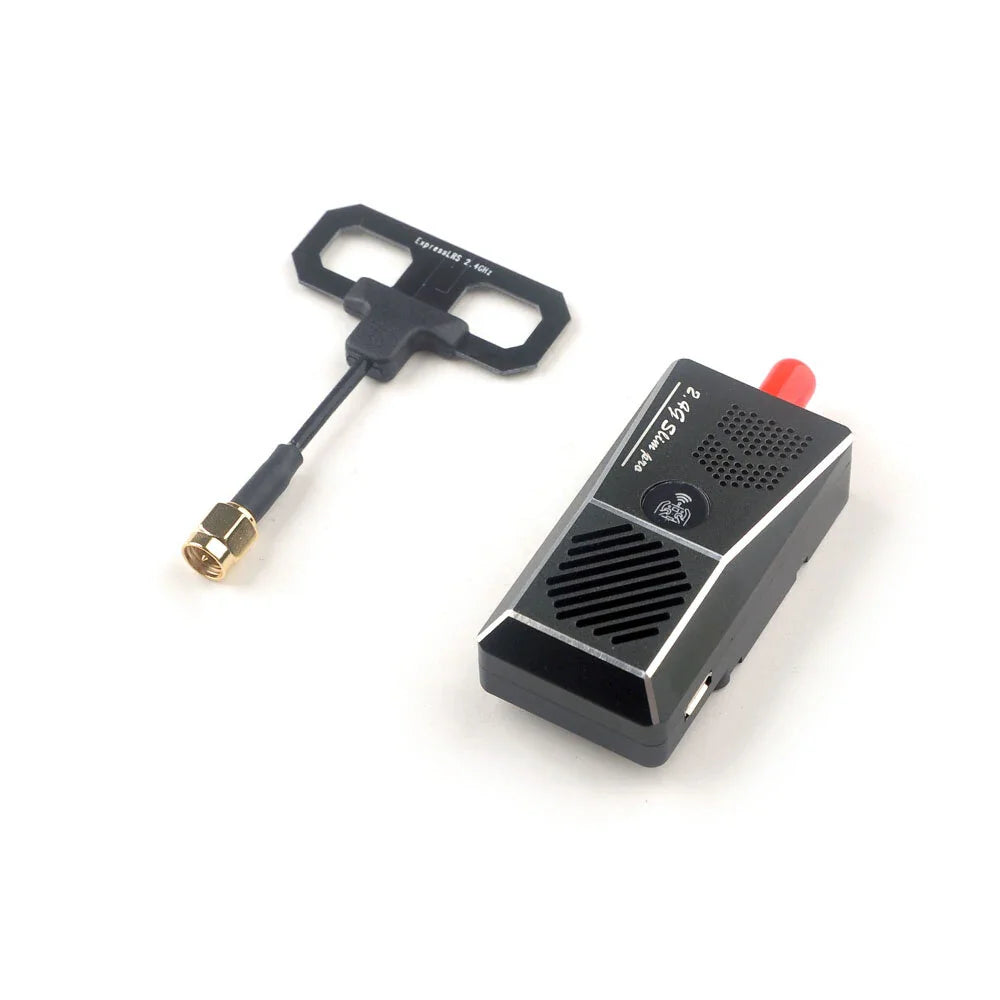

    • 1 x ES24TX Slim Pro TX Module
    • 1 x 2.4GHz Moxon Antenna
