Description
1. Product Positioning: Portable 4G SIM card router (international version), featuring Plug-and-play Internet Access Anytime, solving network problems in multiple scenarios and supporting use in overseas regions.
2. Core Network Technologies: Equipped with advanced WiFi 6 technology, which significantly improves speed and stability while being backward compatible; adopts 4G LTE Cat.4 technology with a maximum downlink rate of 150Mbps and uplink rate of 50Mbps, adapting to diverse internet usage scenarios.
3. Hardware & Signal: Comes with 4 high-gain antennas for whole-house signal coverage and stable wall-penetration; powered by a robust chipset, ensuring 24/7 high-speed operation and strong data processing capability.
4. Network Compatibility: Supports 4G full network access, compatible with China Mobile, China Unicom and China Telecom; works with Nano SIM cards for automatic network connection without extra settings, and covers mainstream frequency bands in Europe, Asia and Africa, allowing overseas roaming by inserting local SIM cards.

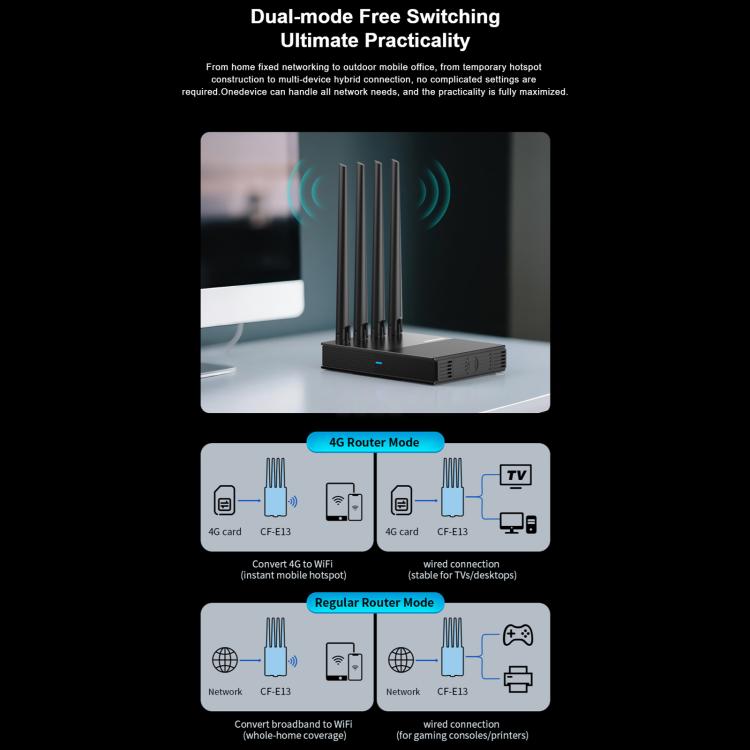

5. Multi-functional Practicality: Versatile usage, supporting multiple modes such as 4G to WiFi, 4G to Ethernet, and broadband to WiFi/Ethernet; equipped with a 100Mbps LAN port for simultaneous wireless and wired connections; features high concurrent device capacity to stably connect multiple devices.
6. Flexible Deployment & Power Supply: Adopts dual power supply modes (DC/Type-C), adapting to full scenarios including home, office, outdoor and temporary sites; supports desktop and wall-mounted installation, with a portable form factor for quick deployment.
Product Specifications (Eur-Asia-Africa Version)
1. Mainboard Chip: AIC8800DW + ZX297520V3T; RAM: 32MB; Flash Memory: 8MB
2. Antenna: 4 x high-gain external antennas
3. Speed: 2.4GHz: 286Mbps, LTE Cat4: 150Mbps DL Max, 50Mbps UL Max

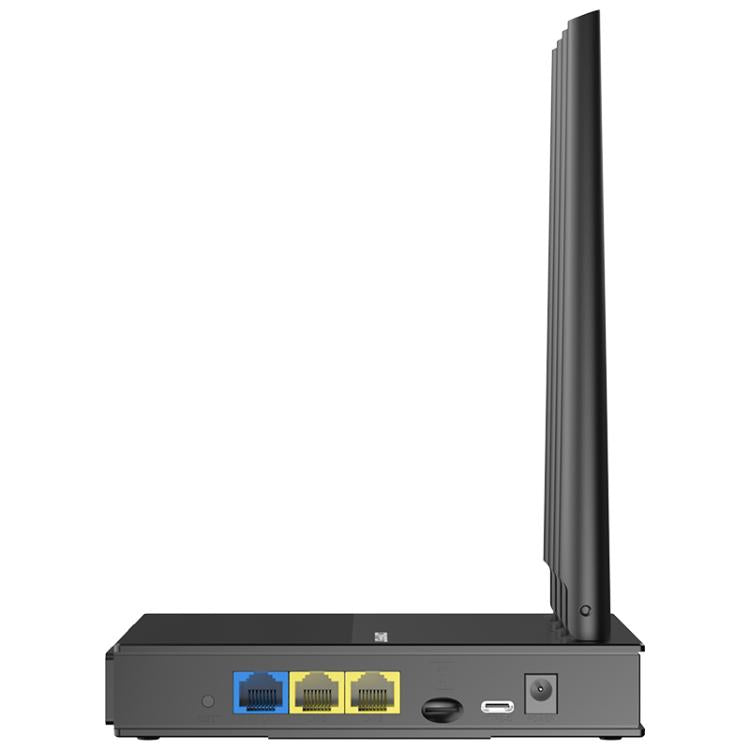

4. Physical Interfaces:
1 x 10/100Mbps RJ45 WAN Ethernet port
2 x 10/100Mbps RJ45 LAN Ethernet ports
1 x Nano SIM card slot
1 x Type-C port
1 x RESET button
1 x DC power port
5. Indicator Light: Tri?color Indicator
6. Power Supply: DC 12V/1A, Type?C 5V/2A
7. Power Consumption: <=10W
8. Protection Class: IP31
9. Installation Methods: Desktop, Wall?mounted
10. Product Dimensions:
Body Dimensions: 14.95 x 11 x 2.6 cm
Total Length (Including Antennas): 300mm
Antenna Length: 17.5cm
Specification:
| Package Weight |
| One Package Weight |
0.62kgs / 1.36lb |
| One Package Size |
32cm * 13cm * 5cm / 12.6inch * 5.12inch * 1.97inch |
| Carton Weight |
13.30kgs / 29.32lb |
| Carton Size |
52cm * 32cm * 25cm / 20.47inch * 12.6inch * 9.84inch |
| Loading Container |
20GP: 641 cartons * 20 pcs = 12820 pcs
40HQ: 1488 cartons * 20 pcs = 29760 pcs
|
|
