Description

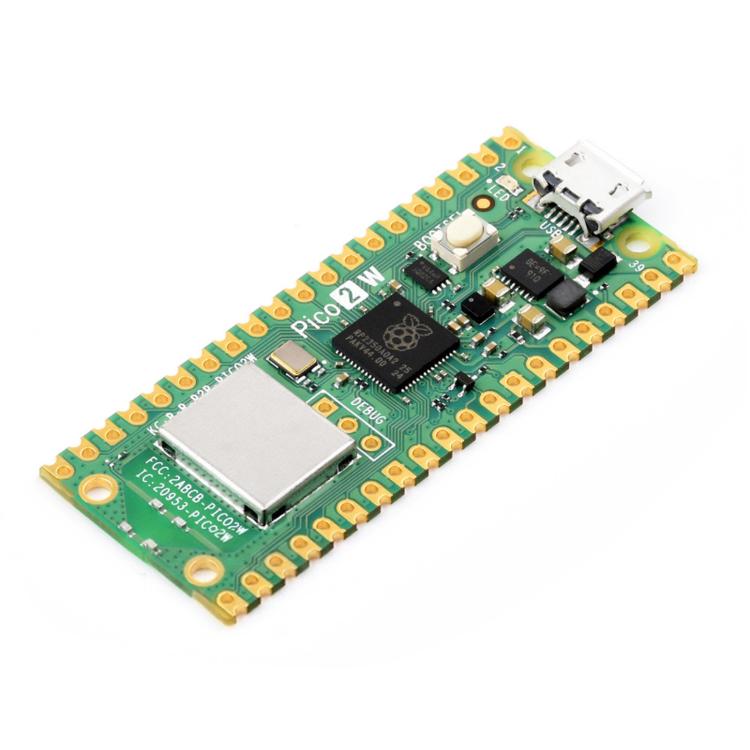

1. Employs the Raspberry Pis officially designed RP2350 microcontroller chip.
2. Unique dual-core, dual-architecture design, featuring a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both operating at flexible clock speeds up to 150MHz.

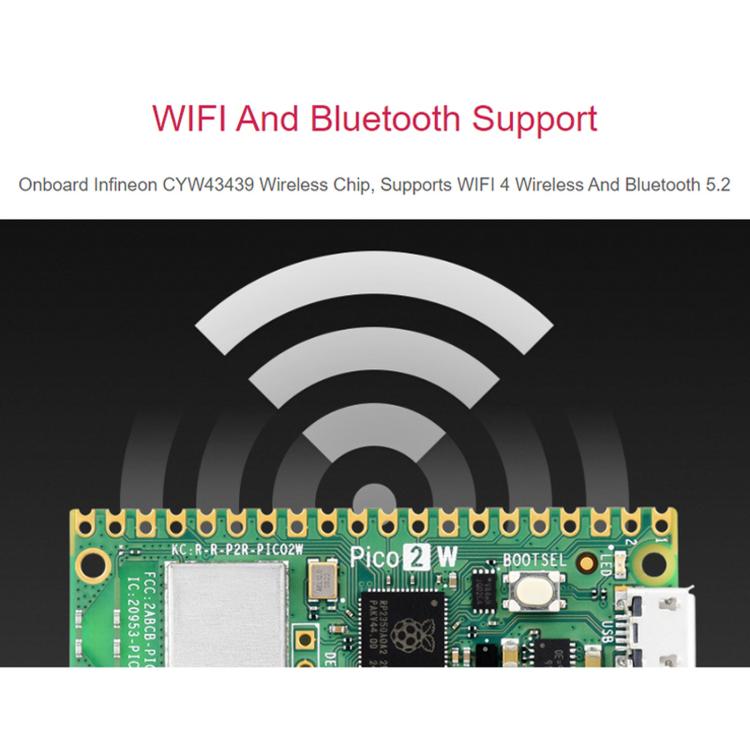

3. Uses Infineons CYW43439 wireless chip, supporting Wi-Fi 4 and Bluetooth 5.2.
4. Built-in 520KB SRAM and 4MB on-chip Flash.
5. Stamp hole design for direct soldering to user-designed baseboards.
6. Pico 2 WH uses official solder headers; no stamp hole design, connection to the baseboard is only possible via headers.
7. USB 1.1 host and device support.
8. Supports low-power sleep and hibernation modes.
9. Can be recognized as a mass storage device via USB for drag-and-drop program downloads.

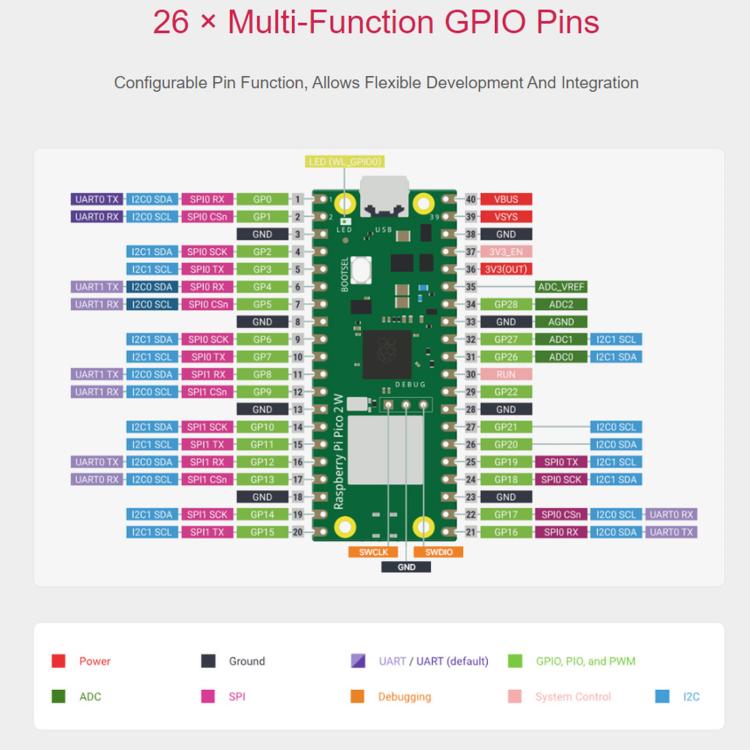

10. Up to 26 versatile GPIO pins.
11. 2 One SPI, two I2C, two UARTs, three 12-bit ADCs, and 16 controllable PWM channels.
12. Twelve programmable I/O (PIO) state machines for custom peripheral support.
Specification:
| Package Weight |
| One Package Weight |
0.04kgs / 0.10lb |
| One Package Size |
5cm * 8cm * 3cm / 1.97inch * 3.15inch * 1.18inch |
| Carton Weight |
19.60kgs / 43.21lb |
| Carton Size |
50cm * 37cm * 35cm / 19.69inch * 14.57inch * 13.78inch |
| Loading Container |
20GP: 411 cartons * 462 pcs = 189882 pcs
40HQ: 956 cartons * 462 pcs = 441672 pcs
|
|
