Description
1. 5-inch AHD side view front camera system with 1080P pixel LED adjustable angle camera.
2. Designed for viewing the right front wheel side view while driving, it can effectively solve the right front blind spot problem of the vehicle.
3. When you need to view the right front wheel, just press the button on the cigarette lighter power to turn it on automatically.
4. Rotatable lens for easy angle adjustment
5. When the monitor is turned on, V1/V2 display is adjustable

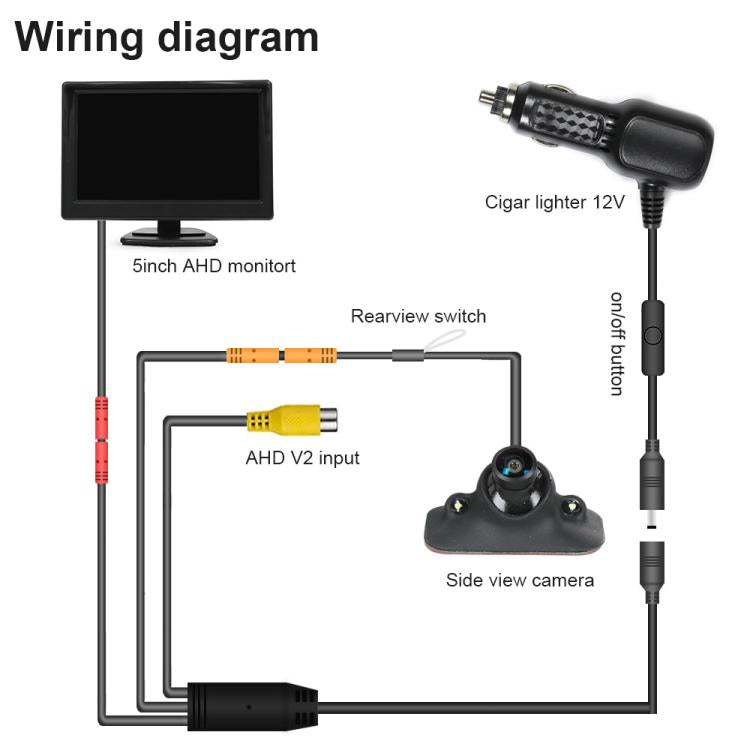

6. Two video inputs: V1 is mini 4 Pin input, V2 is RCA input
7. Support AHD 720P, AHD 1080P and CVBS input
8. OSD menu can adjust language, brightness, color, etc.
Parameters
1. CMOS image sensor: PC 1/3 inch Color CMOS
2. Pixels: 3 million
3. Resolution: 420TV Line
4. Minimum illumination: 1.0 LUX
5. Lens length: 1.8MM
6. System: PAL/NTSC
7. Working temperature: -20 degrees Celsius to 50 degrees Celsius
8. Power supply voltage: DC 5V
9. Current: 100mA
10. Visible wide angle: 120 degrees
11. Night vision distance: 0-3M
12. Display size: 5 inches
13. Panel type: IPS panel, brightness 1000cd/m2
14. Camera pixel: 1920 x 1080P
15. Camera horizontal viewing angle: 120 degrees
16. Default viewing angle: front view, rear view switchable
17. Power supply: DC3.3V display power supply
18. Waterproof grade: IP67
19. Night vision: LED light color at night
Specification:
| Package Weight |
| One Package Weight |
0.56kgs / 1.24lb |
| One Package Size |
25cm * 20cm * 6cm / 9.84inch * 7.87inch * 2.36inch |
| Carton Weight |
18.00kgs / 39.68lb |
| Carton Size |
53cm * 48cm * 32cm / 20.87inch * 18.9inch * 12.6inch |
| Loading Container |
20GP: 327 cartons * 30 pcs = 9810 pcs
40HQ: 760 cartons * 30 pcs = 22800 pcs
|
|
