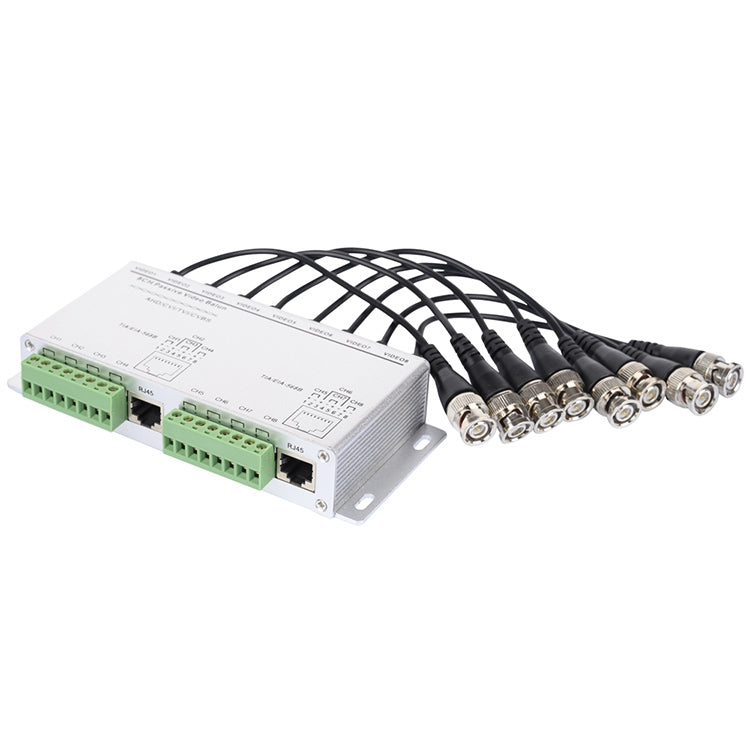

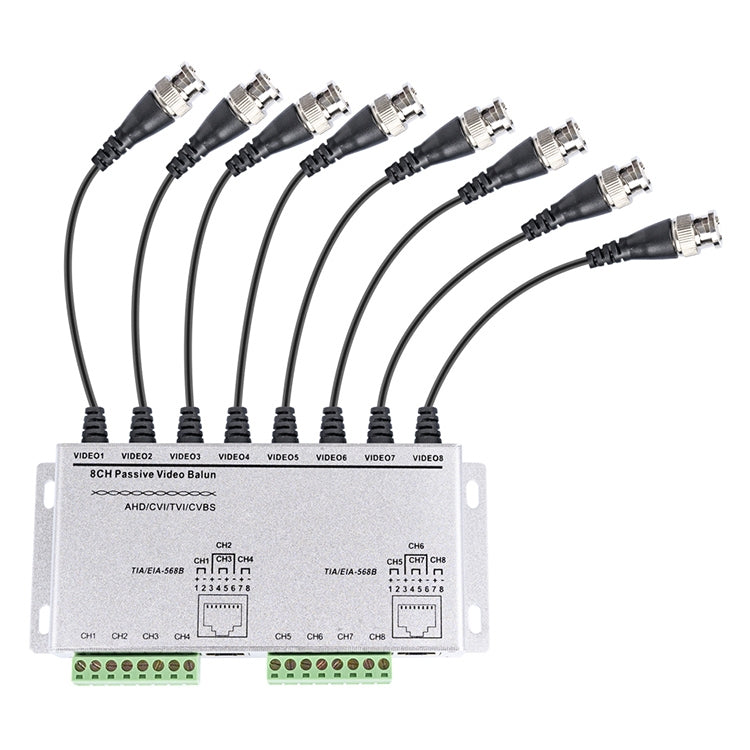

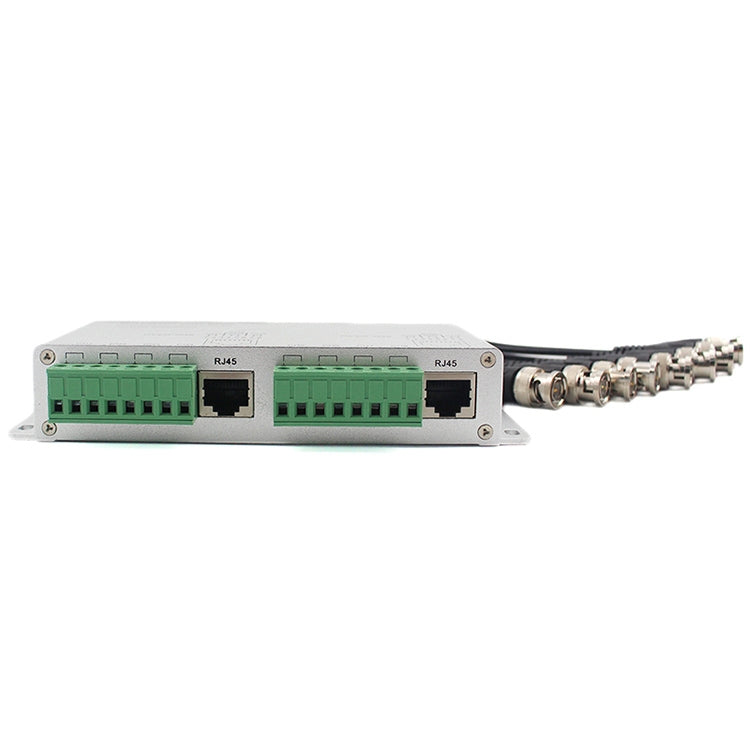

8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs, 8 CH UTP

Product form

8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs, 8 CH UTP

Delivered in 3-11 working days  Can't find what you're looking for? Contact us for availability.

£15.39 Incl. VAT

    Design
    No design options available. This product isn't linked to a CJ POD product, so the Design button won't be shown to your customers.

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Oct 25, 2026 23:59:00 +0000
    • Questions? We’re happy to help
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    1) Adopt differential signal transmission with excellent anti-jamming ability

    2) Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal

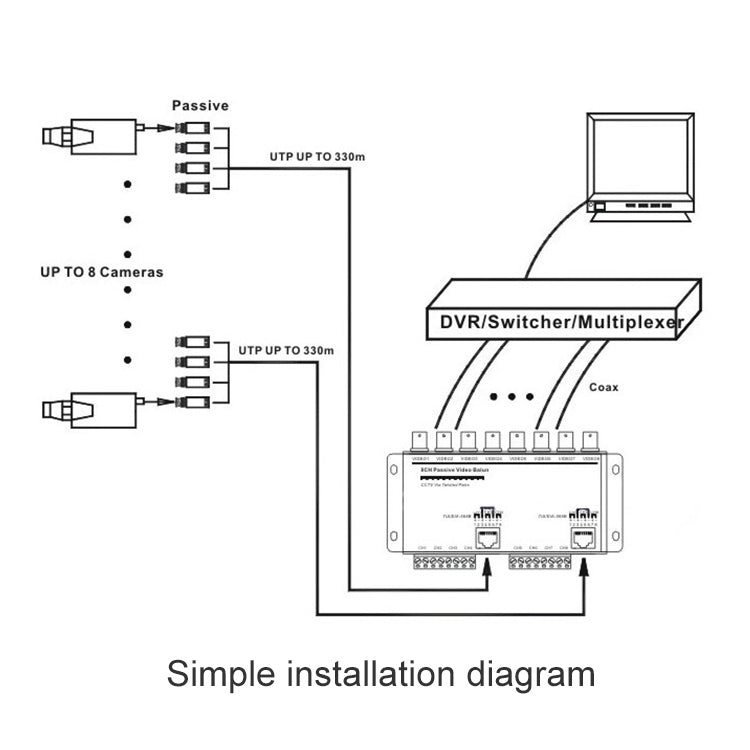

    3) Full-motion CCTV video at distance up to 330m when used with any passive UTP video transceiver

    4) Up to 1500m with any active UTP video receiver

    5) No power required

    6) Built-in transient suppression protection

    7) Frequency response: DC-8MHz

    8) CMRR (Common mode rejection ratio): 60dB

    9) Impedance: BNC / 75ohms, RJ / 100ohms

    10) Applicable to NTSC / PAL / SECAM / CCIR systems

    11) Dimensions: 157 x 65 x 29mm
    Specification:
    Package Weight
    One Package Weight 0.55kgs / 1.21lb
    One Package Size 17cm * 13.5cm * 6cm / 6.69inch * 5.31inch * 2.36inch
    Qty per Carton 30
    Carton Weight 15.50kgs / 34.17lb
    Carton Size 42cm * 35cm * 30cm / 16.54inch * 13.78inch * 11.81inch
    Loading Container 20GP: 604 cartons * 30 pcs = 18120 pcs
    40HQ: 1403 cartons * 30 pcs = 42090 pcs
