The BETAFPV Beta85X V2 Pusher Kit is specially designed for DIY Beta85X to Beta85X V2.

If you have any Beta85X Whoop drone, like Beta85X FPV or Beta85X for Naked Camera, this kit is the best choice for you to make a Beta85X V2 for FPV filming.

The Pusher Drone Style

A new whoop drone style. It is the most popular pusher installation in the current market! Supplied with two HD camera mount options - Insta360 Go and Naked Camera. The battery and camera will be placed on the top platform of the drone. It concentrated the center of gravity, which makes the drone more maneuverable to get a better flight experience.

Features

• This kit could help Beta85X pilots convert their Beta85X into a brand-new pusher whoop style! With the quite popular pusher configuration, the drone can be controlled better in flight while the center of gravity is concentrated.
• This kit also provides 2 customized HD camera mounts, supports to install Insta360 GO camera and Customized Naked Camera. Offering more choices for different FPV film shooting.
• It offers rubber dumpers to further eliminate the shake of the camera, makes the camera more stable on the flight, ensures pilots can capture all the beautiful moments of flight with stabilized and clear video.
• It provides enough parts for both Beta85X V2 and Beta85X HD digital VTX, pilots could have more options to DIY their Beta85X.
• Come with an M02 VTX mounting hole(needs to be soldered to the VTX), which is more flexible for building more types of drones.
• This kit is mainly made of carbon fiber and 3D printer parts, it is easy to be installed and DIY.

Specifications

• Item: Beta85 V2 Pusher Kit
• Material: Carbon Fiber and 3D Printer parts

Recommended Parts (Not Included)

• FC: F4 AIO 12A FC V2
• Motors: 1105 5000KV Motor
• Props: EMAX Avan 2" 4-Blades Props
• Battery: 4S 450mAh Battery
• Camera: EOS Camera
• Frame: Beta85X Frame

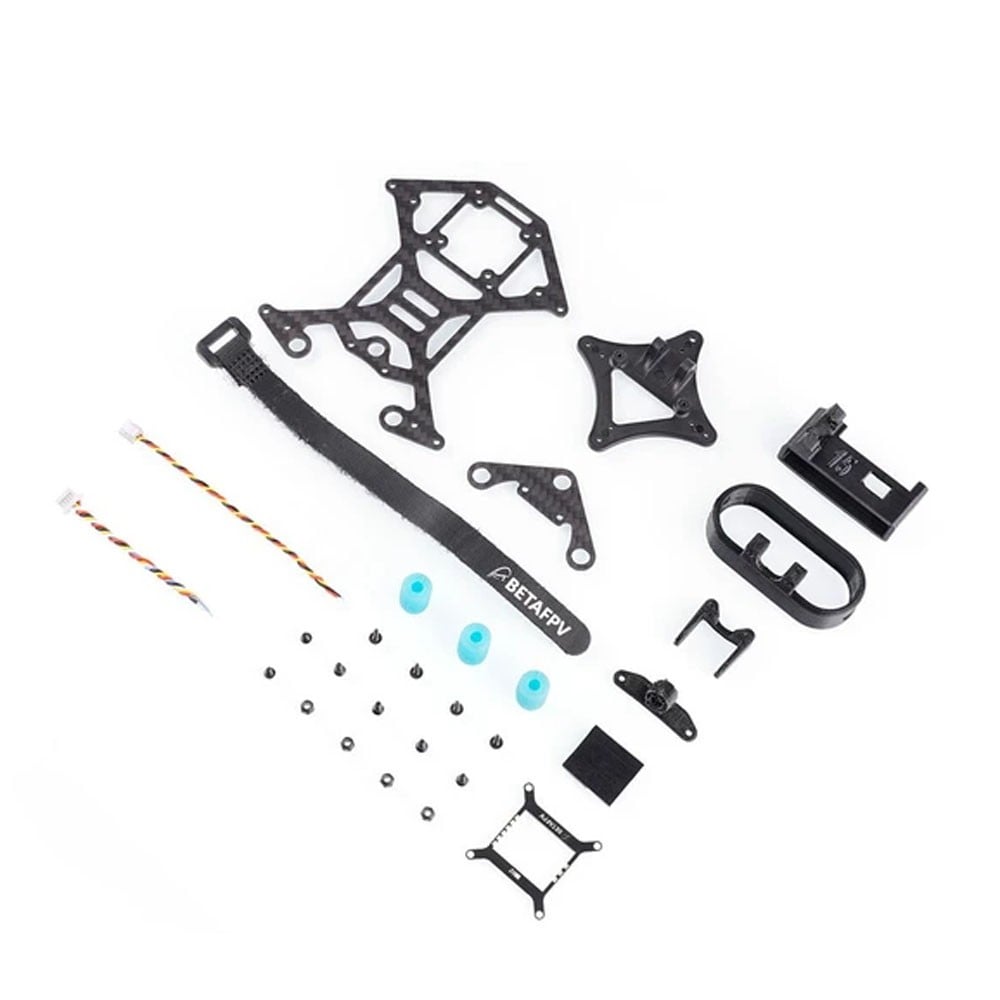

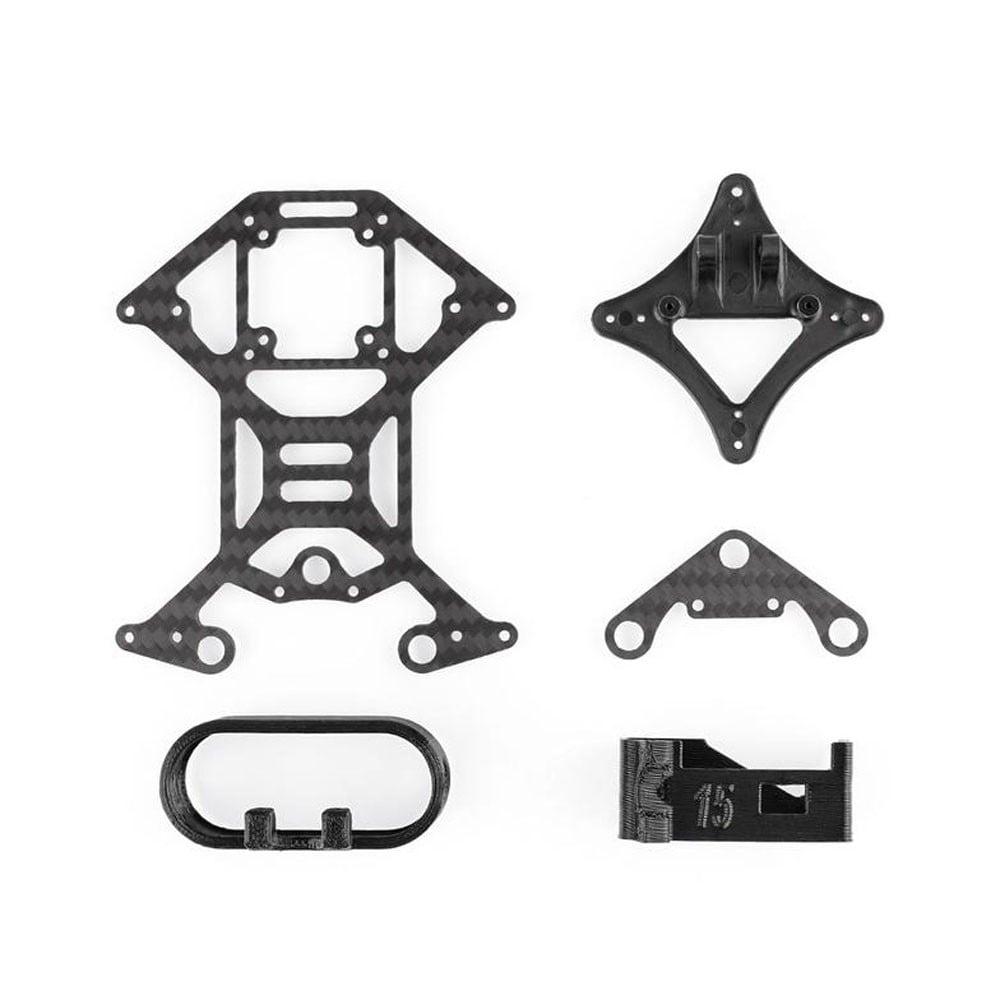

Includes

• 1 x Beta85X Carbon Fiber Plate
• 1 x Beta85X Top Platform
• 3 x Rubber Dumper
• 1 x 3D Printer for Insta Go Camera Mount
• 1 x 3D Printer for Naked Camera Mount
• 1 x 3D Printer for 14mm Camera Mount
• 1 x 3D Printer for Holder Mount for VTX Antenna
• 1 x 3D Printer for Holder Mount for AIR Antenna
• 1 x Pack of M1.4*8 Screws
• 1 x Base Camera Mount for GoPro 6
• 1 x 3-Pin GH1.25 30AWG Cable(90mm)
• 1 x 5-Pin+7-Pin SH1.25 30AWG Cable(60mm)
• 1 x 6-Pin SH1.25 30AWG Cable(100mm)
• 1 x 6-Pin SH1.25 30AWG Cable(20mm)
• 1 x 150mm Battery Strap
• 1 x No-Slip Rubber Pads
• 1 x Pack of M2*7 Screws
• 1 x Pack of M1.6*8 Screws
• 1 x Pack of M2 Screw Nuts
• 1 x Pack of M3*20 Screws
• 1 x Pack of M3 Screw Nuts
• 1 x Pack of M2*3 Screws
