Description
1. Stable measurement results can be obtained under a noisy environment by introducing the FFT (Fast Fourier Transform) technology.

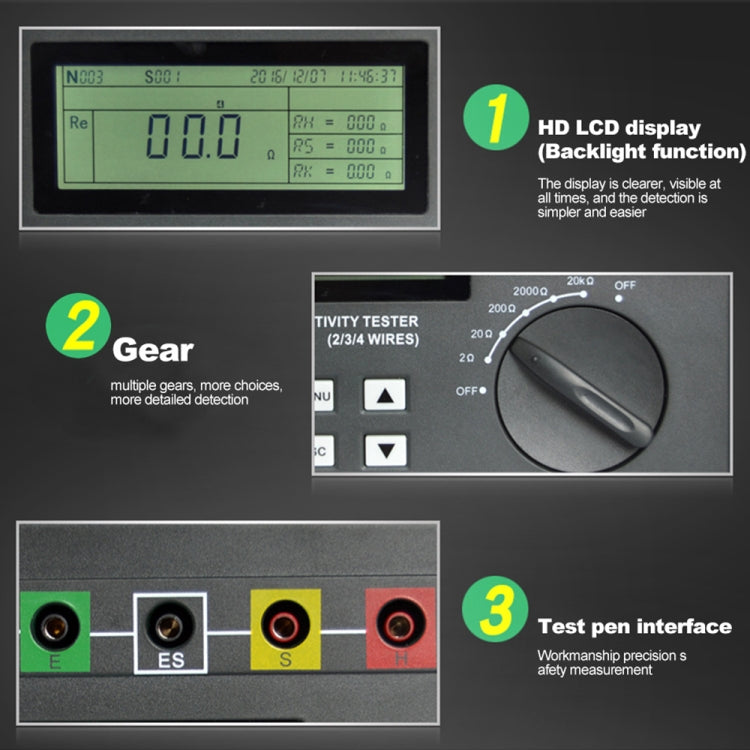

2. LCD display, backlight function to view the test results in dimly areas
3. Rk Function is available to cancel the residual resistance on the Test Leads.
4. Function: battery check / auxiliary earth resistance measurement / auto-power-off
5. Warning for Auxiliary Earth Resistance Measurements. Warnings are displayed on the LCD when auxiliary earth resistances are too high and may result in inaccurate measurements.
6. The instrument is automatically powered off when 5 min passes without any Key operation.
7. Data storage: save 1000 test data

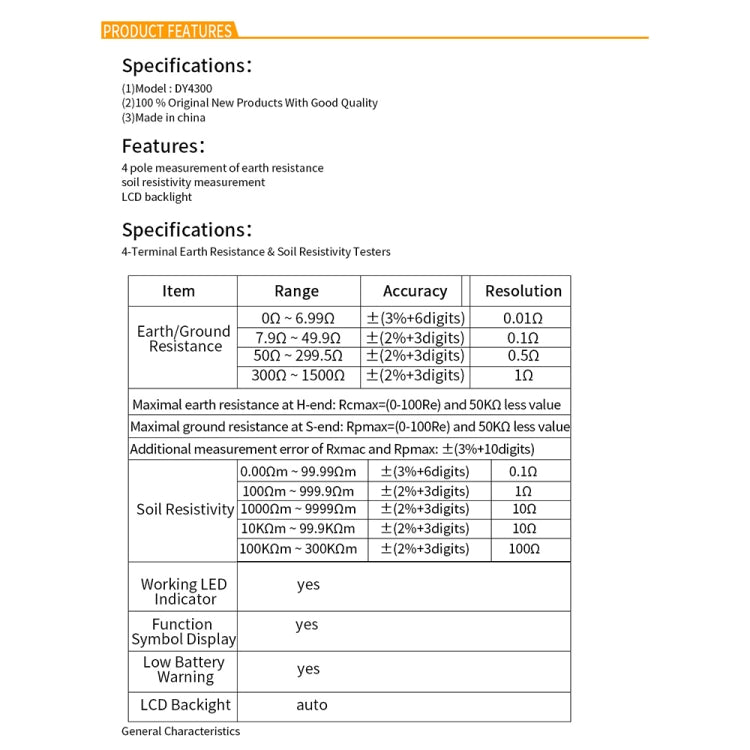

8. Specification:
IEC 61010-1 (CAT.III 300V, CAT.IV 150V, Pollution degree 2)
IEC 61010-031(Requirements for hand-held Probes)
IEC 61557-1, 5 (Earth Resistance Tester)
IEC 61326-1 EMC Standard
Test range (temperature and humidity: 23+/-5 degree Celsius and 45~75% RH)
Specification:
| Package Weight |
| One Package Weight |
2.61kgs / 5.74lb |
| One Package Size |
20cm * 20cm * 12cm / 7.87inch * 7.87inch * 4.72inch |
| Carton Weight |
27.50kgs / 60.63lb |
| Carton Size |
48cm * 42cm * 38cm / 18.9inch * 16.54inch * 14.96inch |
| Loading Container |
20GP: 348 cartons * 10 pcs = 3480 pcs
40HQ: 808 cartons * 10 pcs = 8080 pcs
|
|
