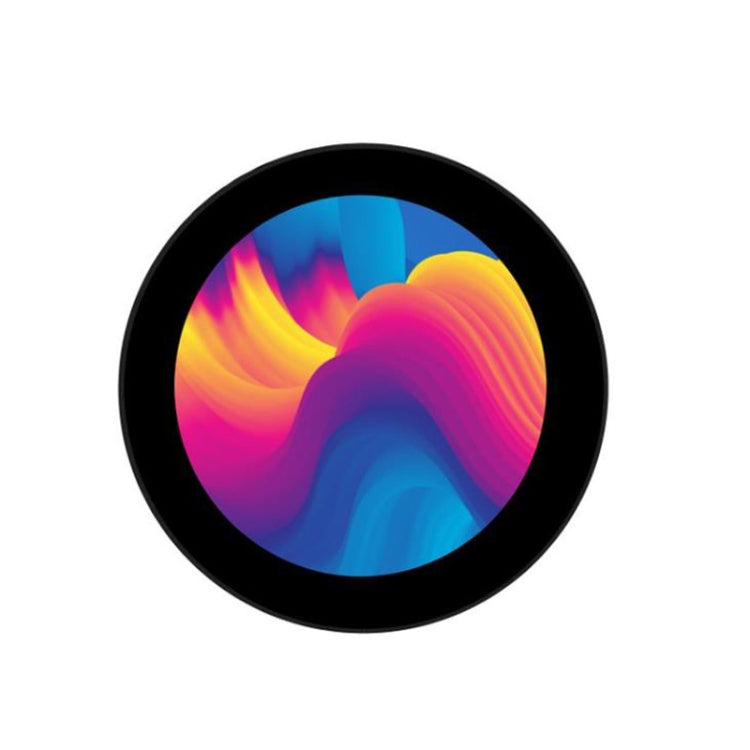

Description
1. Resolution: 800 × 800

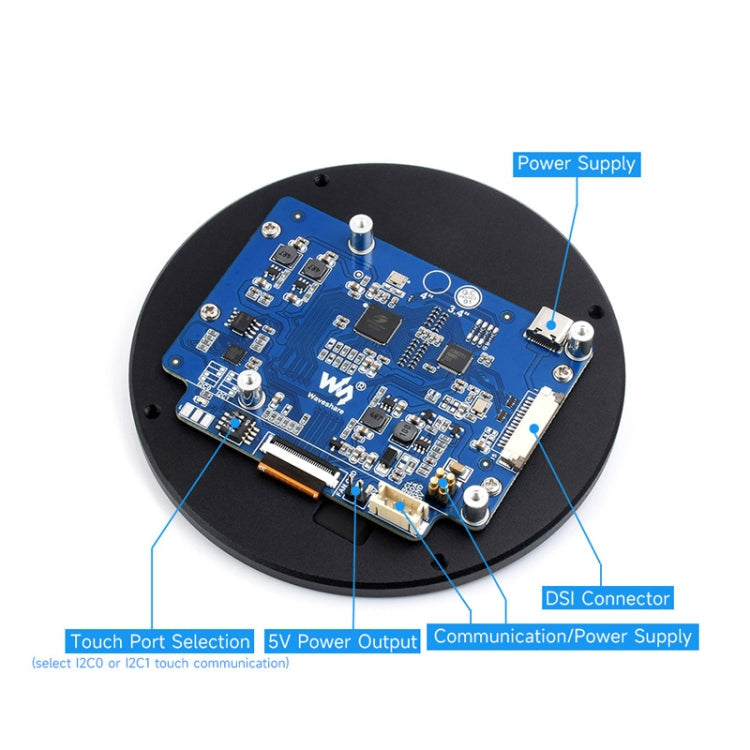

2. Display interface: DSI
3. Display panel: IPS
4. Viewing angle: 170 degrees
5. Touch type: capacitive touch
6. Touch points: ten-point touch
7. Touch interface: I2C
8. Touch panel: tempered glass panel
9. Touch panel process: full lamination
10. Application scenarios: smart home, automotive equipment, consumer electronics, industrial equipment, etc.
11. Screen size: about 3.4 inches

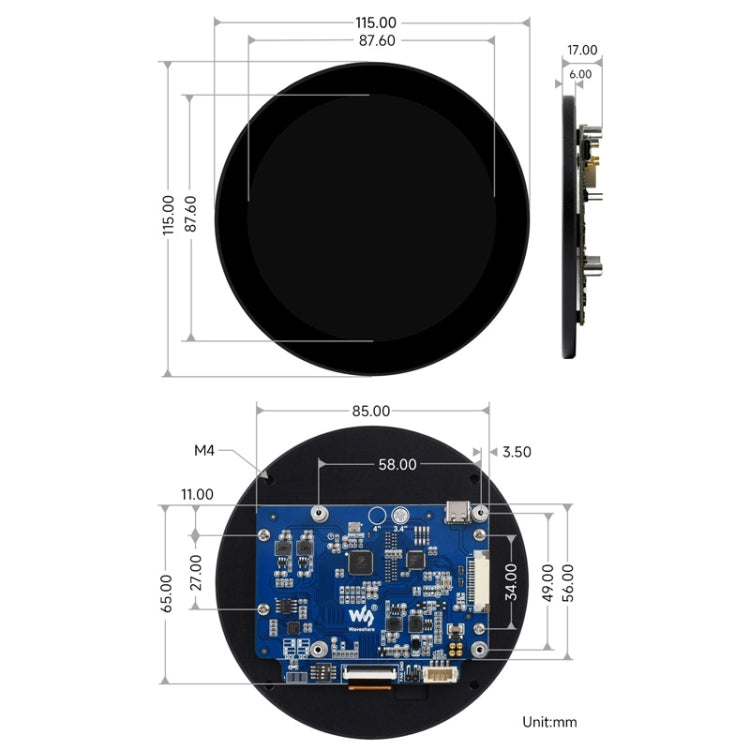

12. Size ：approx. 11.5 x 1.7cm
Features:

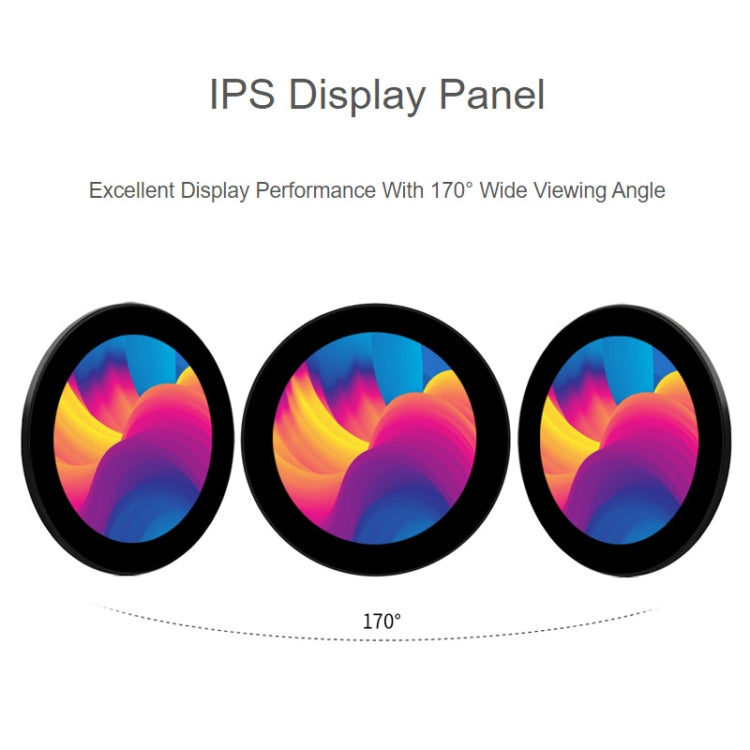

1. IPS display panel with good display performance and wide viewing angle up to 170 degrees
2. Can support 10-point touch, the actual number of touch points with the software system
3. Tempered glass panel, hardness up to 6H
4. Screen full lamination, good display, dustproof

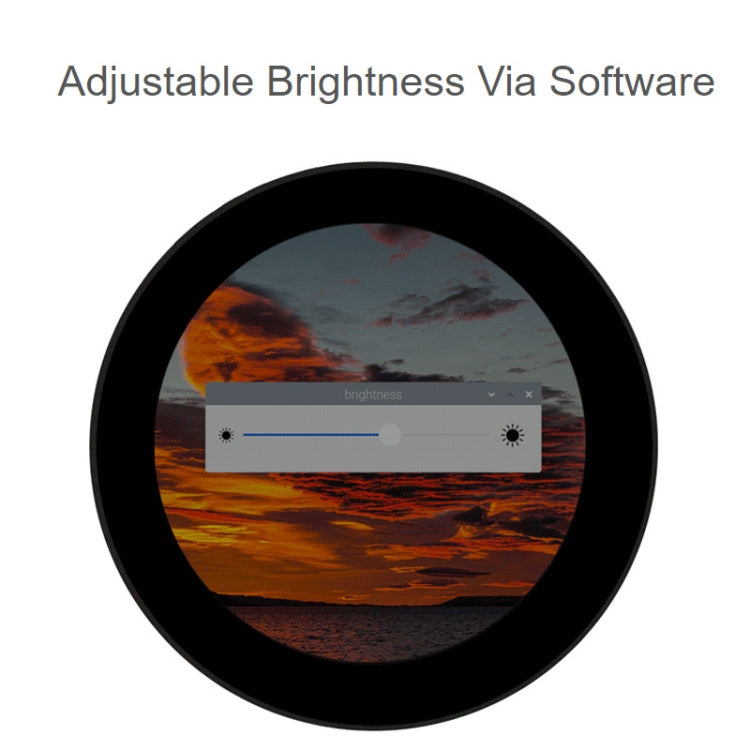

5. Backlight brightness can be adjusted by software
6. Support Raspberry Pi OS, ten-point touch, need to install the driver

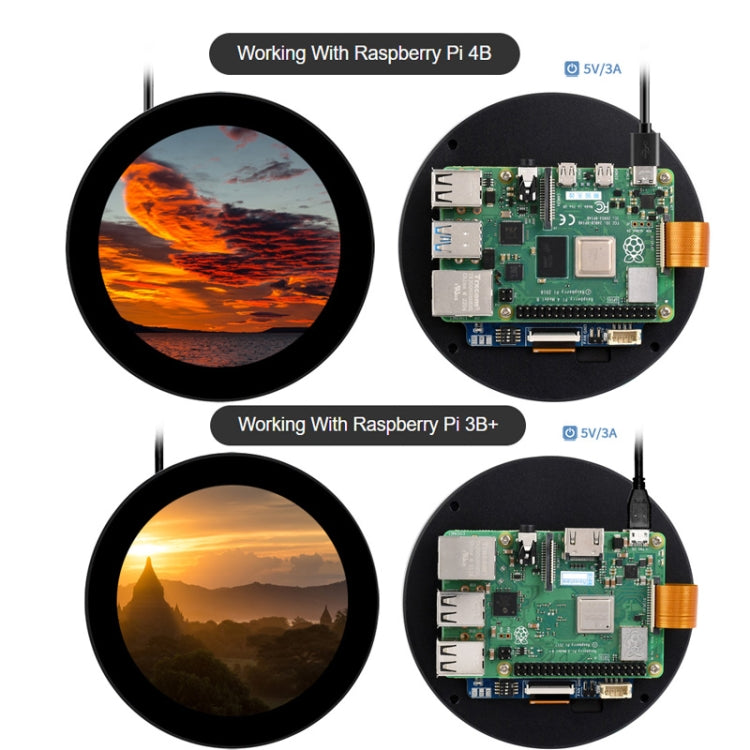

7. Support Pi 4B/3B+/3A+, some CM3/3+/4 expansion boards need to purchase additional adapter cable
Specification:
| Package Weight |
| One Package Weight |
0.20kgs / 0.45lb |
| One Package Size |
13cm * 13cm * 2cm / 5.12inch * 5.12inch * 0.79inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch |
| Loading Container |
20GP: 177 cartons * 146 pcs = 25842 pcs
40HQ: 412 cartons * 146 pcs = 60152 pcs
|
|
