Description

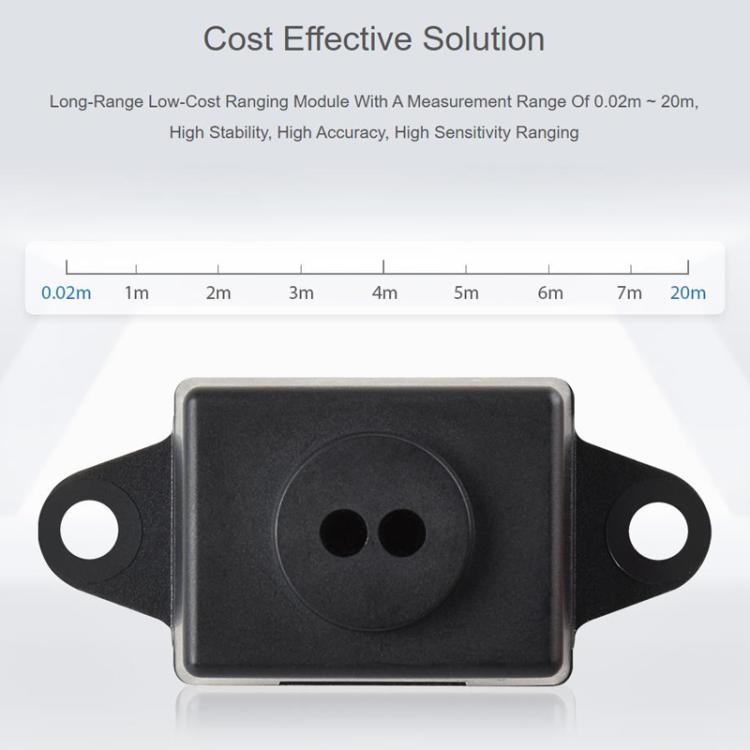

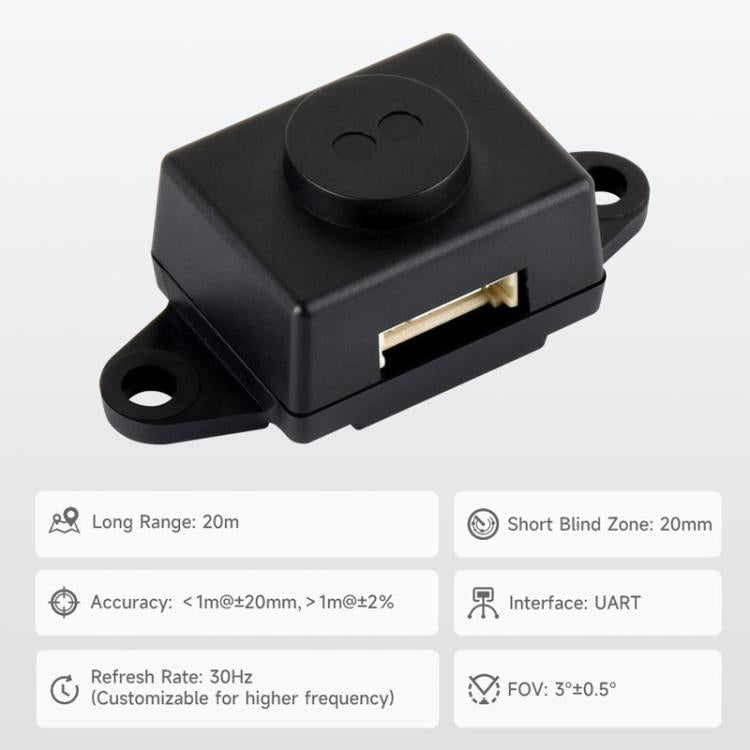

1. Typical measurement range: 0.02m-20m
2. Typical measurement accuracy: less than 1m +/-20mm, larger than 1 m +/-2%
3. Field of view (FOV): 3 degree +/-0.5 degree
4. Refresh rate: 30 Hz
5. Ambient light tolerance: 100,000 lux
6. Laser safety class: LASER CLASS 1
7. Wavelength: 940 nm

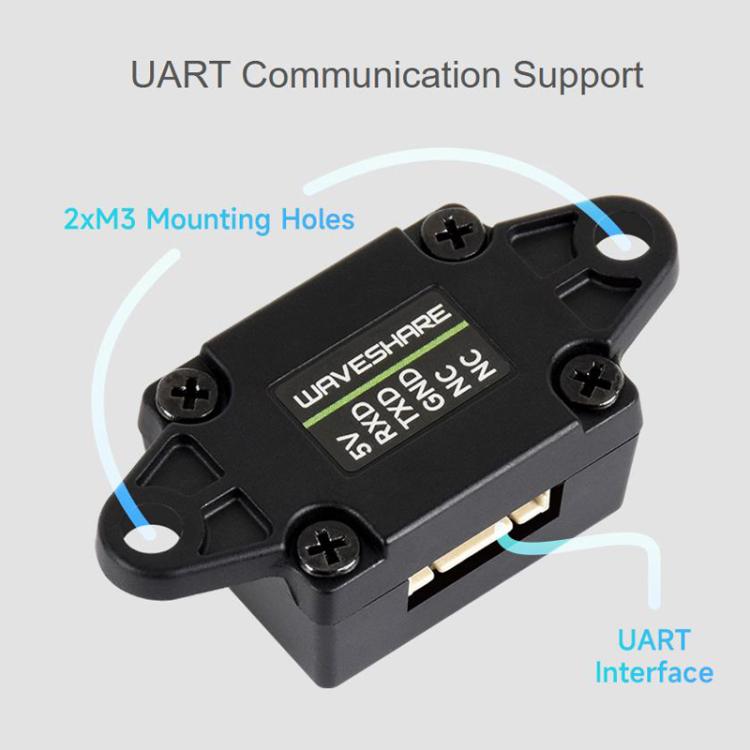

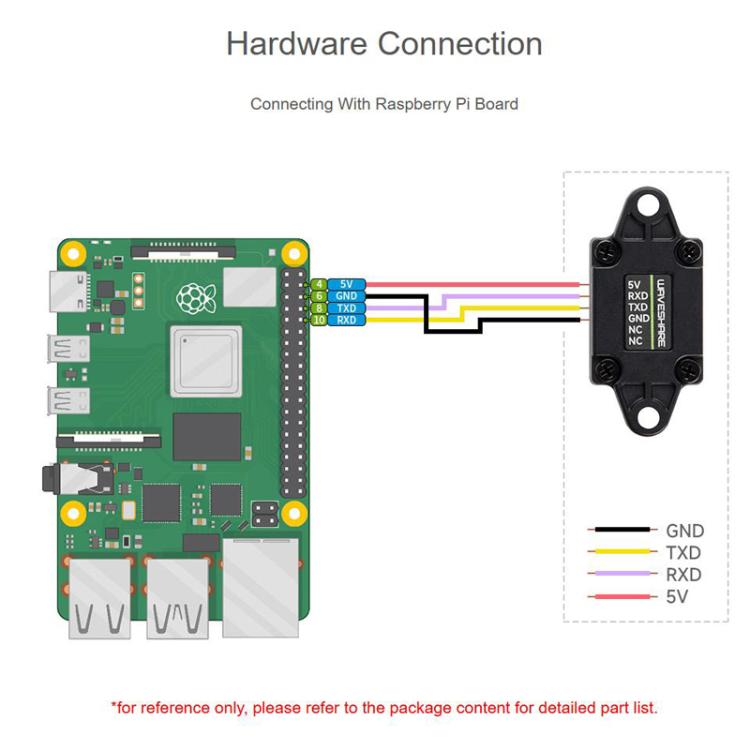

8. Communication interface: UART
9. Communication baud rate: 115.2 Kbps
10. Supply voltage: 4V-5.6V
11. Communication level: 3.3V
12. Power consumption: 170mW (UART active output, supply voltage 5.0V, current 34mA)
13. Housing material: PC
14. Operating temperature: -20 to 70 degrees Celsius
15. Operating humidity: 35%-80% RH
16. Storage temperature: -40 to 80 degrees Celsius
17. Weight: about 3.6g

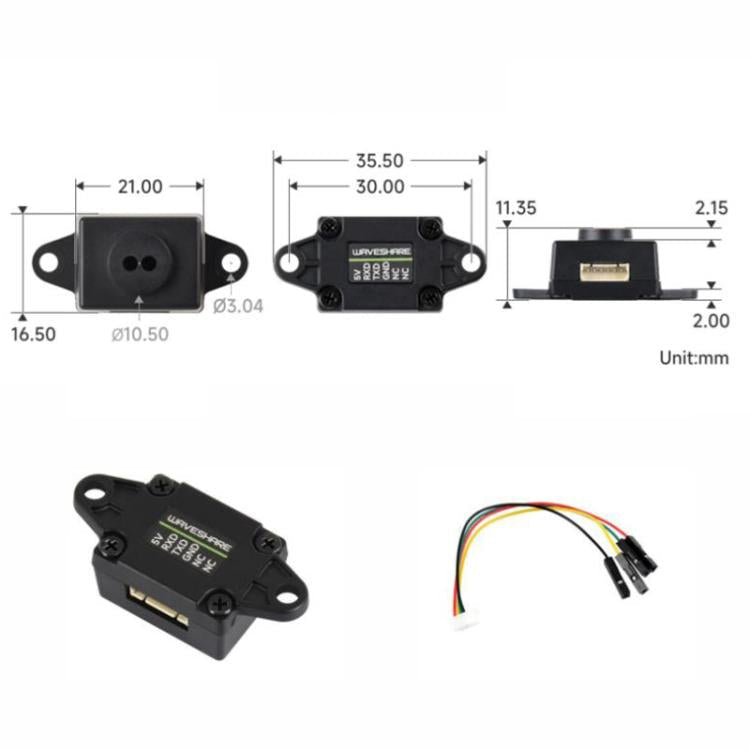

18. Size: about 35.5 x 16.5 x 11.35mm
Features:
1. Based on a D-TOF single-point laser sensor, with a built-in MCU and fully encapsulated housing. Features sunlight suppression and dirt compensation algorithms for fast and accurate measurement of target distances.
2. Utilizes high-precision optical collimation technology to ensure stable distance measurement of various targets even under strong light conditions of up to 100,000 lux.
3. Supports UART interface communication
Specification:
| Package Weight |
| One Package Weight |
0.02kgs / 0.05lb |
| One Package Size |
8cm * 6cm * 3cm / 3.15inch * 2.36inch * 1.18inch |
| Carton Weight |
8.60kgs / 18.96lb |
| Carton Size |
50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch |
| Loading Container |
20GP: 412 cartons * 380 pcs = 156560 pcs
40HQ: 958 cartons * 380 pcs = 364040 pcs
|
|
