Description
1. The emissivity can be adjusted to increase the accuracy of measuring objects with semi-reflective surfaces.
2. The upper and lower temperature cursors can guide the user to the upper and lower temperature areas of the thermal image
3. Optional palette

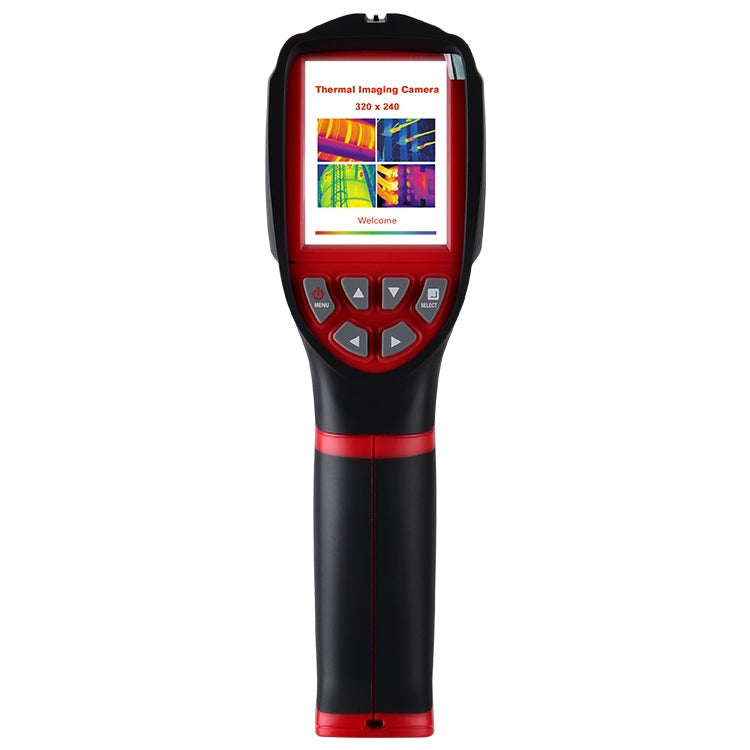

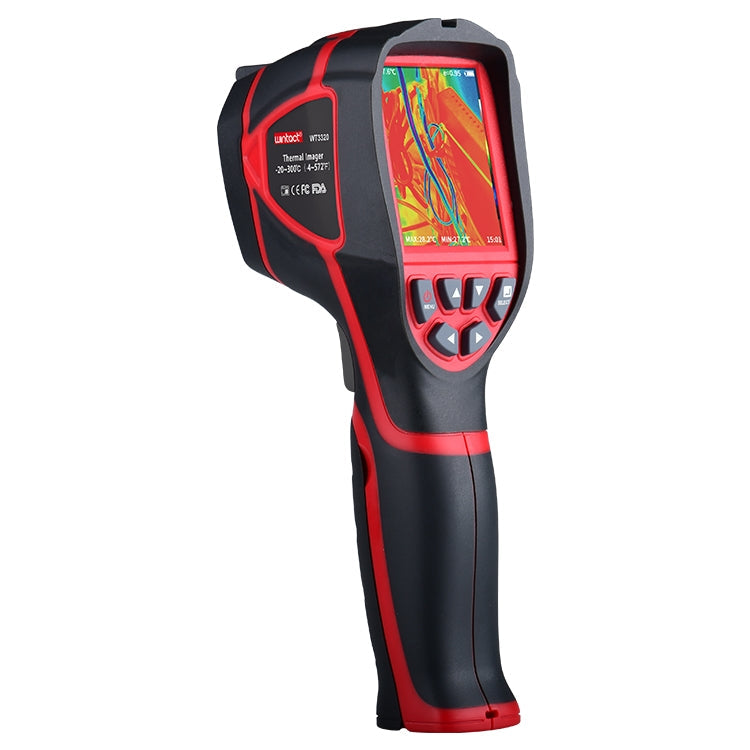

4. This product is an infrared thermal imager that integrates surface temperature measurement and real-time thermal imaging
5. The traditional infrared thermometer needs to measure each part one by one, but the infrared thermal imager does not need it, thus saving time

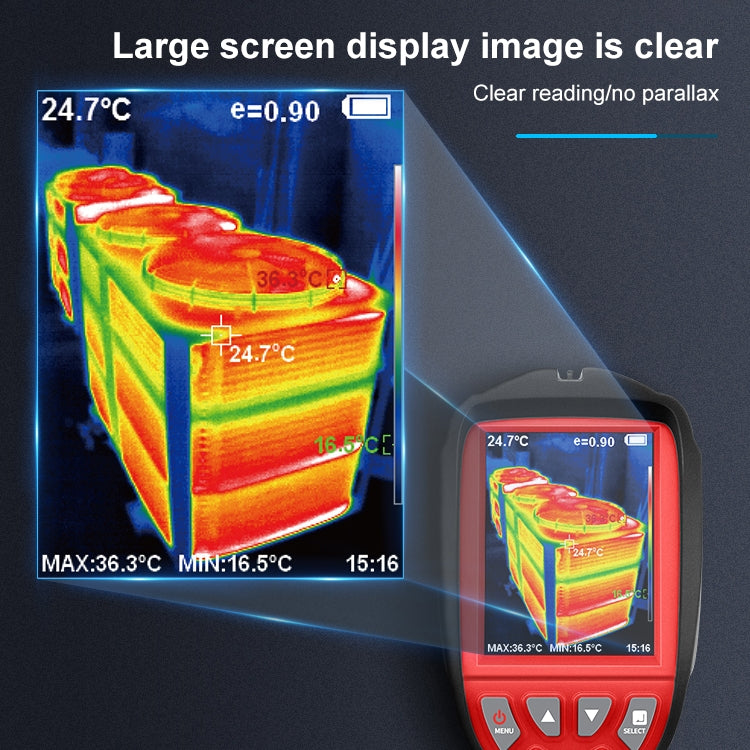

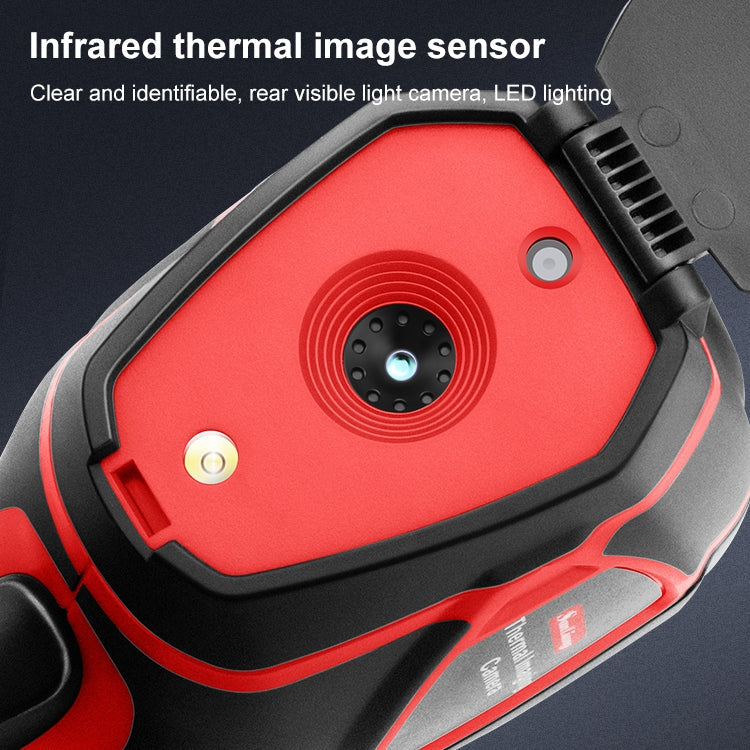

6. Potential problems may be clearly displayed on the color display. And use the center point measurement cursor to quickly and accurately locate and measure the temperature of the target object. In order to increase differentiation, the product is equipped with a visible light camera

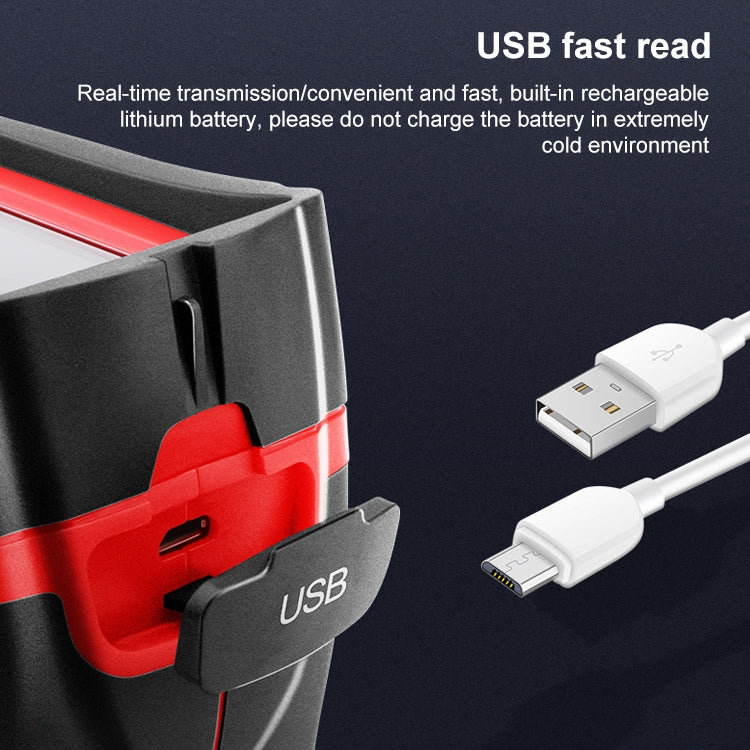

7. The thermal image and visible light image are stored in the device, which can be read via USB or stored in the computer to generate reports or print
8. The product is small in size, easy to operate, and powerful. It is an ideal choice for electric power, electronic manufacturing, industrial testing and other fields
9. Application areas include electric power, metallurgy, petrochemicals, machinery, coal, transportation, fire protection, national defense, etc. It can not only perform real-time detection under high-voltage, high-current, and high-speed operation, but also realize real-time detection
10. Display: 2.8-inch full-angle TFT display
11. USB: Micro USB 2.0
12. Infrared image resolution: 320x240
13. Field of view: 56x42 degrees
14. Measurement accuracy: +/-2 degrees Celsius/+/-2%
15. Temperature measurement range: -20 to 300 degrees Celsius
16. Visible image resolution: 300,000 pixels
17. LCD resolution: 320??240
18. Focus distance: 0.5-70mk
19. Emissivity: adjustable from 0.01 to 1.00
20. Thermal image frame rate: 9 Hz
21. Wavelength coverage: 8-14um
22. Focus mode: fixed
23. Palette: rainbow, iron oxide red, cool color, black and white, white and black
24. Storage capacity: built-in 3G (store more than 20,000 images)
25. File format: JPG
26. Power supply: built-in rechargeable 18650 battery
27. Working time: 2-3 hours
28. Optional automatic shutdown time: 5 minutes / 20 minutes / will not automatically shut down
29. Dimensions: 69.4x225x93.4mm
30. Weight: 329.1g
Specification:
| Package Weight |
| One Package Weight |
0.94kgs / 2.07lb |
| One Package Size |
27cm * 13cm * 10cm / 10.63inch * 5.12inch * 3.94inch |
| Carton Weight |
10.76kgs / 23.72lb |
| Carton Size |
54cm * 28cm * 29cm / 21.26inch * 11.02inch * 11.42inch |
| Loading Container |
20GP: 608 cartons * 10 pcs = 6080 pcs
40HQ: 1411 cartons * 10 pcs = 14110 pcs
|
|
