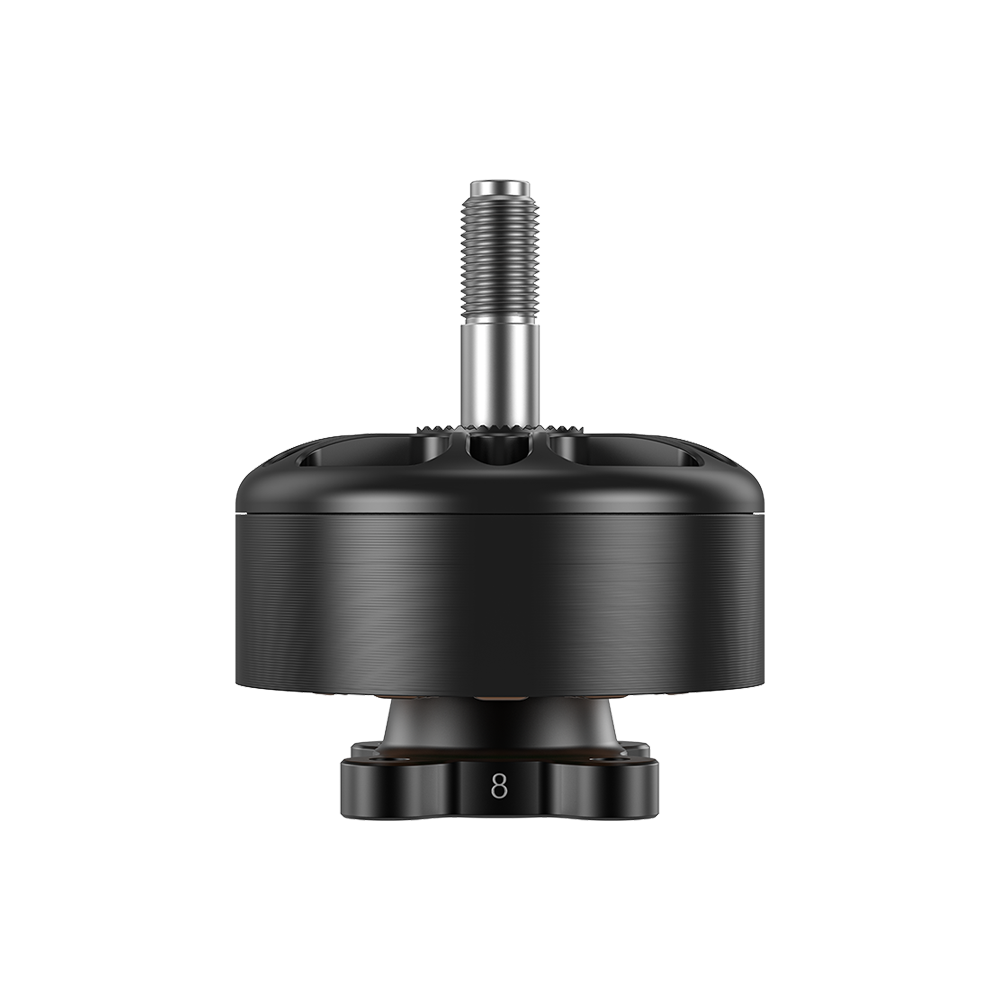

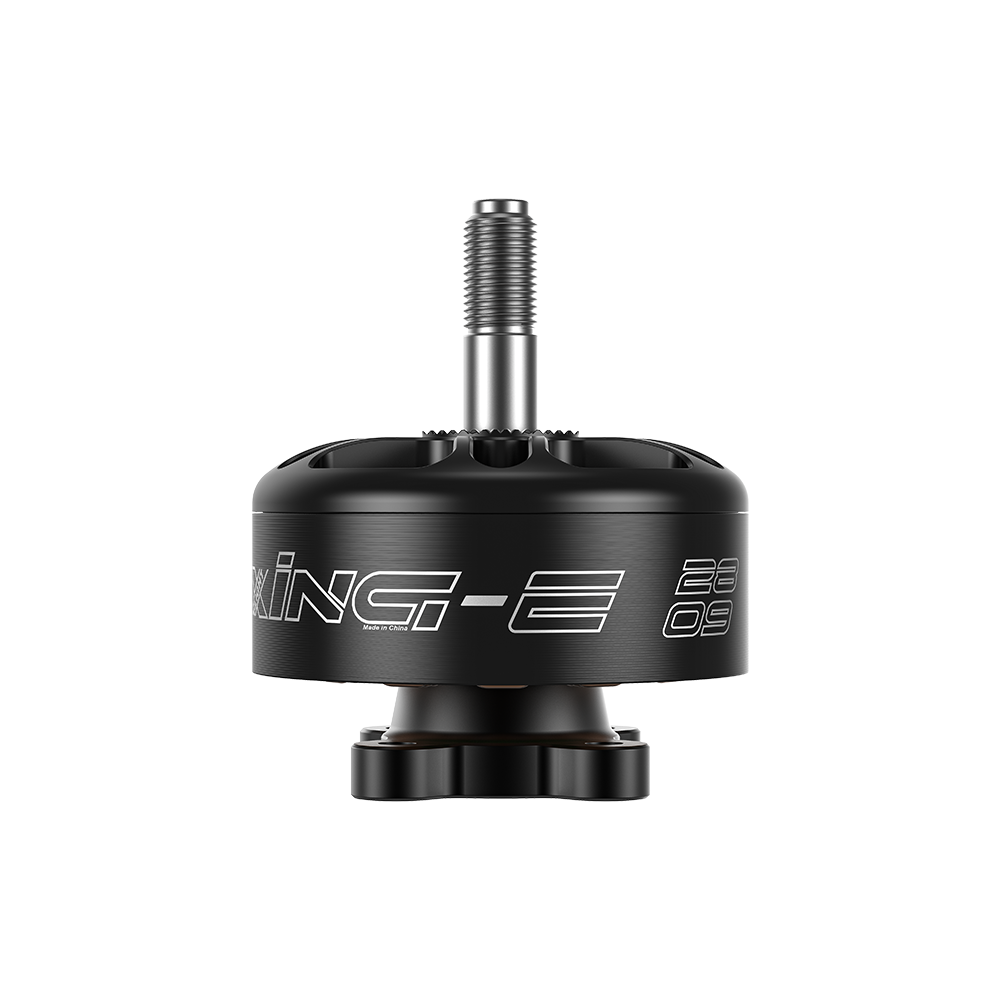

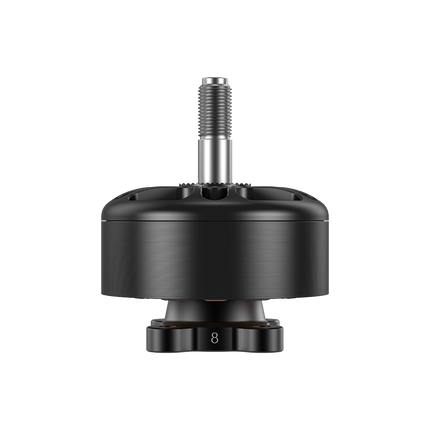

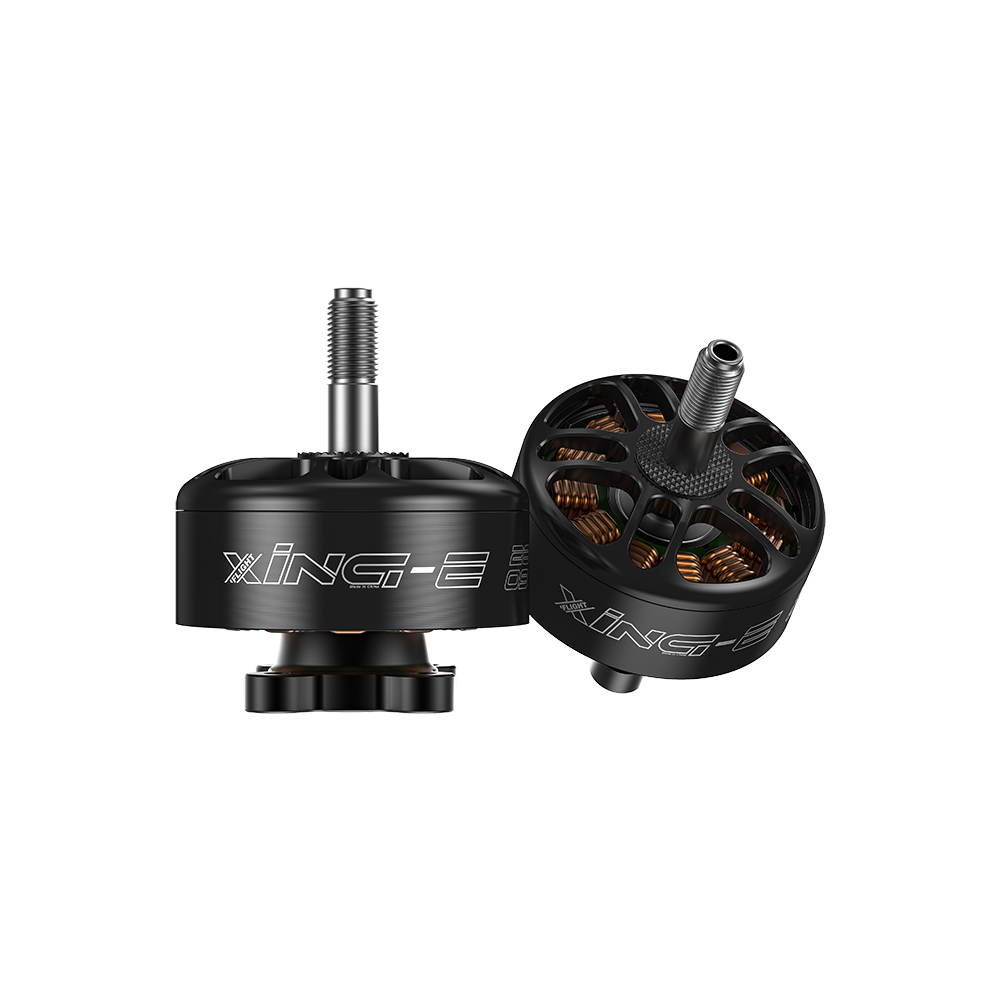

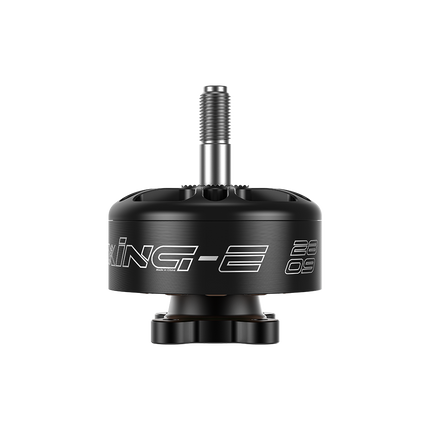

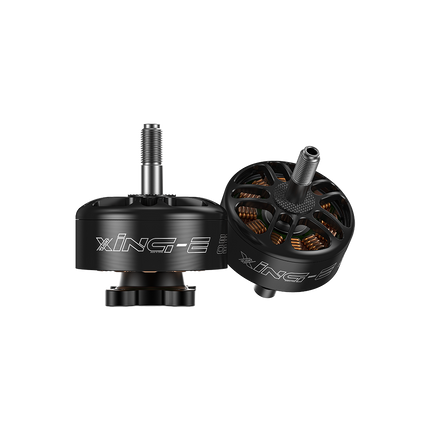

Looking to push your drone to the limits without melting anything important? The XING-E 2809 Brushless Motor is your go-to workhorse, packing a punch with 1250KV of raw power and a high-strength 5mm steel shaft that laughs in the face of high torque. Designed for high performance, it features N52H high-temperature magnets and single-strand copper winding, making it a reliable option for any serious FPV pilot or drone enthusiast.

Whether you're racing at breakneck speeds or capturing cinematic shots, this motor's robust design and impressive specs ensure consistent performance. The motor's 19x19mm hole pattern makes mounting a breeze, while the segmented bell rotor and curved magnets ensure maximum efficiency and power delivery.

Key Features

• High-Strength 5mm Steel Shaft : Built to endure high torque and prevent bending during intense flights.
• N52H High-Temperature Magnets : Designed for high endurance, handling extreme temperatures without compromising performance.
• 19x19mm Hole Pattern : Standard mounting size for easy installation across most frames.
• Single Strand Copper Winding : Maximizes efficiency and performance.

Specifications

• Model : XING-E 2809 Motor
• KV : 1250KV
• Weight (including wire) : 61g / 60.4g
• Dimensions : φ33.2 x 23.8mm
• Interphase Resistance : 129.3mΩ / 65mΩ
• Input Voltage : 24V
• Peak Current : 25.63A / 42.23A
• Max Wattage : 610.3W / 1147.1W
• Mounting Holes : 19 x 19mm φ3mm
• Shaft Diameter : 5mm
• Shaft Protruding Length : 15.5mm
• Lead : 260mm / 18AWG
• Magnet Type : N52H Curved
• Configuration : 12N14P
• Bearing Specification : φ11 x φ5 x 5
• Rotor : Segmented bell

What's in the Box

• 1 x XING-E 2809 Brushless Motor
• 4 x M3x11 Screws
• 1 x M5 Flange Nut

Note : Included accessories may vary depending on supply availability.
