FrSky Archer Plus R10+ Receiver

FrSky Archer Plus R10+ Receiver

Fiche produit

Delivered in 4-8 days  Contact us for availability

Be quick! Only 4 products left in stock!

£55.93 Incl. T.V.A.

    • Guaranteed secure & safe checkout.

      shop pay
    • Expédié aujourd'hui ? Commandez dans : Jun 28, 2026 23:59:00 +0100
    • Free shipping on all orders above £50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    Are you tired of unreliable RC receivers that keep dropping signal during flight? The Archer Plus Series is here to put an end to those frustrating moments.

    The Archer Plus Series of receivers includes exciting new features to ensure a solid RF performance. Its enhanced anti-RF-interference capability, in addition to its anti-interference performance in the spark ignition process, offers unbeatable stability. This receiver supports both ACCESS and ACCST D16 modes, and its RF protocol is smart-matched during the binding process on the radio. With the Black-Box function, you can store basic flight data like power and signal related information.

    Key features:

    1. Dual Mode Support - Works with both ACCESS and ACCST D16 modes for smart RF protocol matching during binding process.
    2. Black-Box Function - Preserves basic flight data like power and signal related information.
    3. Versatile Connectivity - 10 configurable channel ports, support for PWM, SBUS, FBUS, and S.Port, and seamless pairing with telemetry devices.

    The R10+ receiver boasts 10 configurable channel ports, which can be assigned as PWM, SBUS, FBUS, or S.Port. You can even use it as a primary receiver in a redundant solution. The FBUS protocol makes pairing with telemetry devices like XACT servos, ADV Sensors, etc. a breeze, and simplifies your build setup. The dual detachable antennas guarantee optimal antenna reception and range, ensuring you never lose signal mid-flight again.

    Upgrade to the Archer Plus Series today and experience the peace of mind that comes with a solid, reliable RC receiver. Say goodbye to signal drops and hello to a flawless flight experience.

    Features

    • Enhanced Anti RF-Interference capability with more solid RF performance
    • Smart-matched ACCESS & ACCST D16 modes
    • Supports basic Black-Box function
    • Built-in 3-axis gyroscope and 3-axis accelerometer sensor
    • Multiple flight modes and configuration tools (ETHOS, LUA scripts, etc.)
    • 10 configurable channel ports* (PWM, SBUS, FBUS, or S.Port)
    • Supports signal redundancy (SBUS In)
    • Full control range with telemetry (S.Port or FBUS)
    • Anti-interference capability in the spark-ignition process
    • Over-The-Air (OTA) FW update*
    • External battery/device voltage detection

    Specifications

    • Dimension: 46.5*26.3*14.7mm (L*W*H)
    • Weight: 13g
    • 10 Configurable Channel Ports
      CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
      CP2-10: PWM / SBUS Out / FBUS / S.Port
    • SBUS Out (Supports 16CH / 24CH mode)
    • Operating Voltage Range: 3.5 -10V
    • Operating Current: <100mA@5V
    • Control Range: Full range* with telemetry
      (*Full Range: >2km, range may vary based on local conditions.)
    • Voltage Measurement Range via AIN2 (External device): 0-35V
      (Battery Voltage Divider Ratio: 1:10)
    • Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters

    Resources

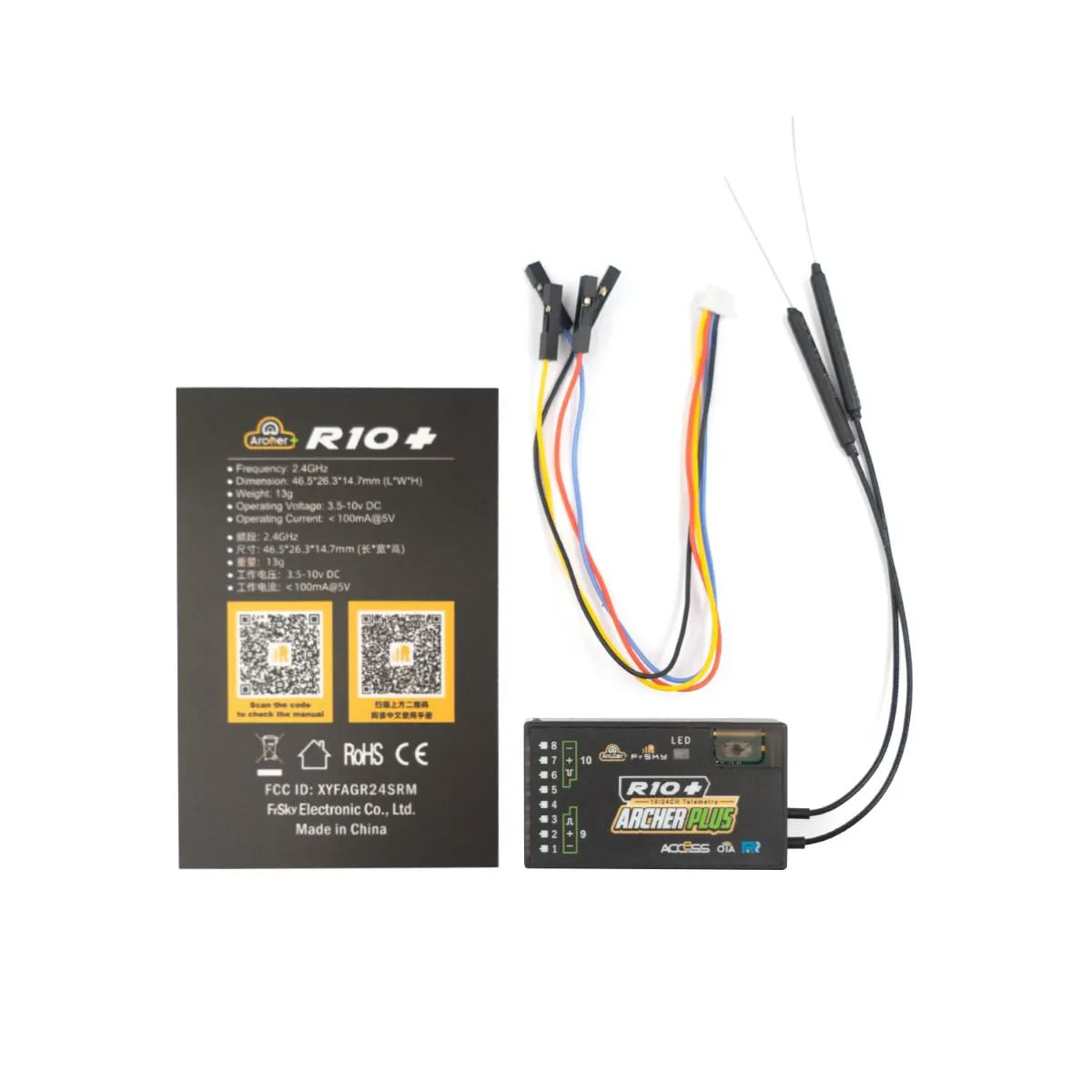

    Included

    • 1pc FrSky Archer Plus SR10+ Receiver
