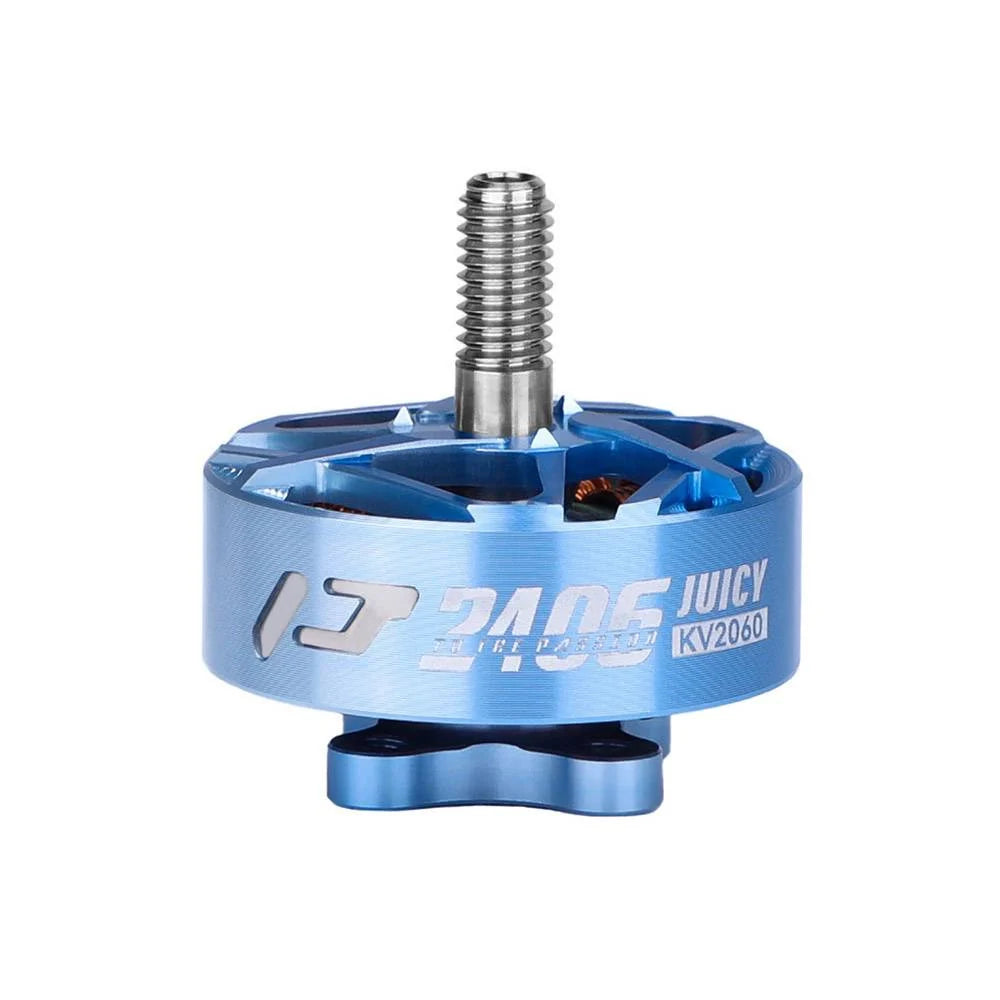

T-Motor Pacer V4 P2406 2060KV Motor - Power Your Freestyle FPV Drone

Take your freestyle FPV flying to the next level with the T-Motor Pacer V4 P2406 2060KV brushless motor . Engineered specifically for demanding freestyle pilots, this motor delivers an exceptional blend of raw power, precise control, and rugged durability. Whether you're searching for a powerful FPV motor, a durable quadcopter motor, or a high-performance 2060KV motor, the Pacer V4 is built to impress.

Featuring premium components like strong nickel-plated arc magnets and smooth imported bearings, this motor ensures reliable performance flight after flight. The robust 5mm shaft can withstand tough landings and demanding maneuvers. Despite its durable construction, it maintains a lightweight FPV motor profile at just 36g (including cable), contributing to agile handling.

Push your limits with confidence thanks to the impressive 1993g max thrust and 1116W peak power output (on 6S / 24V). The 12N14P configuration and 2060KV rating make it an ideal choice for pilots seeking responsive throttle control and high-speed capabilities on their freestyle drone builds. If you need a reliable, high-thrust motor for your 5-inch freestyle drone or similar quadcopter, the T-Motor Pacer V4 P2406 is a top contender.

Key Features:

• Freestyle Optimized: Designed for the demands of dynamic FPV freestyle flying.
• High Power & Thrust: Delivers up to 1116W peak power and 1993g max thrust for aggressive maneuvers.
• Premium Components: Utilizes nickel-plated magnets and imported bearings for smooth, reliable operation.
• Durable Design: Features a strong 5mm prop shaft and robust construction.
• Lightweight: Weighs only 36g (including cable) to maintain agility.
• High KV Rating: 2060KV suitable for powerful 6S LiPo setups.
• Advanced Configuration: Efficient 12N14P stator/rotor design.

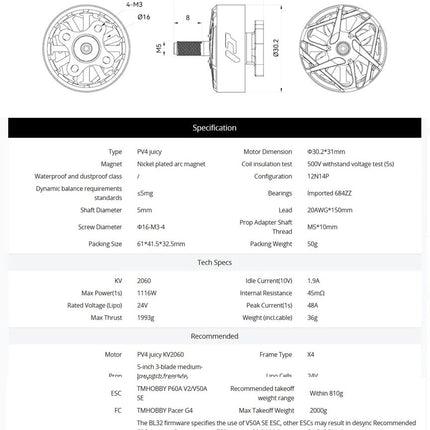

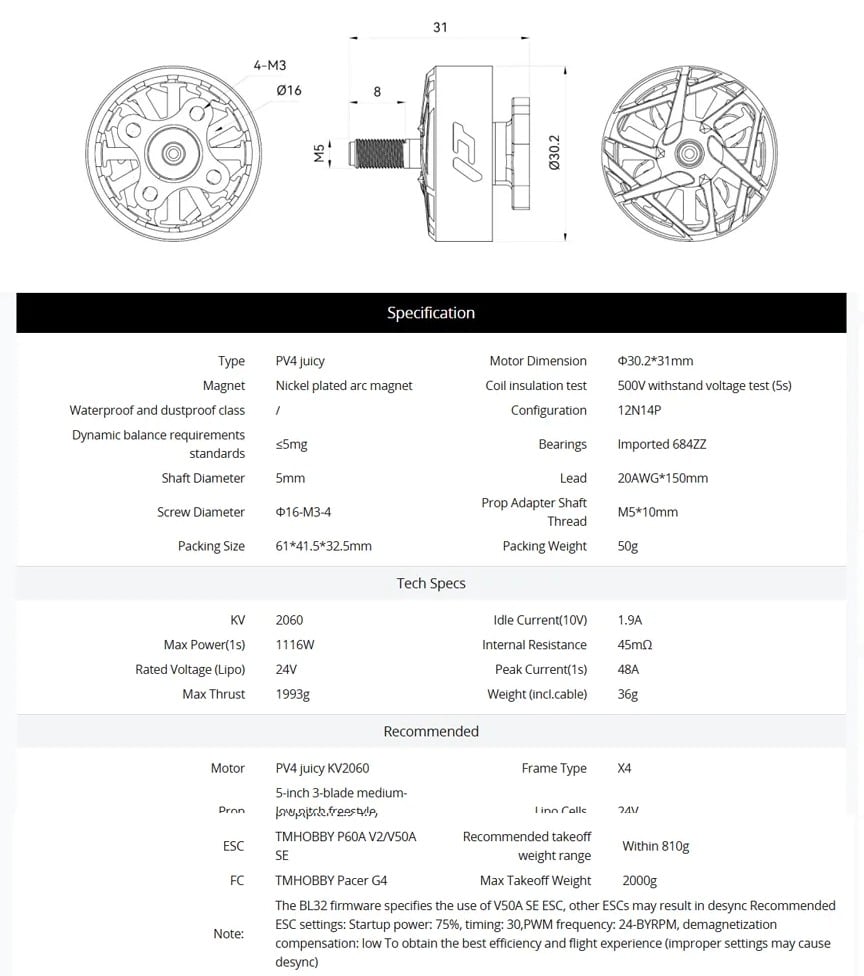

Specifications:

• KV Rating: 2060KV
• Motor Dimensions: Φ30.2mm x 31mm
• Weight (incl. cable): 36g
• Shaft Diameter: 5mm
• Prop Adapter Shaft Thread: M5 x 10mm
• Lead Wires: 20AWG x 150mm
• Configuration: 12N14P
• Rated Voltage (LiPo): 24V (6S Recommended)
• Idle Current (10V): 1.9A
• Peak Current (1s): 48A
• Max Power (1s): 1116W
• Max Thrust: 1993g
• Internal Resistance: 45mΩ
• Bearings: Imported 684ZZ
• Magnet: Nickel-plated arc magnet
• Mounting Pattern: 16x16mm M3
• Coil Insulation Test: 500V withstand voltage (5s)
• Dynamic Balance: <5mg

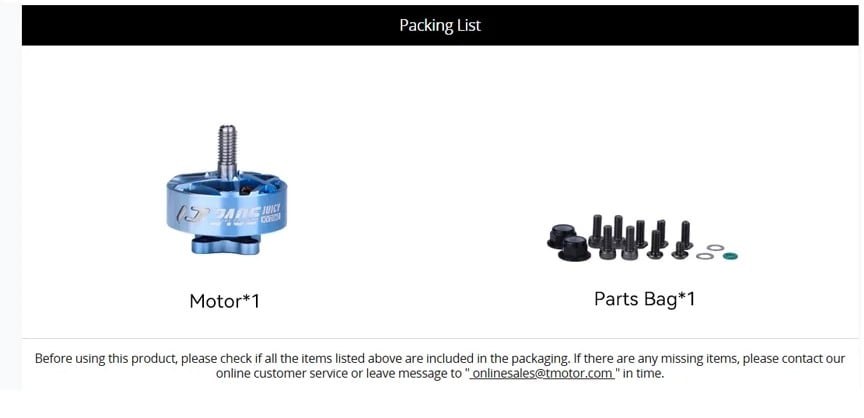

What's Included:

• 1x T-Motor Pacer V4 P2406 Motor - 2060KV
• 1x Hardware Kit (Screws, Prop Nut)

Disclaimer: Please note that the contents of the hardware kit (accessories) may vary slightly based on manufacturer supply and batch.
