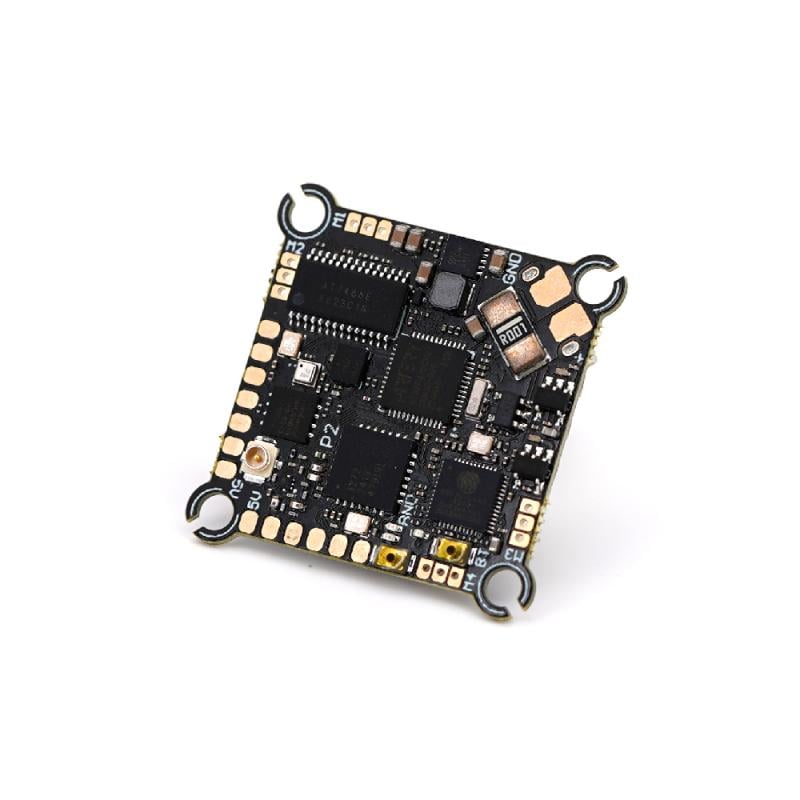

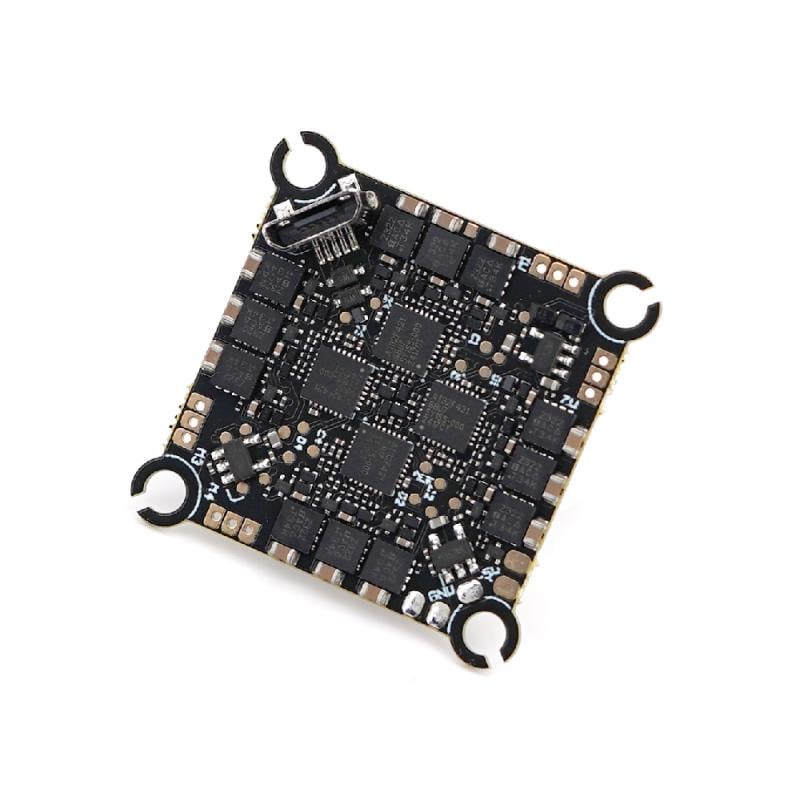

TBS Lucid AIO 1-2S: Compact Power for Whoop Enthusiasts and Long-Range Explorers

Meet the TBS Lucid AIO 1-2S , the flight controller that refuses to compromise. Designed to satisfy both 1S/2S whoop enthusiasts and long-range drone pilots, this all-in-one powerhouse delivers exceptional performance, rugged durability, and seamless connectivity—all in a compact, 25x25mm whoop-friendly form factor .

Whether you're cruising the skies with 1S or pushing the limits with 2S, the Lucid AIO provides the power and stability you need, while built-in Crossfire compatibility ensures you stay connected even at the edges of your range.

Key Features

• All-in-One Design: Flight controller, 4-in-1 ESC, and Crossfire receiver integrated into one board.
• High-Performance MCU: Powered by the AT32F435RMT7 clocked at 288MHz.
• Durable ESCs: Rated at 4x 7A (24A total max) with telemetry and current sensing, capable of handling 2S without breaking a sweat.
• Advanced Gyro: Features the ICM-42688P for precision flight control.
• Built-In OSD: Analog video support with the AT7456E chip.
• Blackbox: Includes 8MB of storage for logging flight data.
• Port Configuration:
  • UART1: Spare for custom uses.
  • UART2: Smart Audio compatibility.
  • UART3: Ready for DJI O3 Air Unit integration.
  • UART5: Dedicated to the onboard Crossfire receiver.

Specifications

• Input Voltage: Supports 1S-2S LiPo batteries.
• BEC Output: 5V @ 2A.
• Dimensions: 28mm x 28mm (30mm x 30mm with outer mounting dimensions).
• Mounting Holes: Standard 25mm x 25mm whoop layout.
• Weight: A featherlight 4g.

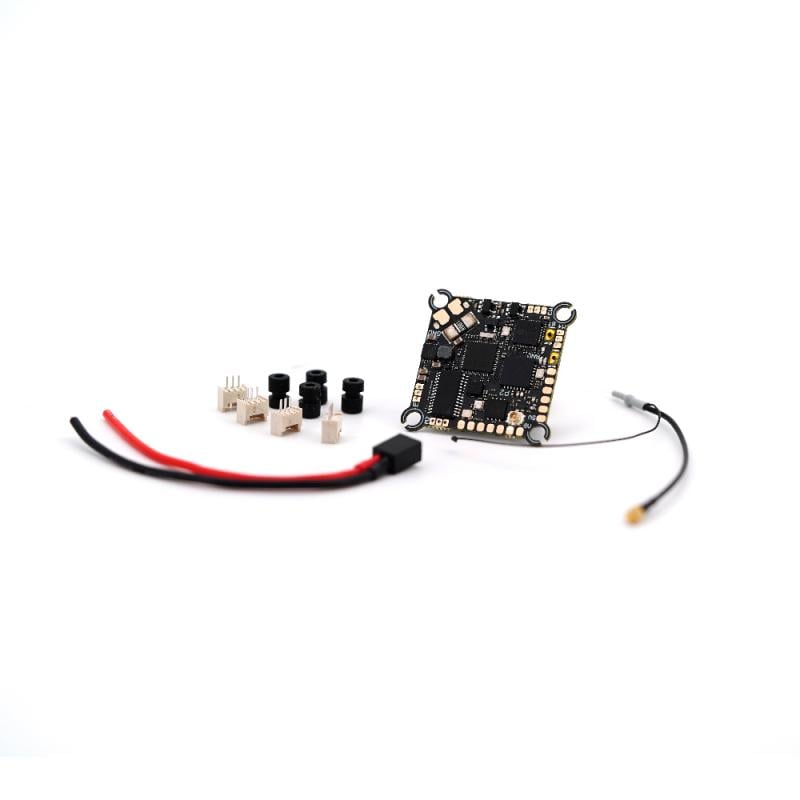

What's in the Box?

• 1x TBS Lucid AIO 1-2S Flight Controller (with integrated Crossfire receiver).
• 1x TBS Crossfire Micro RX antenna.
• 4x Rubber grommets for secure mounting.
• 4x Motor sockets (plug & play convenience).

Note: Accessories may vary depending on supply availability.

• TBS Lucid Manual
