Description
Basic parameters
1. System: Allwinner melis system
2. Software solution: F133

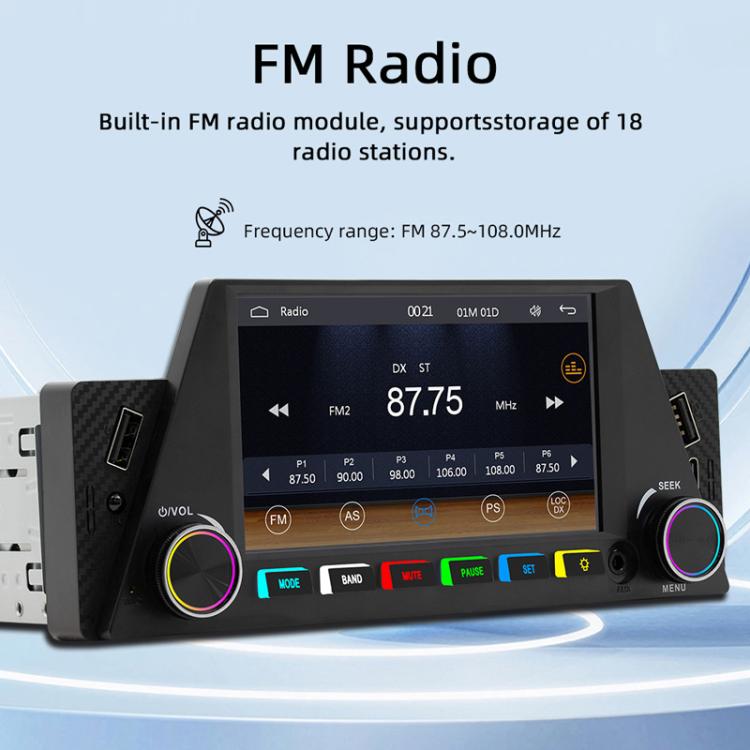

3. Radio frequency: FM 87.5~108.0MHz (can switch the radio frequency of China, America 1, America 2, Japan, Russia, Middle East, Europe)
4. Audio IC: QN8035
5. Amplifier IC: CD7388CZ
6. Output power: 60Wx4
7. Working voltage: 12~14.4V

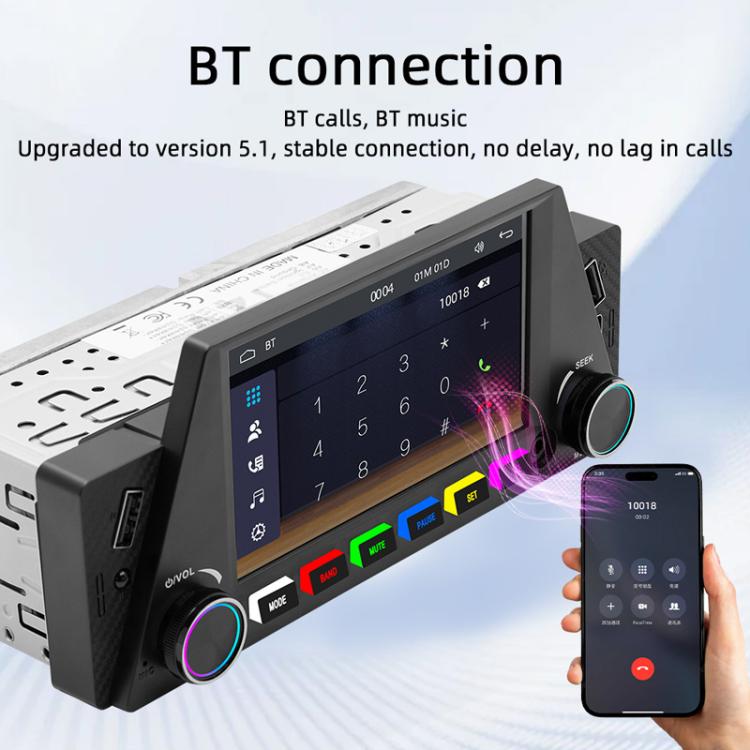

8. Bluetooth version: version 5.1 (default name: SWL-BT)

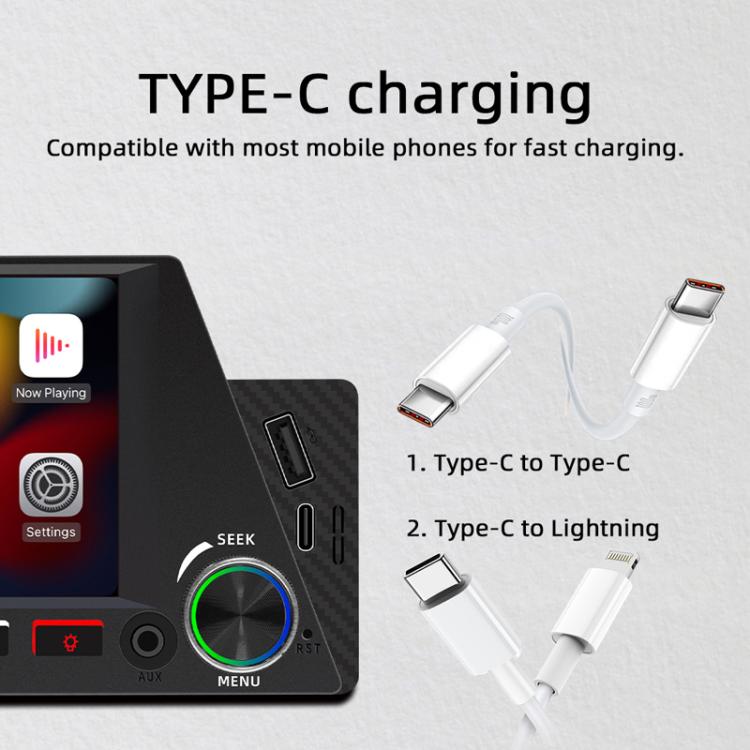

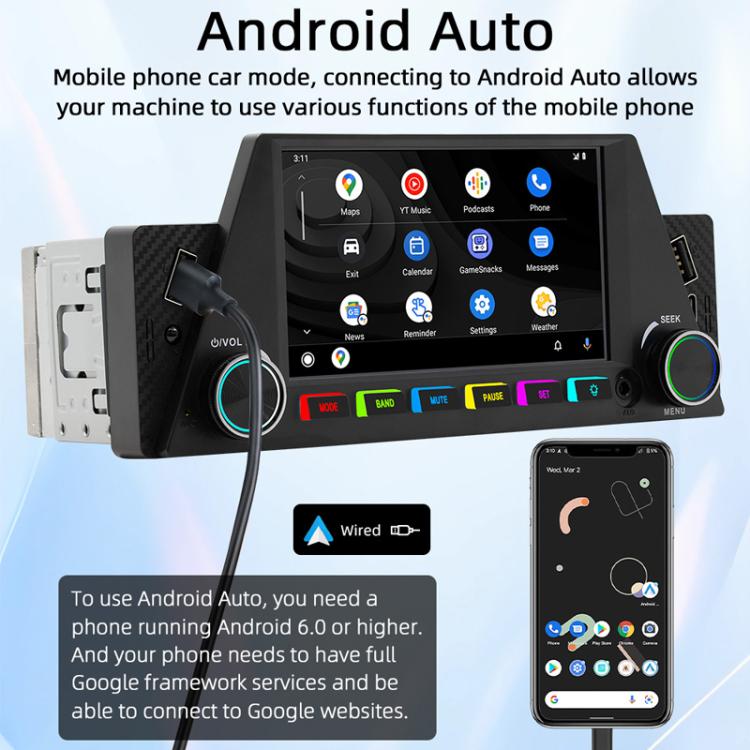

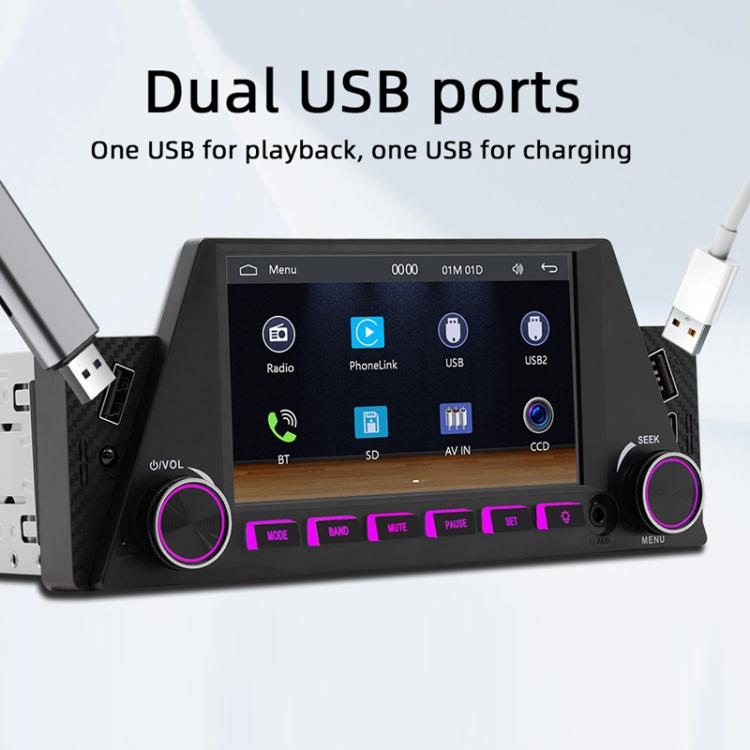

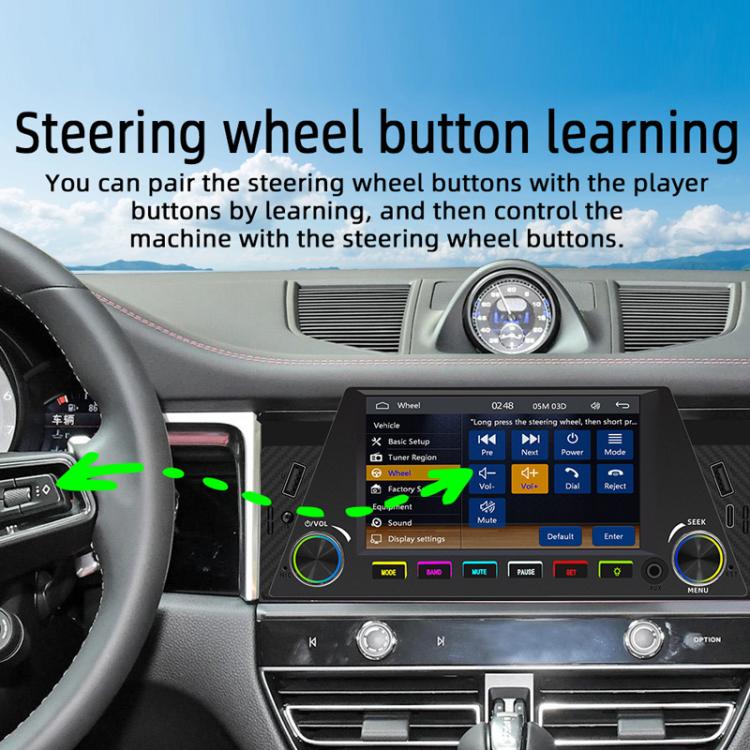

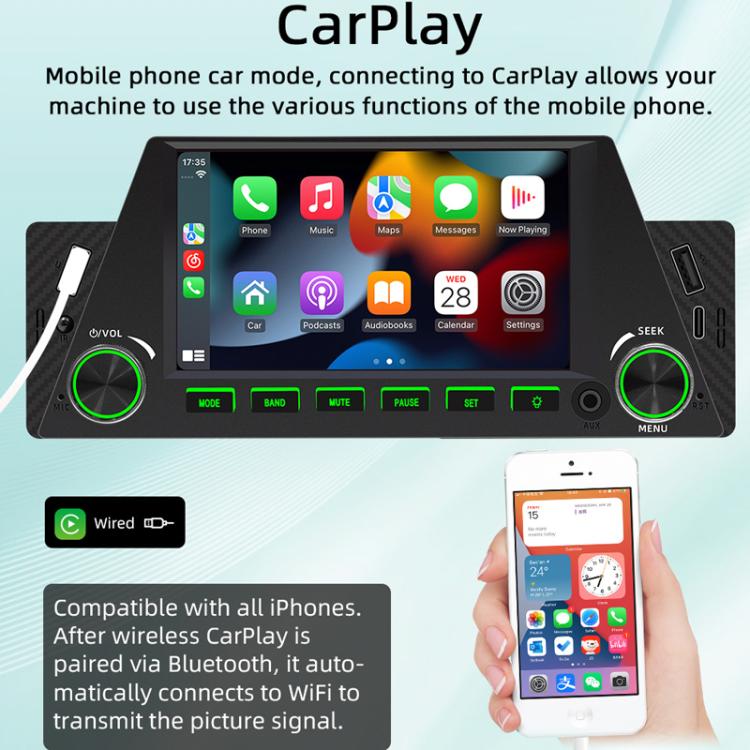

9. Support mobile phone interconnection, reversing image (camera self-equipped), video playback warning, steering wheel control (support button learning) front USB charging + front USB2.0 reading + rear USB2.0 reading, TF card, reset button
10. Language: English, Chinese, French, German, Arabic, Italian, Japanese, Portuguese, Russian, Spanish, Hebrew, Polish, Turkish, Czech, Dutch
11. Factory password: 113266

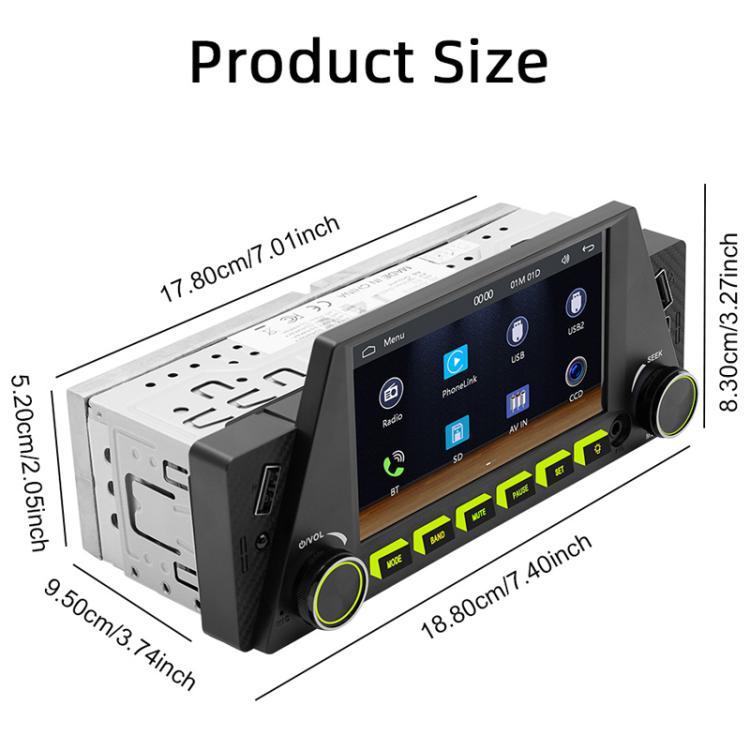

12. Installation size: 178x52mm
13. Shell size: 188x83mm
14. Host depth: 95mm
Performance parameters
1. CPU: F133
2. Running memory: 533M
3. Display resolution: 1280x720
4. Screen size: 5 inches

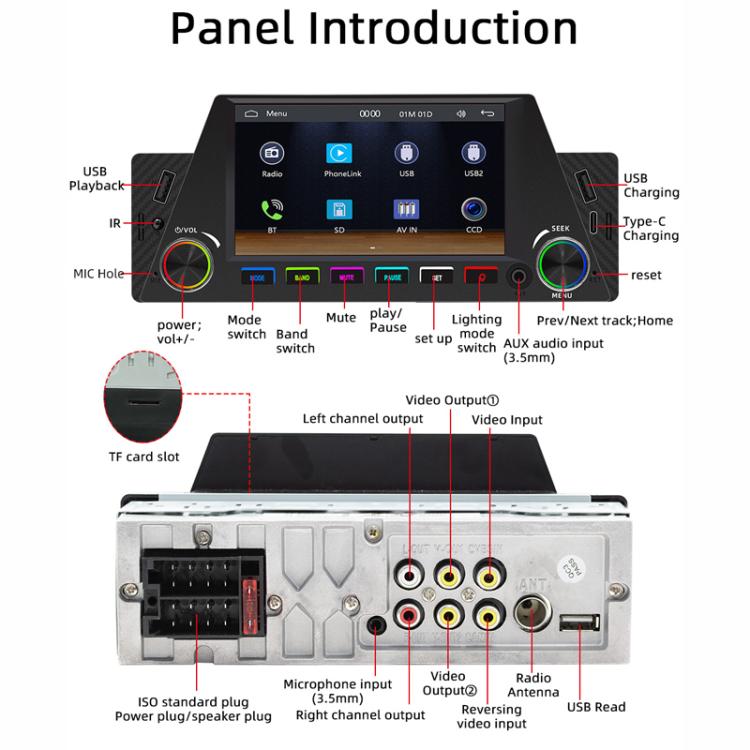

RCA port parameters
1. Audio output: 2 channels (left channel + right channel)
2. Video output: 2 channels
3. Rear external microphone input: support (external microphone optional)
4. Video input: 1 channel

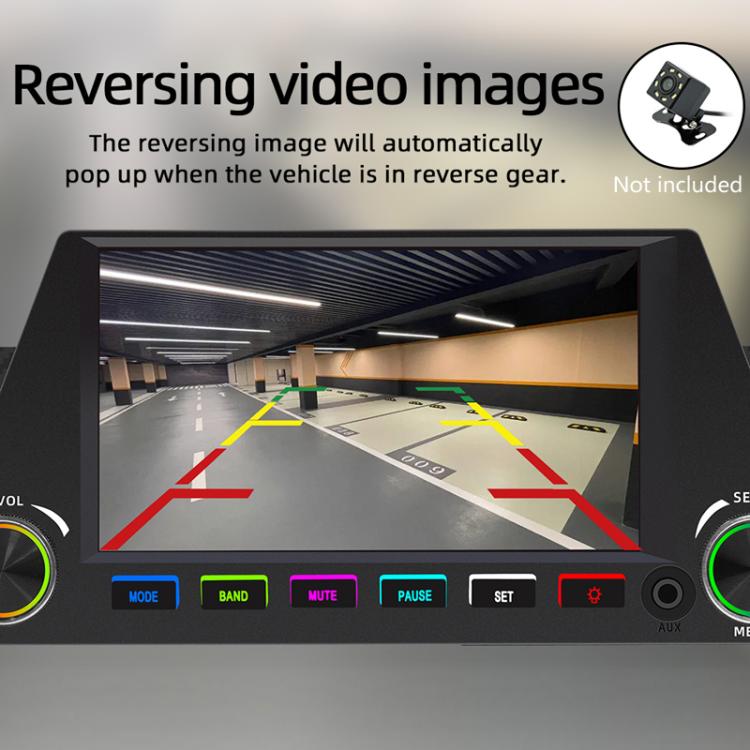

5. Reversing video input: 1 channel
Format parameters
1. Audio format: MP3/AAC/APE/OGG/M4A/RA/WAV
2. Video format: H263/H264/H265/DIVX HD (720P 1080I 1080P) AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT
3. Image format: JPEG/PNG/BMP/GIF/TIFF

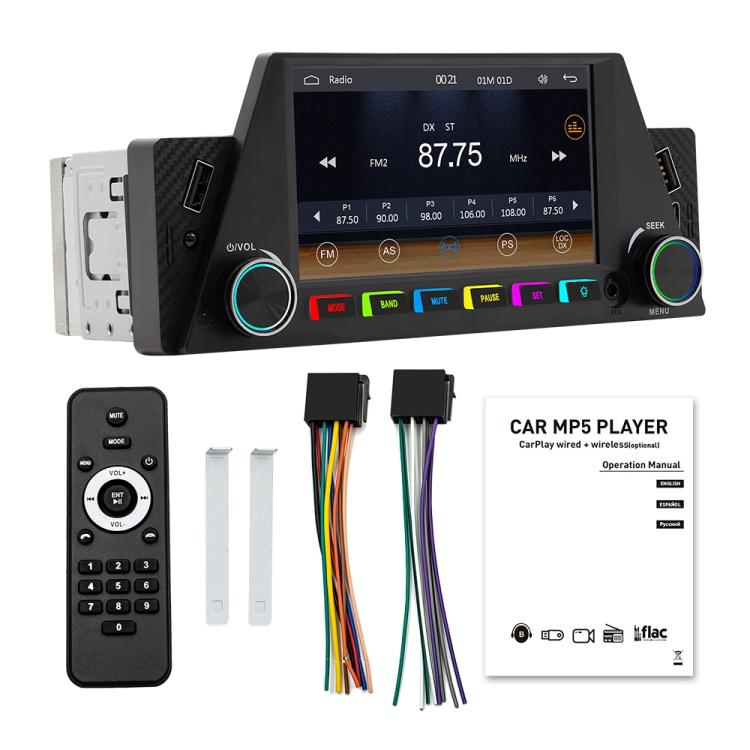

Packing list:
1. Host
2. Manual
3. Power cord
4. Remote control
5. Car key
Specification:
| Package Weight |
| One Package Weight |
0.61kgs / 1.35lb |
| One Package Size |
22cm * 13cm * 18cm / 8.66inch * 5.12inch * 7.09inch |
| Carton Weight |
13.20kgs / 29.10lb |
| Carton Size |
61cm * 44cm * 37cm / 24.02inch * 17.32inch * 14.57inch |
| Loading Container |
20GP: 268 cartons * 20 pcs = 5360 pcs
40HQ: 623 cartons * 20 pcs = 12460 pcs
|
|
