500~6000MHz SMA RF Microstrip Power Splitter

Product form

500~6000MHz SMA RF Microstrip Power Splitter

Delivered in 3-11 working days  Can't find what you're looking for? Contact us for availability.

£25.99 Incl. VAT

    Design
    No design options available. This product isn't linked to a CJ POD product, so the Design button won't be shown to your customers.

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Oct 18, 2026 23:59:00 +0100
    • Questions? We’re happy to help
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description


    1. Impedance: 50 Ohms
    2. Phase balance: ±3 degrees
    3. Surface treatment: sandblasting guide
    4. Gold-plated joints, sandblasting process
    5. Port connector: SMA-Female
    6. Low insertion loss, low standing wave, high isolation
    7. Working temperature: -40~+75 degrees celsius
    8. Frequency range: 500~6000MHz
    9. Amplitude balance: less than or equal to 0.3dB
    10. Isolation: Typ.23dB / Min.20dB
    11. Input standing wave: Typ. 1.25／Max.1.3
    12. Output standing wave: Typ. 1.12 / Max.1.2
    13. Withstand power: 30W for splitter; 2W for combiner
    14. Insertion loss: less than or equal to 1.0dB (excluding theoretical loss of 3.0dB)

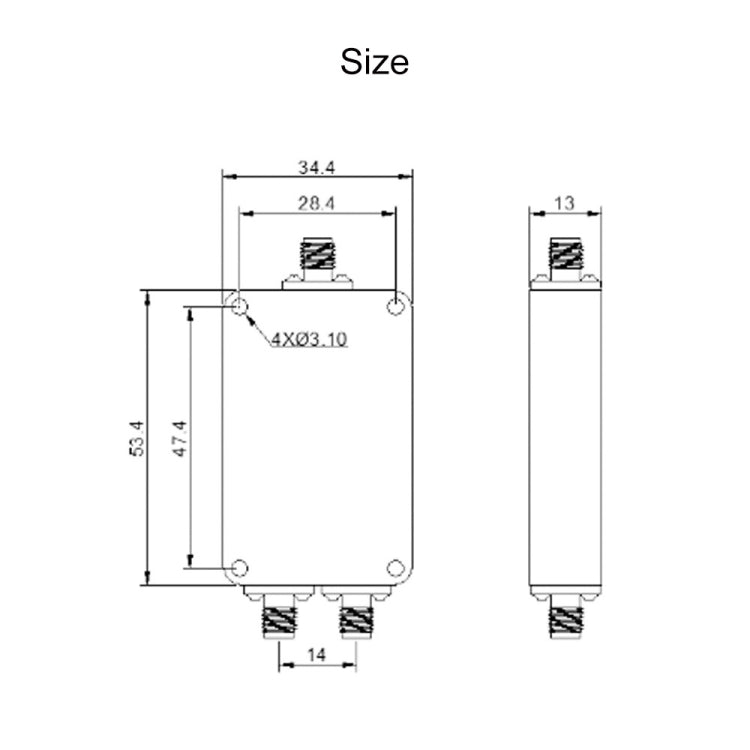

    15. Dimensions: 53.4x34.4x13mm
    16. Weight: 50g


    Specification:
    Package Weight
    One Package Weight 0.07kgs / 0.16lb
    One Package Size 7cm * 4cm * 2cm / 2.76inch * 1.57inch * 0.79inch
    Qty per Carton 404
    Carton Weight 30.00kgs / 66.14lb
    Carton Size 51cm * 29cm * 14cm / 20.08inch * 11.42inch * 5.51inch
    Loading Container 20GP: 1287 cartons * 404 pcs = 519948 pcs
    40HQ: 2989 cartons * 404 pcs = 1207556 pcs
