Please note, ELRS is a new open source project so please only order this if you are comfortable with regular firmware updates as the firmware is still in beta. We will only be able to offer limited support due to the early nature of the firmware, but we think this project has great potential.
Nano receiver (2.4G version) is the first and (so far) the only receiver with power amplifier (PA+LNA). It has 100mW telemetry output and better sensitivity when longer range. Lite receiver doesn't have a PA/LNA on them, so its telemetry power is as what the RF chip SX1280 came with 17mW.

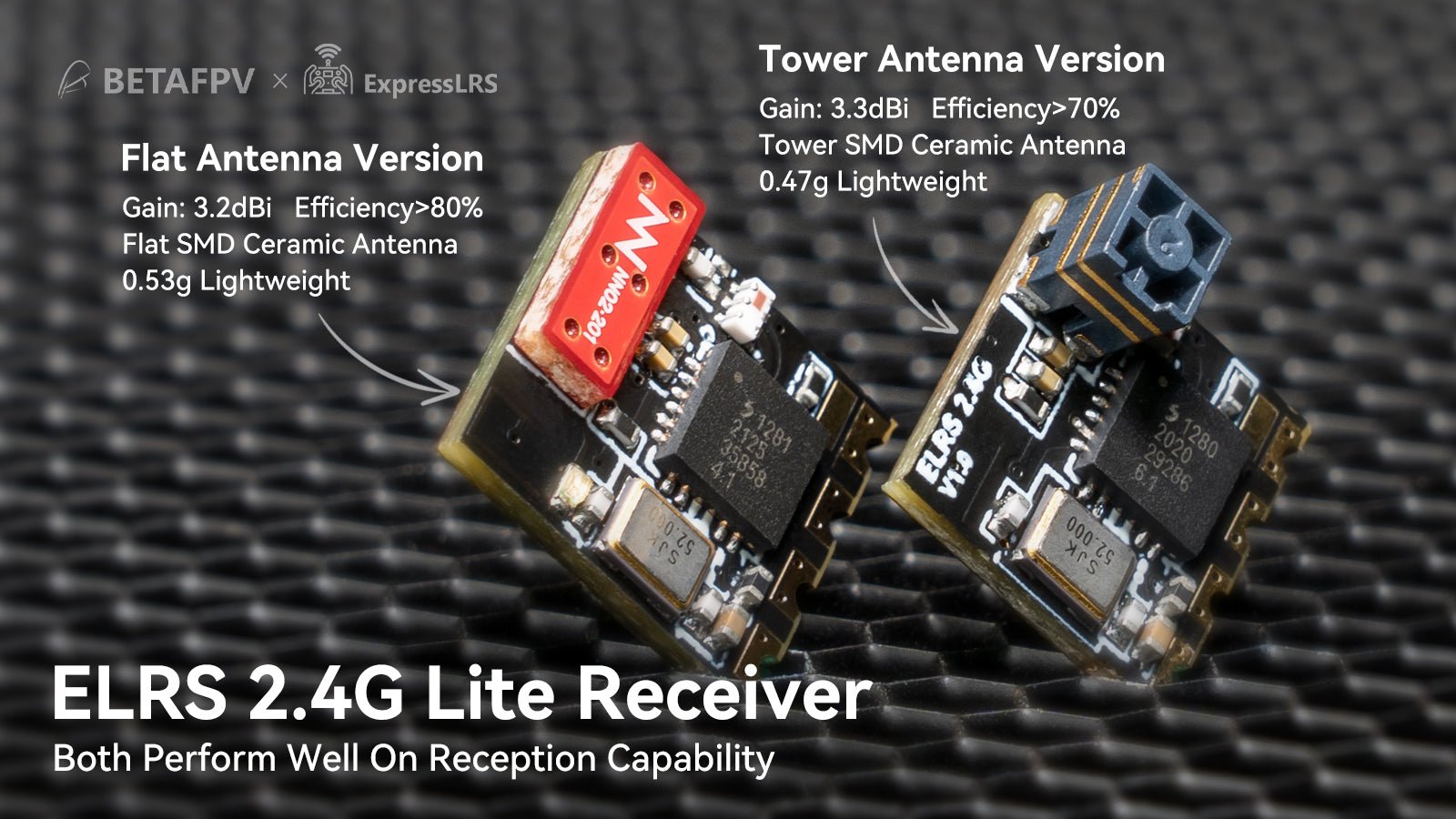

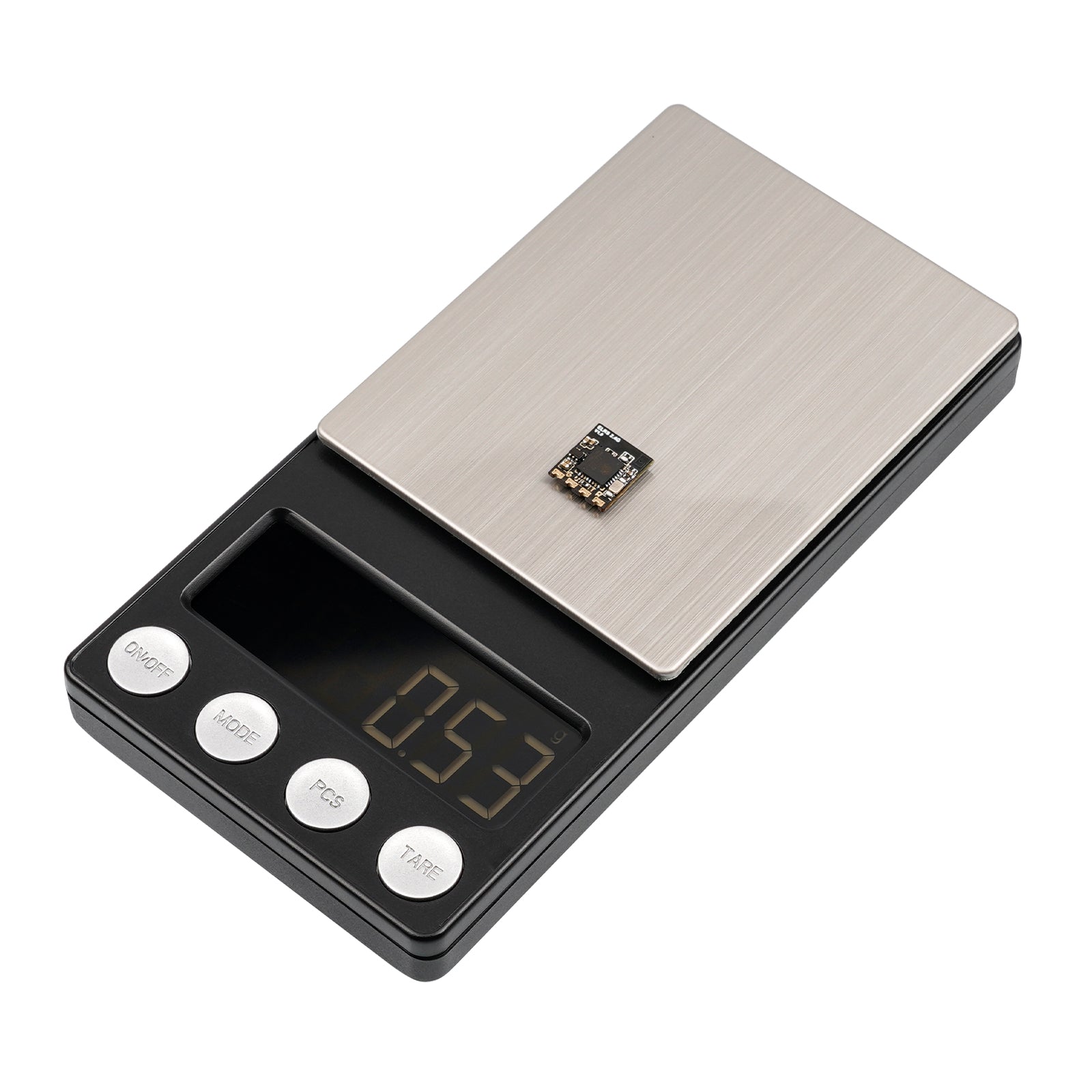

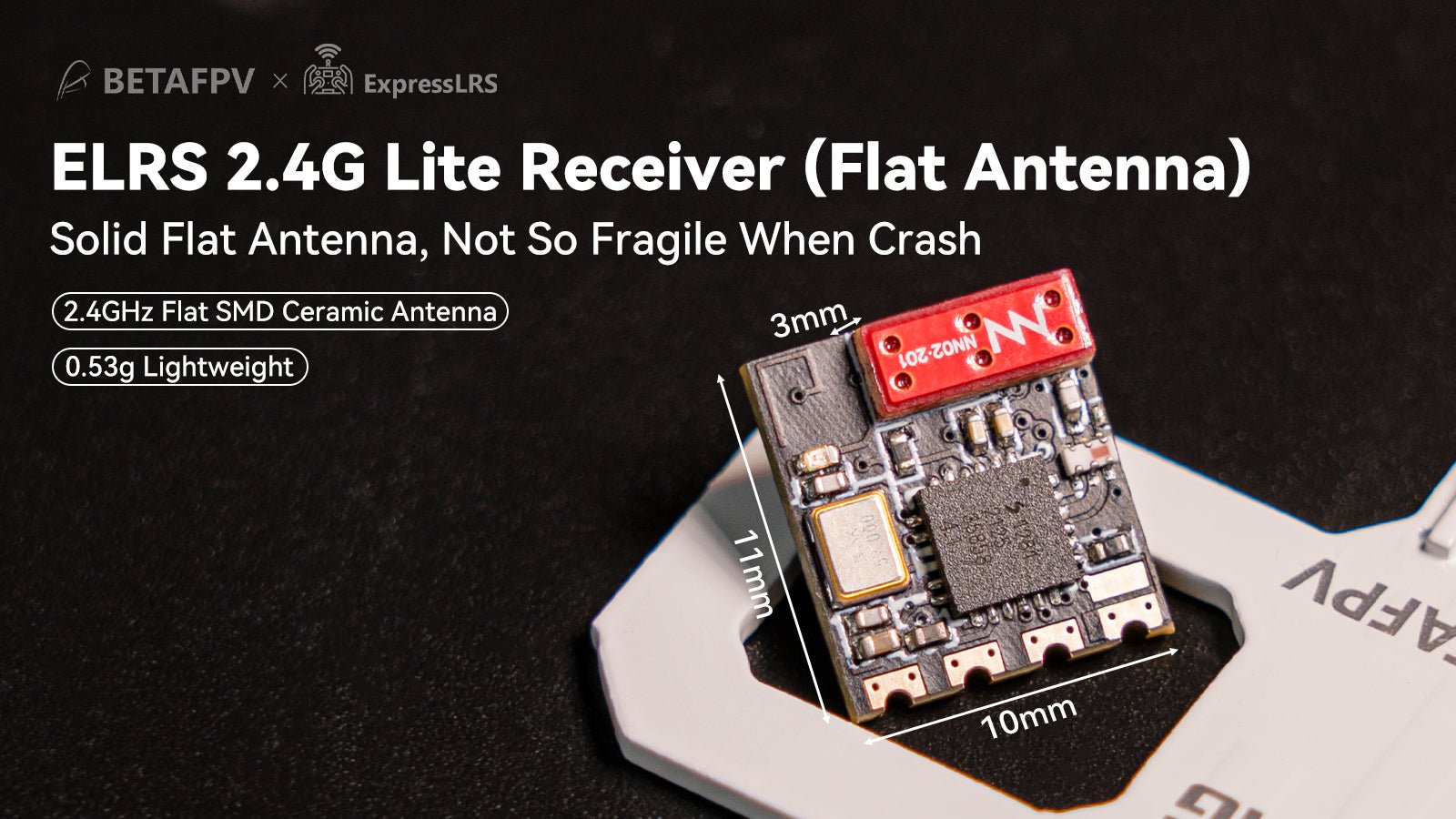

The Lite RX is ideal on small whoops where you care about space and weight, making it the ideal long range whoop receiver at only 0.47g.

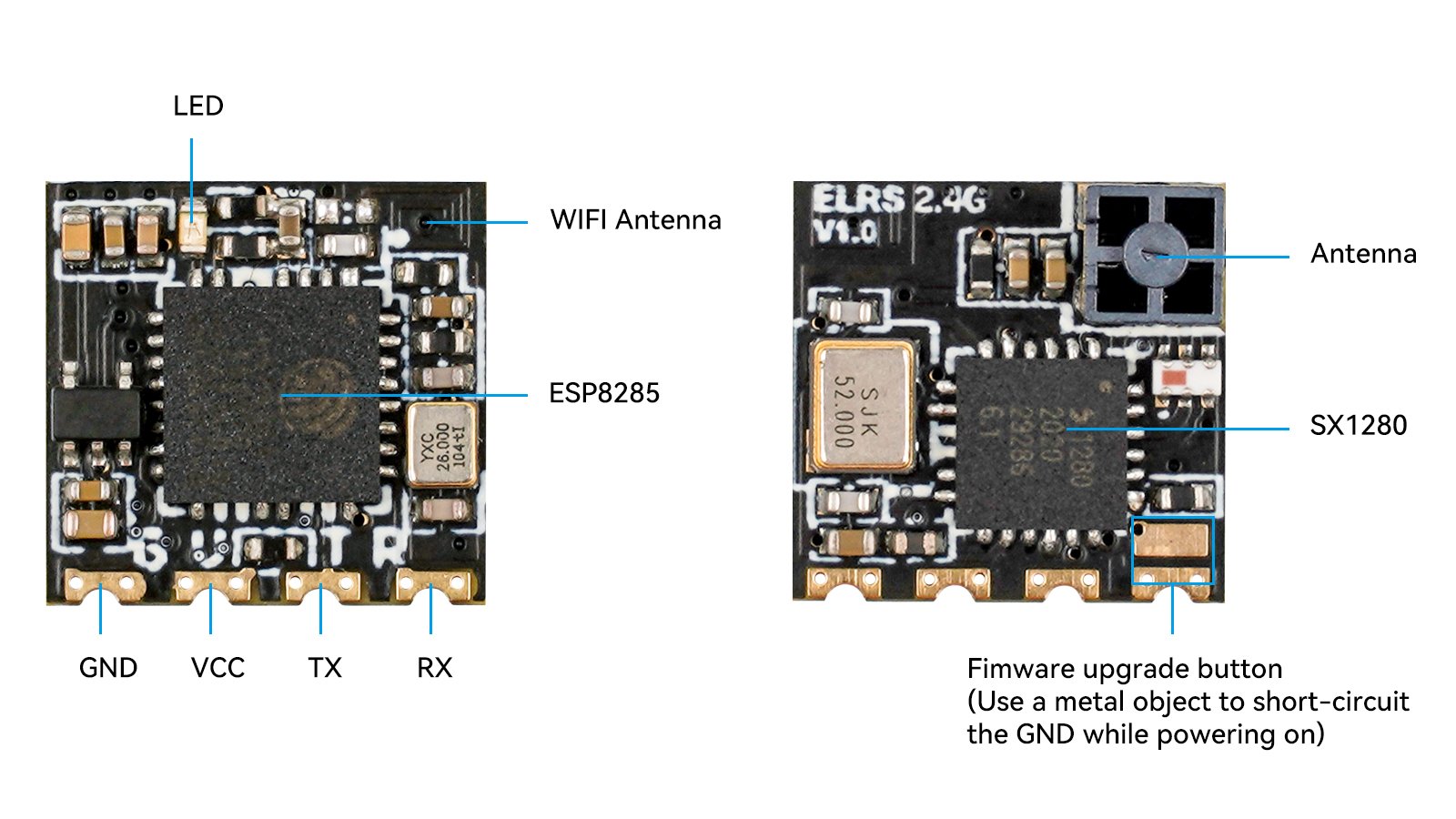

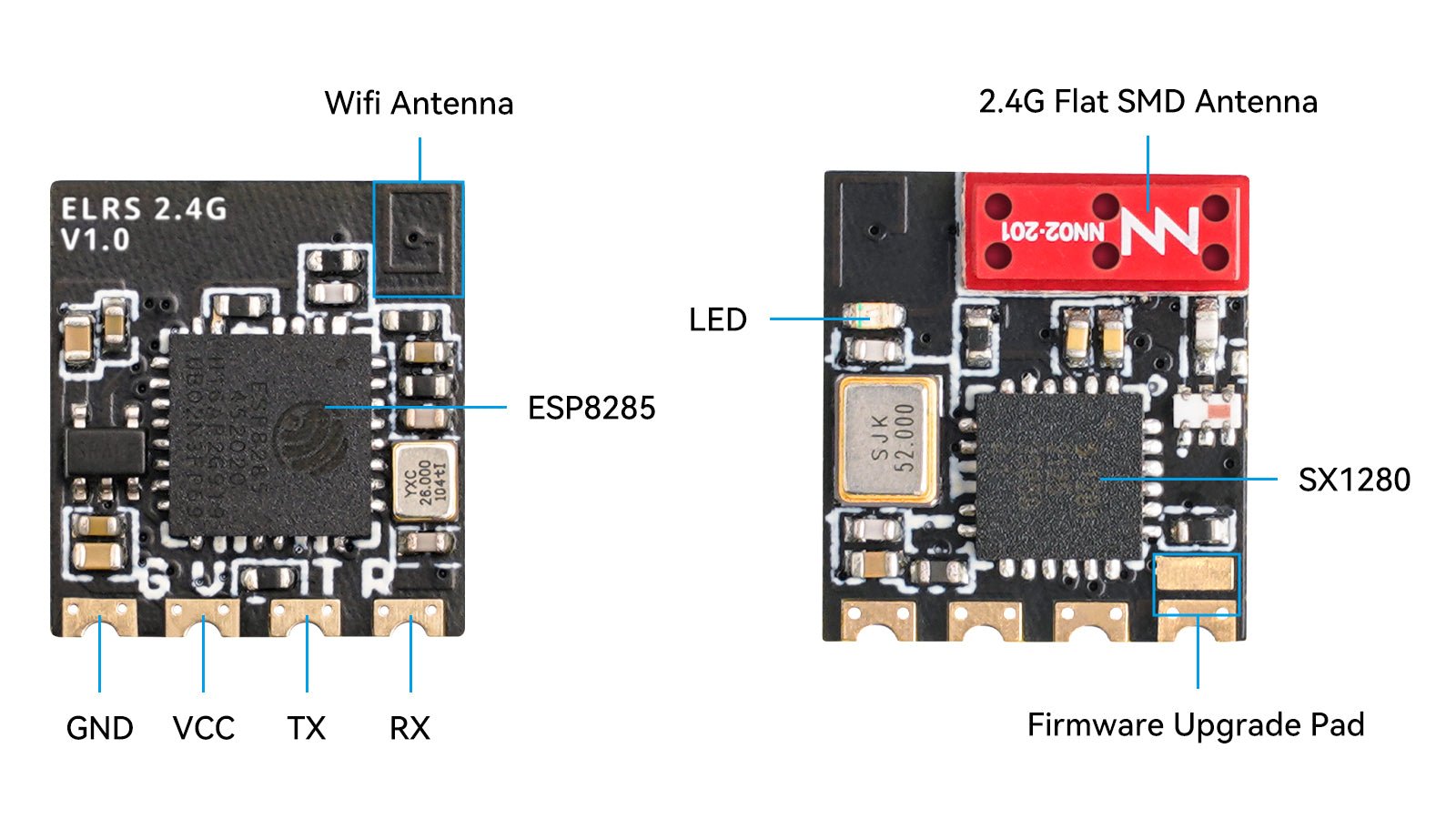

Lite receiver 2.4G version diagram as shown below.
https://www.youtube.com/watch?v=XbKpWI0YJ5I&feature=emb_title
ExpressLRS uses the Crossfire serial protocol (AKA CRSF protocol) to communicate between the receiver and the flight controller board. So make sure your flight controller board supports the CRSF serial protocol. Next, we use the flight controller with Betaflight firmware to show how to set up the CRSF protocol.

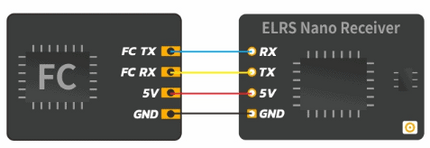

The connection between the ELRS Nano receiver and the FC board is shown below.

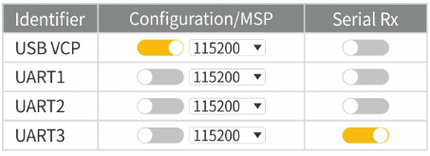

Enable the corresponding UART (e.g. UART3 below) as a Serial Rx on Betaflight Configurator "Ports" tab.

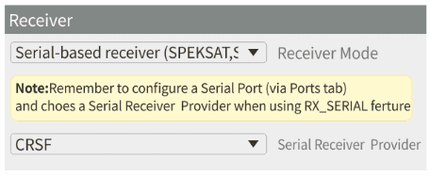

On the "Configuration" tab, select "Serial-based receiver" on the "Receiver" panel, and select "CRSF" as the protocol. Telemetry is optional here and will reduce your stick update rate due to those transmit slots being used for telemetry.
Nano receiver could enter binding status by power on/off three times.
Note: Binding once and the receiver will store the binding information. Re-power and the connect successfully auto.
