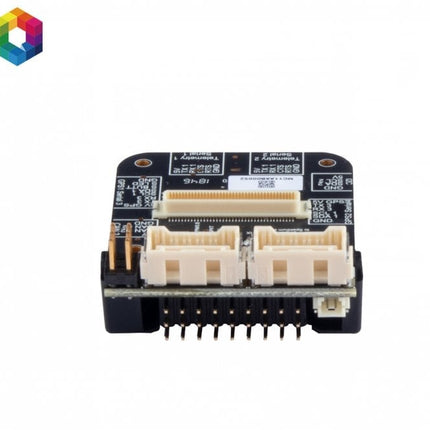

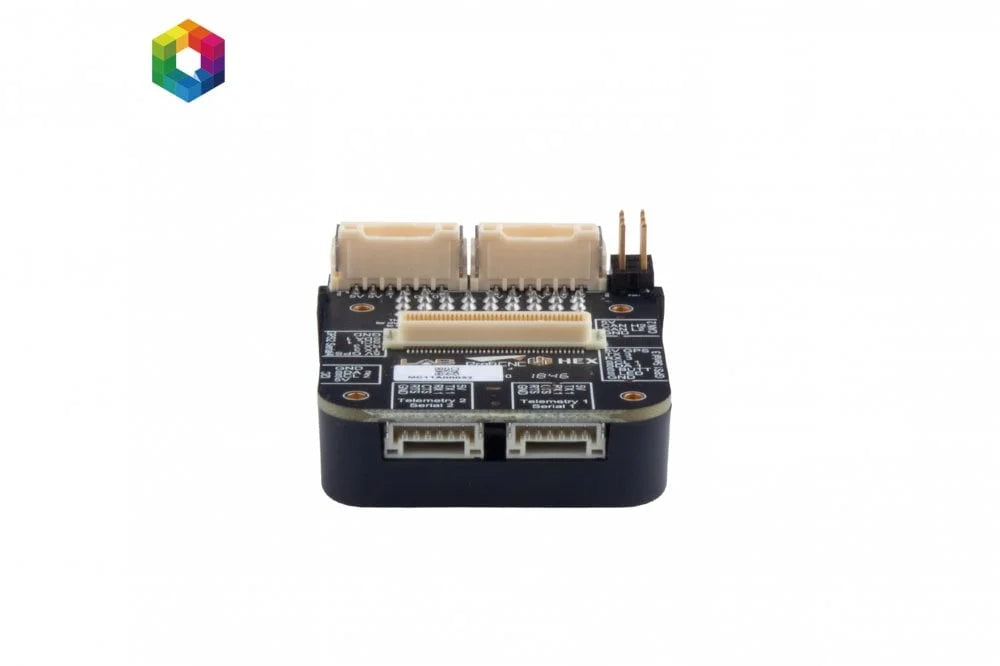

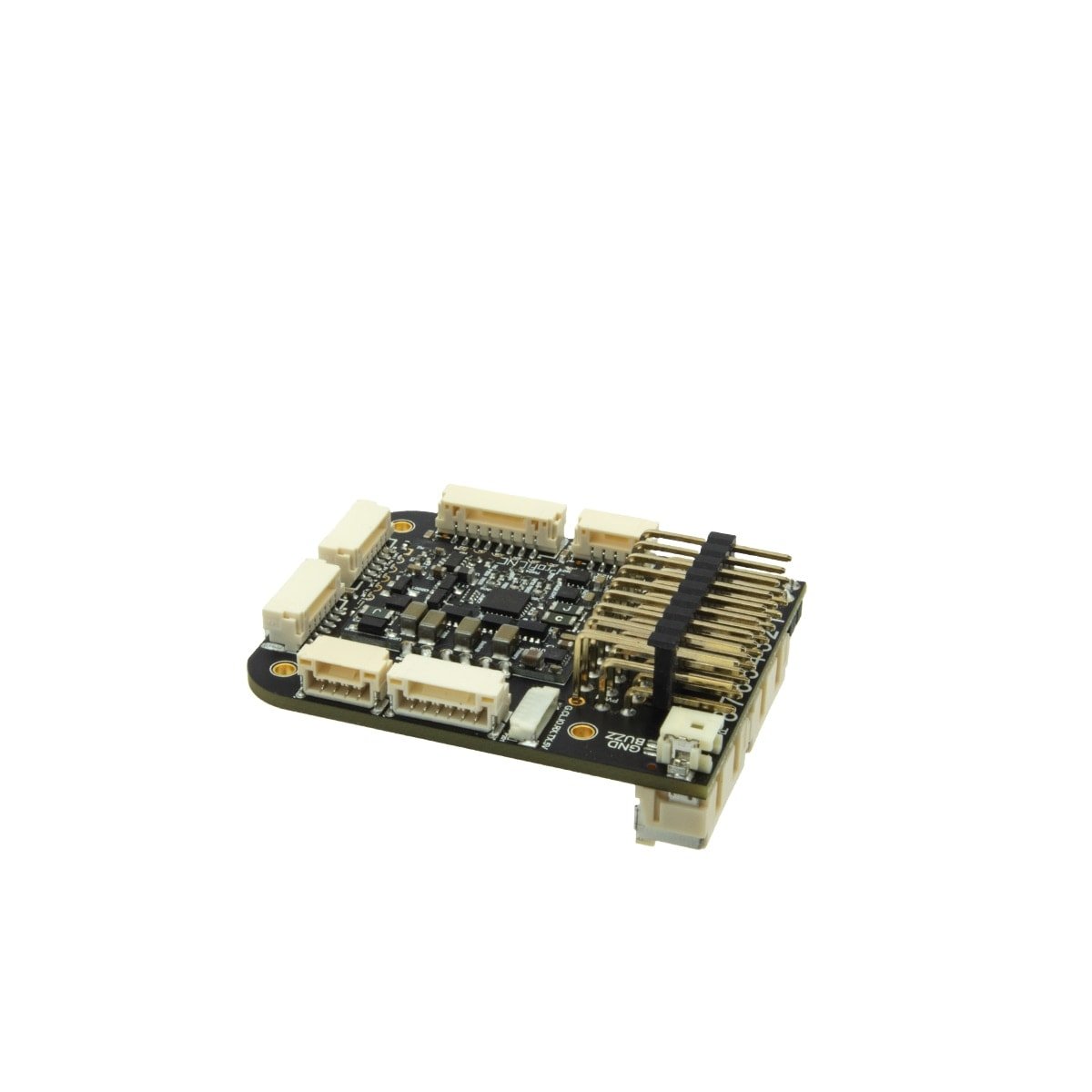

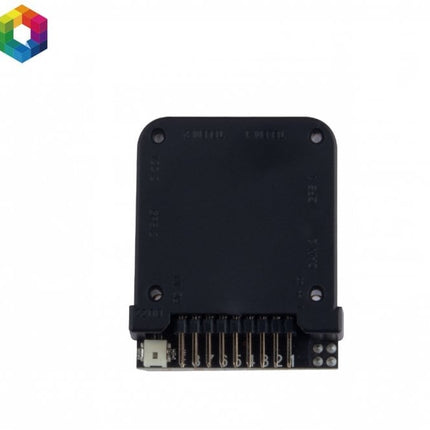

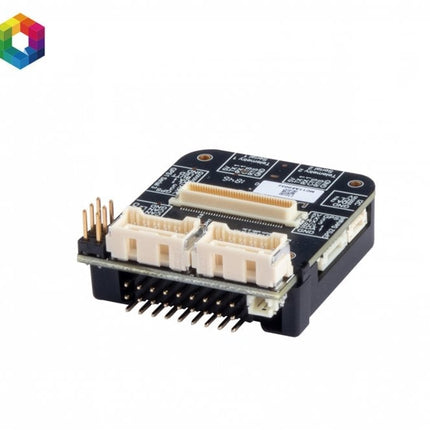

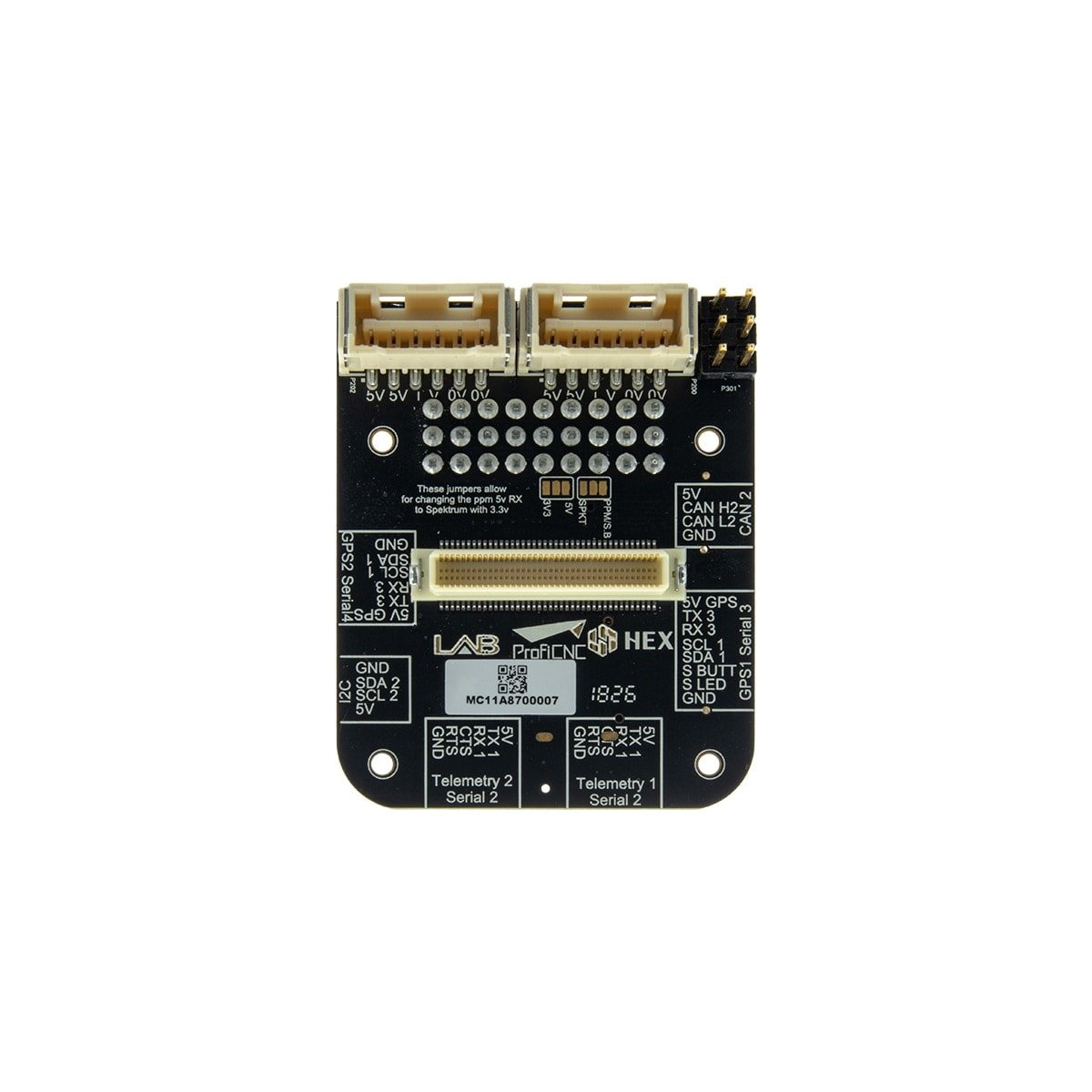

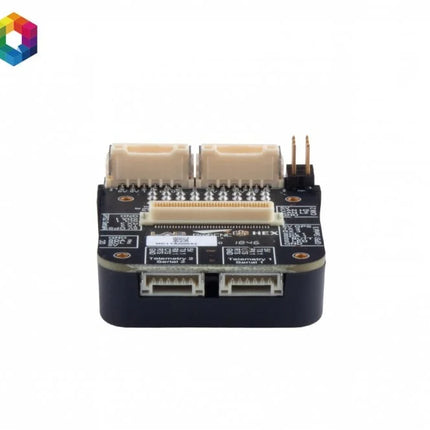

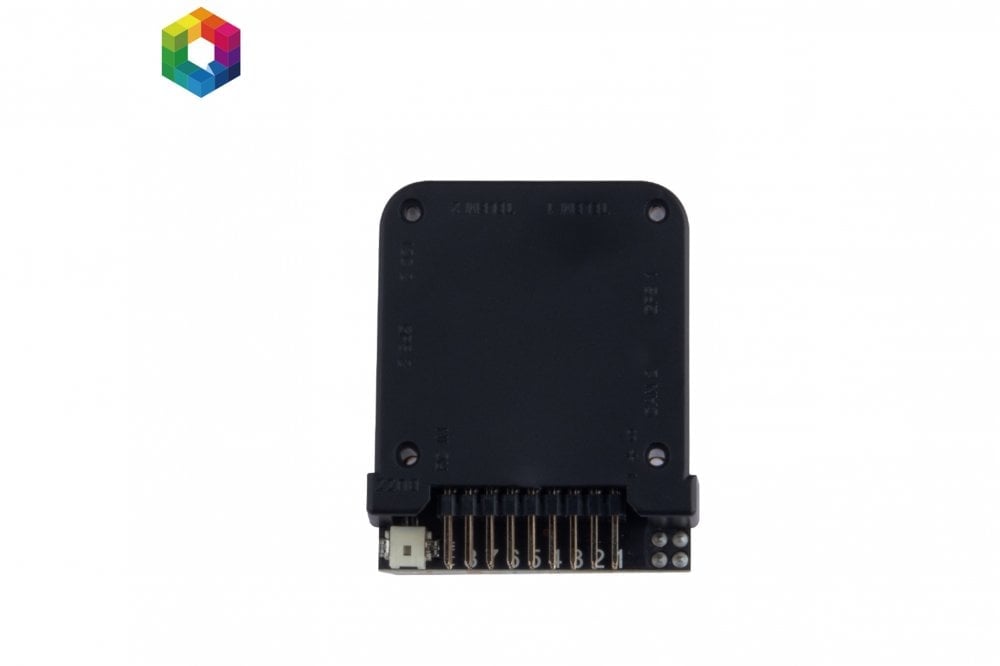

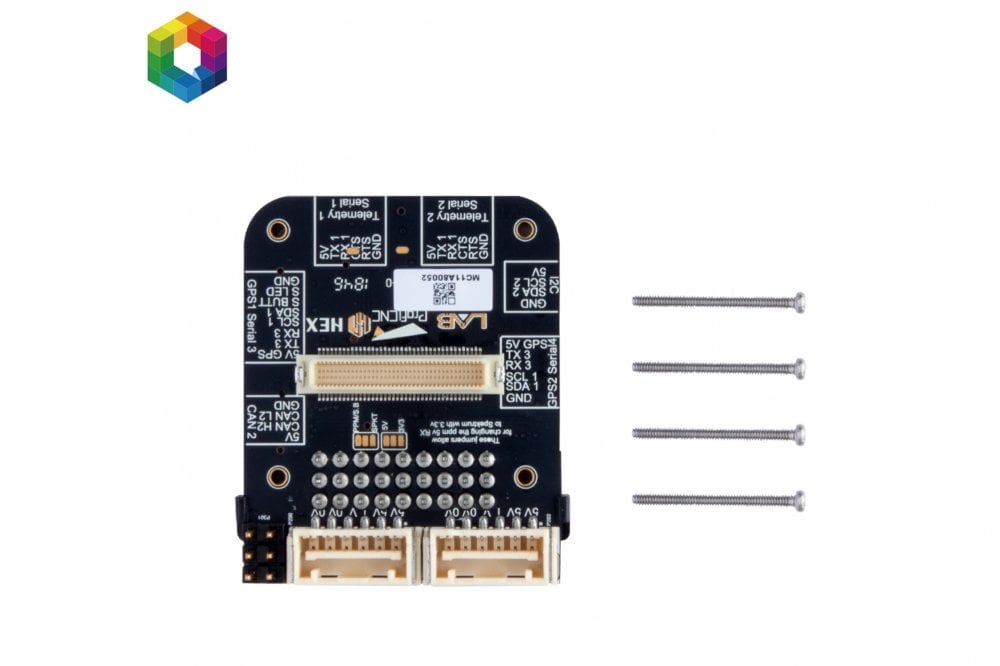

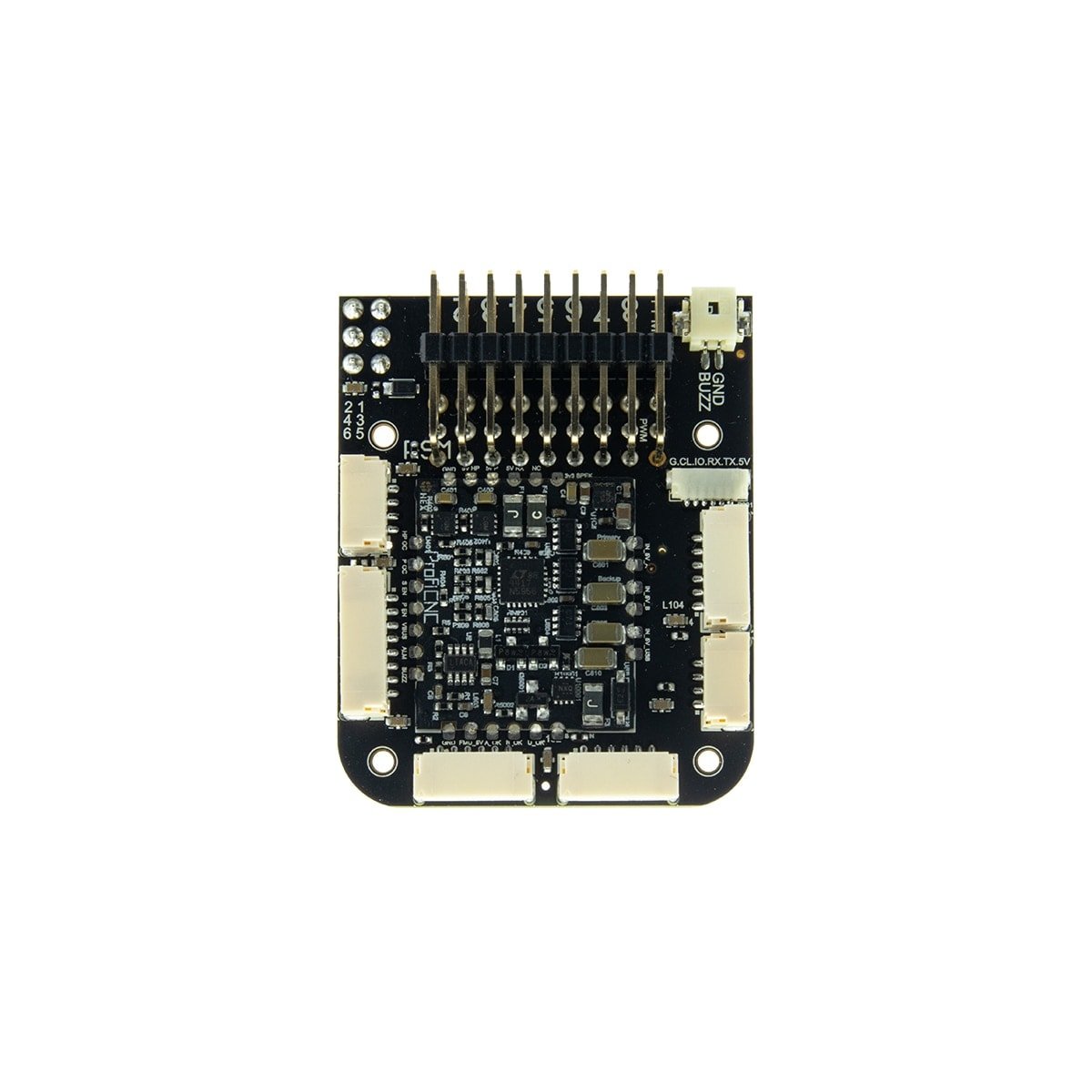

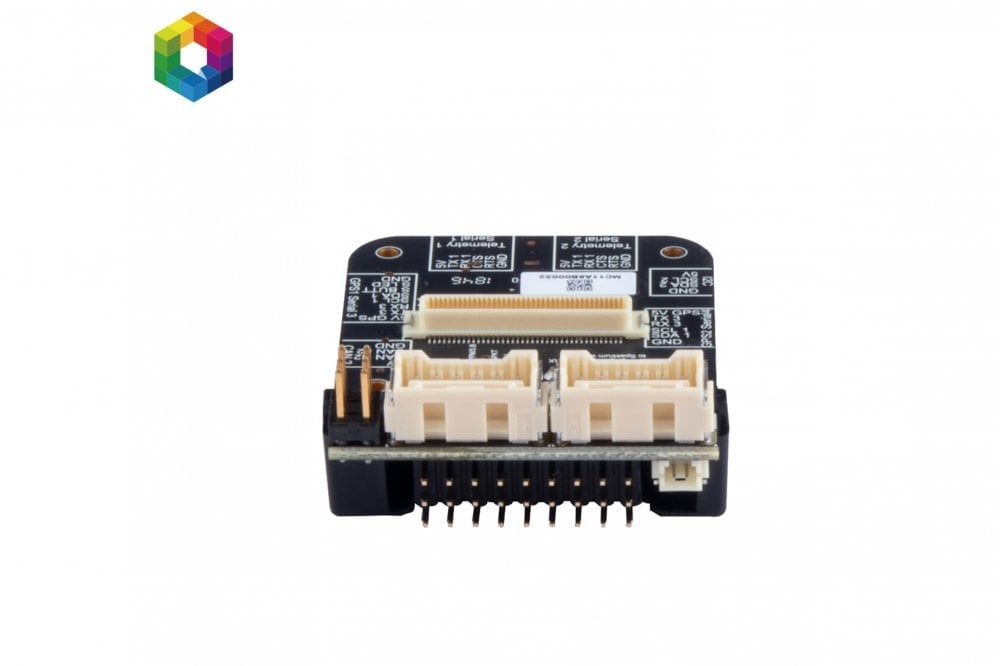

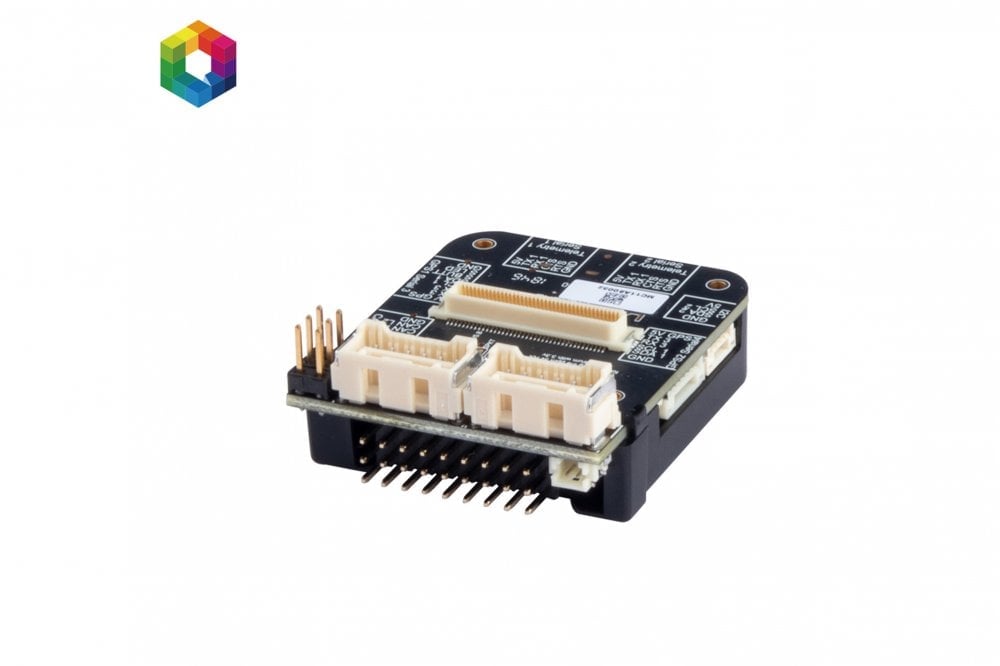

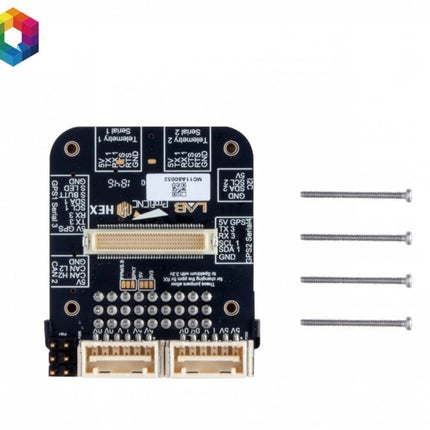

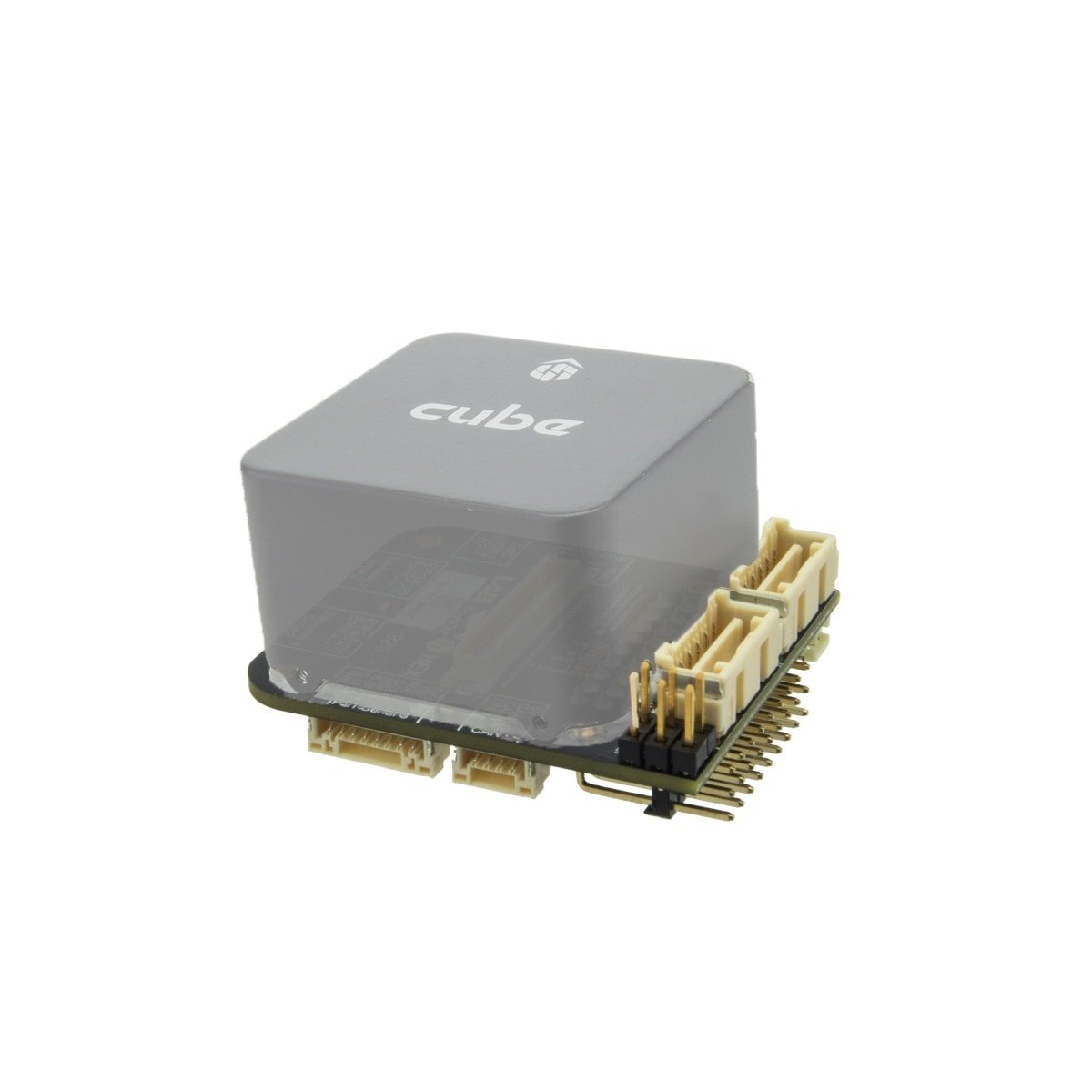

The Cube Mini Carrier Board is a compact and versatile flight controller base board designed for use with the Cube Mini and Cube Orange+ autopilot systems. With its standardised DF17 connector, the Mini Carrier Board can be easily connected to every version of the Cube flight controller, making it an ideal choice for applications that have size limits. Despite its smaller size, the Mini Carrier Board offers almost the same capabilities as the Pixhawk 2.1 standard carrier board and the Cube Orange Carrier Board.

In addition to its size and compatibility, the Mini Carrier Board also offers a range of useful functionality, including dual power input for redundant power, automatic switchover to another power source if one fails, and power distribution to limit the current at each connector and prevent overloading. It also includes voltage protection to shut down the circuit if the voltage exceeds the limit.

Please note that the Cube Mini IMU / Cube Orange is not included in this kit. The kit includes only one Mini Carrier Board. If you are in need of a reliable and compact flight controller board for your UAV, the Mini Carrier Board is an excellent choice when paired with one of the Cube autopilot modules.

Functionality of Carrier Board:

• Dual power input (for redundant power, automatic switch to another power when one fails)
• Power distribution (limit the current at each connector, avoiding overloading when one device draws too large current)
• Voltage protection (over or under voltage protection, the circuit will be shut down if the voltage exceeds the limit)

Note: Cube Mini IMU is not included

Specifications

Included

• 1pc Cube mini carrier board
