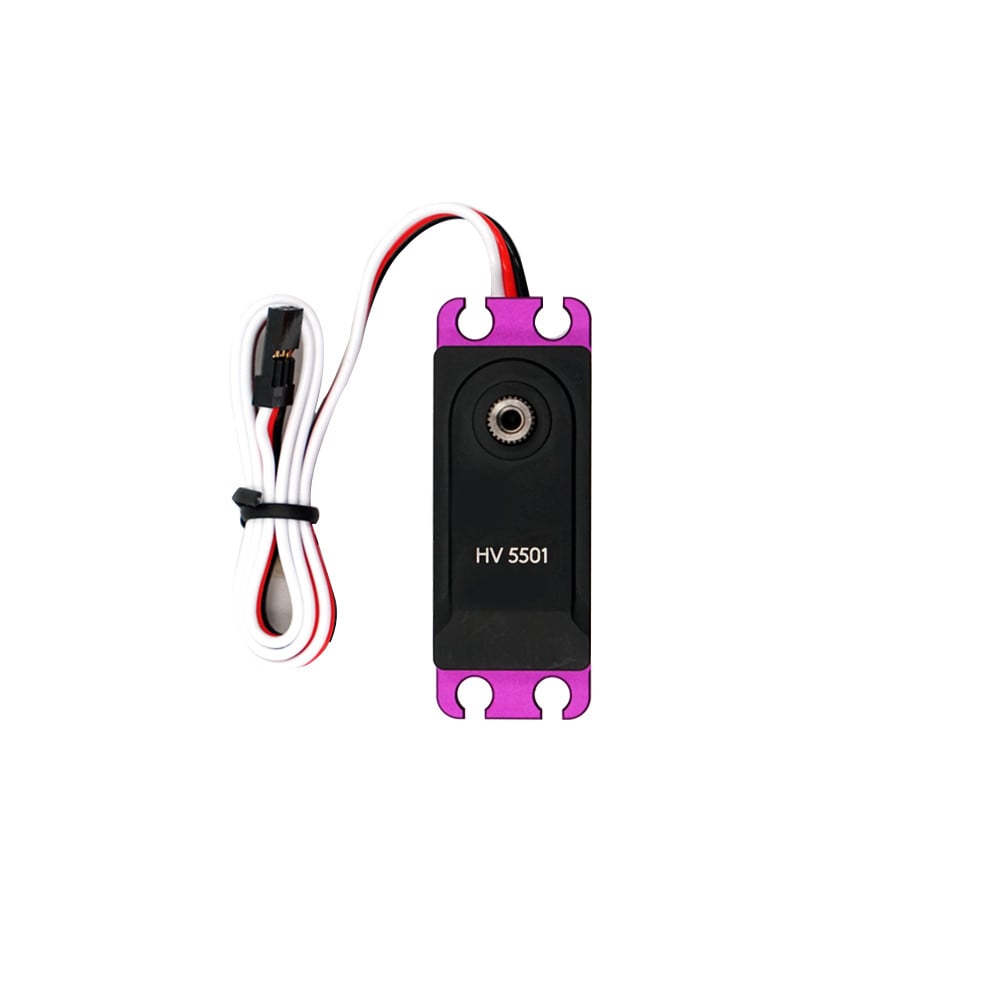

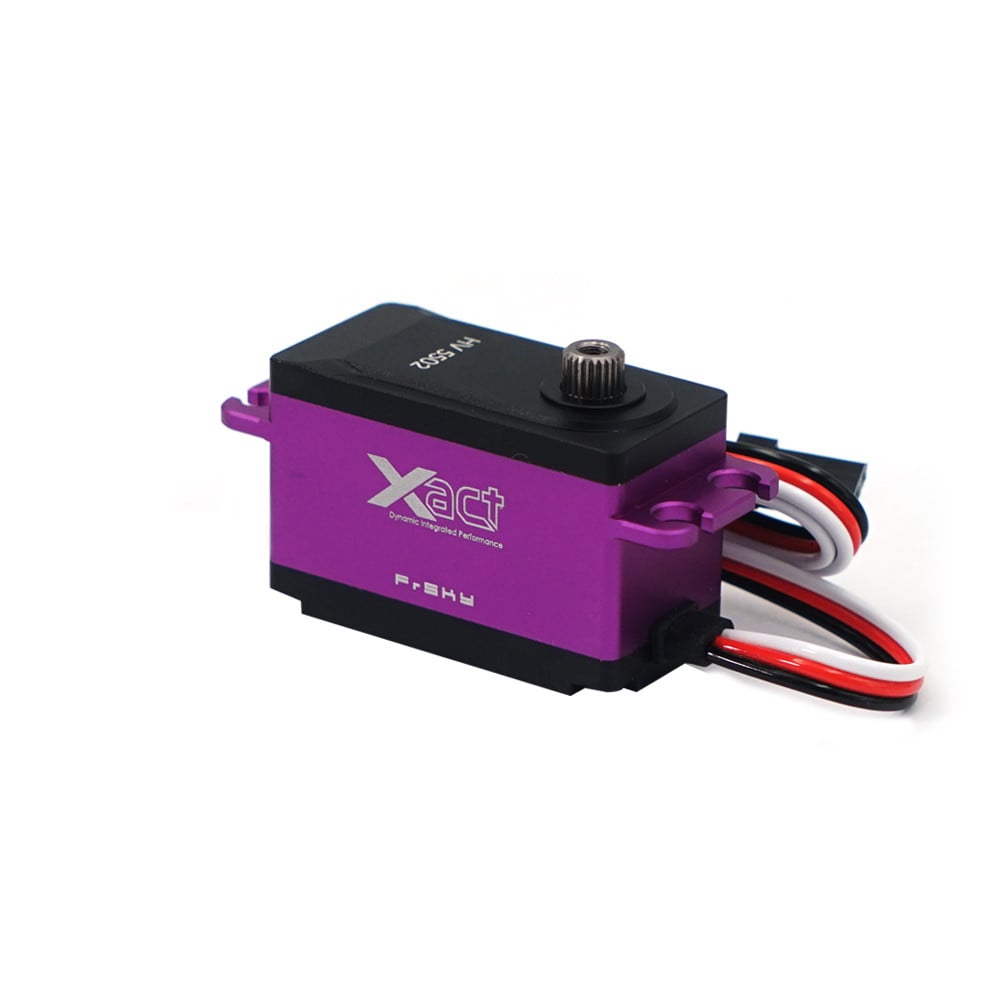

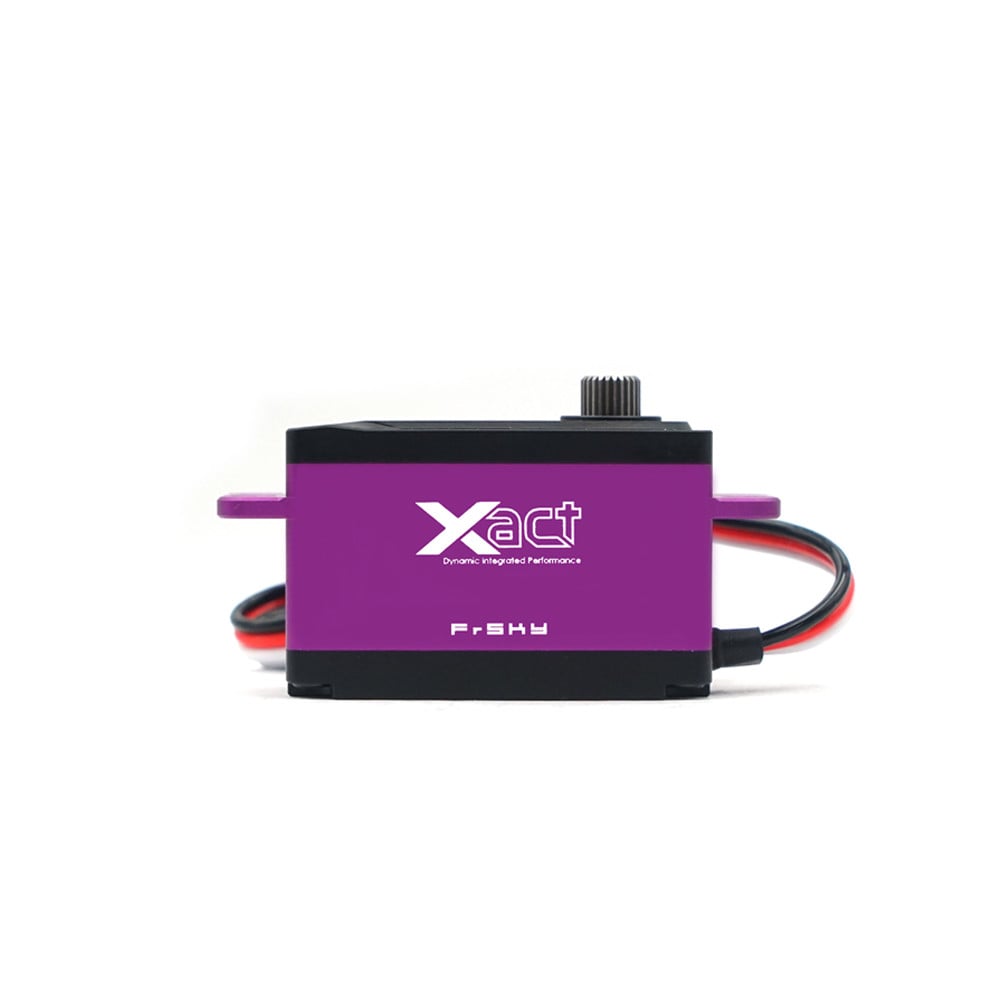

FrSky Xact HV5501 LOW HV 8.4V Servo

FrSky Xact HV5501 LOW HV 8.4V Servo

Product form

Delivered in 4-8 days  Contact us for availability

Be quick! Only 3 products left in stock!

£93.03 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 28, 2026 23:59:00 +0100
    • Free shipping on all orders above £50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    The Xact series coreless servos utilize all CNC machined aluminium protective case and metal gears, these servos are 8.4V high voltage capable and offer high speed and configurable torque performance. Also, the Xact series servos offer multiple form factors and configurations to fit for different model types and precision usage.

    Working with the F.Port 2.0 protocol, the telemetry data (like real-time current and voltage) of Xact servos can be achieved and transmitted back to the radio by connecting either F.Port 2.0 capable receiver or flight controller. All the preset servo options of speed and torque can be configured directly on an ACCESS radio through the host device of F.Port 2.0 line, and the configurable servo steering as well as travel degree are additions now can be expected on this series.

    FEATURES

    • Supports F.Port 2.0, SBUS and PWM protocol
    • High durability with metal gear and all-aluminum CNC machined protective case
    • 8.4V high voltage capable operation with good speed performance
    • Built-in dual precision balls bearing with hall sensor
    • Supports over-current and over-hot monitor and alarm
    • Updatable firmware ensures the performance superior

    SPECIFICATIONS

    • Torque @ 6.0v - 13.8 kgf.cm / 191.6 Oz-in
    • Torque @ 7.0v - 16.1 kgf.cm / 223.6 Oz-in
    • Torque @ 8.4v - 19.3 kgf.cm / 268 Oz-in
    • Speed @ 6.0v - 0.15 sec/60°
    • Speed @ 7.0v - 0.13 sec/60°
    • Speed @ 8.4v - 0.11 sec/60°

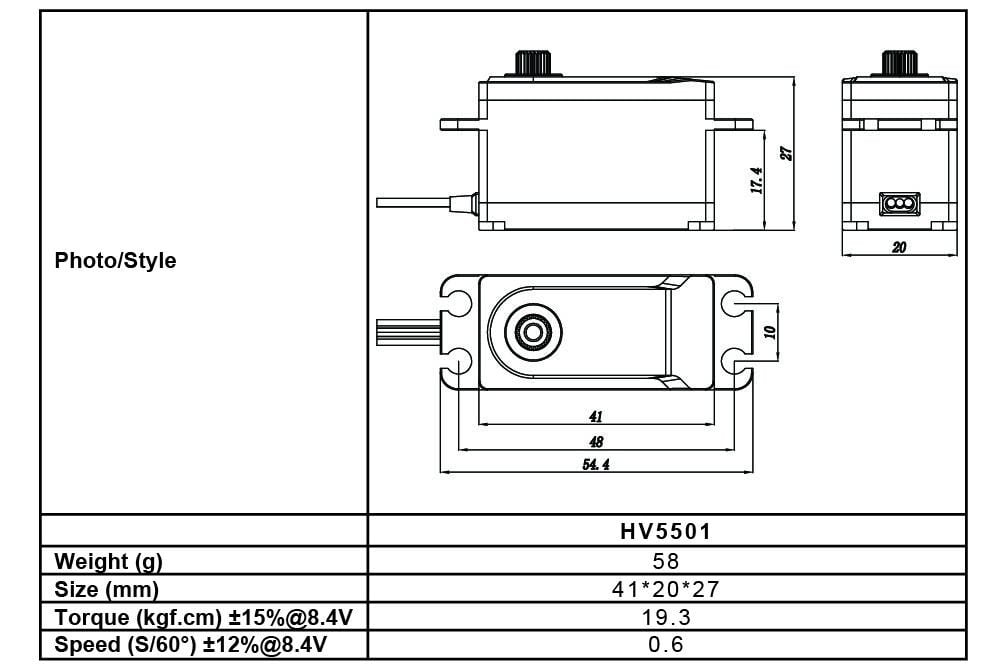

    • Dimensions: 41*20*27mm (L*W*H)
    • Weight: 58g
    • Motor Type: Coreless
    • Servo Horn Spline: Φ6 25T
    • Stall Current:3.21A@6.0v / 3.75A@7.0v / 4.5A@8.4v
    • Operating Voltage Range: 4.8-8.4V
    • Max Refresh Rate: 333Hz

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight
