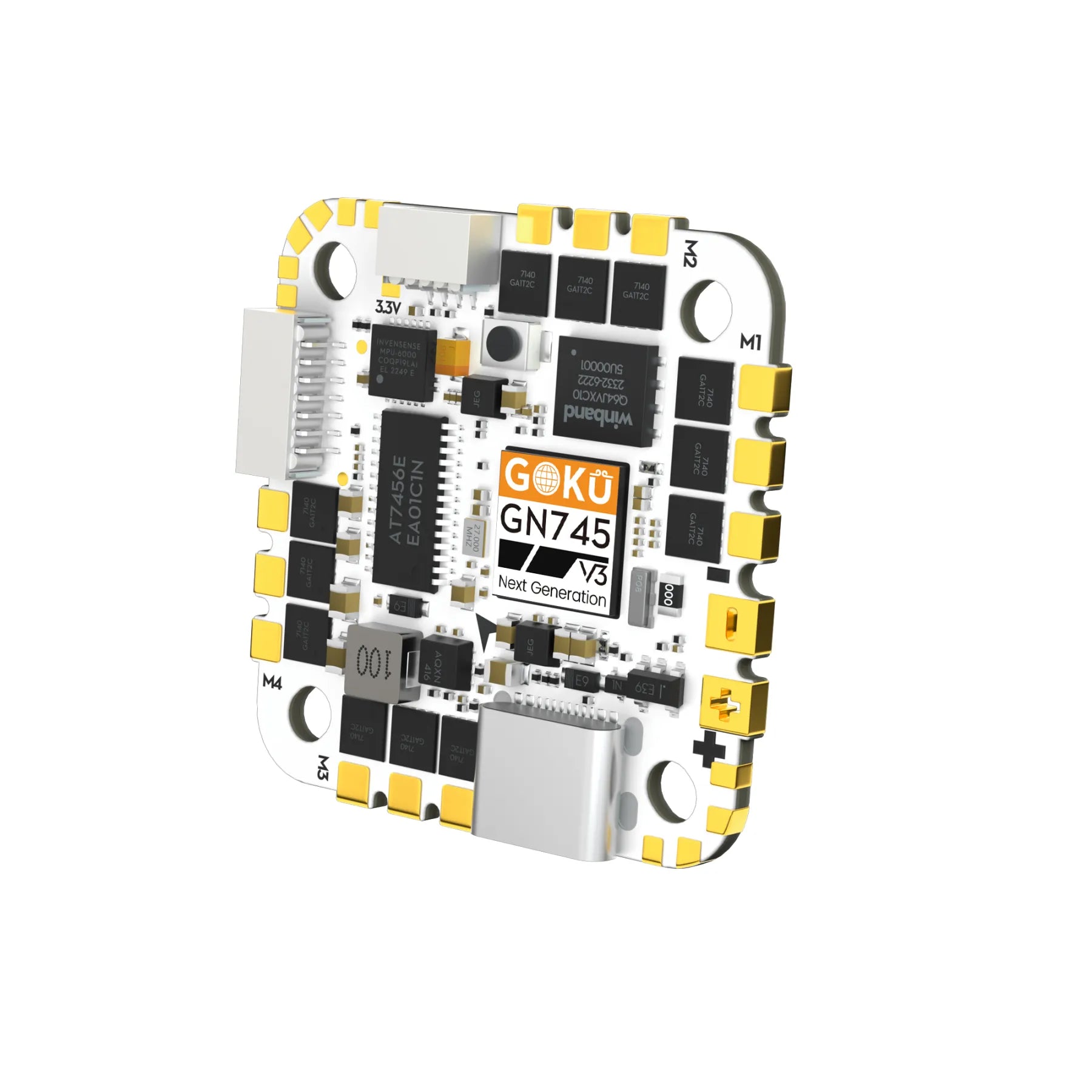

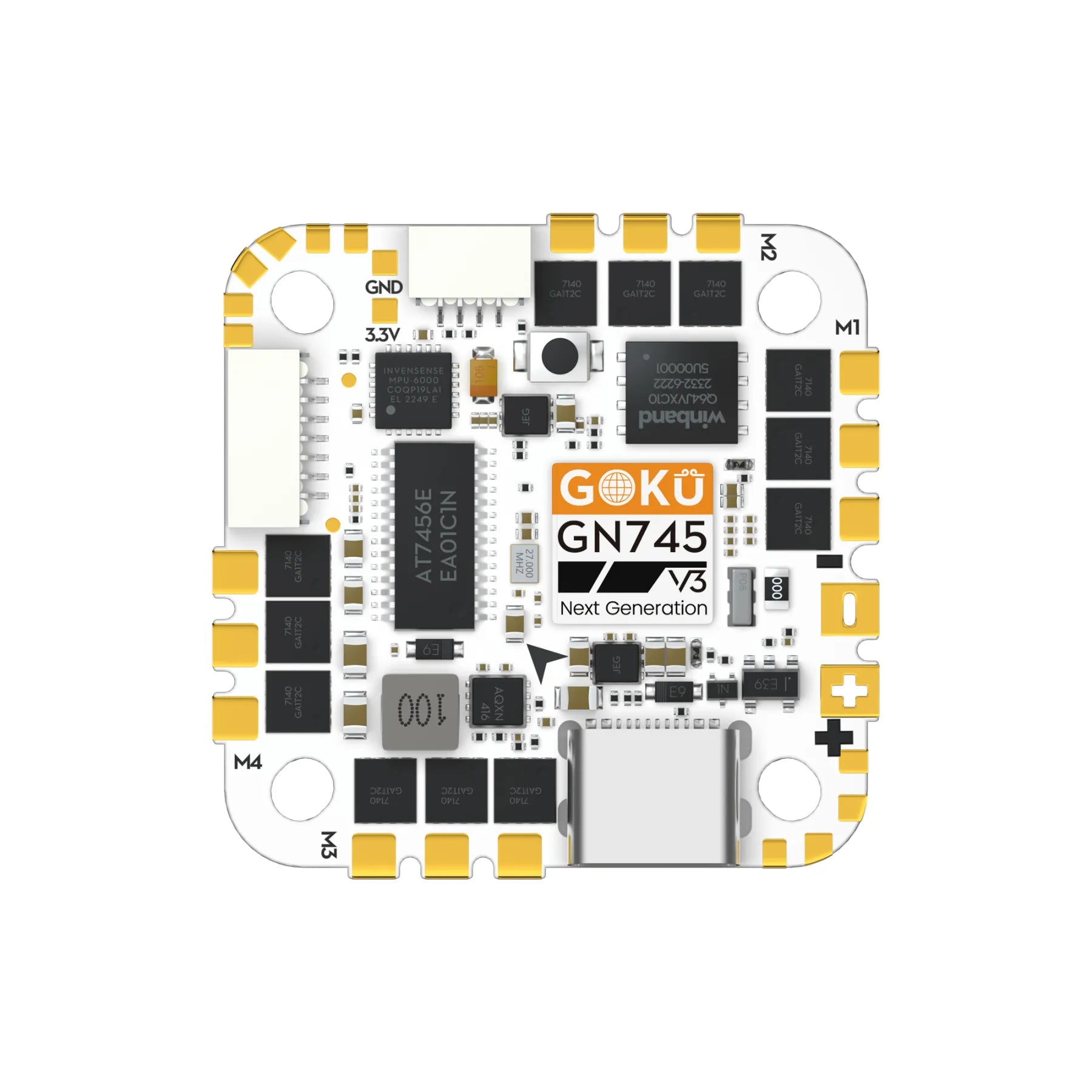

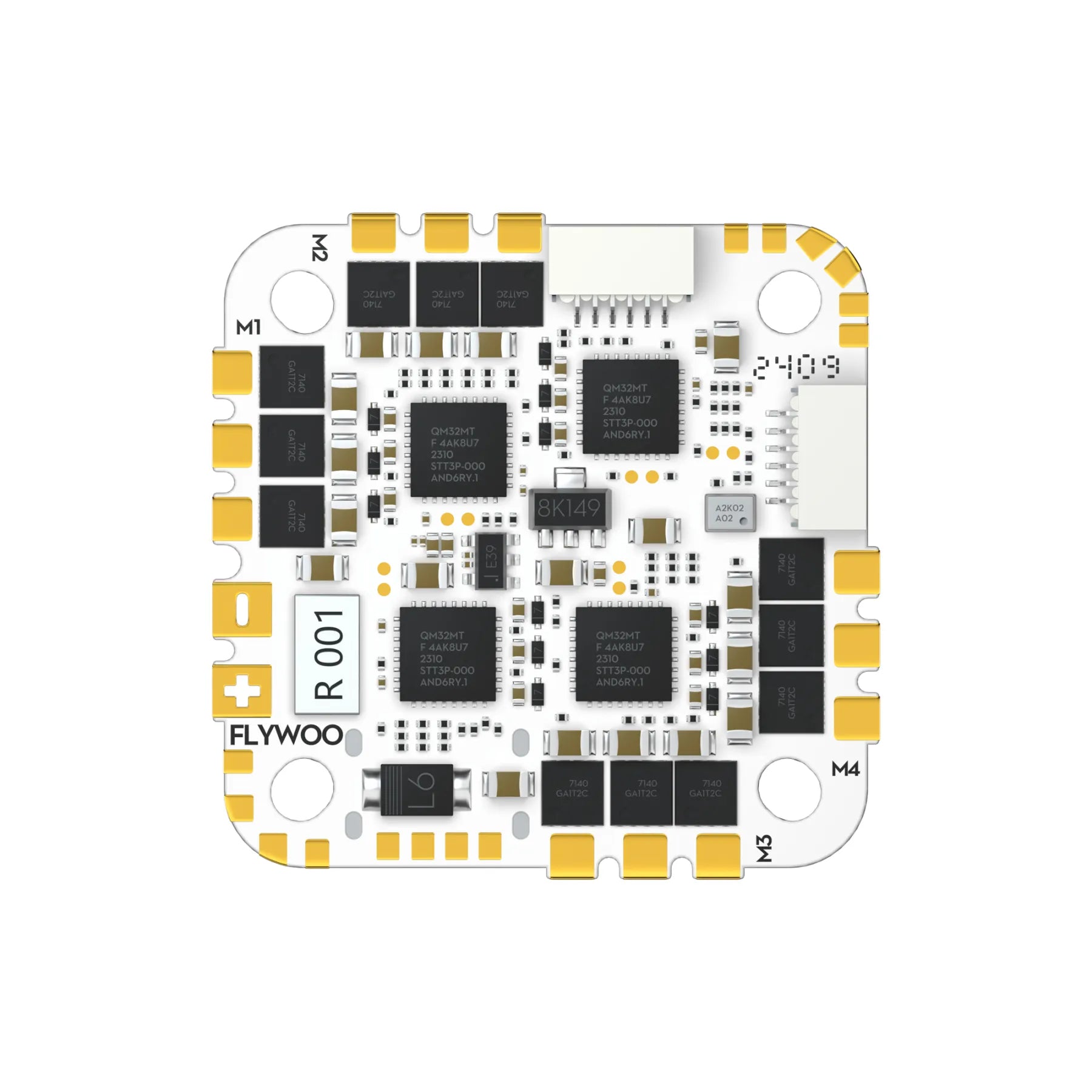

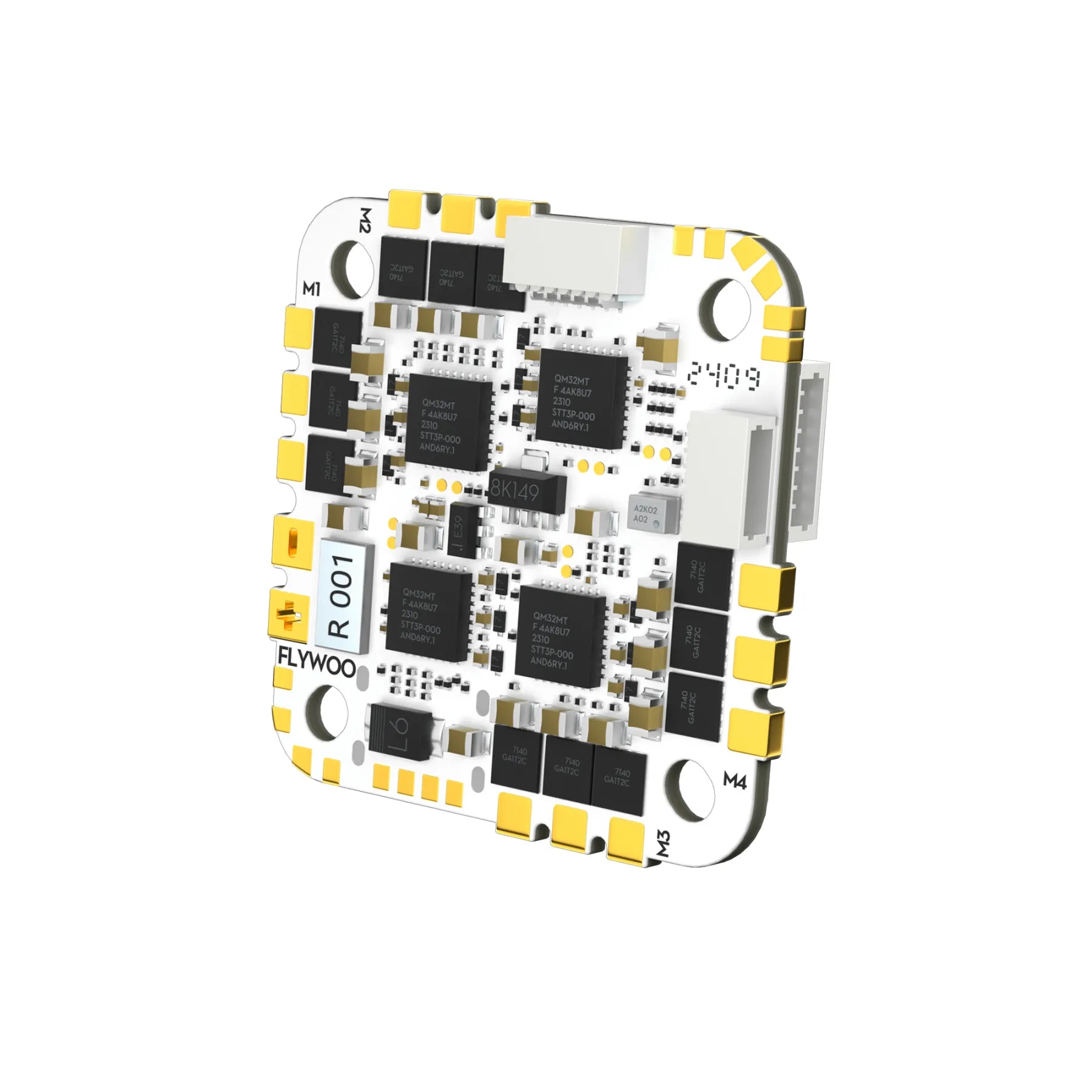

Flywoo GOKU GN745 AIO V3 - The Ultimate AIO Flight Controller

Introducing the GOKU GN745 AIO V3 by Flywoo, the pinnacle of AIO performance. Beloved by Betaflight, INAV, and Ardupilot enthusiasts, the V3 version elevates the series with cutting-edge upgrades. The revamped ESC two-in-one drive solution boosts the continuous current capacity to 45A, while enhanced overcurrent protection on the motor pads ensures robust performance. This version also simplifies connectivity with 4 new direct-plug UART ports and a user-friendly Type-C interface.

Key Features:

• High Performance  : Equipped with the STM32F745 chip, AM32 firmware, and ICM42688P gyro, it includes dual BEC, a barometer, a black box, 7 serial ports, and I2C support.

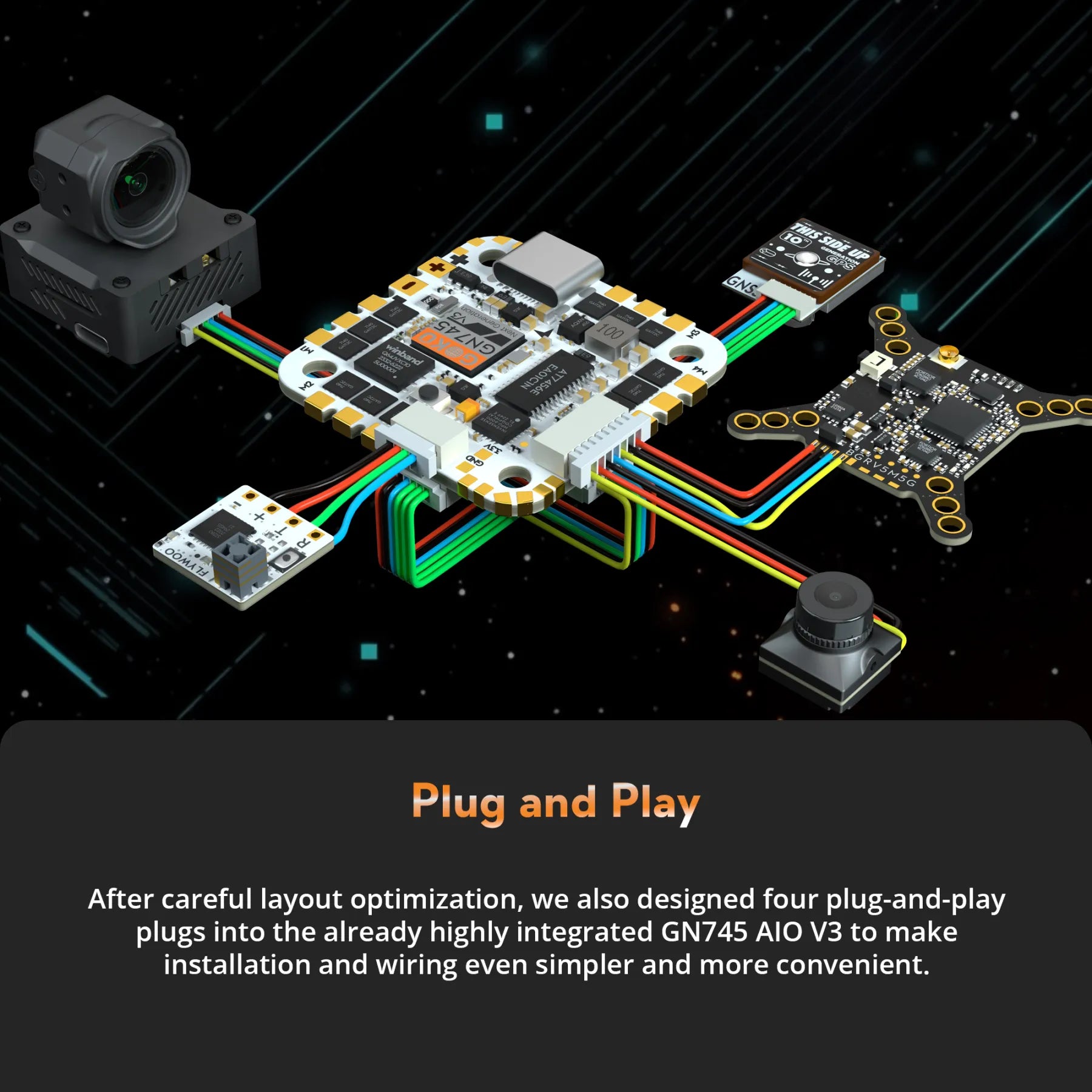

• Plug & Play : Seamlessly integrates with O3 air unit, GPS, camera, analog VTX, and receiver—no soldering required.

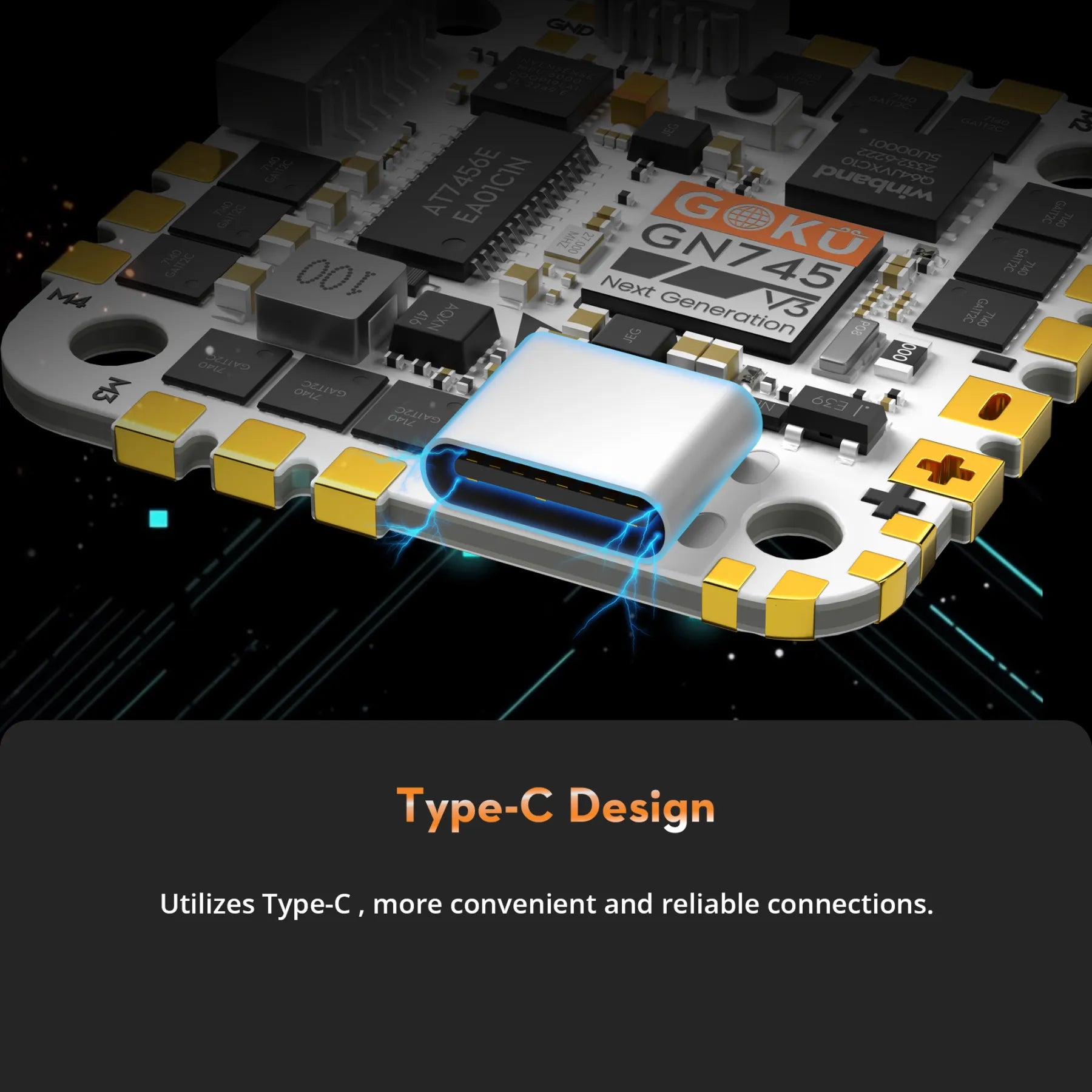

• Modern Connectivity : The Type-C interface ensures improved compatibility and easier connections.
• Broad Compatibility : Supports BF, INAV, and Ardupilot platforms.

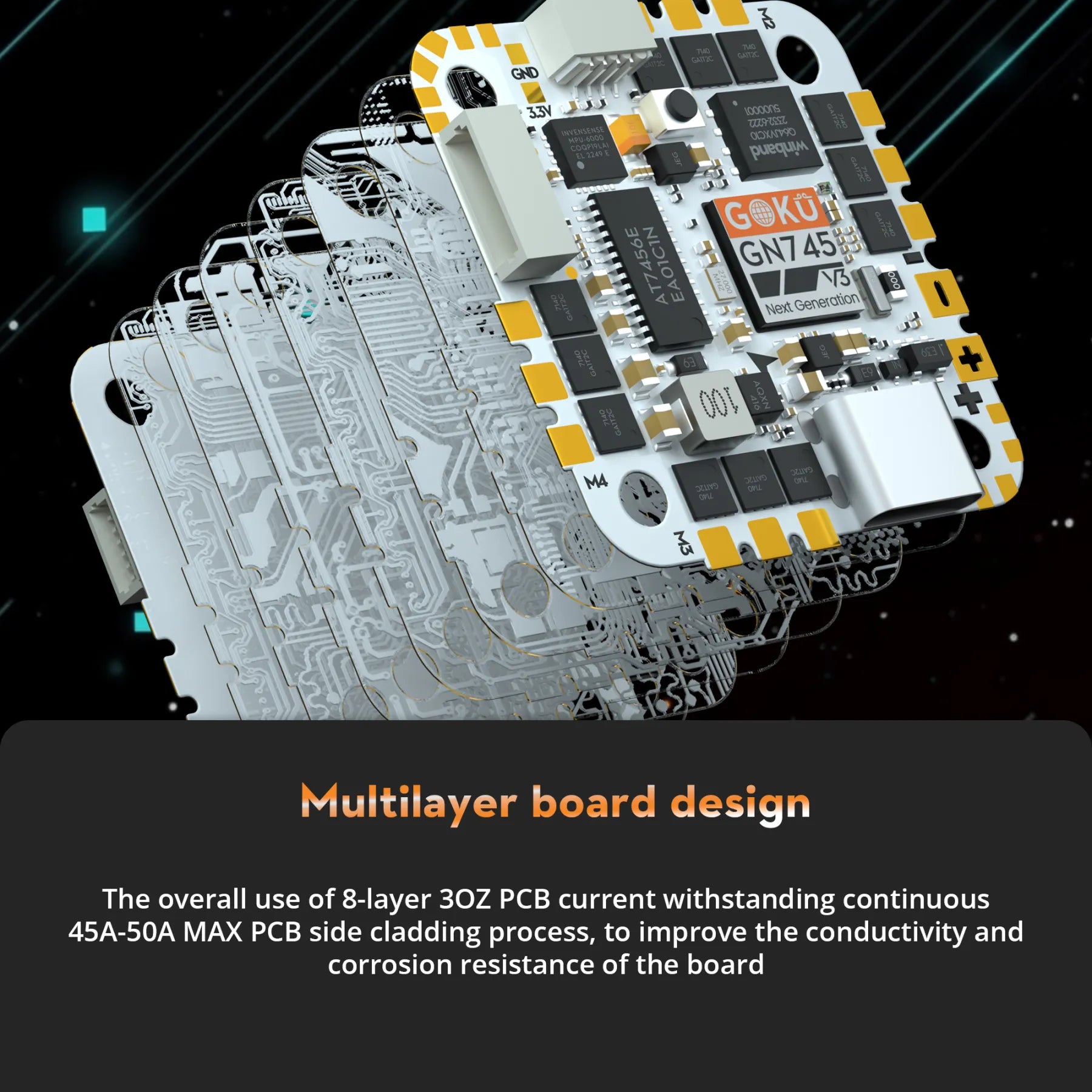

• Innovative Design : New ESC two-in-one drive solution, supporting a continuous current up to 45A.

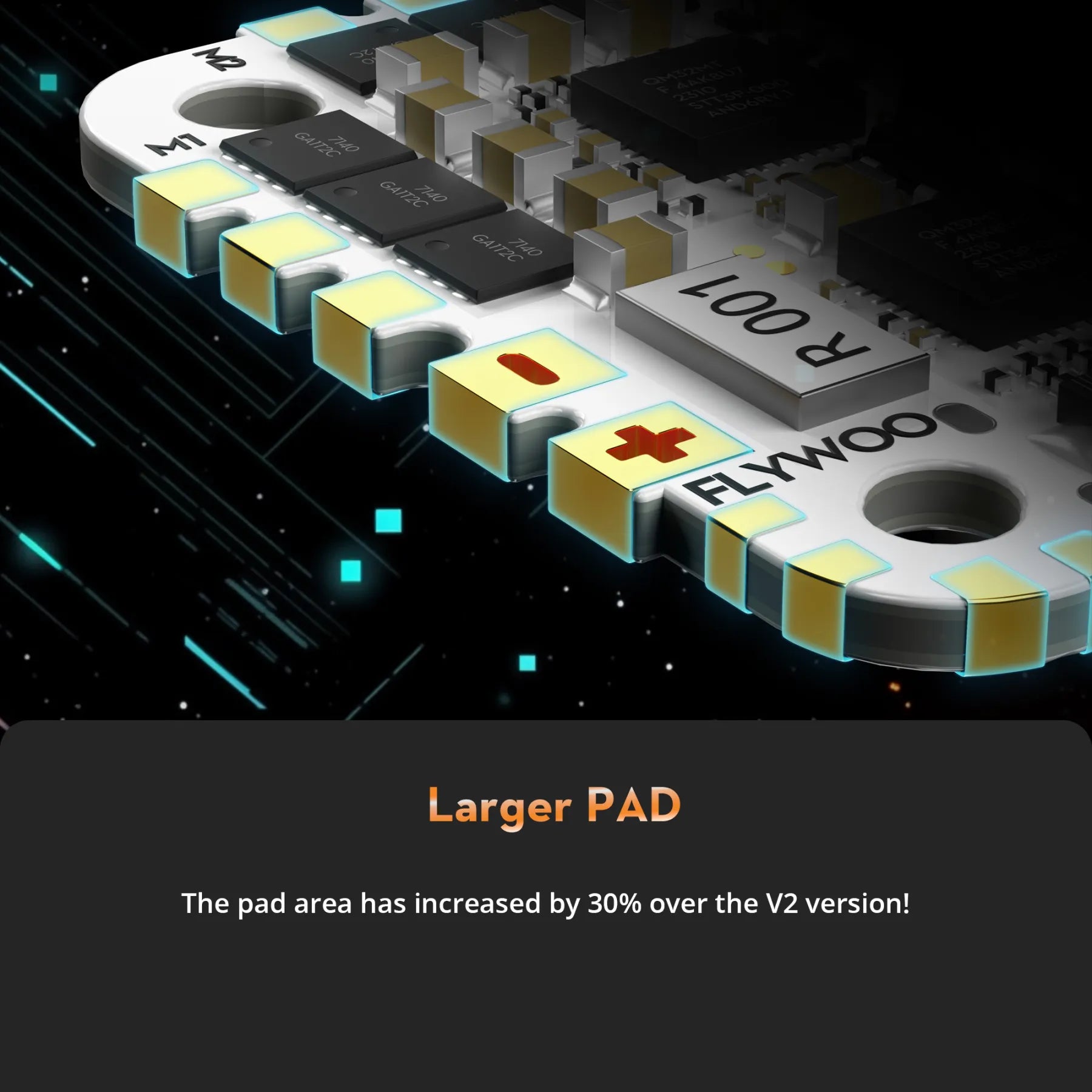

• Enhanced Protection : Larger motor pad area offers better overcurrent protection.

Specifications:

• Flight Controller Firmware : FLYWOOF745AIO (BF), FLYWOOF745 (INAV, Ardupilot)

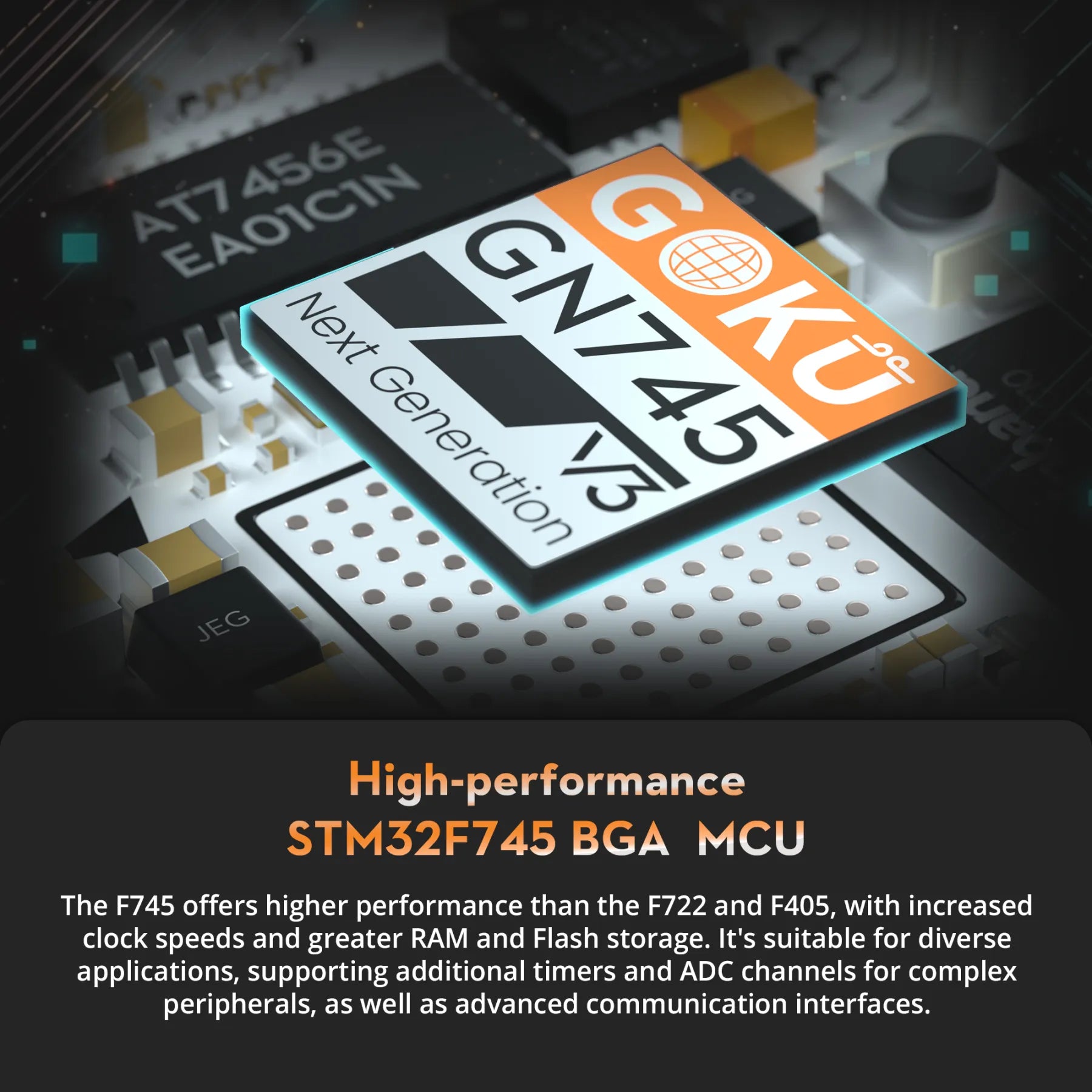

• MCU : STM32F745, 32-bit processor, 216MHz, 1MB Flash
• IMU : ICM42688P
• Barometer : SPL06
• USB VCP Driver : All UARTs usable simultaneously; USB doesn't occupy a UART
• UARTS : 7 hardware UARTS (UART1, 2, 3, 4, 5, 6, 7)
• Receiver Support : Serial receivers (SBUS, iBus, Spektrum, Crossfire) only (PPM and PWM not supported)
• Blackbox Logging : 8Mbytes onboard
• Power Out : 5V, 2.0A max; 3.3V, 0.5A max

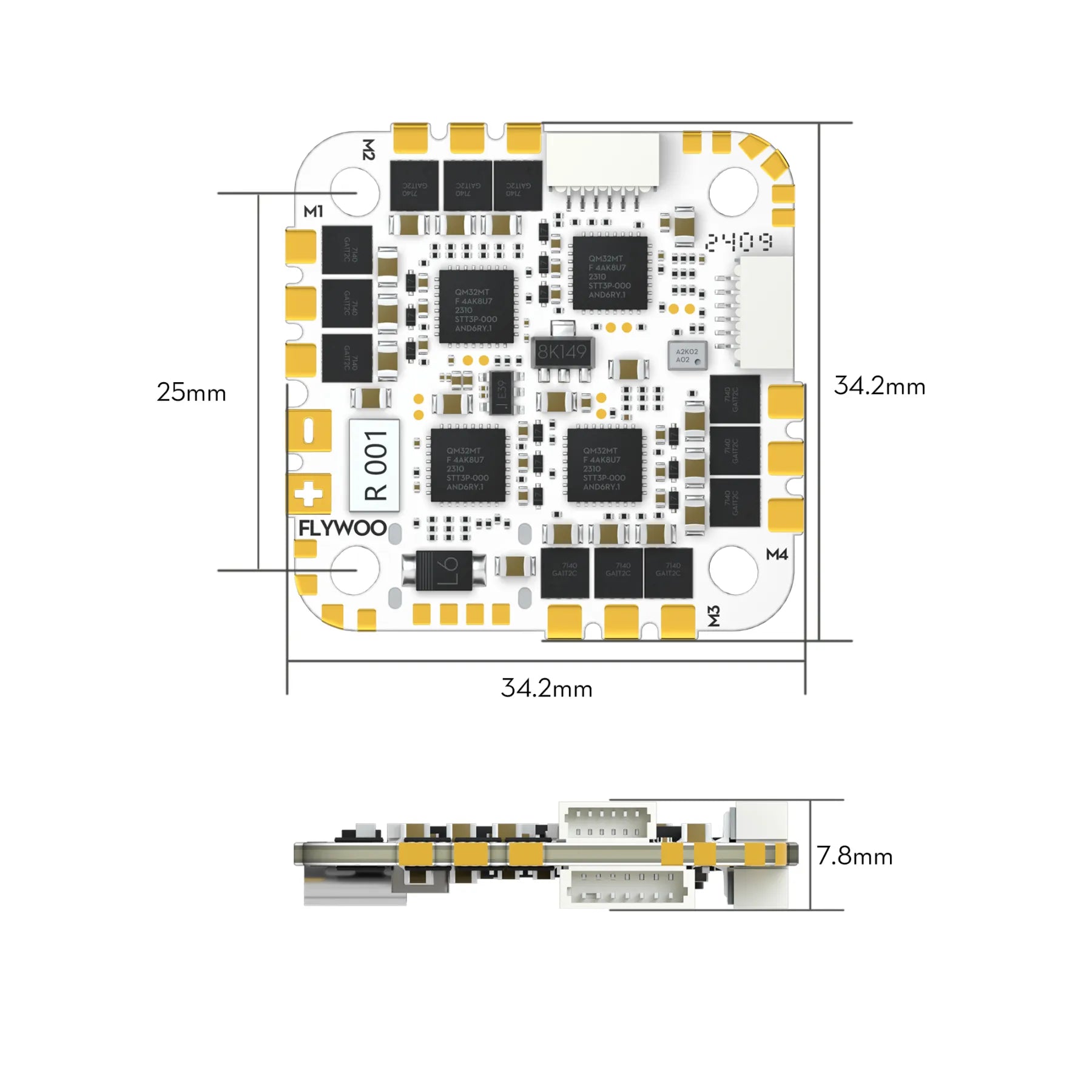

• Dimensions : 33.5 x 33.5mm
• Mounting Holes : Standard 25.5/26.5mm square to the center of holes

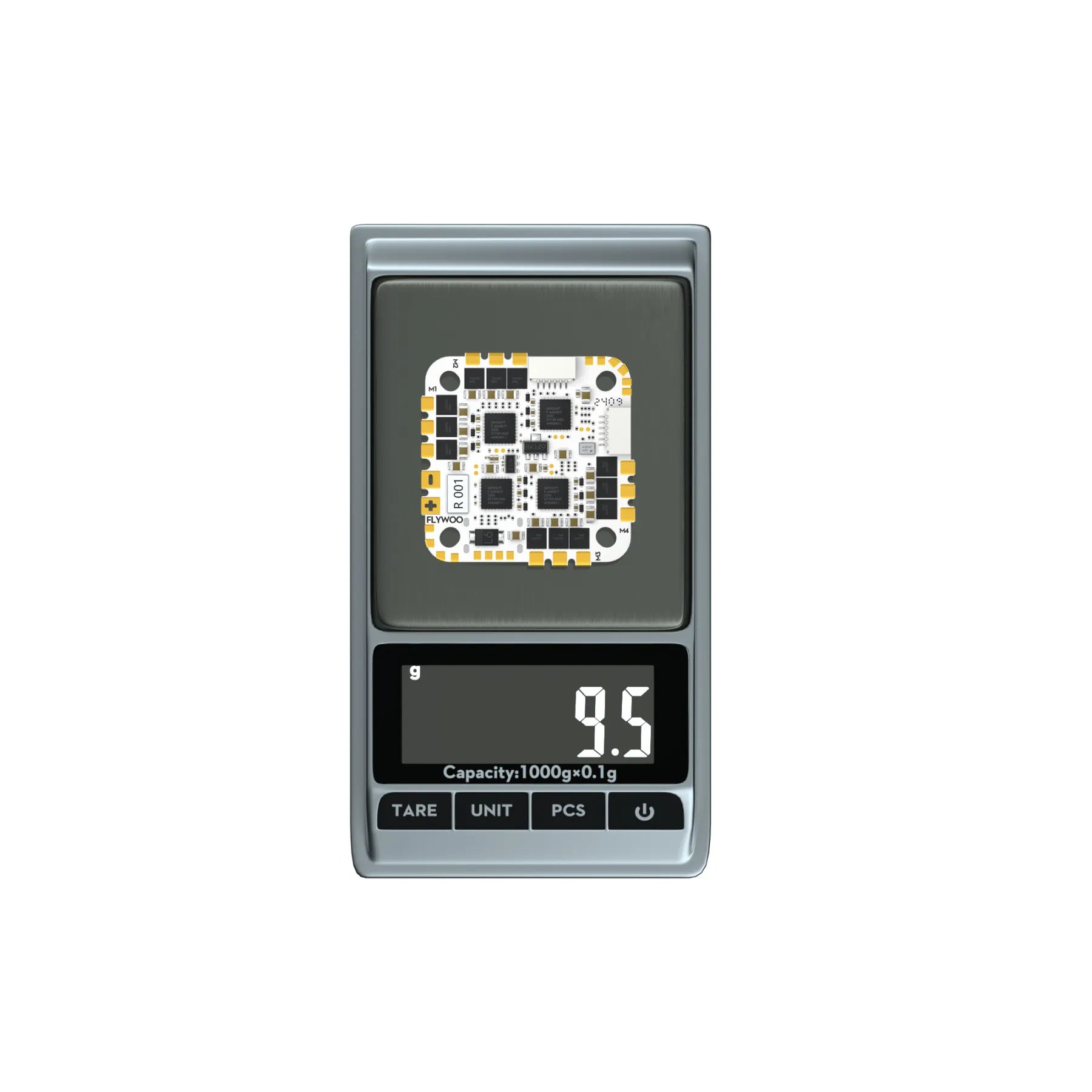

• Weight : 9.4g

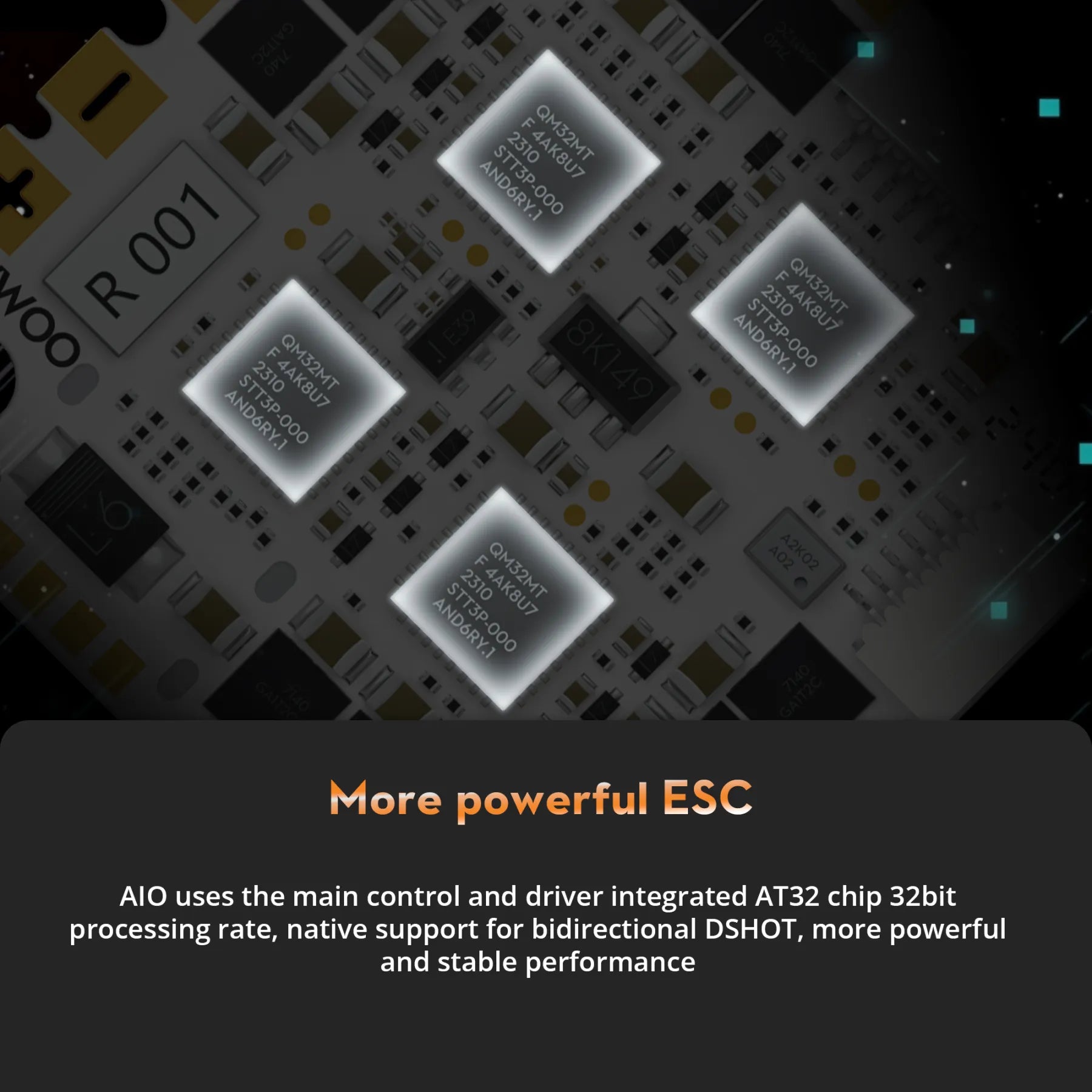

• Onboard 4in1 ESC : Supports AM32 firmware, PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
• Input Voltage : 2-6S LiPo
• Continuous Current : 45A
• Firmware : GOKU_F4A32_PRO

In the Box:

• 1x UNICON UPL Capacitor 25V 470UF
• 4x M2x6.6 Shock-Absorbing Ball
• 4x M2 Rubber Ring
• 1x XT30 Power Cable
• 1x DJI O3 Connection Cable
• 1x VTX & Camera Connection Cable
• 1x Receiver Connection Cable
• 1x GPS Compass Connection Cable

Disclaimer: Accessories included in the box may vary based on supply.
