    Description

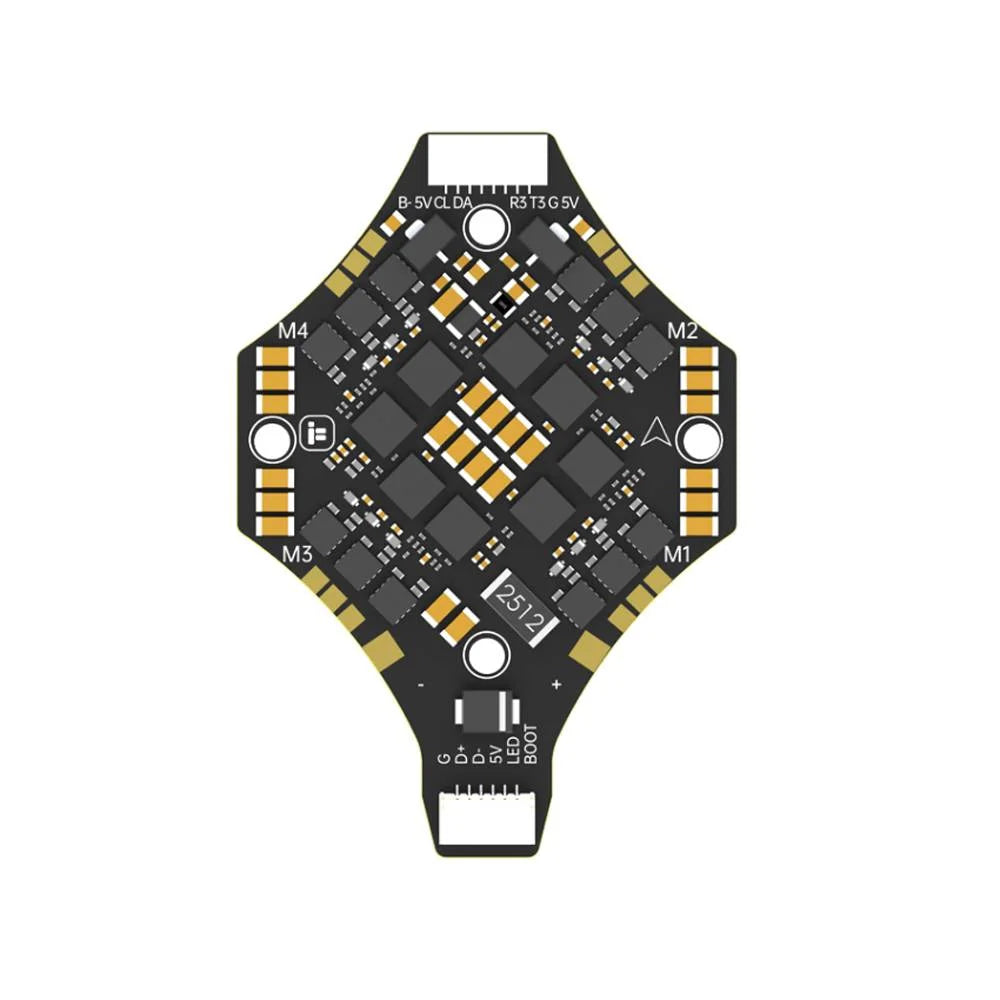

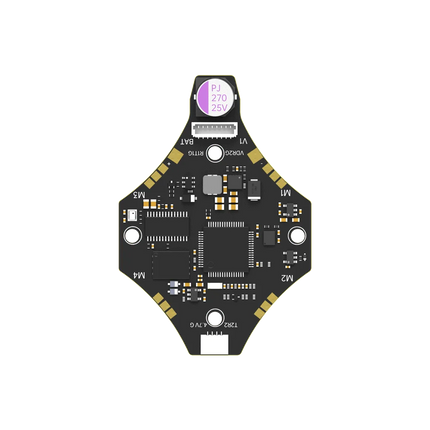

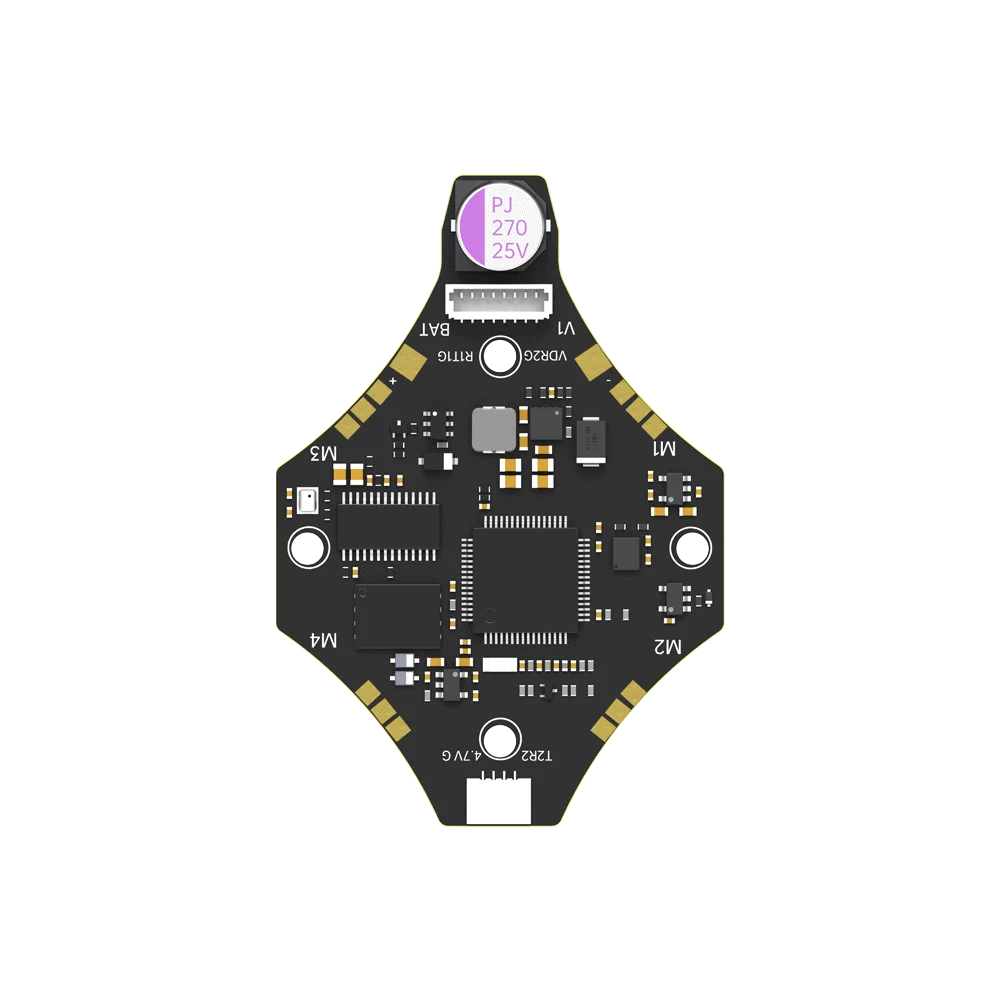

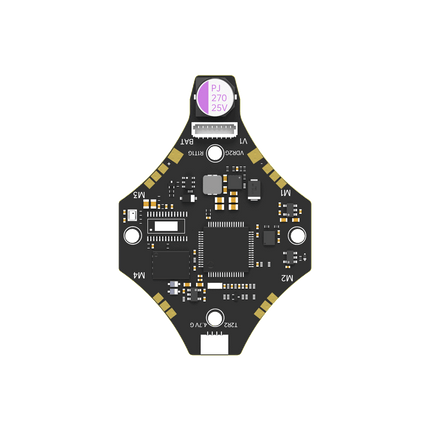

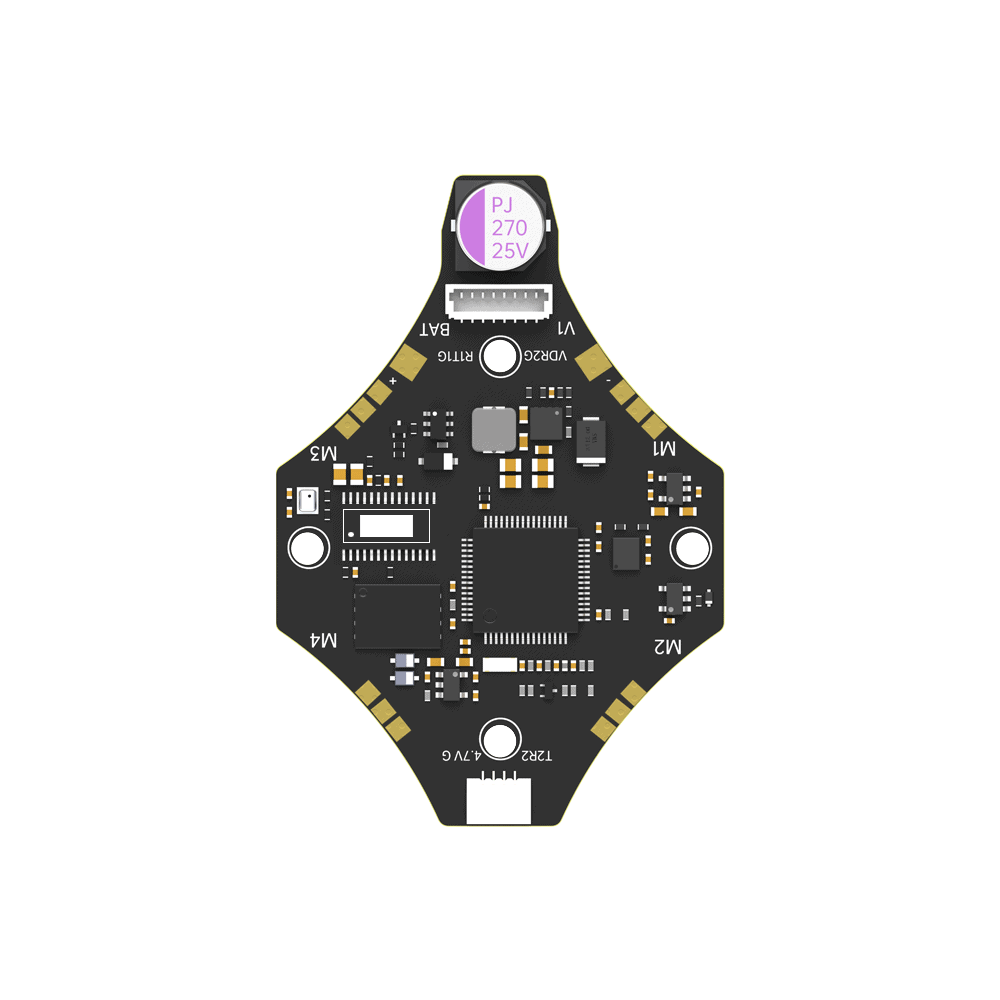

    Look no further than the iFlight BLITZ F7 AIO. This new generation board is specifically designed for the Defender 25 and features an F745 flight controller, 20 ESC, and OSD. With pass-through DJI O3 and Caddx Vista/Polar Connector, 32MB Onboard Flash Blackbox, STM32F745, 216MHz MCU, and ICM42688P and DPS310 Gyro, this all-in-one FC is future-proof and ready for flight firmware development like Betaflight, Emuflight and more. Lightweight, with minimum size and minimum work, just solder your motor wires on and you're ready to go! Upgrade your iFlight Defender 25 with the iFlight BLITZ F7 AIO and experience top-of-the-line performance.

    Features

    • Pass-through DJI O3 and Caddx Vista/Polar Connector
    • 32MB Onboard Flash Blackbox
    • STM32F745, 216MHz MCU
    • Weight: 12.8g/0.2g
    • F745 FC + 20 ESC
    • ICM42688P Gyro
    • DPS310 Gyro
    • OSD Optional (only required if you plan to use an analog FPV System)

    Specifications

    IFLIGHT DEFENDER 25 F745 FC

    • Smartaudio / IRC Tramp VTX protocol supported
    • Input voltage: 2-6S, support LIHV battery
    • Mounting pattern: 25.5x25.5mm /3mm
    • FC Firmware:IFLIGHT_BLITZ_F7_AIO
    • Connector: SH1.0 to Type-C adapter
    • Blackbox: 32MB Onboard Flash
    • OSD: YES (HD VTX version)
    • Dimensions: 32.5*32.5mm
    • WS2812 LED Strip: Yes
    • BEC output: 5V 2.5A
    • Barometer: DPS310
    • MCU: STM32F745
    • Gyro: ICM42688P
    • Buzzer: Yes

    IFLIGHT DEFENDER 25 20 ESC

    • Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
    • ESC Telemetry: Yes(PCB routed, set UART6 for telemetry)
    • Output current: 20A, peak value 30A (10 seconds)
    • Input voltage: 2-6S Support LIHV battery
    • ESC firmware: IFLIGHT_BLITZ_G071_01
    • Current sensor: ratio 200 (1/10mV/A)
    • Bidirectional DShot: Yes
    • ESC MCU: STM32G071
    • Driver: FD6288
    • BEC: NO
    • OSD: Optional, not required if flying a Digital FPV system

    Includes

    • 1x iFlight Defender 25 BLITZ AIO - F745 FC + 20A ESC
    • 1x Hardware Accessories Pack (contents may very depending on supply)
