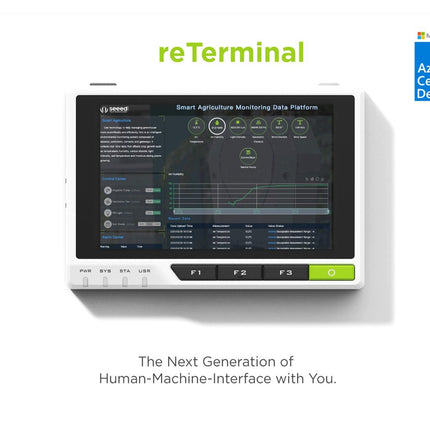

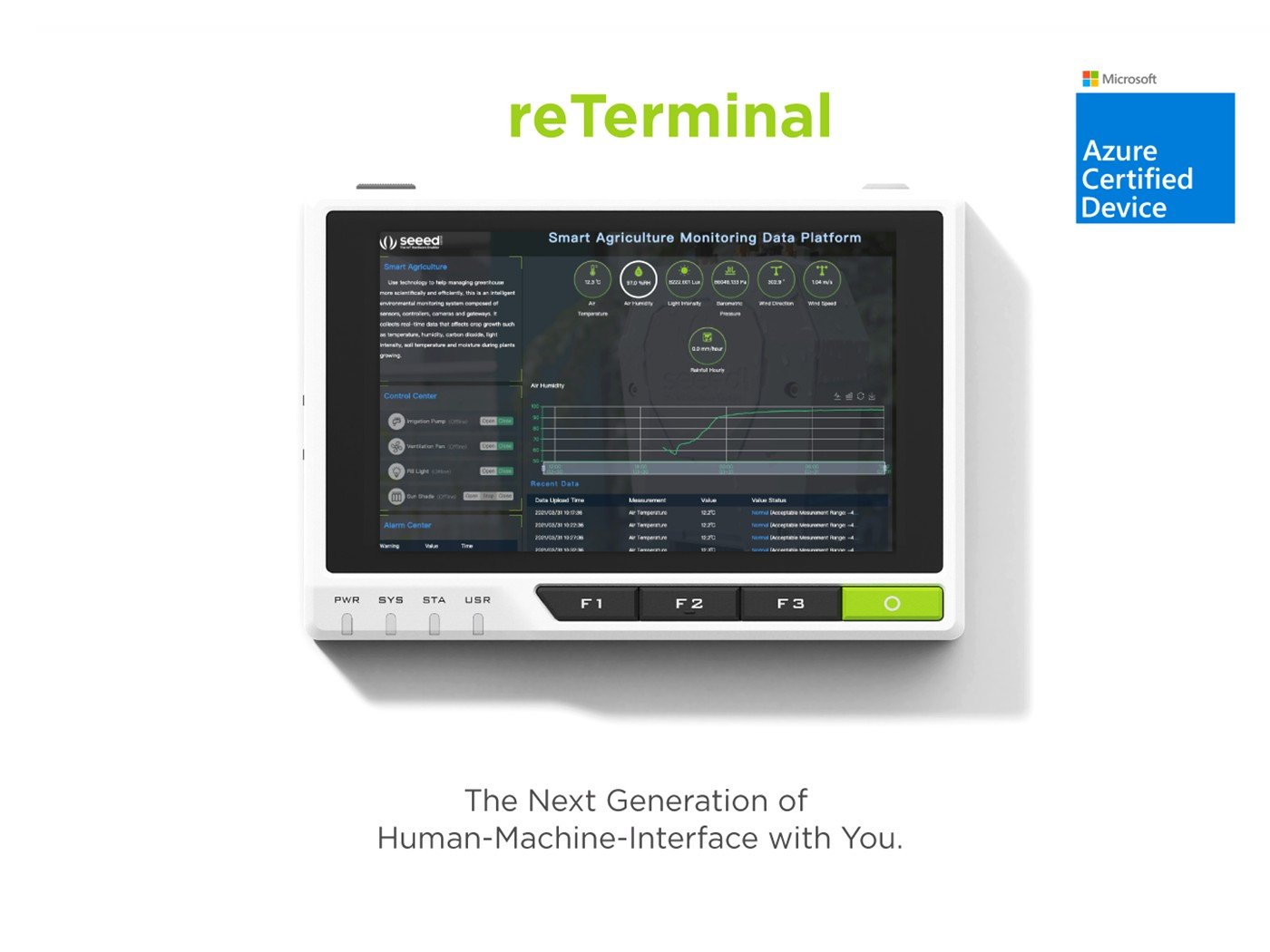

Meet reTerminal, The Next Generation of Human Machine Interface with you, and also a new member of our reThings family. This future-ready Human-Machine Interface (HMI) device can easily and efficiently work with IoT and cloud systems to unlock endless scenarios at the edge.
&feature=emb_title
reTerminal CM4104032 is powered by a Raspberry Pi Compute Module 4 (CM4) which is a Quad-Core Cortex-A72 CPU running at 1.5GHz and a 5-inch IPS capacitive multi-touch screen with a resolution of 720 x 1280. It has sufficient amount of RAM (4GB) to perform multitasking and also has sufficient amount of eMMC storage (32GB) to install an operating system, enabling fast boot-up times and a smooth overall experience. It has wireless connectivity with dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0 BLE.

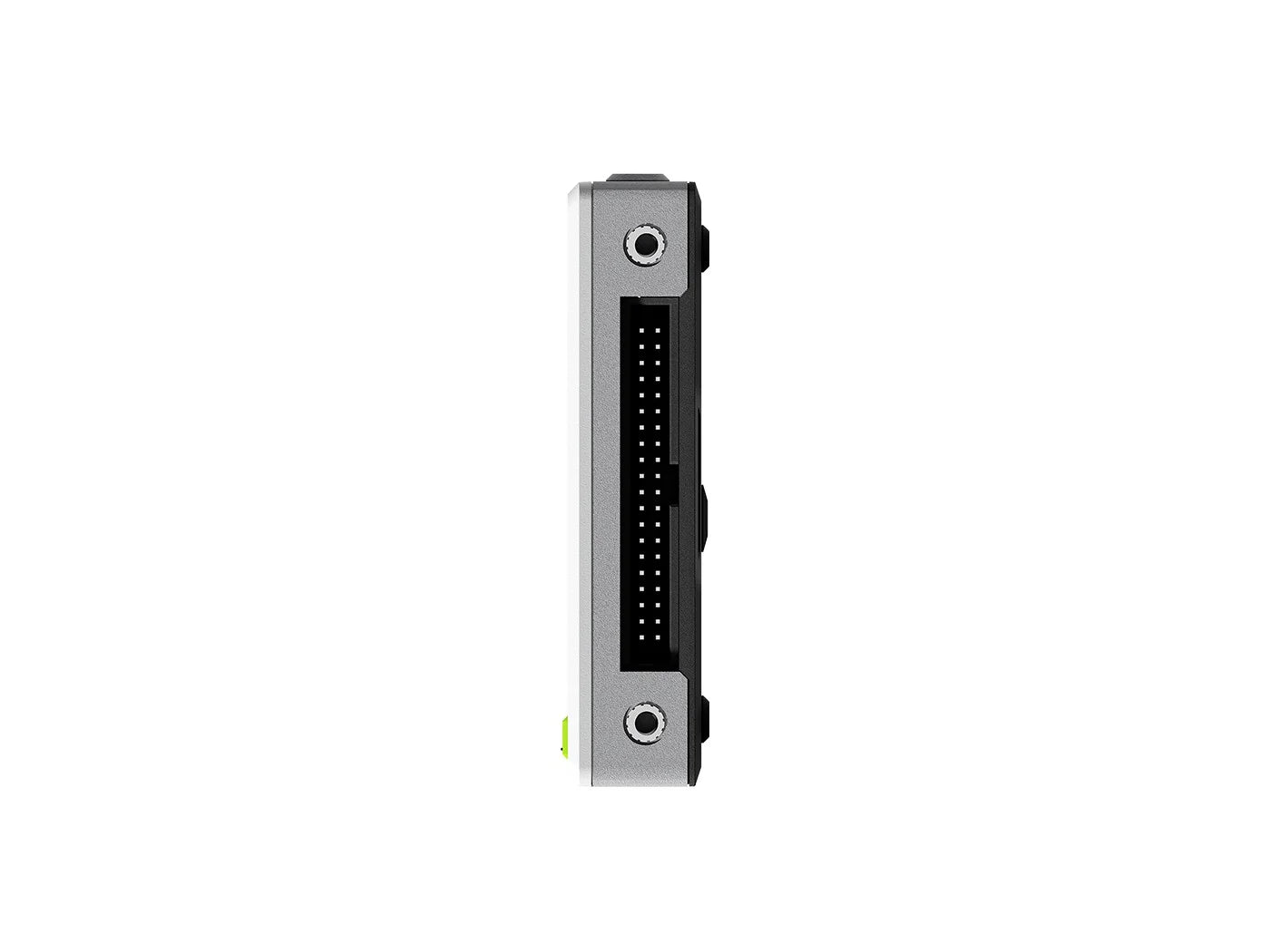

reTerminal CM4104032 consists of a high-speed expansion interface and rich I/O for more expandability. This device has security features such as a cryptographic co-processor with secure hardware-based key storage. It also has built-in modules such as an accelerometer, light sensor, and an RTC (Real-Time Clock). reTerminal CM4104032 has a Gigabit Ethernet Port for faster network connections and also has dual USB 2.0 Type-A ports. The 40-pin Raspberry Pi compatible header on the reTerminal opens it for a wide range of IoT applications.
reTerminal CM4104032 is shipped with Raspberry Pi OS out-of-the-box. So, all you have to do is connect it to power and start building your IoT, HMI, and Edge AI applications right away!
Also, reTerminal is Microsoft Azure Certified!
Follow our wiki to setup Mender Client on a reTerminal to access OTA updates from a Hosted or Self-Hosted Mender Server to enable remote management capabilities.

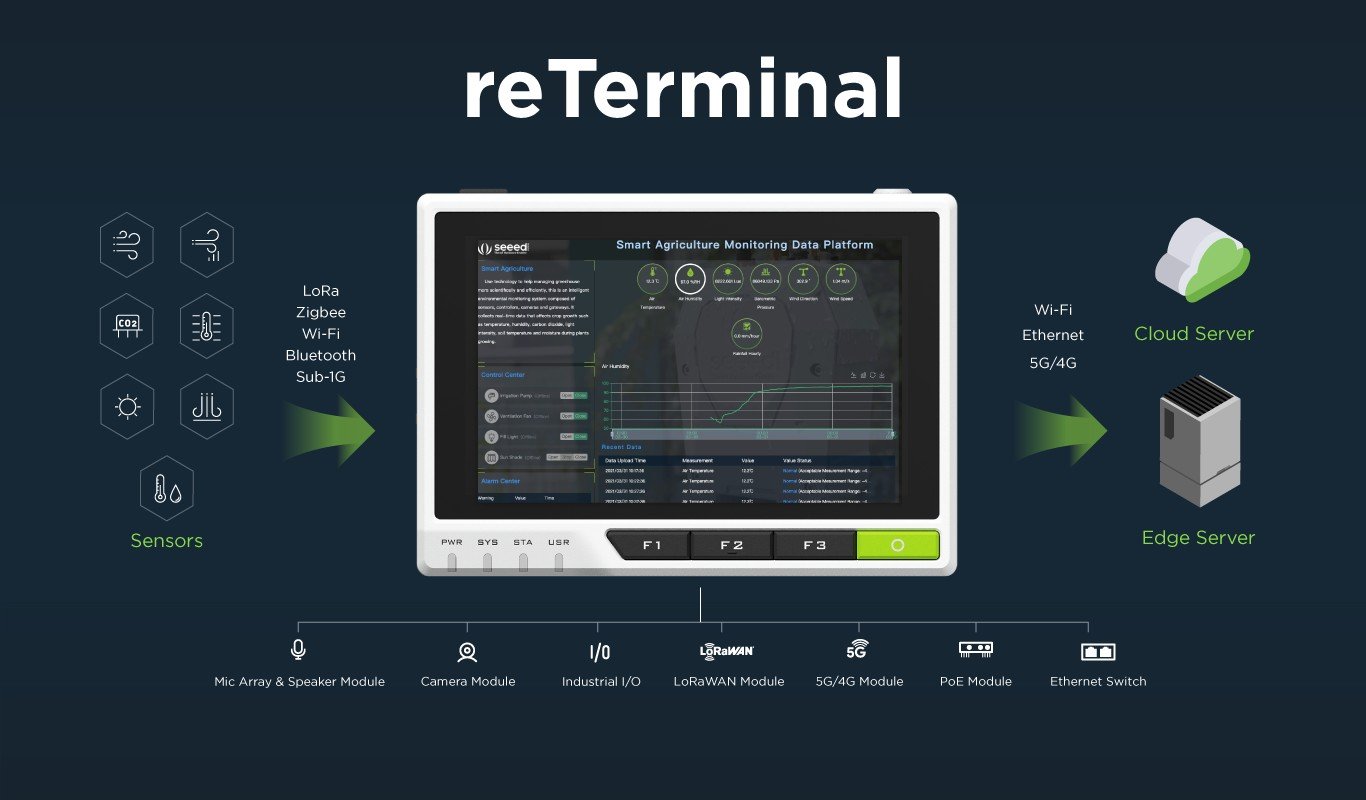

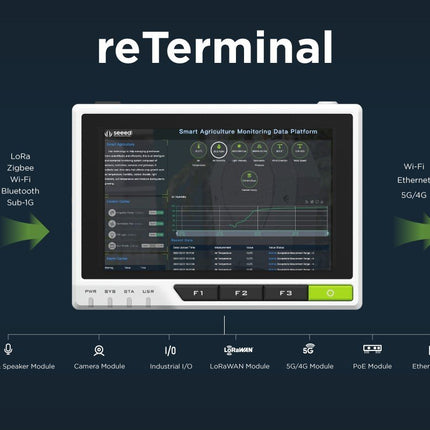

There are limitless possibilities with the reTerminal. It can be placed at the heart of an IoT/Edge system where you could connect a number of sensors to the reTerminal via different wireless protocols such as LoRa, Zigbee, Wi-Fi, Bluetooth, Sub-1G, and the reTerminal connected to the cloud via Ethernet, Wi-Fi, 5G/ 4G or connected to an edge server to store and process the data.

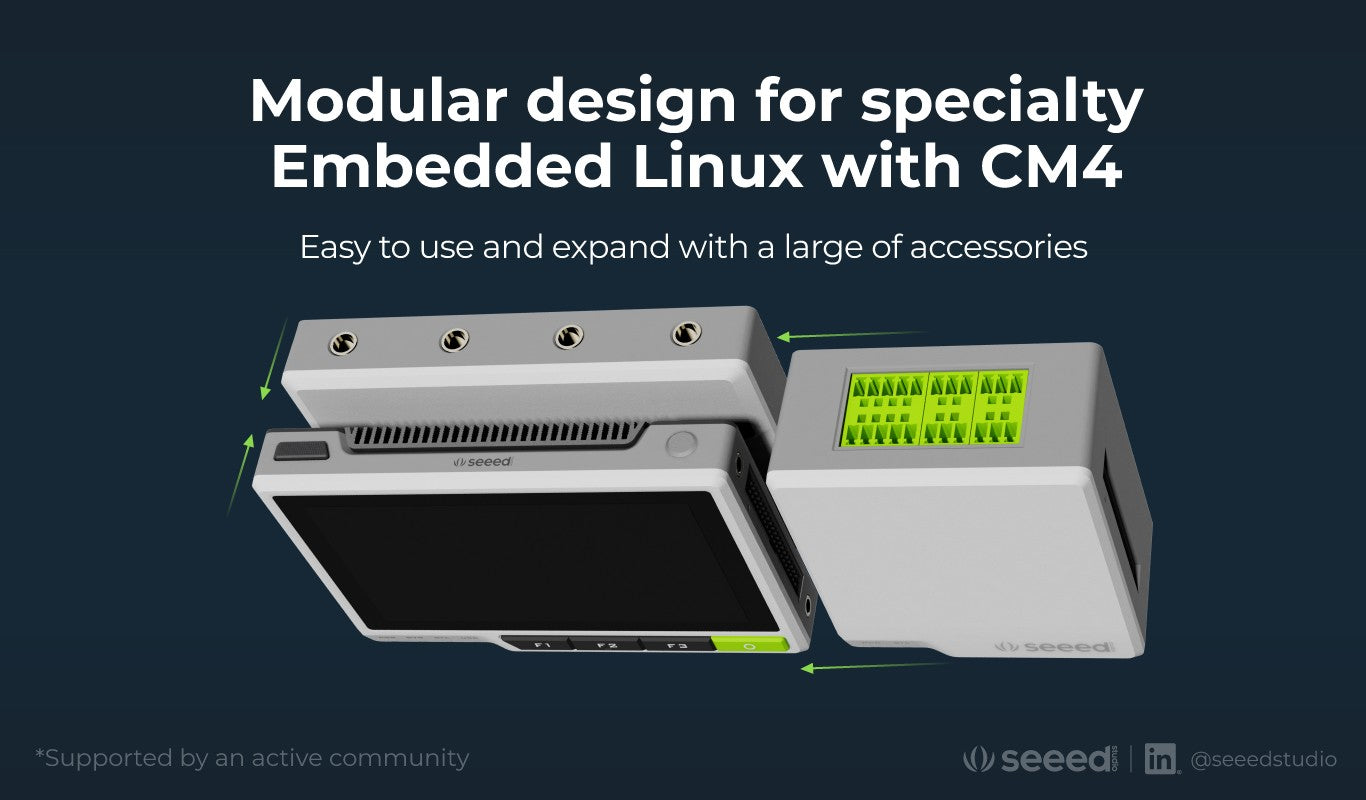

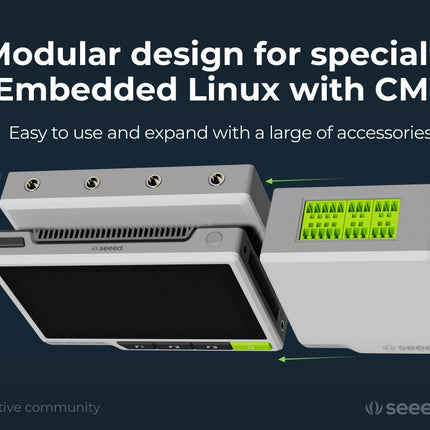

On the other hand, it has a modular design where you can expand this system by connecting different modules to the reTerminal via the 40-Pin GPIO connectors and enable even more applications. You can easily plug modules such as mic array & speaker, camera, industrial I/O, LoRaWAN, 5G/4G, and PoE to realize your ideas! It will be supported by an active community as well!

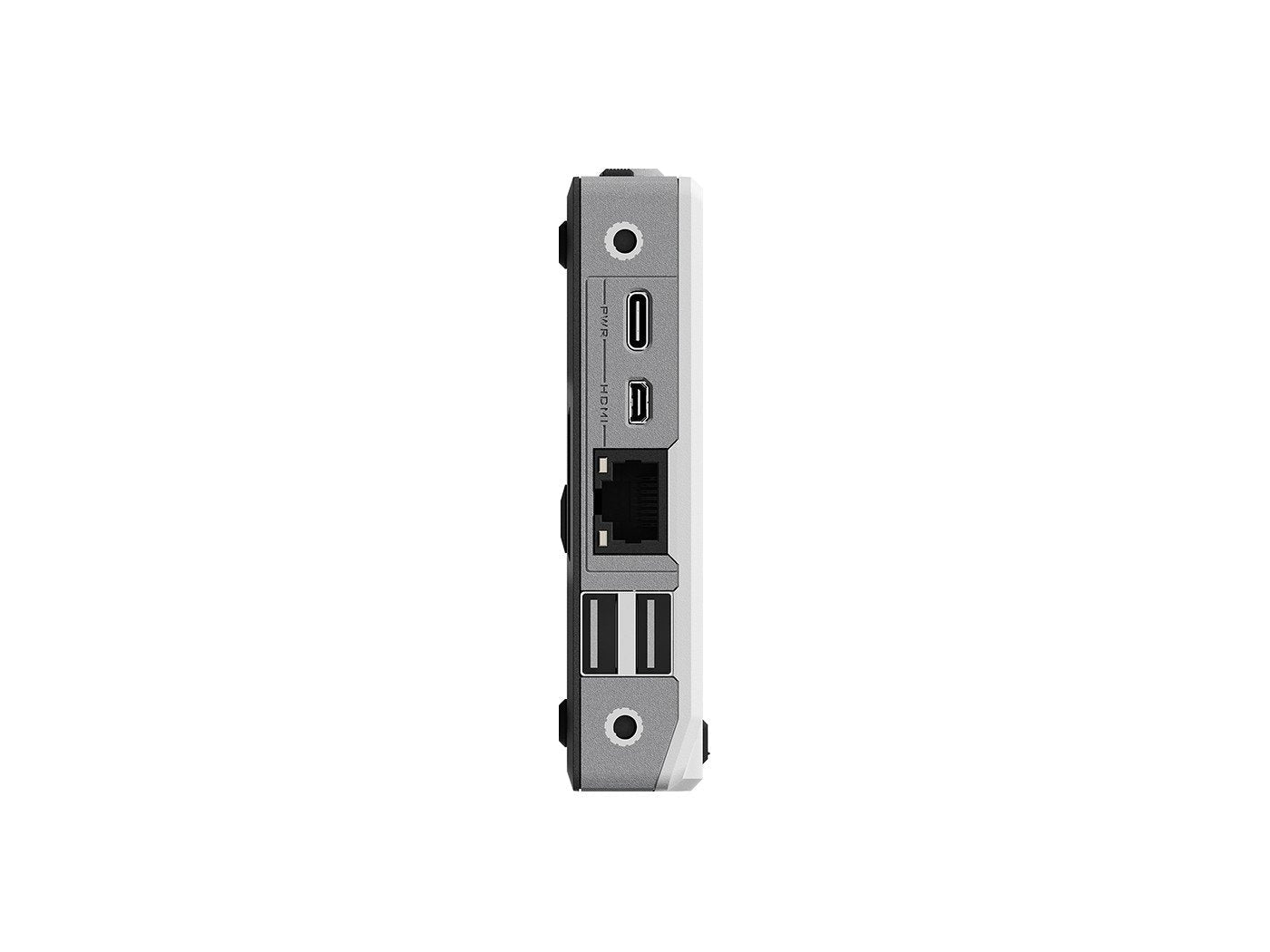

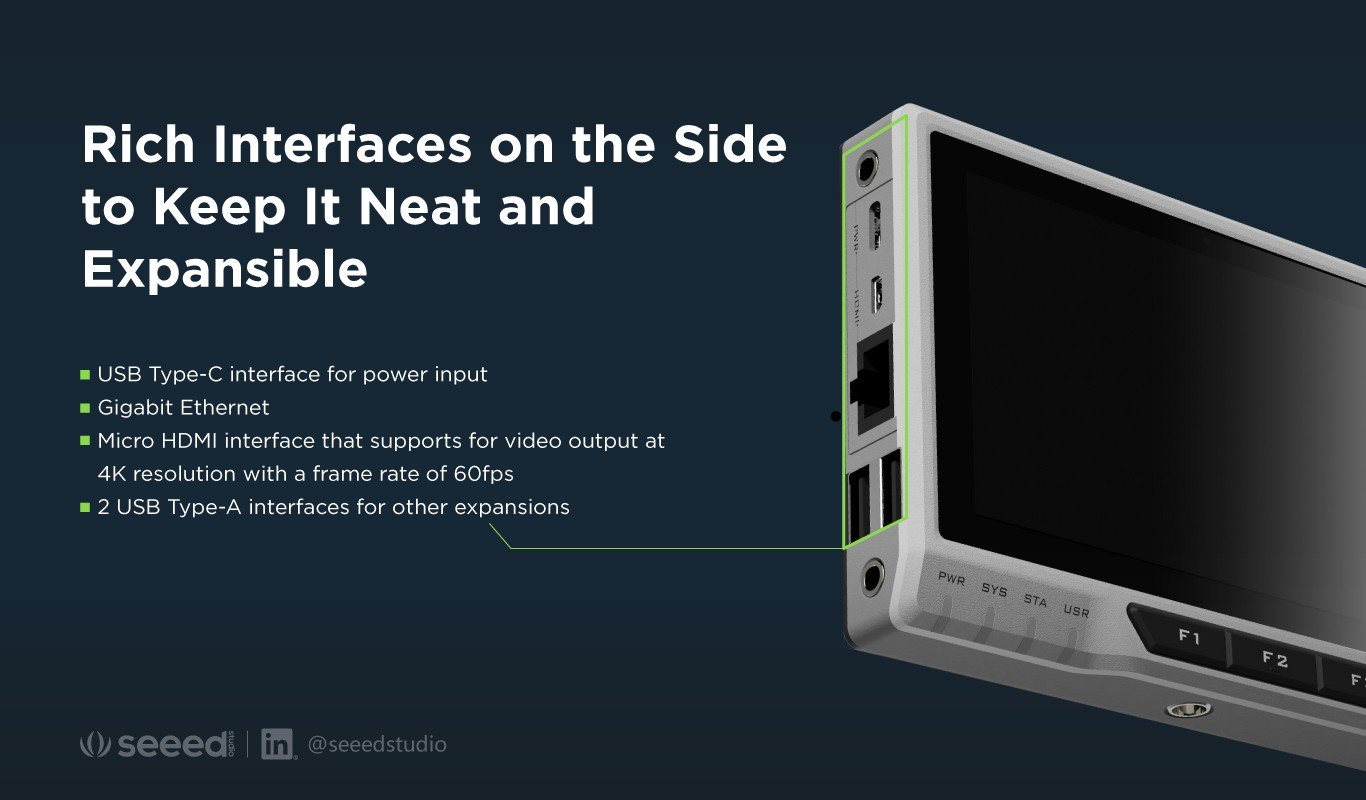

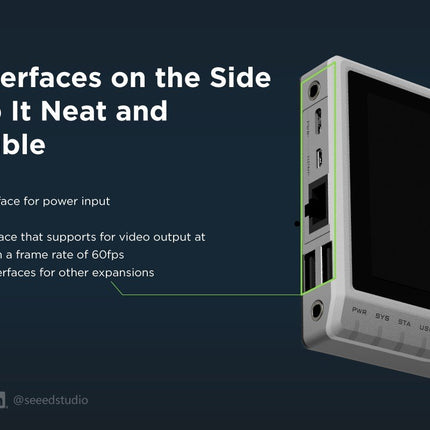

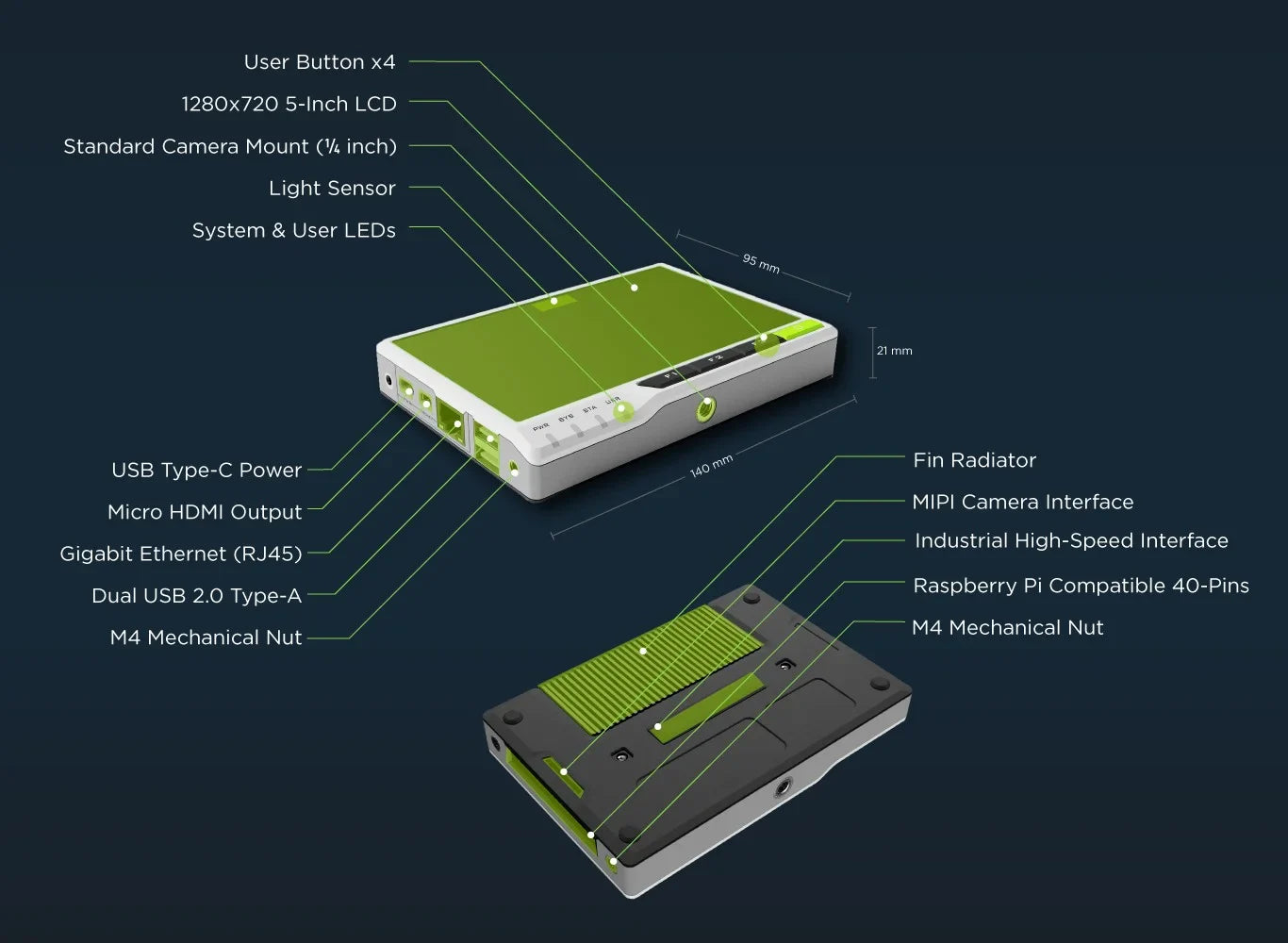

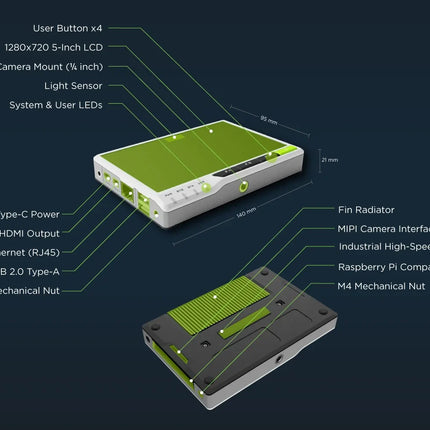

reTerminal is packed with rich interfaces on the side of the device while keeping the design to a minimum. It has a USB Type-C port for power input, a Gigabit Ethernet port for faster and reliable network access, a micro-HDMI interface that supports video output at 4K resolution with a frame rate of 60fps, and also has 2 USB Type-A ports.

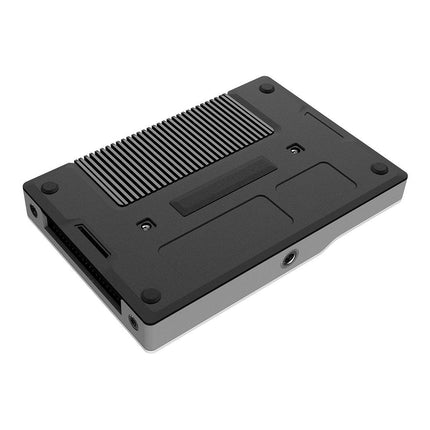

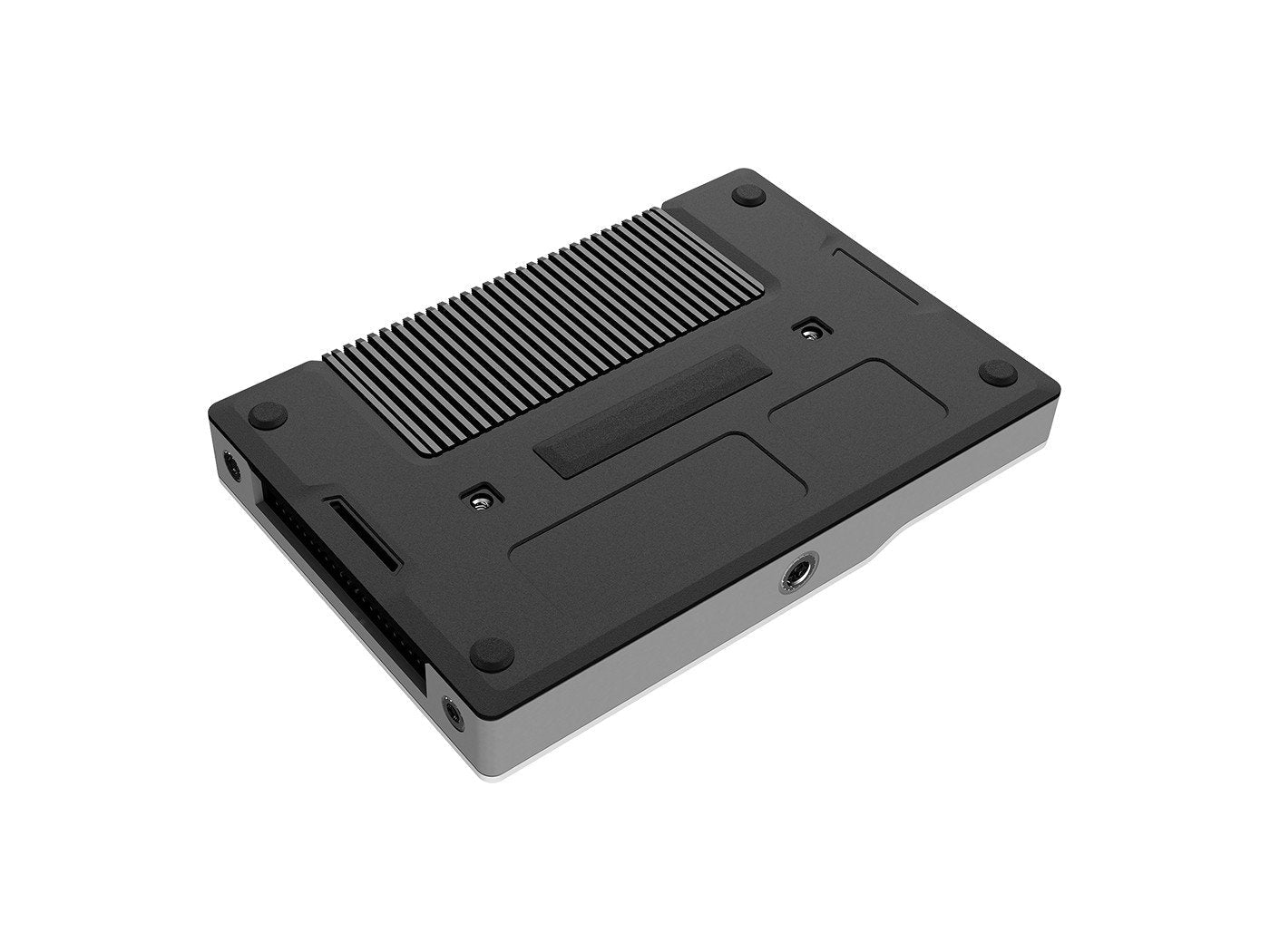

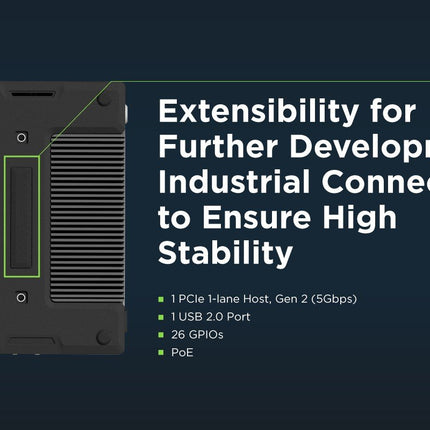

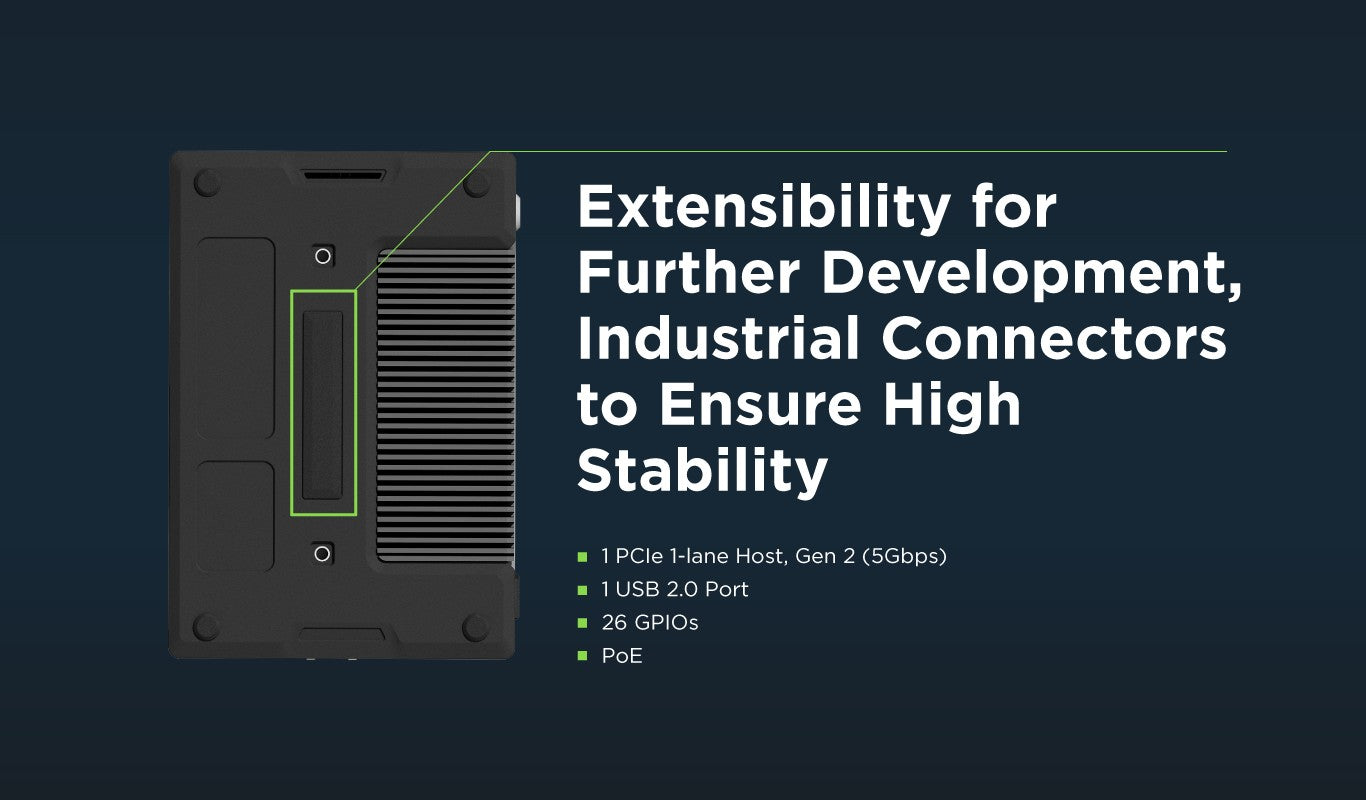

Furthermore, it also has a high-speed expansion interface with a PCIe 1-lane Host, Gen 2 (5Gbps), USB 2.0 port, 28 GPIOs, and PoE. You can use this interface for industrial and more advanced scenarios!

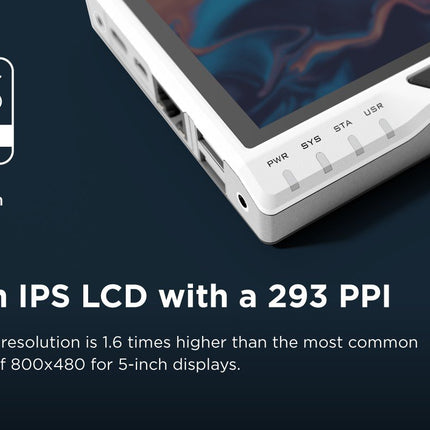

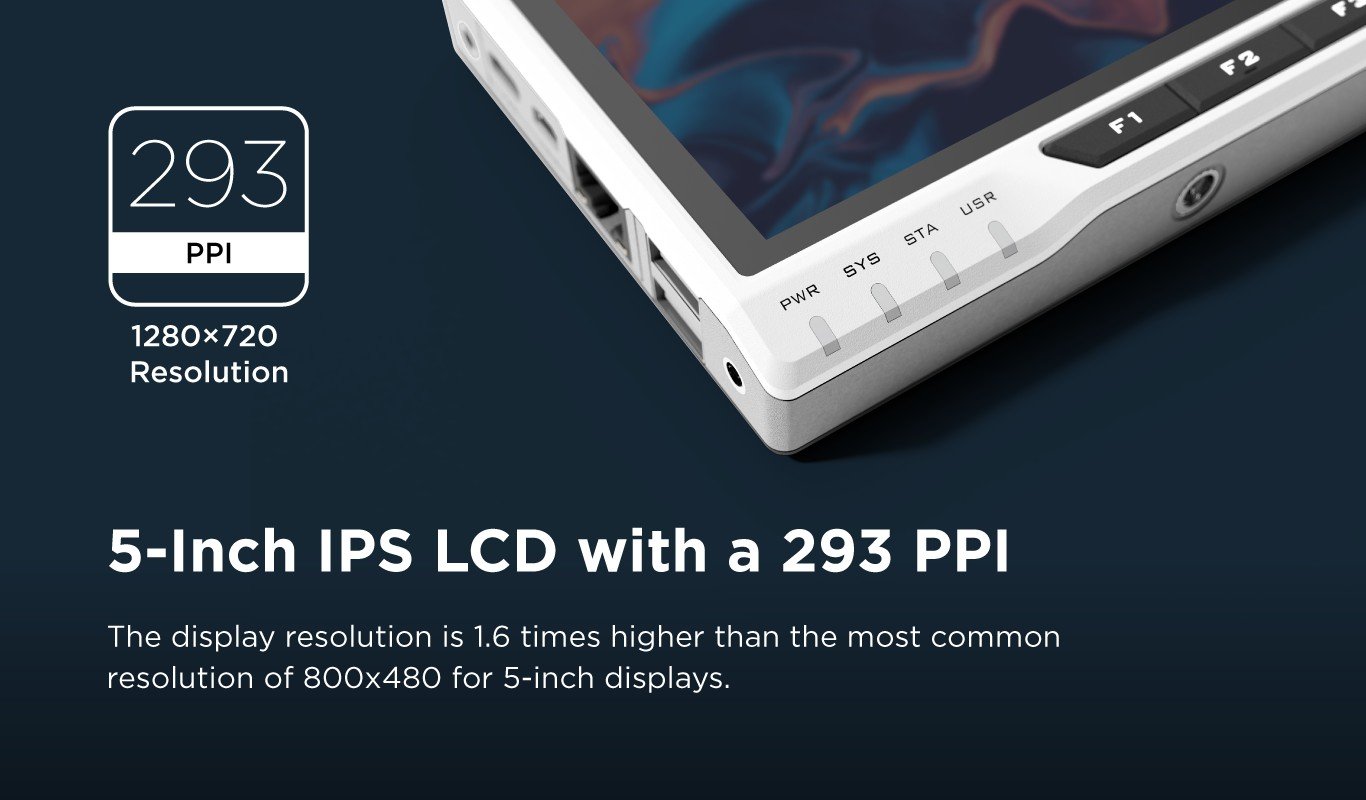

reTerminal also features a 5-Inch IPS capacitive multi-touch screen with a resolution of 1280 x 720 and a pixel density of 293 PPI, providing high definition and rich colors. This resolution is 1.6 times higher than the most common resolution for 5-inch displays, which is 800 x 480. Also, comparing to TN displays, the IPS display on the reTerminal offers better viewing angles as well!
reTerminal has security features such as a cryptographic co-processor with secure hardware-based key storage. It also has protected storage for up to 16 keys, certificates, or data. It provides hardware support for symmetric sign, verify, key agreement - ECDSA. It has hardware support for symmetric algorithms, networking key management and secure boot.
| Specification | Details | |
|---|---|---|
| Platform | Processor | Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) |
| Frequency | 64-bit SoC @ 1.5GHz | |
| Memory | Capacity | 4GB |
| Technology | LPDDR4 with on-die ECC | |
| eMMC | Capacity | 32GB |
| Wireless | Wi-Fi | 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac |
| Bluetooth | Bluetooth 5.0, BLE | |
| Display | LCD | 5-inch 720x1280 LCD |
| Touch Panel | Capacitive touch panel (support multi-touch) | |
| Video | HDMI | 1 x Micro HDMI output (up to 4Kp60 supported) |
| CSI | 1 x 2-lane MIPI CSI camera interface | |
| Multimedia | H.265 (4Kp60 decode) | |
| H.264 (1080p60 decode,1080p30 encode) | ||
| OpenGL ES 3.0 graphics | ||
| Built-In Modules | Real-Time Clock | NXP Semiconductors PCF8563T |
| Low backup current; typical 0.25μA at VDD = 3.0 V and Temperature = 25 ℃ | ||
| Accelerometer | STMicroelectronics LIS3DHTR | |
| 16-bit, ±2g/±4g/±8g/±16g dynamically selectable full scale | ||
| Encryption | Microchip ATECC608A | |
| Secure Hardware-Based Key Storage, Asymmetric Sign, Verify, Key Agreement | ||
| Light Sensor | Levelek LTR-303ALS-01 | |
| Digital light sensor | ||
|
Internal IO
Expansion |
Microchip MCP23008-E | |
| Buzzer | ≥85dB @10cm 2700±300Hz | |
| External I/O | GPIOs | Up to 5 × UART |
| Up to 5 × I2C | ||
| Up to 5 × SPI | ||
| 1 × SDIO interface | ||
| 1 × DPI (Parallel RGB Display) | ||
| 1 × PCM | ||
| 1 × PWM channel | ||
| Up to 3× GPCLK outputs | ||
|
Vertical expansion
interface |
1 × PCIe 1-lane Host, Gen 2 (5Gbps) | |
| 1 × USB 2.0 port (highspeed) | ||
| 26 x GPIOs | ||
| POE | ||
| Power | Voltage | 5V DC |
| Current | 3A(Minimum) | |
| Temperature | Operating Temperature | 0 - 70°C( For the LCD Screen: 0 - 60°C) |
| Mechanical | Dimensions | 140mm x 95mm x 21mm |
| Weight | 285g | |
| Certification | Certificates | CE, FCC, TELEC(211-210815) |
