The SQ-D60 B is a mini 60W soldering iron that can be powered via the included USB-C cable, or via a lipo (12-24V) via the XT60 connector. The temperature is adjustable between 100-400℃ making this an ideal soldering iron for all of your FPV quadcopter building needs. Furthermore the soldering tips are compatible with the popular TS100 soldering iron tips, giving you a wide range of soldering tip options.

SQ-D60 adopts integrated TYPE-C power supply interface. The circuit design is stable and safe. The built-in STM32 processor, dual temperature sensor and motion sensor are the perfect combination to make SQ-D60 freely switch between various temperature ranges. Wake-up, over-temperature and high-pressure alarm, etc., truly realise intelligent constant temperature electric soldering iron.

Key Features

• Power - 60W
• Temperature stability - ±2%
• Sleep Timer - adjustable between 1-30min
• Temperature Range - 100℃ - 400℃(max) - adjustable in 50 degree steps.
• Max operation ambient temperature - 40°C

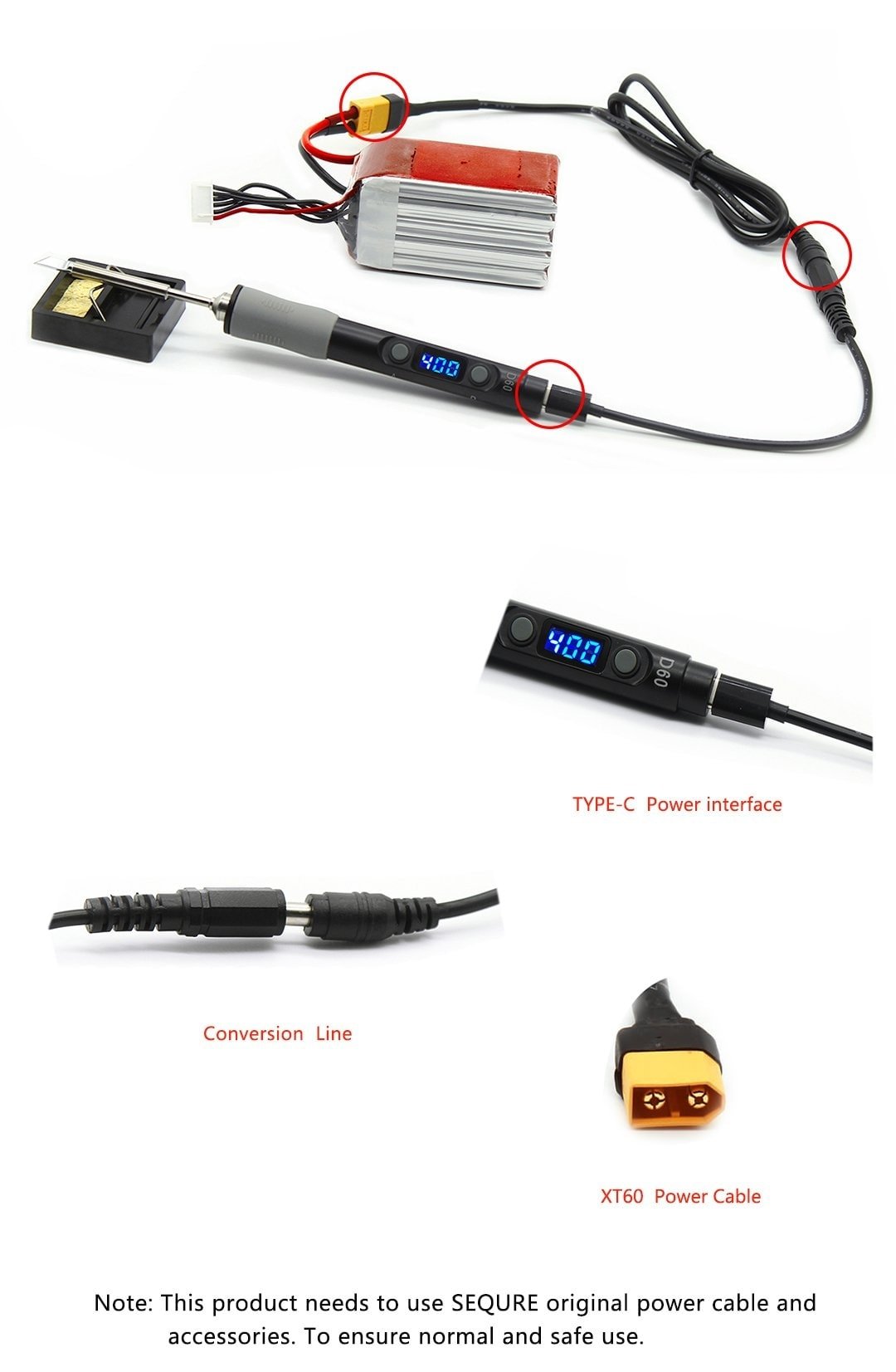

• USB-C connection
• XT60 power cable included

Safety instructions:

1. Please use proper power supply and accessories to ensure safe use.
2. Before replacing the soldering iron head, you must cut off the power.
3. Do not touch the tip of the soldering iron after the temperature has risen to avoid burns.
4. The electric soldering iron is used for the first time. It may be slightly smoked due to the heating of the heating element. This is normal.

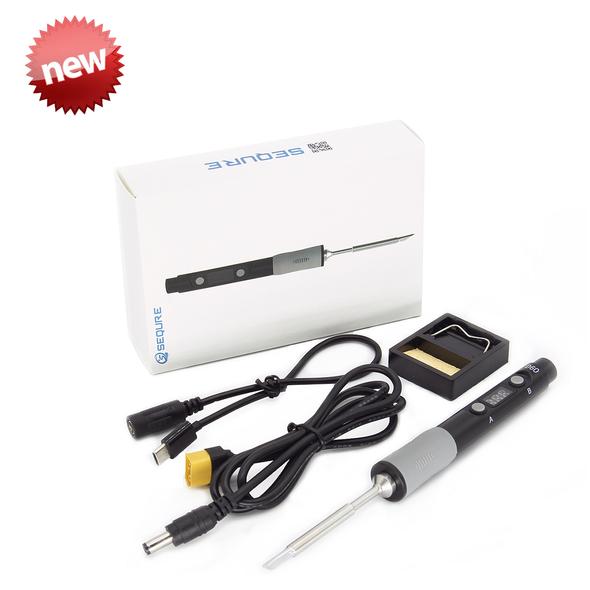

Kit Contents

• 1 x Mainframe
• 1 x Soldering Iron Tip
• 1 x Conversion Line
• 1 x Instruction Manual
• 1 x Soldering Iron Stand
• 1 x Hex Key
• 1 x XT60 Power Cable
