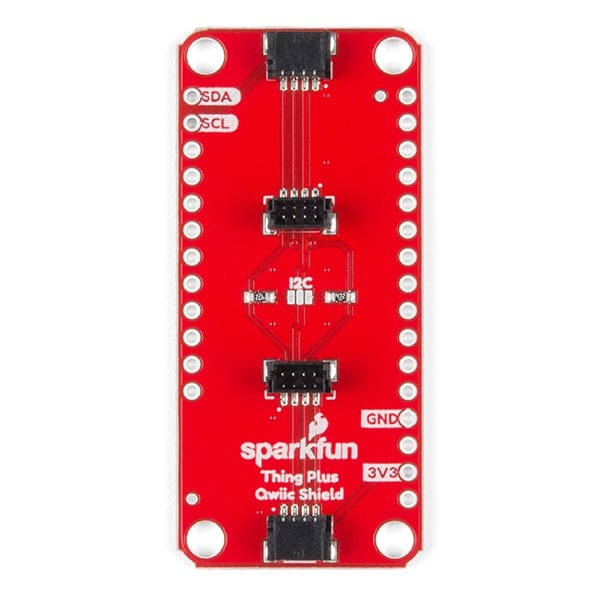

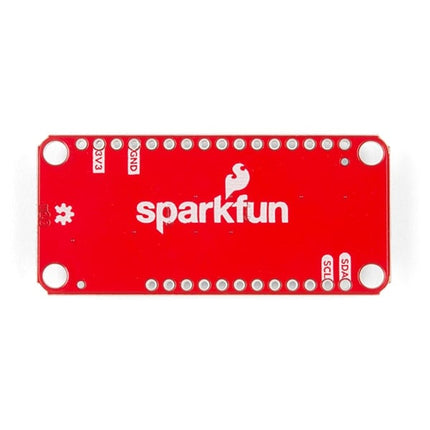

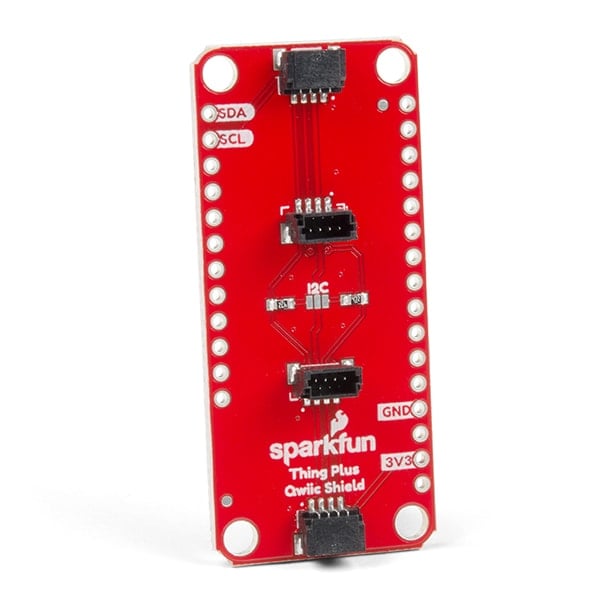

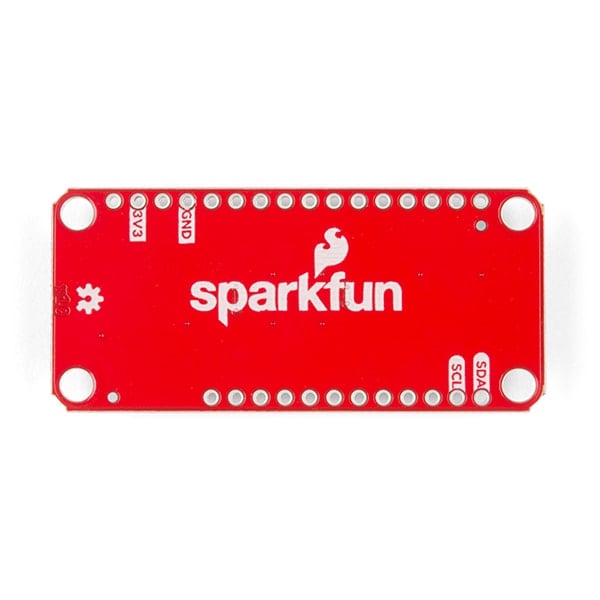

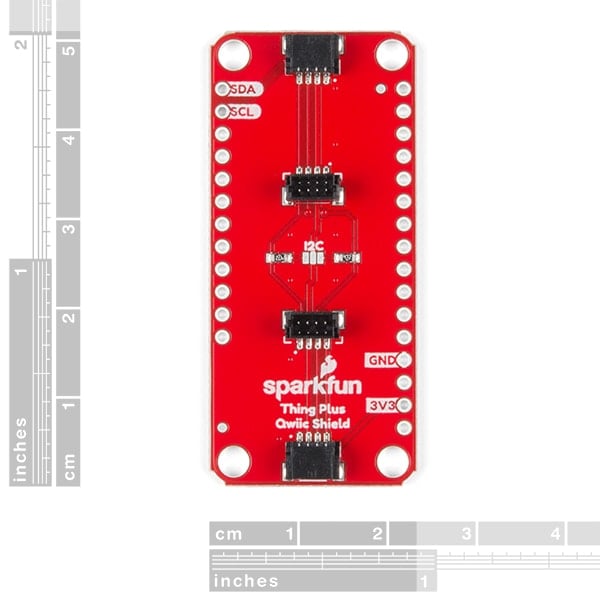

The SparkFun Qwiic Shield for Thing Plus provides an easy-to-assemble way to add the SparkFun Qwiic connect ecosystem to any development board with the Thing Plus Footprint. The Thing Plus footprint is also compatible with the Feather Footprint so you can use this shield with any Arduino development board that uses the Thing Plus or Feather Footprints! It connects the I 2 C bus (GND, 3.3V, SDA, and SCL) on your Thing Plus to four SparkFun Qwiic connectors. The Qwiic ecosystem allows for easy daisy chaining so, as long as your devices are on different addresses, you can connect as many Qwiic devices as you'd like.
This jumper is a little different than our normal I 2 C pull up jumpers as it is open by default. The jumper only needs to be closed if your slave device does not have pull up resistors. Essentially all SparkFun I 2 C breakouts come with pull up resistors on them so if you are using a Qwiic I 2 C device or another SparkFun I 2 C device, you can most likely leave it open.
All that is needed to get started using the Qwiic Shield for Thing Plus is to solder your chosen headers to the shield and, if necessary, to your Thing Plus or Feather board. Take care to match the markings on the Qwiic Shield to the appropriate pins on your Thing to avoid shorting anything out and possibly damaging your boards.
&feature=emb_title
The SparkFun Qwiic connect system is an ecosystem of I 2 C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector (JST-SH 1.0). This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.
