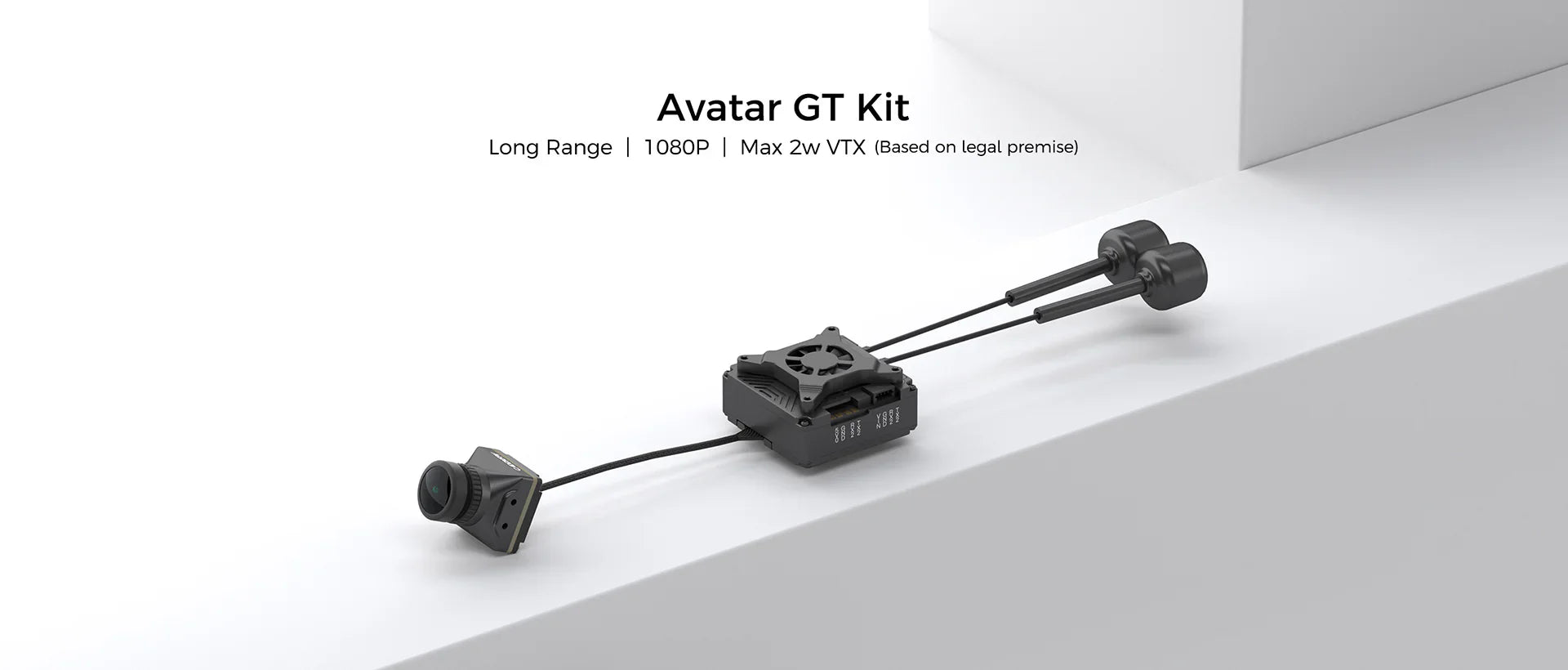

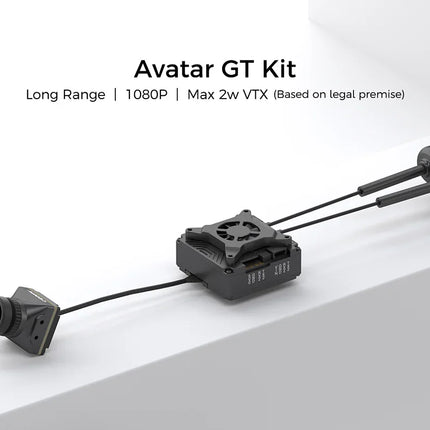

Walksnail Avatar GT FPV Kit - Extend Your Flight, Not Your Wires

Take your drone's video quality and signal range to pro-level with the Walksnail Avatar GT. Boasting up to 2 W output power (within legal limits), this kit delivers exceptional signal strength and extended flight range. Perfect for pilots who crave uninterrupted exploration and rock-solid FPV performance.

🔥 Key Features

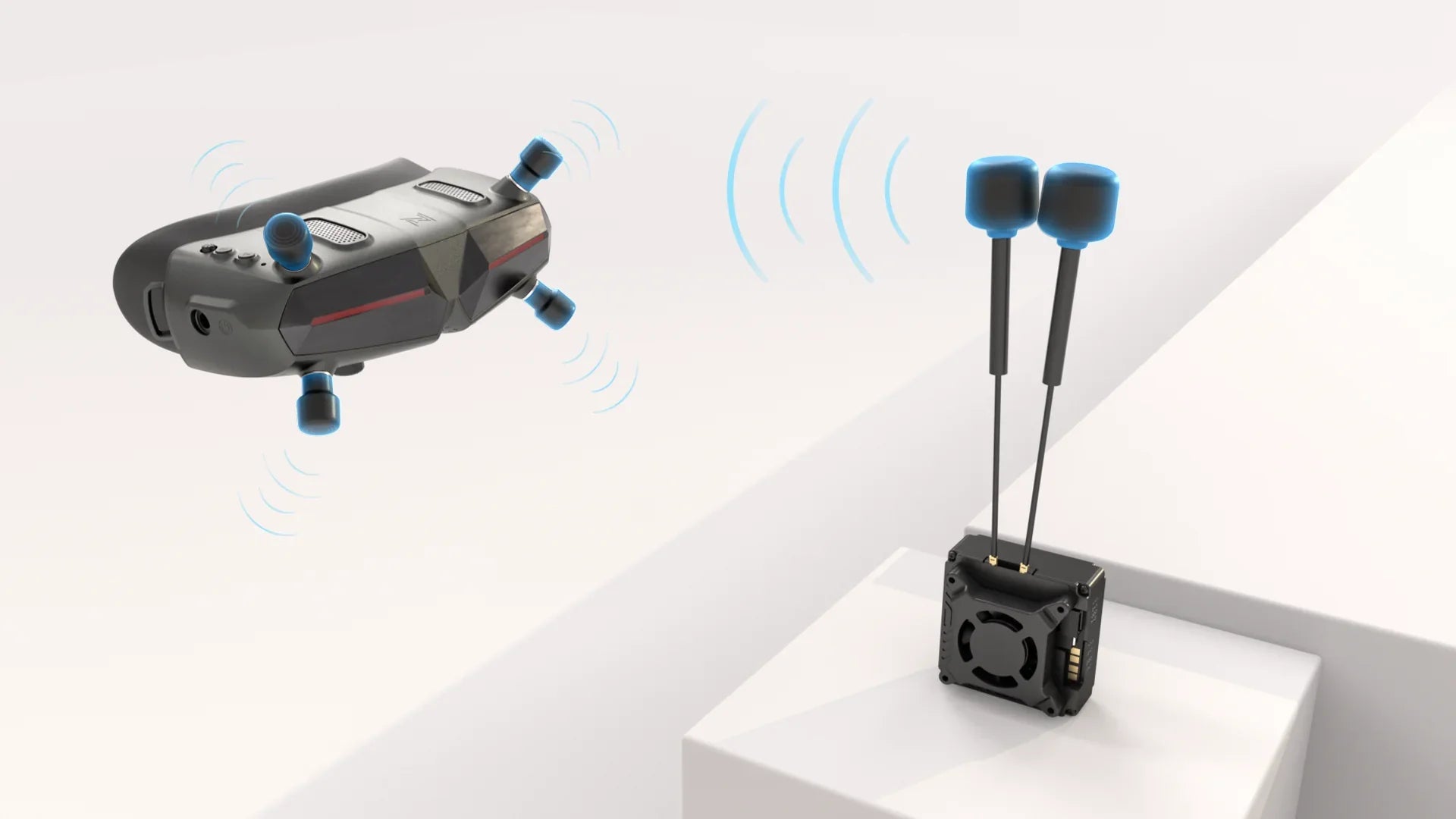

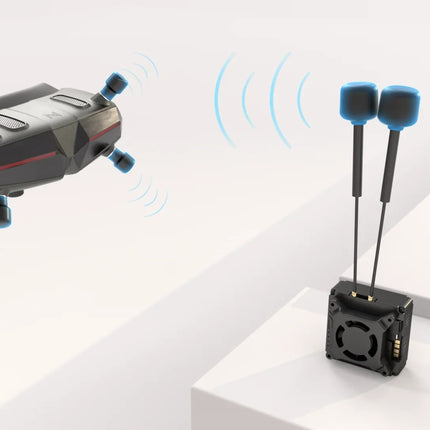

• • High‑Power Signal: Reaches up to 2 W transmission for superior range and clarity
  •

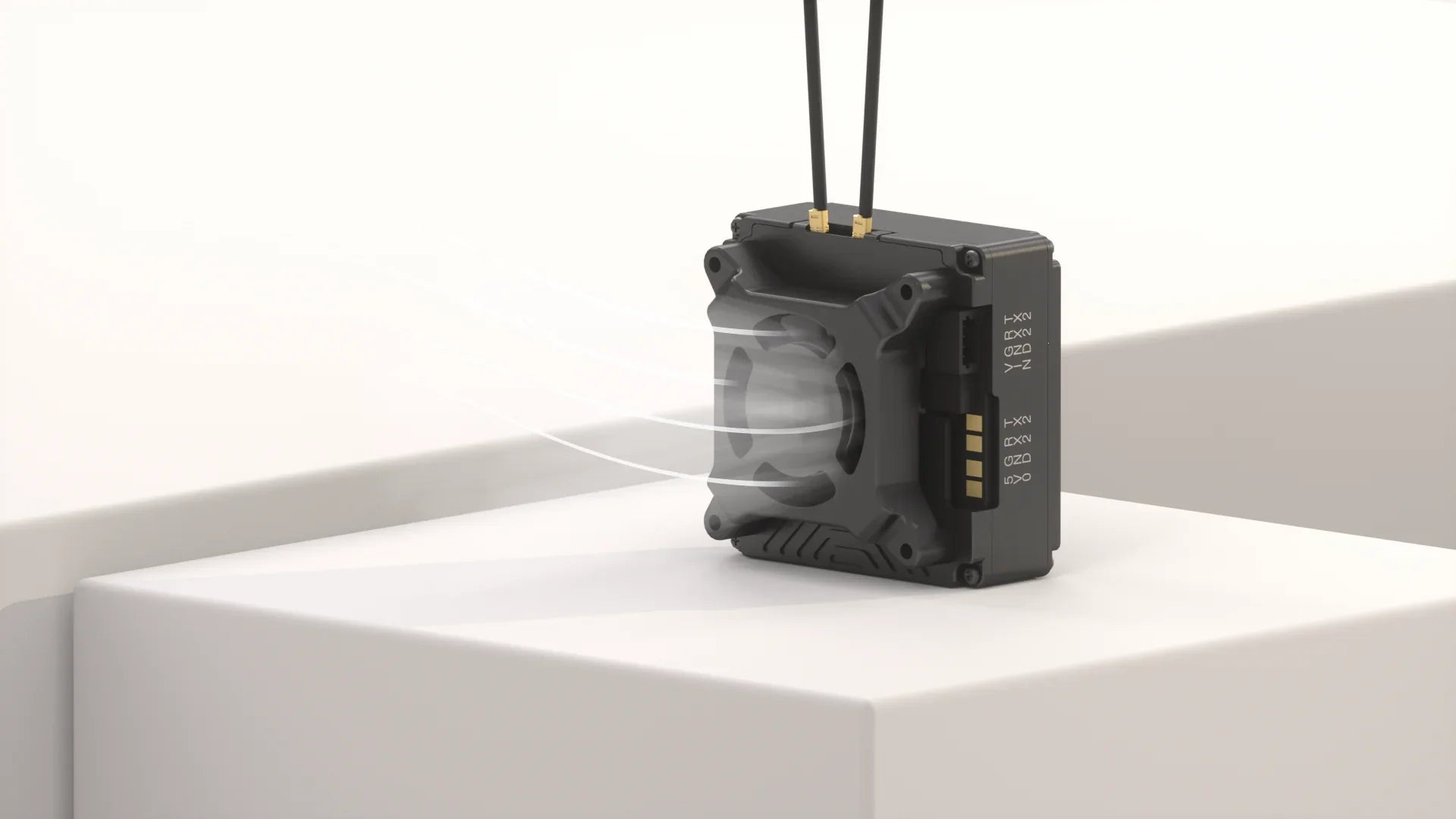

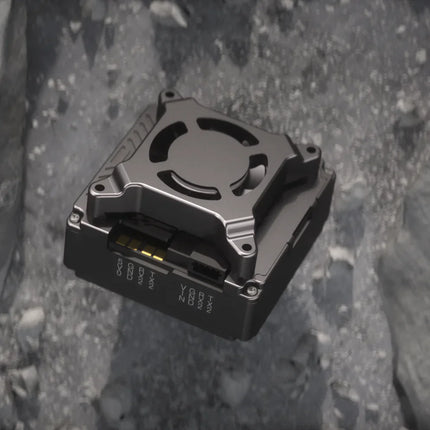

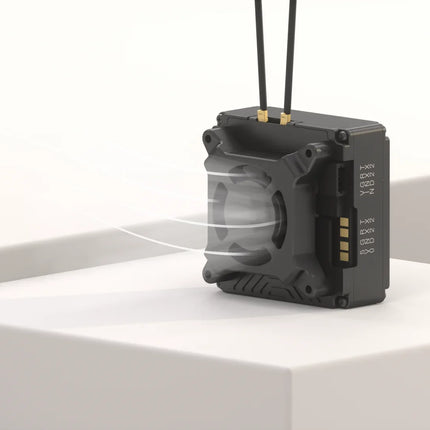

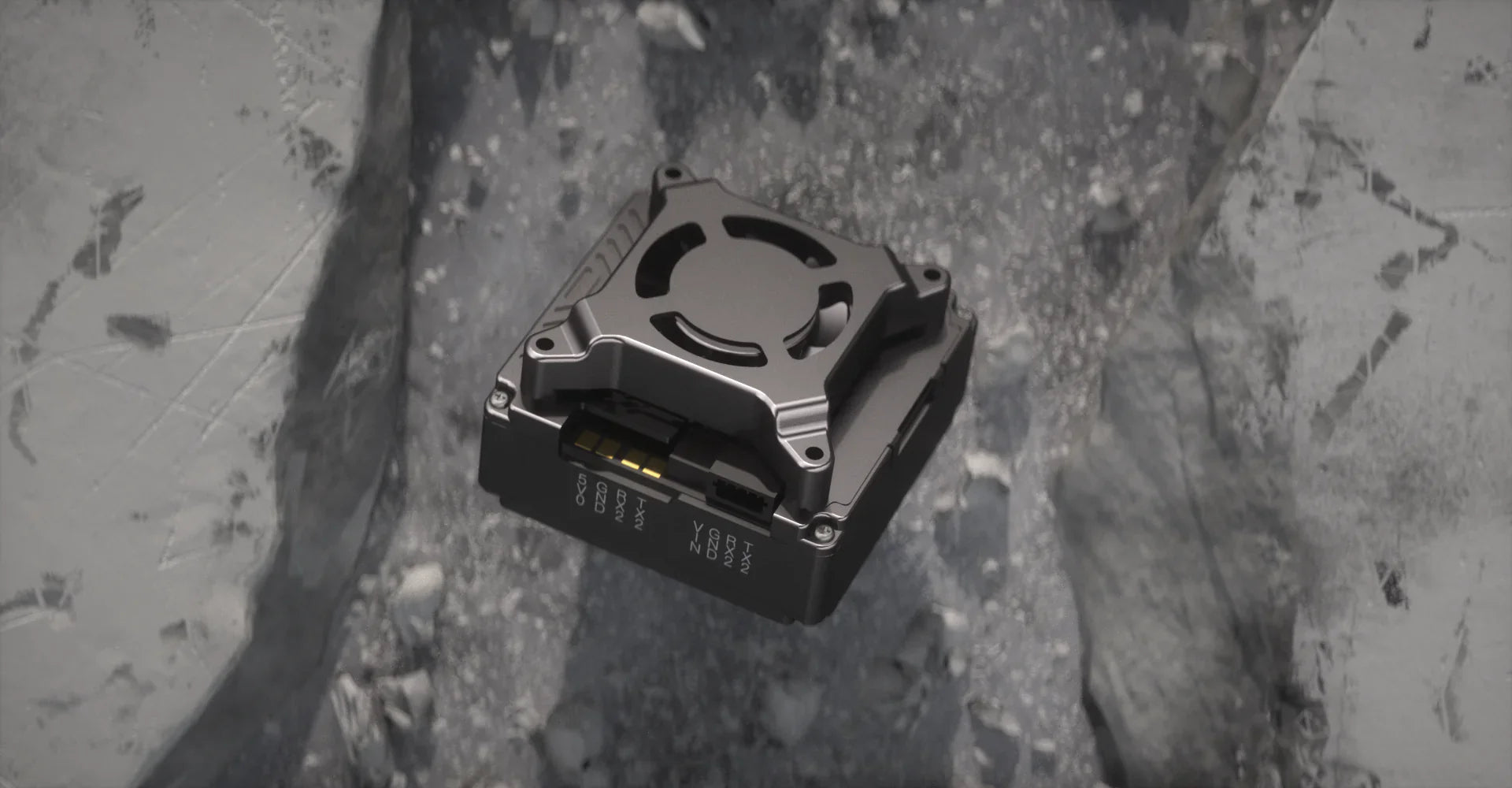

  • Advanced Heatsink: Top‑mounted heatsink ensures cool operation even on marathon flights

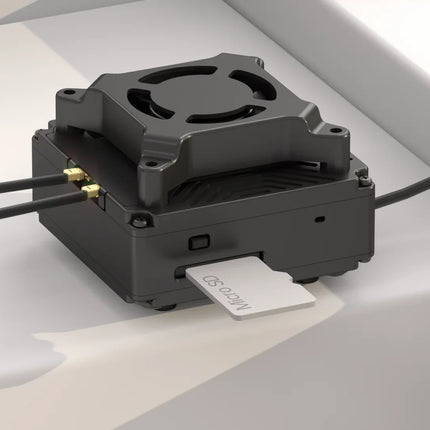

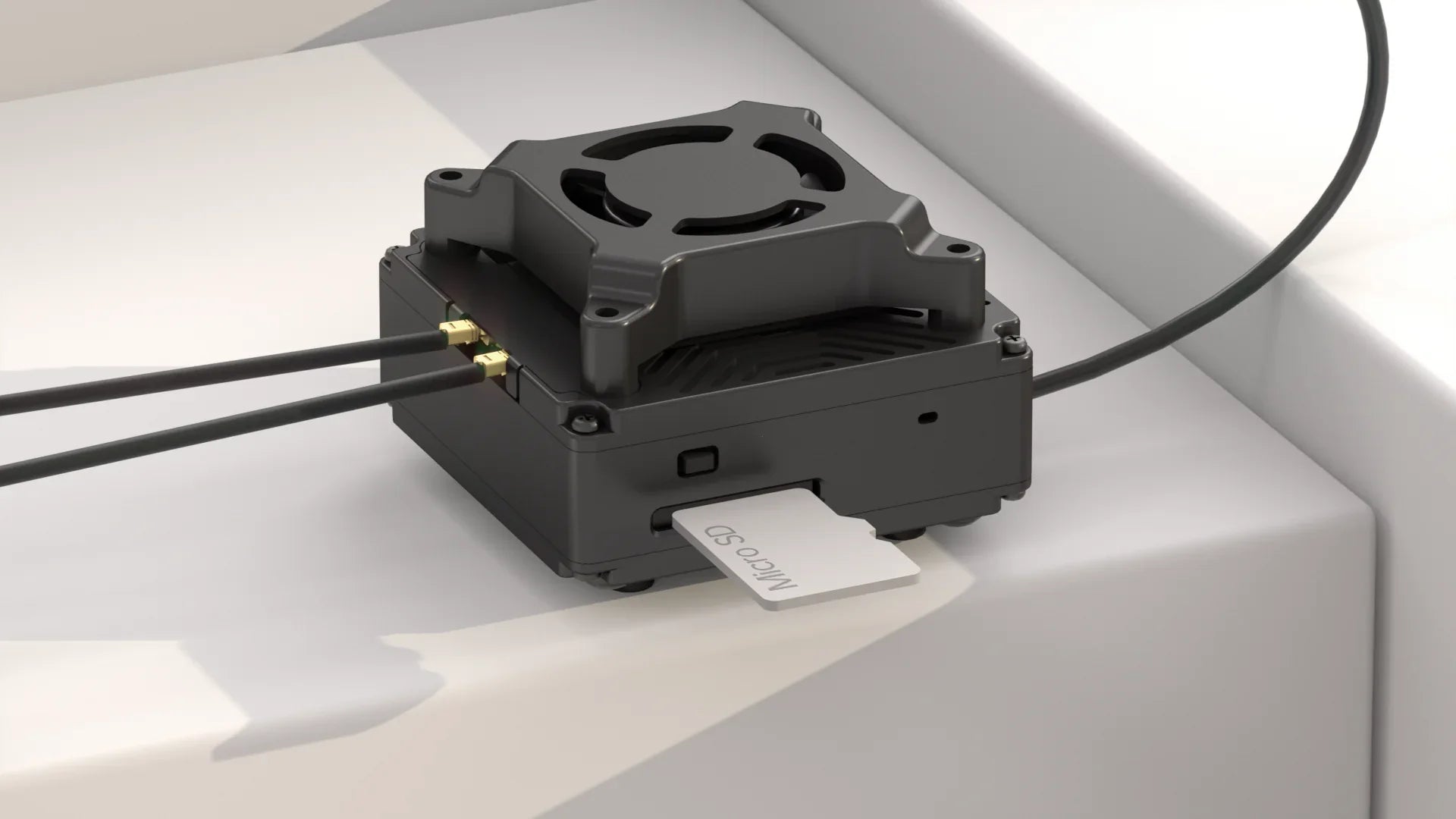

• Expandable Storage: Micro‑SD slot (up to 256 GB) supports 1080p/720p HD recording with no interruptions

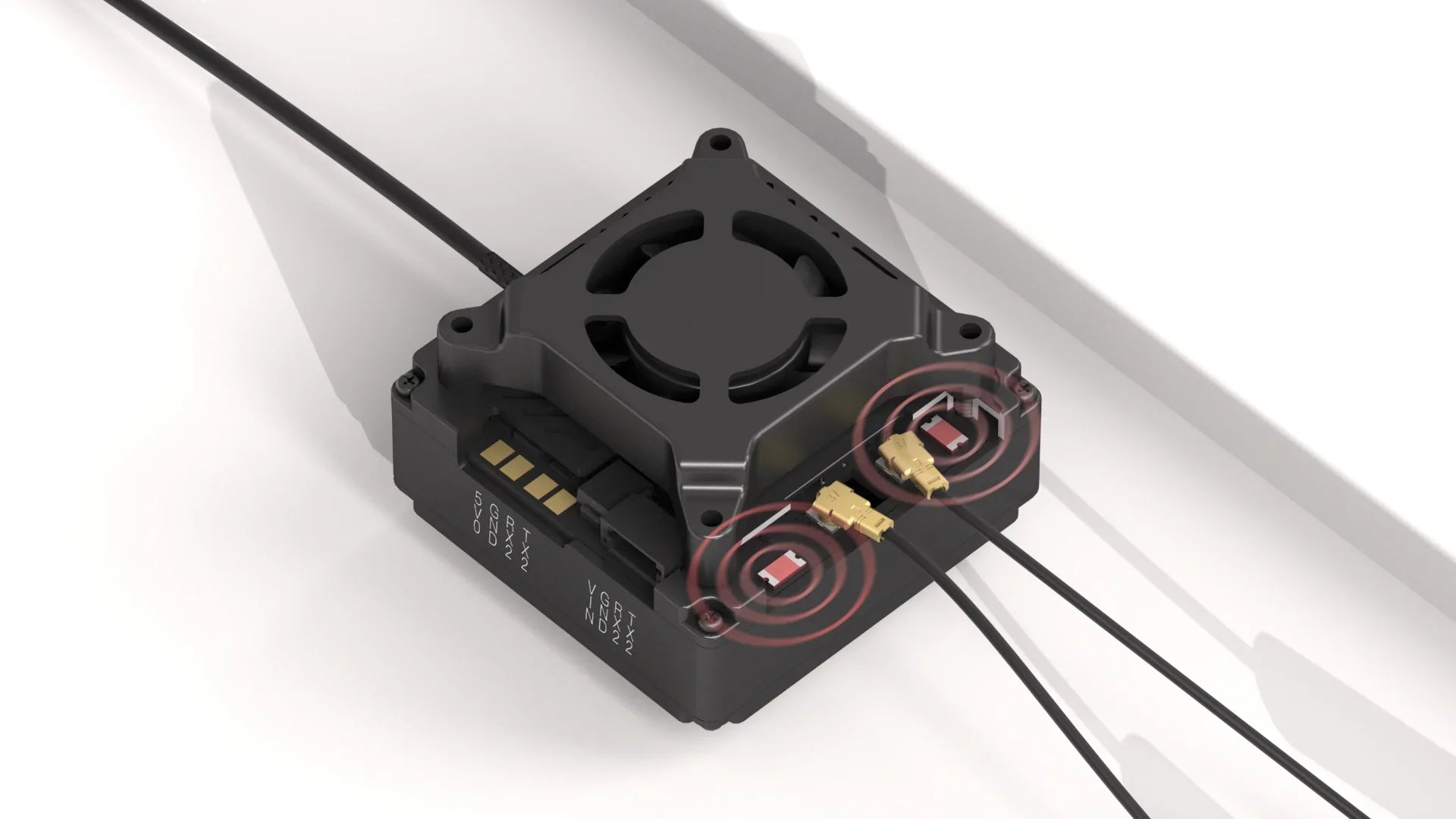

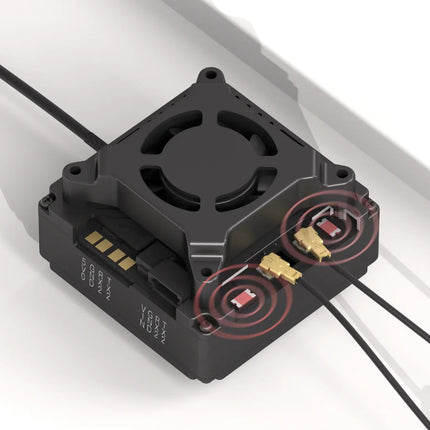

• Low‑Power Ceramic Antenna: Optimized for efficient, low‑heat signal during brief flights

• GPS‑Hardened: New shielding minimizes interference—excellent for challenging environments

• Nighttime Clarity: Pro camera with 1/1.8″ Sony Starvis II sensor gives crisp night vision rivaling daylight

• Ultra‑Smooth Footage: Gyroflow-compatible support ensures buttery stabilization

• Low Latency: High‑frame rate mode delivers ~22 ms delay for real-time responsiveness

Specifications

Camera

Model	Avatar HD Pro Camera
Image Sensor	1/1.8-Inch Sony Starvis II sensor
Resolution	1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps
Ratio	16/9; 4/3
Lens	8Mp
FOV	160°
Aperture	F1.6
Shutter	Rolling shutter
Min. Illumination	0.00001Lux
Weight	9.5g
Dimensions	19×19×24mm
Coaxial Cable	140mm
Gyroflow	Supported

VTX

Model	Avatar GT
Communication Frequency	5.725-5.850 GHz
Transmitter Power (EIRP)	FCC: <30dBm, MAX: 33dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
I/O Interface	Micro SD card slot; JST1.0×4 (power cable)
Supported SD Cards	Micro SD (up to 256 GB)
Mounting Holes	25.5×25.5mm; 20×20mm
Dimensions	34×34×23mm
Recording	1080p/720p
Weight	41.6g (antenna included)
Operating Temperature	-10 to 40℃
Channels	8
Wide Power Input	11.1V-25.2V
Supported FC System	Betaflight, Inav, Fettec, Kiss, ArduPilot
OSD	Canvas mode
Latency	Average delay 22ms
Antenna	2 (IPEX)

📦 In the Box

• Avatar GT Pro camera (Sony Starvis II)
• Top-mounted heatsink (pre-installed)
• Micro-SD card slot assembly (card not included)
• Internal ceramic antenna + coaxial cable (140 mm)
• Dual‑antenna mount base (antennas sold separately)
• GPS interference protection shield
• Instruction manual & mounting hardware

Note: Contents and accessories may vary depending on supply.
