Description

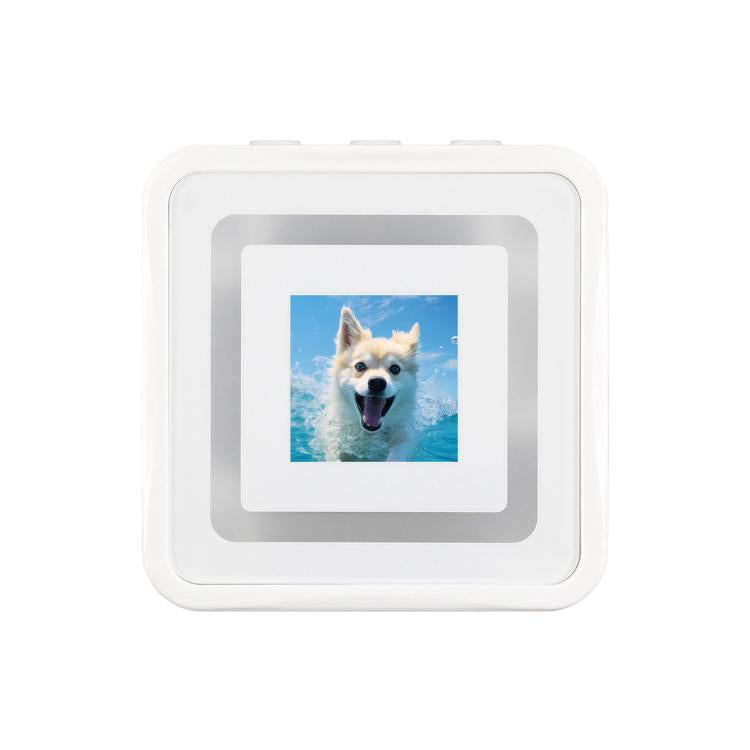

1. The ESP32-C6-LCD-0.85 is a microcontroller development board supporting 2.4GHz Wi-Fi 6 and Bluetooth BLE 5. It features a custom-molded, compact, and stylish square plastic housing with a premium feel. The board integrates peripherals such as a 0.85-inch IPS color LCD, a Micro SD card slot, eight RGB LEDs, and a low-power audio codec chip, facilitating the development of multimedia and interactive applications. With these hardware resources, the board supports functions like image display, audio playback, and lighting control, making it suitable for both rapid prototyping and integration into end products for customization and further development.
2. Powered by the high-performance ESP32-C6 32-bit RISC-V processor, with a clock speed of up to 160 MHz

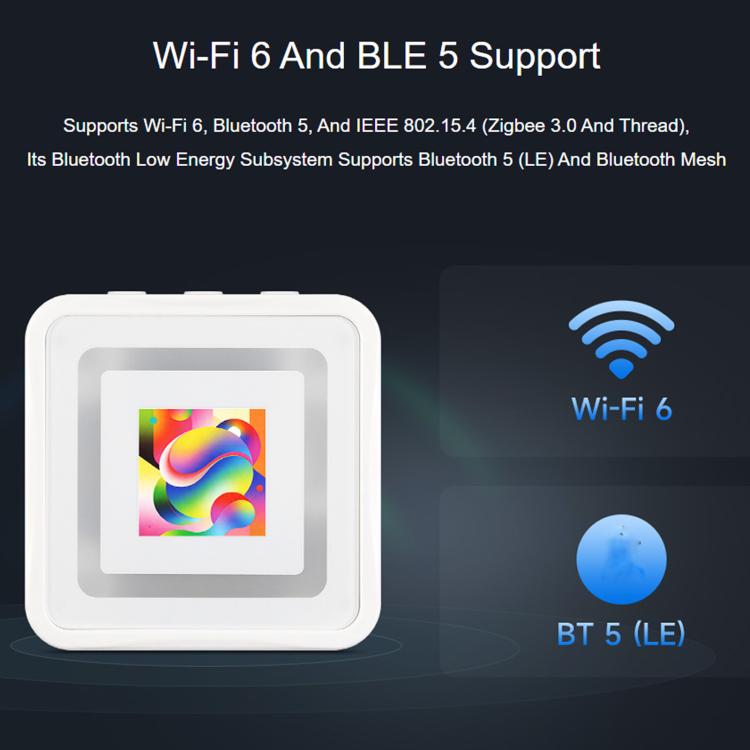

3. Integrates Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless connectivity; features an onboard antenna and excellent RF performance
4. Built-in 512 KB SRAM, 320 KB ROM, and 8 MB Flash
5. Uses a Type-C interface for enhanced user convenience and device compatibility
6. Onboard 0.85-inch LCD screen with 128 × 128 resolution and 65K colors

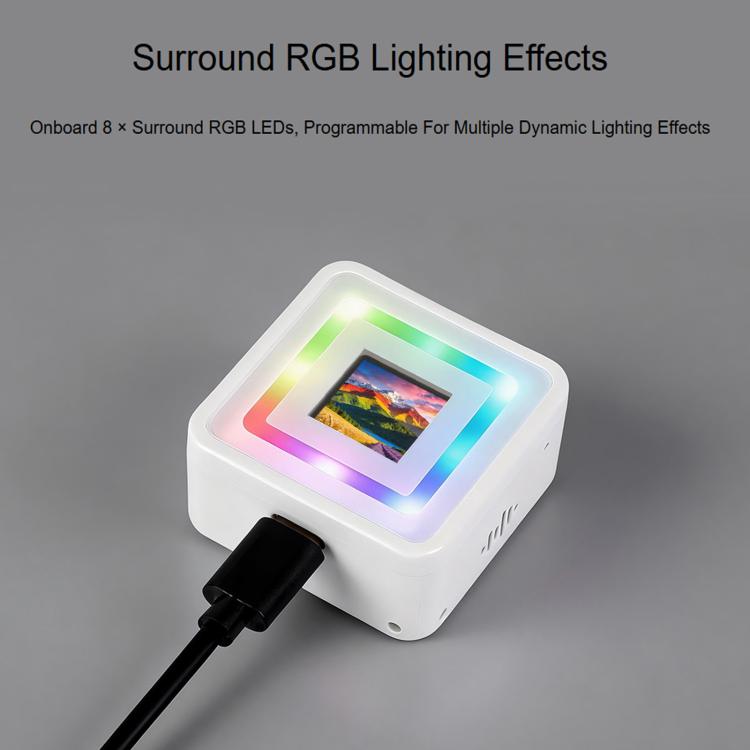

7. Onboard ring of 8 RGB LEDs, programmable for various dynamic lighting effects
8. Onboard 3.7V MX1.25 interface for lithium battery charging and discharging
9. Breakout pads for I2C, UART, etc., enabling connection to external devices, debugging, and flexible peripheral configuration
10. Onboard Micro SD card slot providing expandable storage, fast data transfer, and flexibility; suitable for data logging and media playback, simplifying circuit design

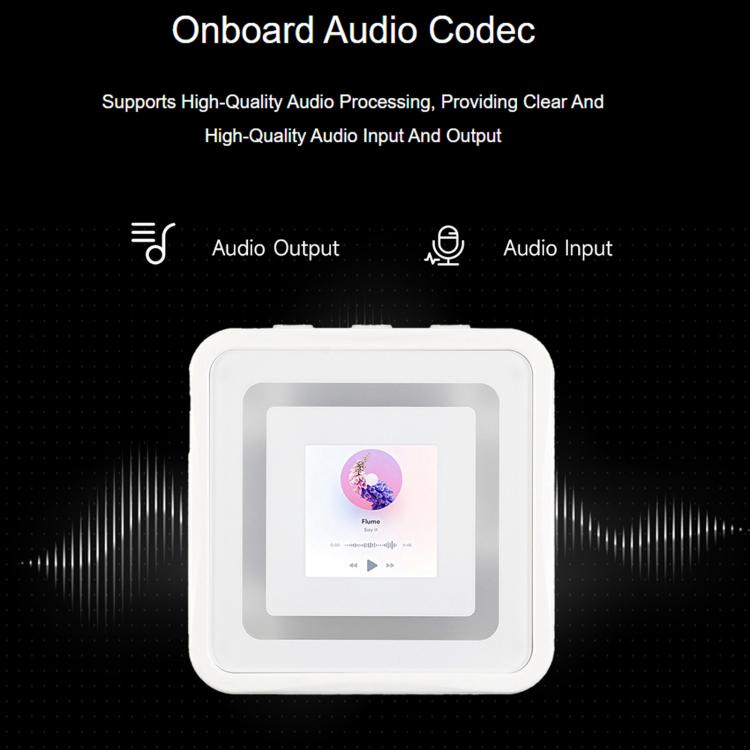

11. Includes onboard ES8311 audio codec chip, dual-microphone module, and other resources

LCD Screen Specifications:
1. Display resolution: 128 × 128 pixels
2. Display colors: 65K
3. Display panel: IPS
4. Pixel pitch: 39.6 × 118.8 μm
5. Interface type: 4-wire SPI
6. Driver IC: ST7735
7. Display size: 15.21 × 15.21 mm
