GEPRC EM4214 660KV Motor
GEPRC EM4214 660KV Motor
£37.42 IVA incluido
-
Guaranteed secure & safe checkout.
- ¿Enviado hoy? Pide dentro:
- Free shipping on all orders above £50,00
- No hassle returns, 30 days return
Pay whenever you want
Easily pay within 30 days after you have received your package.
Read more
Descripción

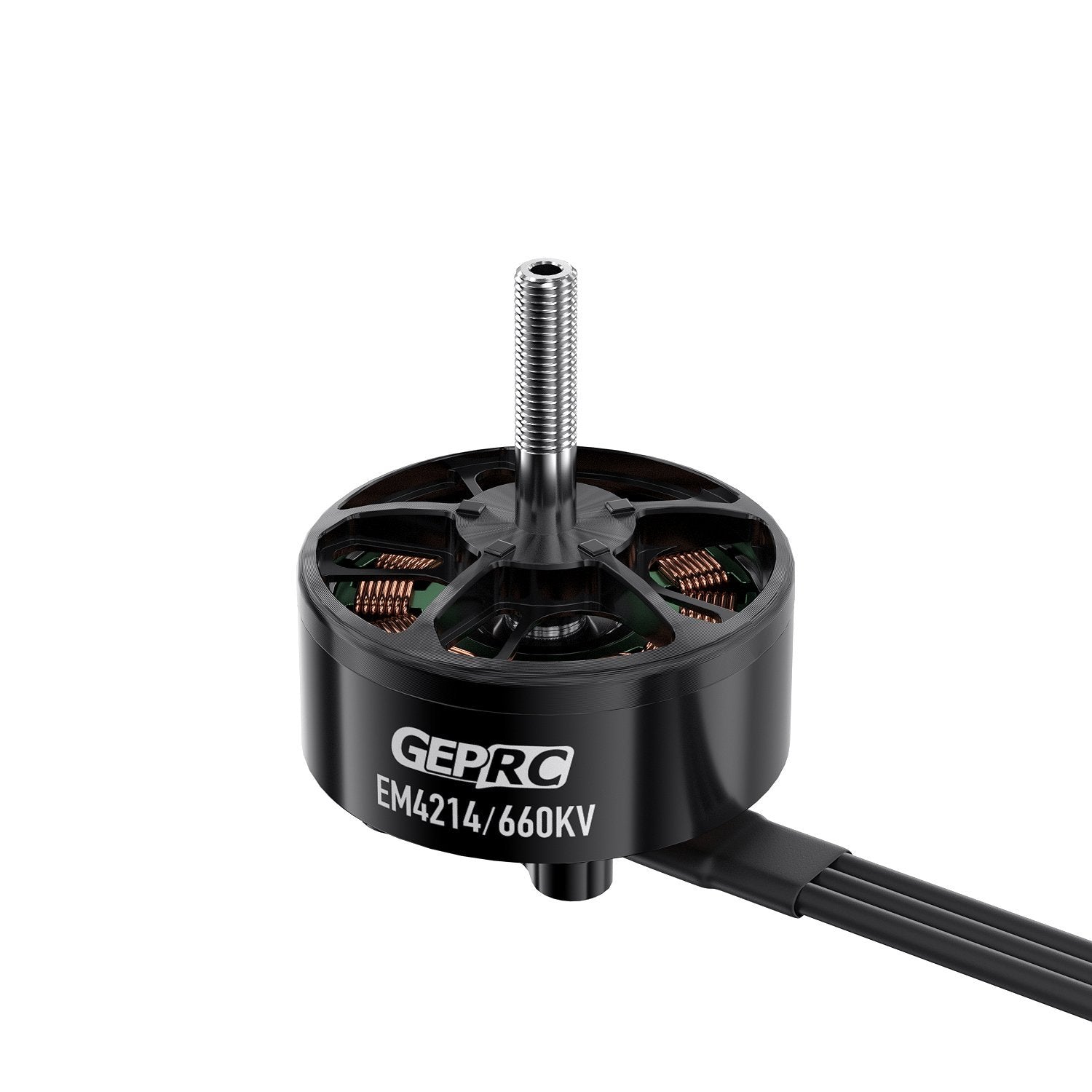

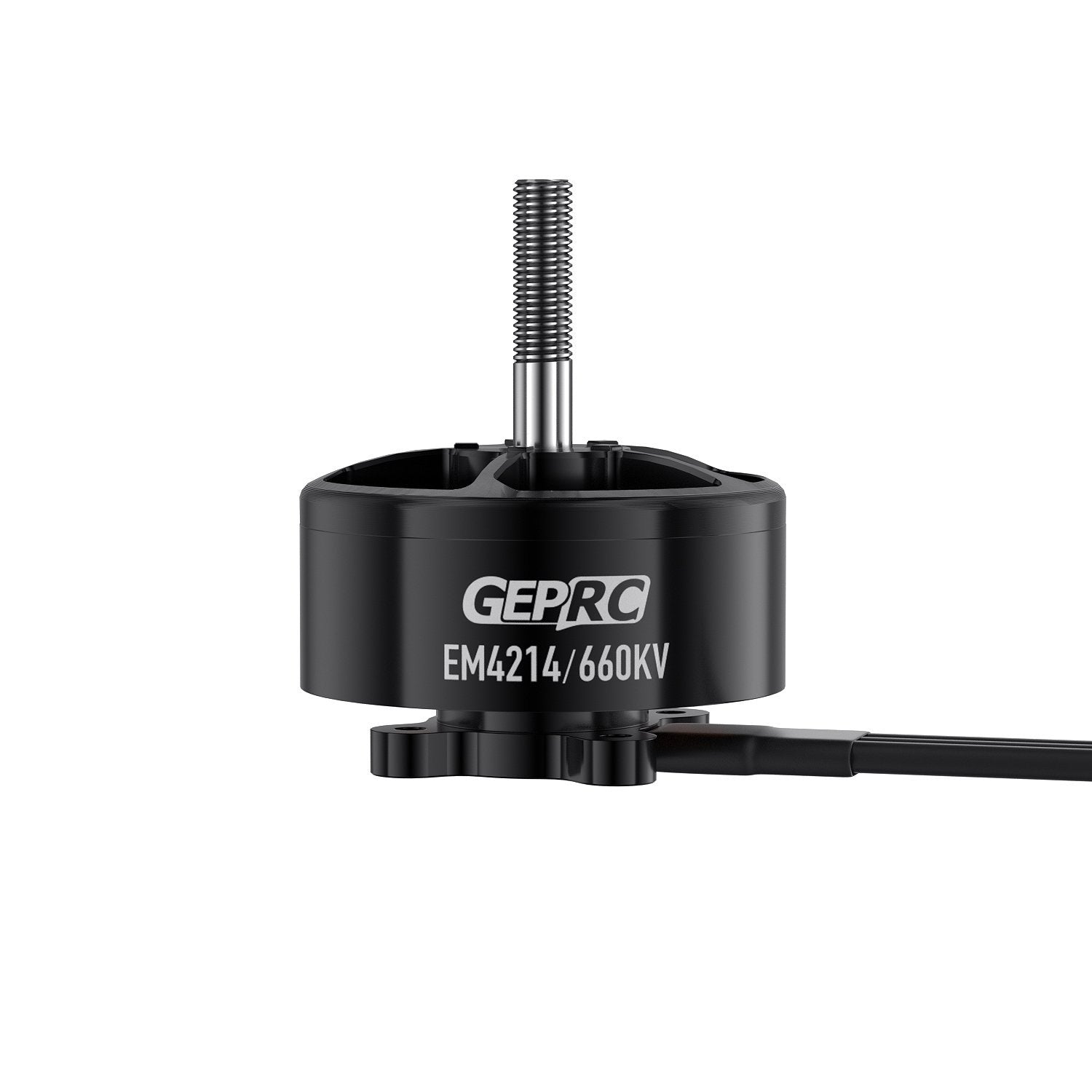

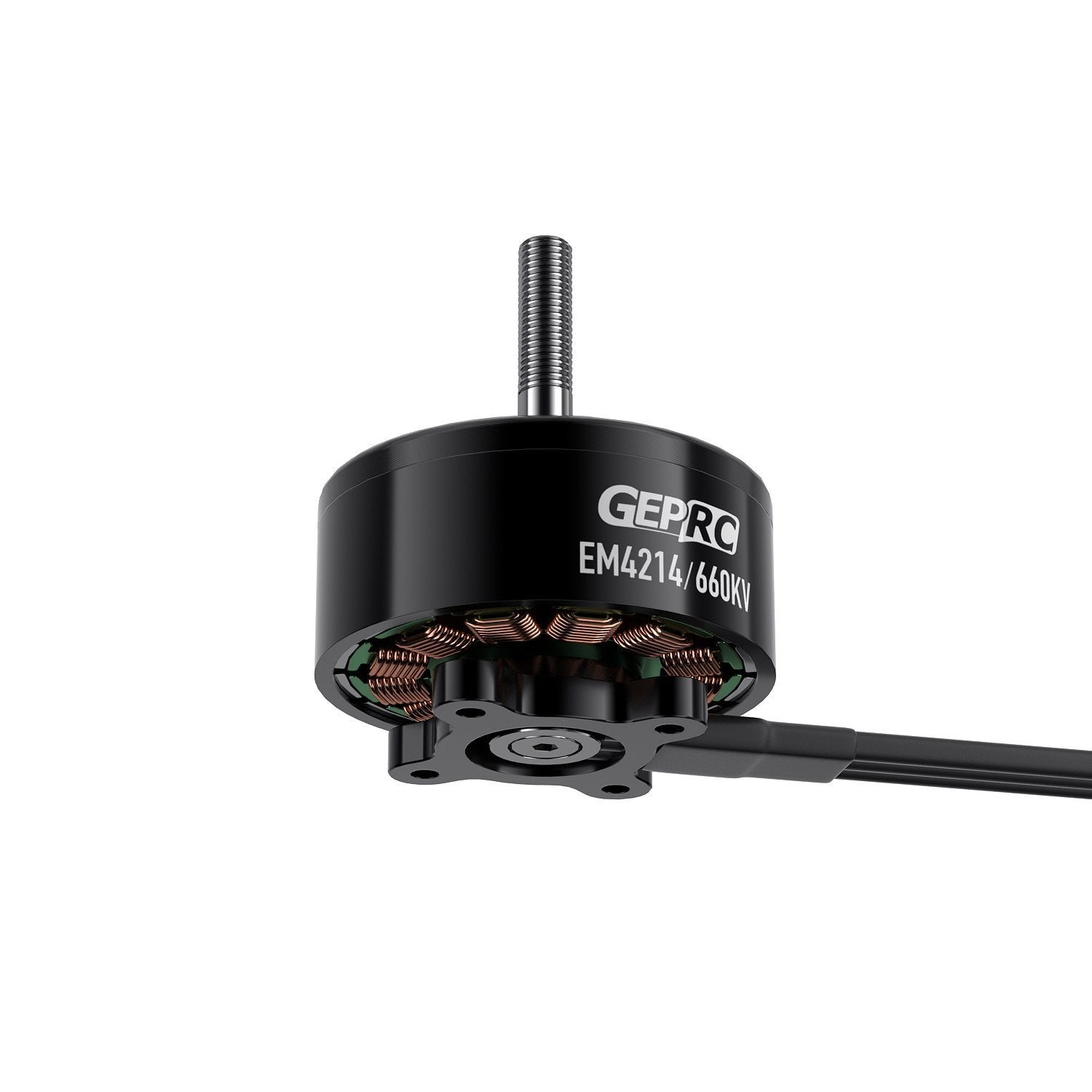

EM4214 660KV Brushless Motor - Built for Long-Range FPV Dominance
When endurance meets power, you get the EM4214 660KV motor —a high-torque workhorse designed specifically for long-range FPV drones . Built with a high-strength M6 steel shaft and an optimized magnetic circuit , this motor delivers exceptional efficiency, smooth performance, and insane reliability at high wattage. Whether you're pushing the limits of your 6S LiPo setup or cruising the skies with 12-14 inch propellers , the EM4214 has the muscle to keep you airborne longer.
Key Features:
- Optimized for long-range FPV - Maximum efficiency for extended flight times.
- High-strength M6 steel shaft - Built for durability and crash resistance.
- High torque magnetic circuit - Enhanced power delivery for smooth throttle response.

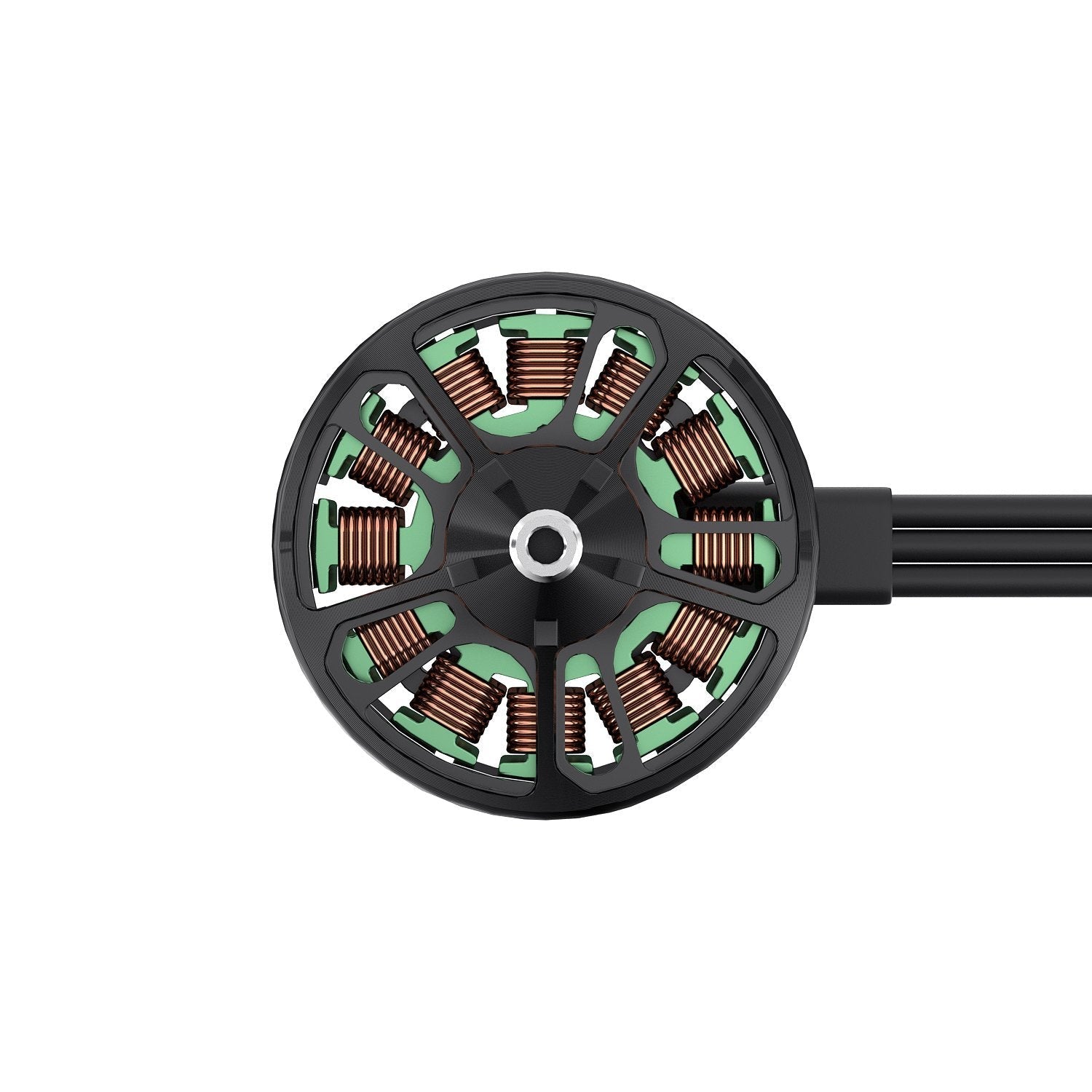

- Single-strand copper winding - Improved electrical efficiency and heat dissipation.
- Precision NMB bearings - Smooth operation with reduced friction for longer lifespan.

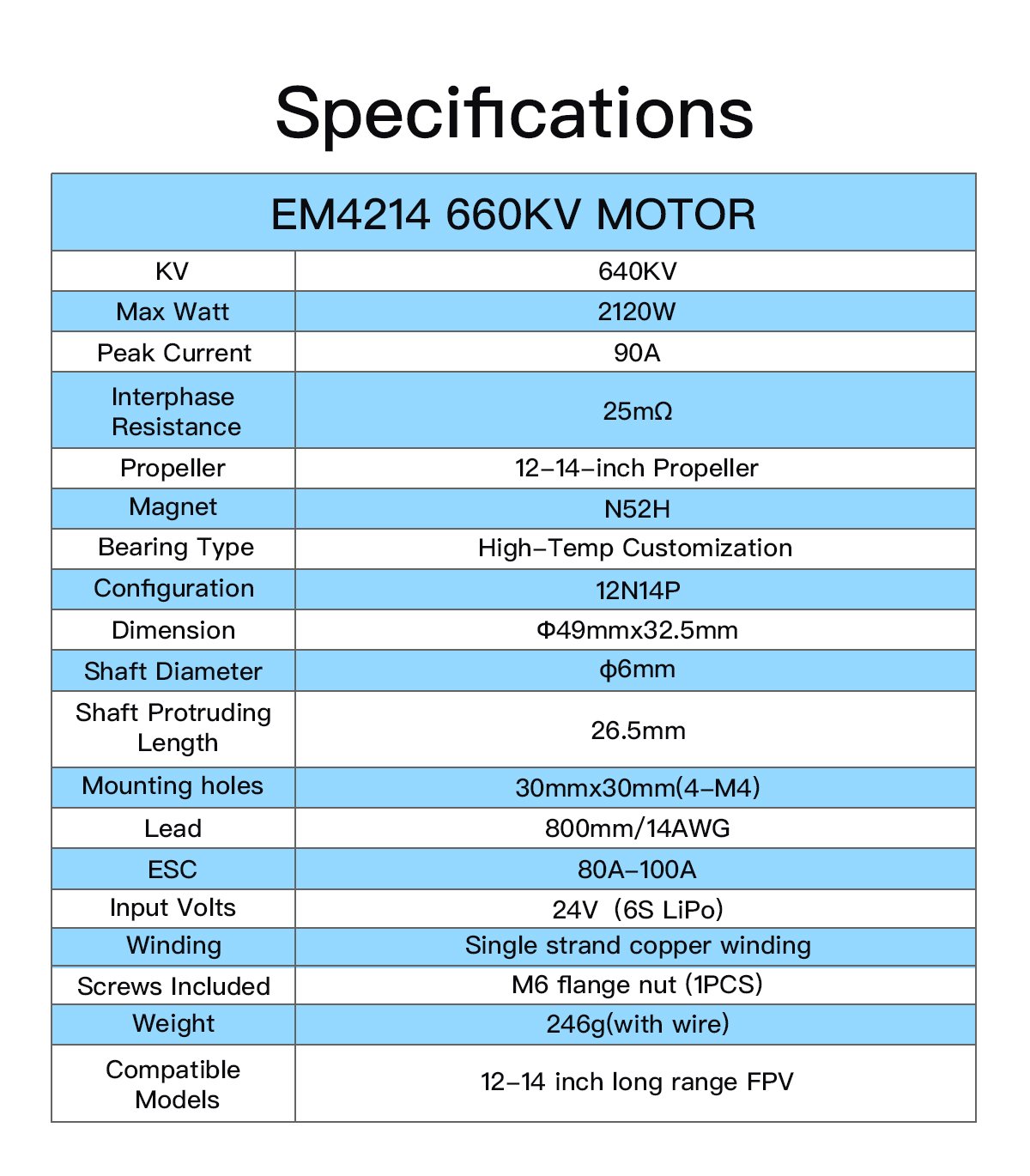

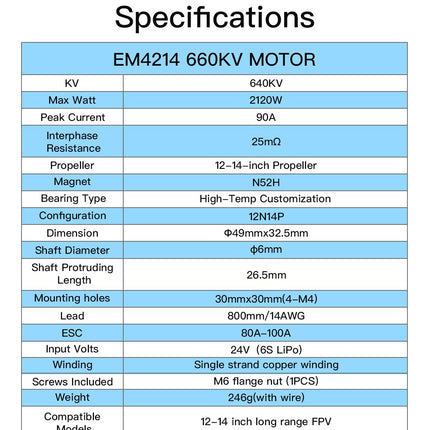

Specifications
-
Model: EM4214 660KV Motor
-
KV: 660KV
-
Max Watt: 2120W
-
Peak Current: 90A
-
Interphase Resistance: 25mΩ
-
Propeller: 12-14inch Propeller
-
Magnet: N52H
-
Bearing Type: NMB
-
Configuration: 12N14P
-

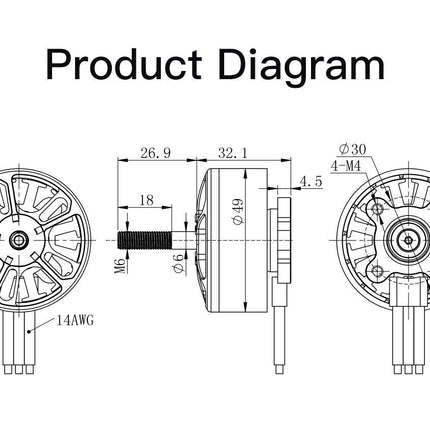

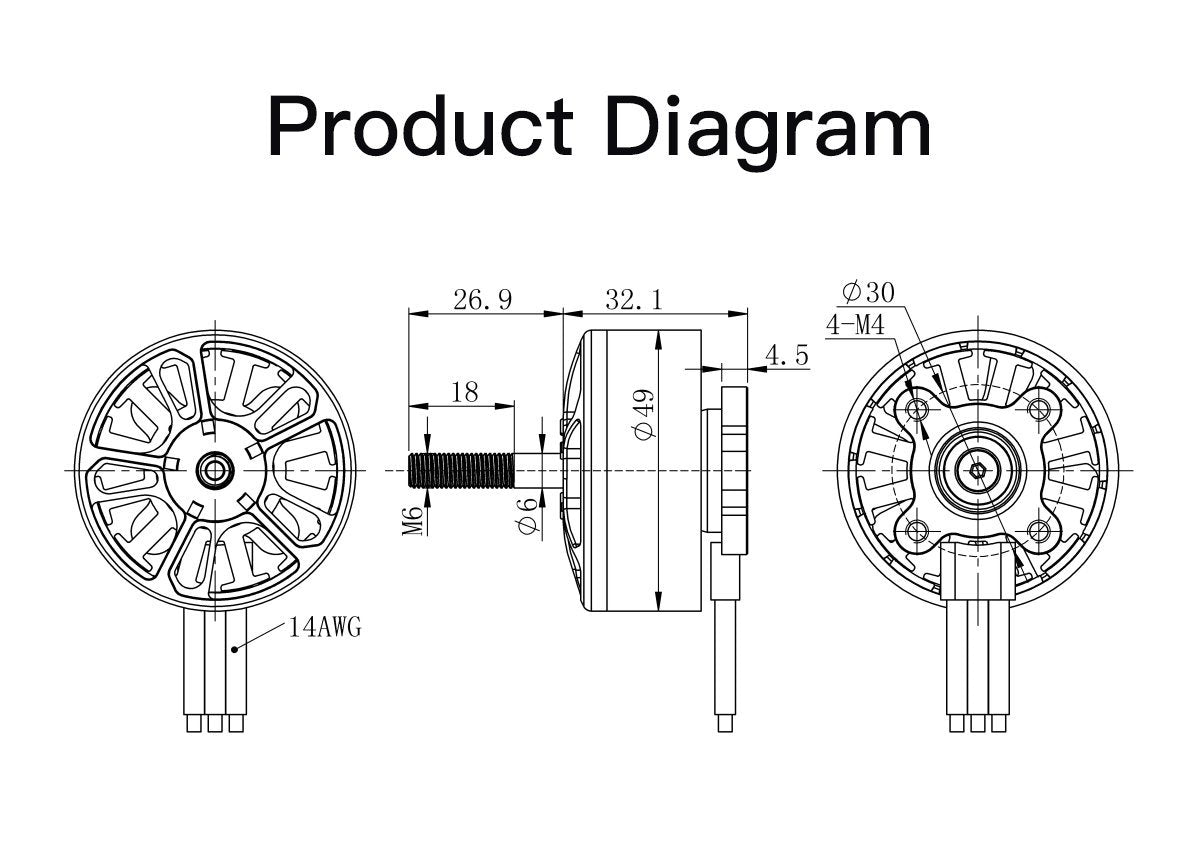

Dimension: φ49mmx32.5mm
-
Shaft Diameter: φ6mm
-
Shaft Protruding Length: 25.5mm
-
Mounting holes: 30mmx30mm
-

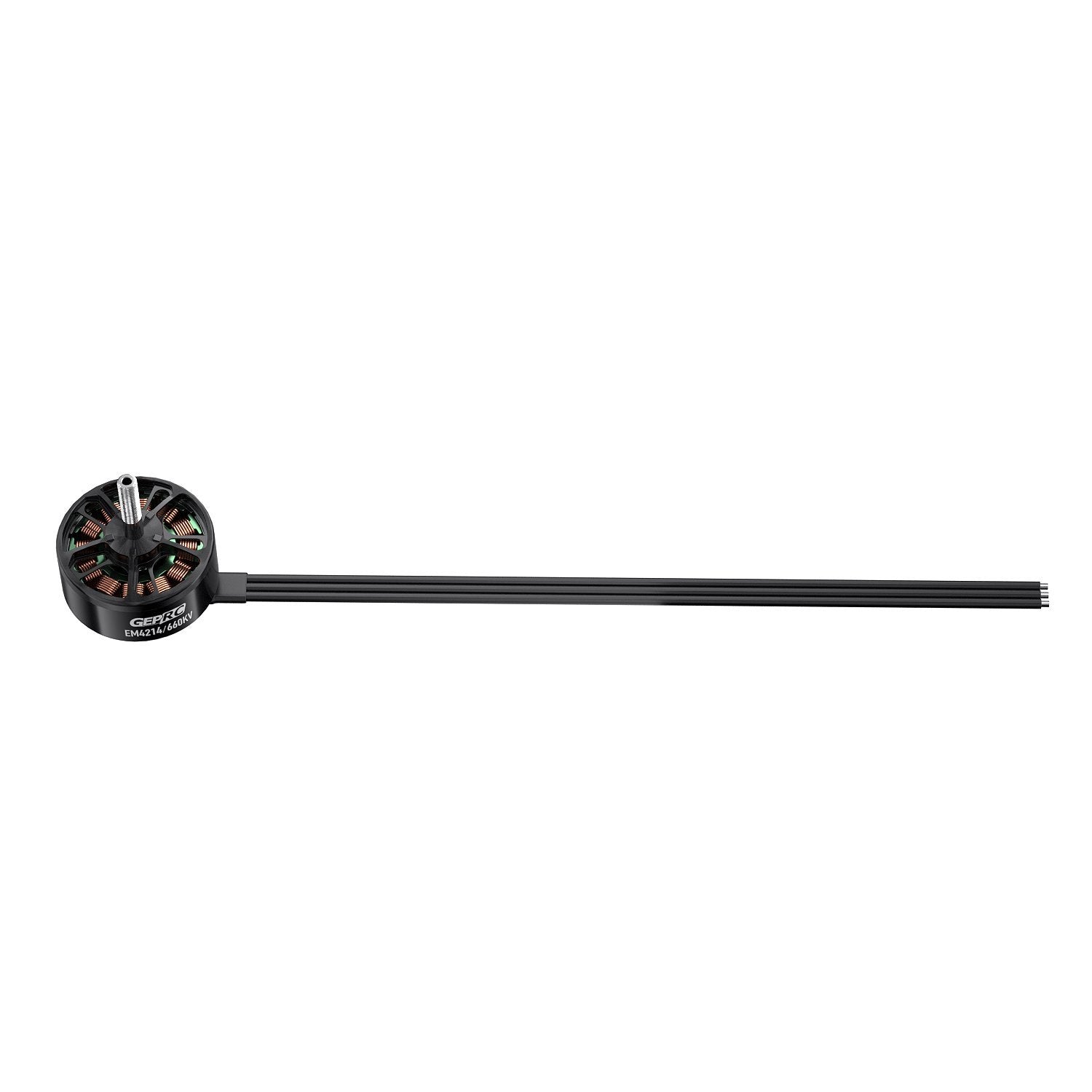

Lead: 800mm/14AWG
-
Compatible ESC: 80A-100A
-
Input Volts: 25.2V(6S LiPo)
-
Winding: Single-strand copper winding
-
Included Screws: Semi-spherical Head M4*10 (4PCS)/M6 Flange Nut (1PCS)
-
Weight: 246g(included wire)
-
Compatible Models: 12-14 inch long-range FPV
What's in the Box?
- 1 × EM4214 660KV Motor
- 4 × M4×10 round head screws
- 1 × M6 anti-slip nut
Disclaimer: Accessories included are subject to availability and may vary based on stock.
